streamplot ​

Makie.streamplot Function
julia
streamplot(f::function, xinterval, yinterval[, zinterval]; color = norm, kwargs...)
streamplot(f::function, rect; color = norm, kwargs...)

Plots streamlines of the function f in the given bounding box. A streamline is defined by matching its tangent vector with f(p) at any point p.

f``must either acceptf(::Point)orf(x::Number, y::Number[, z::Number])and must return a subtype ofVecTypes{2}orVecTypes{3}, for example aVec2forPoint3d`.

Example:

julia
v(x::Point2{T}) where T = Point2f(x[2], 4*x[1])
streamplot(v, -2..2, -2..2)

Implementation

See the function Makie.streamplot_impl for implementation details.

Plot type

The plot type alias for the streamplot function is StreamPlot.

source

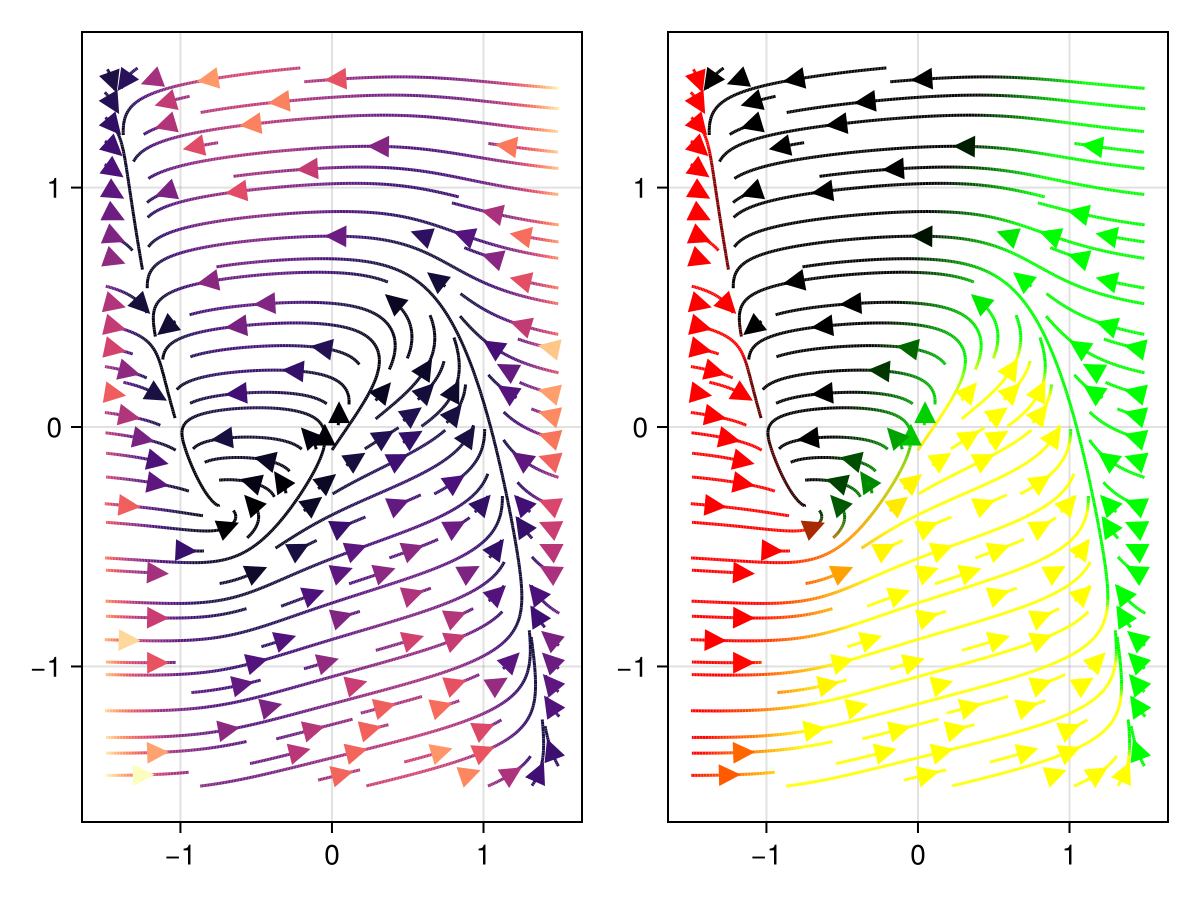

Examples ​

julia
using CairoMakie
struct FitzhughNagumo{T}
    ϵ::T
    s::T
    γ::T
    β::T
end

P = FitzhughNagumo(0.1, 0.0, 1.5, 0.8)

f(x, P::FitzhughNagumo) = Point2f(
    (x[1]-x[2]-x[1]^3+P.s)/P.ϵ,
    P.γ*x[1]-x[2] + P.β
)

f(x) = f(x, P)

fig, ax, pl = streamplot(f, -1.5..1.5, -1.5..1.5, colormap = :magma)
# you can also pass a function to `color`, to either return a number or color value
streamplot(fig[1,2], f, -1.5 .. 1.5, -1.5 .. 1.5, color=(p)-> RGBAf(p..., 0.0, 1))
fig

Attributes ​

alpha ​

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

arrow_head ​

Defaults to automatic

Sets the marker for arrows which show the direction of the streamline. The default marker is either a (scatter) triangle or cone mesh, depending on dimensionality.

arrow_size ​

Defaults to automatic

Sets the size of arrow markers. The default is scaled to the bounding box and gridsize of the plot

clip_planes ​

Defaults to @inherit clip_planes automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color ​

Defaults to norm

One can choose the color of the lines by passing a function color_func(dx::Point) to the color attribute. This can be set to any function or composition of functions. The dx which is passed to color_func is the output of f at the point being colored.

colormap ​

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange ​

Defaults to automatic

The values representing the start and end points of colormap.

colorscale ​

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10, Makie.Symlog10, Makie.AsinhScale, Makie.SinhScale, Makie.LogScale, Makie.LuptonAsinhScale, and Makie.PowerScale.

density ​

Defaults to 1.0

Sets the number of cells which need to be visited by streamlines. This must be between 0 and 1.

depth_shift ​

Defaults to 0.0

Adjusts the depth value of a plot after all other transformations, i.e. in clip space, where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

fxaa ​

Defaults to true

Adjusts whether the plot is rendered with fxaa (fast approximate anti-aliasing, GLMakie only). Note that some plots implement a better native anti-aliasing solution (scatter, text, lines). For them fxaa = true generally lowers quality. Plots that show smoothly interpolated data (e.g. image, surface) may also degrade in quality as fxaa = true can cause blurring.

gridsize ​

Defaults to (32, 32, 32)

Controls the discretization of the bounding box. With density = 1 each square/cube will be visited by at least one streamline.

highclip ​

Defaults to automatic

The color for any value above the colorrange.

inspectable ​

Defaults to @inherit inspectable

Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear ​

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover ​

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label ​

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

joinstyle ​

Defaults to @inherit joinstyle

Controls the rendering at line corners. Options are :miter for sharp corners, :bevel for cut-off corners, and :round for rounded corners. If the corner angle is below miter_limit, :miter is equivalent to :bevel to avoid long spikes.

linecap ​

Defaults to @inherit linecap

Sets the type of line cap used for streamlines. Options are :butt (flat without extrusion), :square (flat with half a linewidth extrusion) or :round.

linestyle ​

Defaults to nothing

Sets the dash pattern for lines. See ?lines.

linewidth ​

Defaults to @inherit linewidth

Sets the linewidth of streamlines.

lowclip ​

Defaults to automatic

The color for any value below the colorrange.

maxsteps ​

Defaults to 500

Controls the maximum number of points per streamline.

miter_limit ​

Defaults to @inherit miter_limit

" Sets the minimum inner line join angle below which miter joins truncate. See also Makie.miter_distance_to_angle.

model ​

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color ​

Defaults to :transparent

The color for NaN values.

overdraw ​

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

quality ​

Defaults to 16

Sets the quality of the cone mesh generated for 3D arrow markers.

space ​

Defaults to :data

Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao ​

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

stepsize ​

Defaults to 0.01

Controls the discretization of streamlines. The smaller stepsize, the closer line points are together. The stepsize acts on the normalized output of f without taking limits into account.

transformation ​

Defaults to :automatic

Controls the inheritance or directly sets the transformations of a plot. Transformations include the transform function and model matrix as generated by translate!(...), scale!(...) and rotate!(...). They can be set directly by passing a Transformation() object or inherited from the parent plot or scene. Inheritance options include:

  • :automatic: Inherit transformations if the parent and child space is compatible

  • :inherit: Inherit transformations

  • :inherit_model: Inherit only model transformations

  • :inherit_transform_func: Inherit only the transform function

  • :nothing: Inherit neither, fully disconnecting the child's transformations from the parent

Another option is to pass arguments to the transform!() function which then get applied to the plot. For example transformation = (:xz, 1.0) which rotates the xy plane to the xz plane and translates by 1.0. For this inheritance defaults to :automatic but can also be set through e.g. (:nothing, (:xz, 1.0)).

transparency ​

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible ​

Defaults to true

Controls whether the plot gets rendered or not.
