pathtext ​

Makie.pathtext Function
julia
pathtext(path; text = "", kwargs...)

Draw text along a path. path can be a Vector{<: Point2} (with optional NaN separators between sub-paths) or a BezierPath.

When a BezierPath is provided, glyphs are positioned and oriented using exact cubic-Bézier evaluation, giving smooth tangent rotations. A polyline input is sampled piecewise-linearly.

The path itself may be given in :data or :pixel space, controlled by the space attribute.

Newlines in text are currently not supported.

Plot type

The plot type alias for the pathtext function is PathText.

source

Examples ​

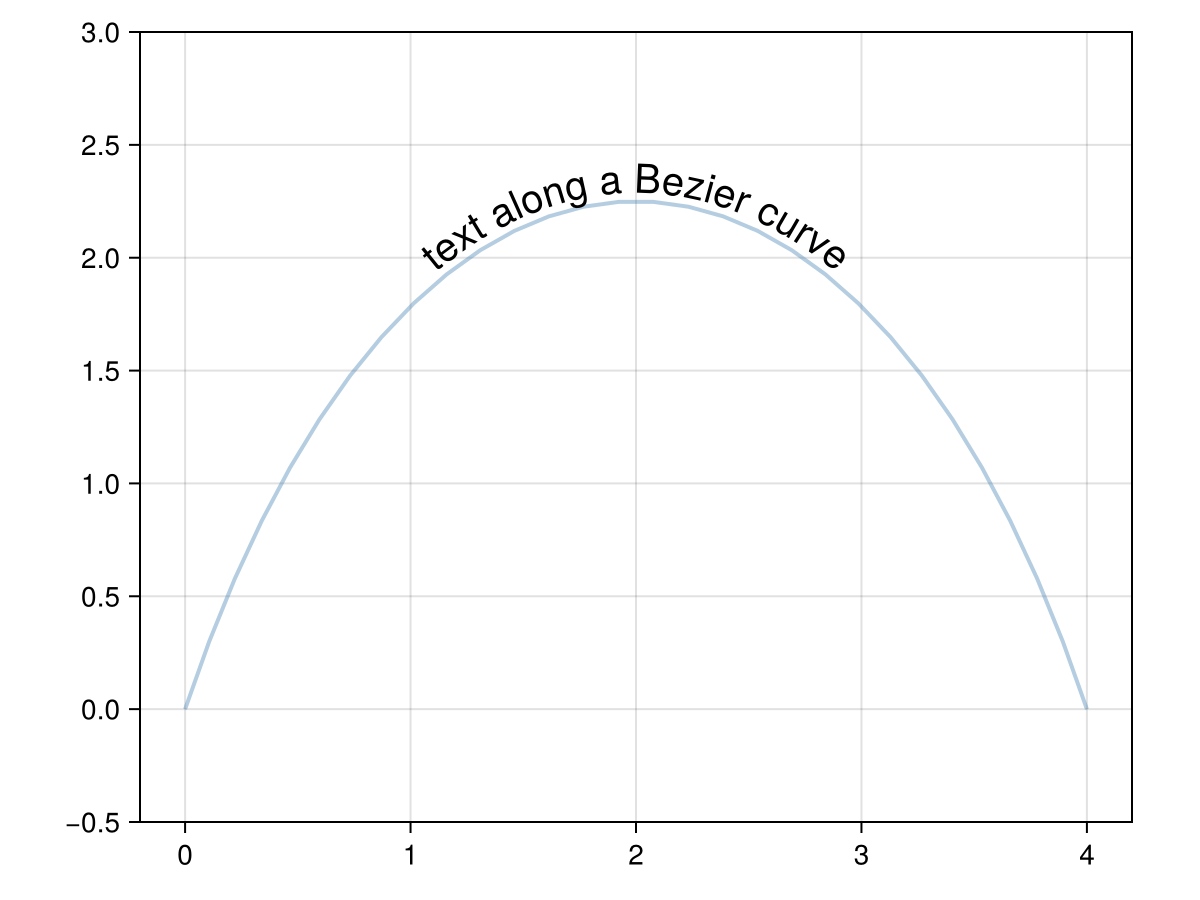

Along a BezierPath ​

julia
using CairoMakie
bp = BezierPath([
    MoveTo(Point2(0, 0)),
    CurveTo(Point2(1, 3), Point2(3, 3), Point2(4, 0)),
])

f = Figure()
ax = Axis(f[1, 1], aspect = DataAspect(), limits = (nothing, (-0.5, 3)))
lines!(ax, bp, color = (:steelblue, 0.4), linewidth = 2)
pathtext!(ax, bp, text = "text along a Bezier curve", fontsize = 20, align = (:center, :bottom))
f

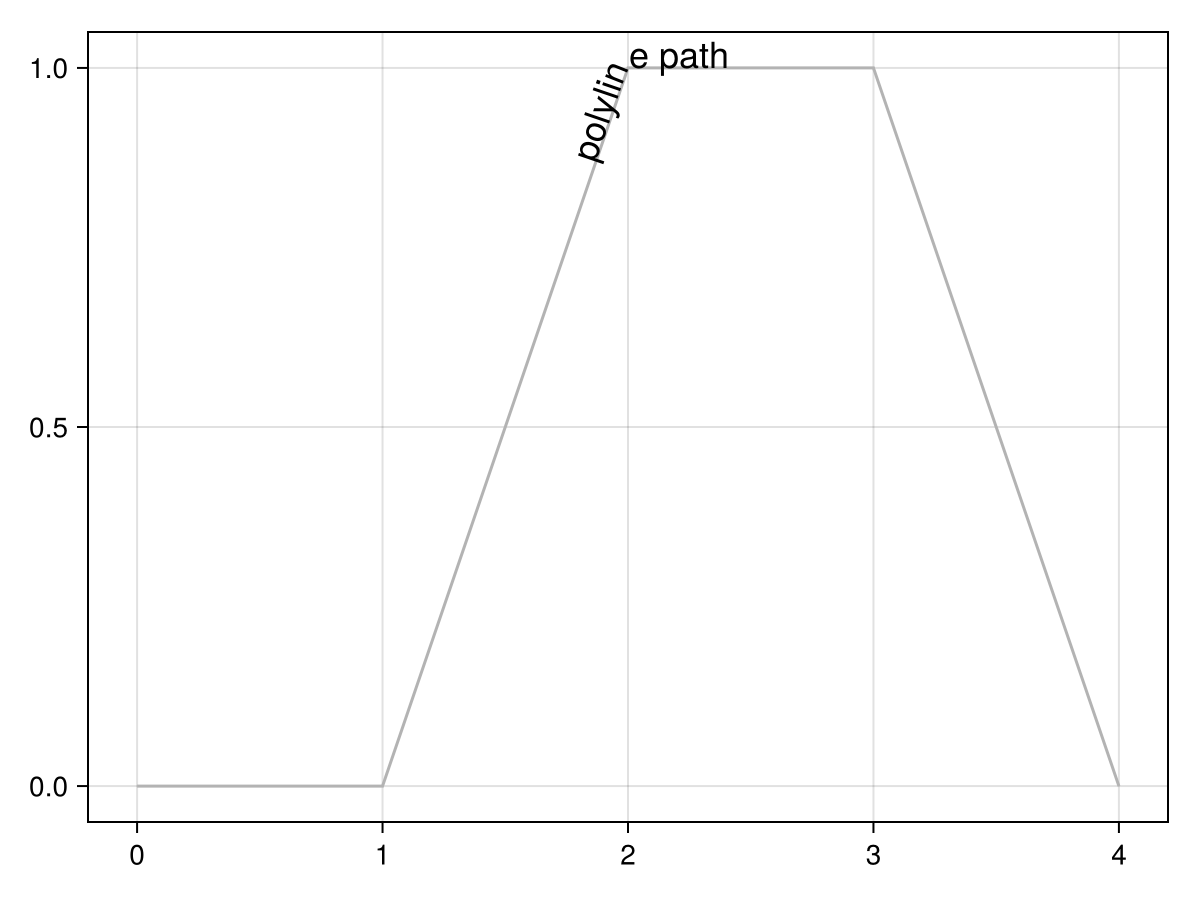

Along a polyline ​

julia
using CairoMakie
path = Point2f[(0, 0), (1, 0), (2, 1), (3, 1), (4, 0)]

f = Figure()
ax = Axis(f[1, 1])
lines!(ax, path, color = :gray70)
pathtext!(ax, path, text = "polyline path", fontsize = 18, align = (:center, :baseline))
f

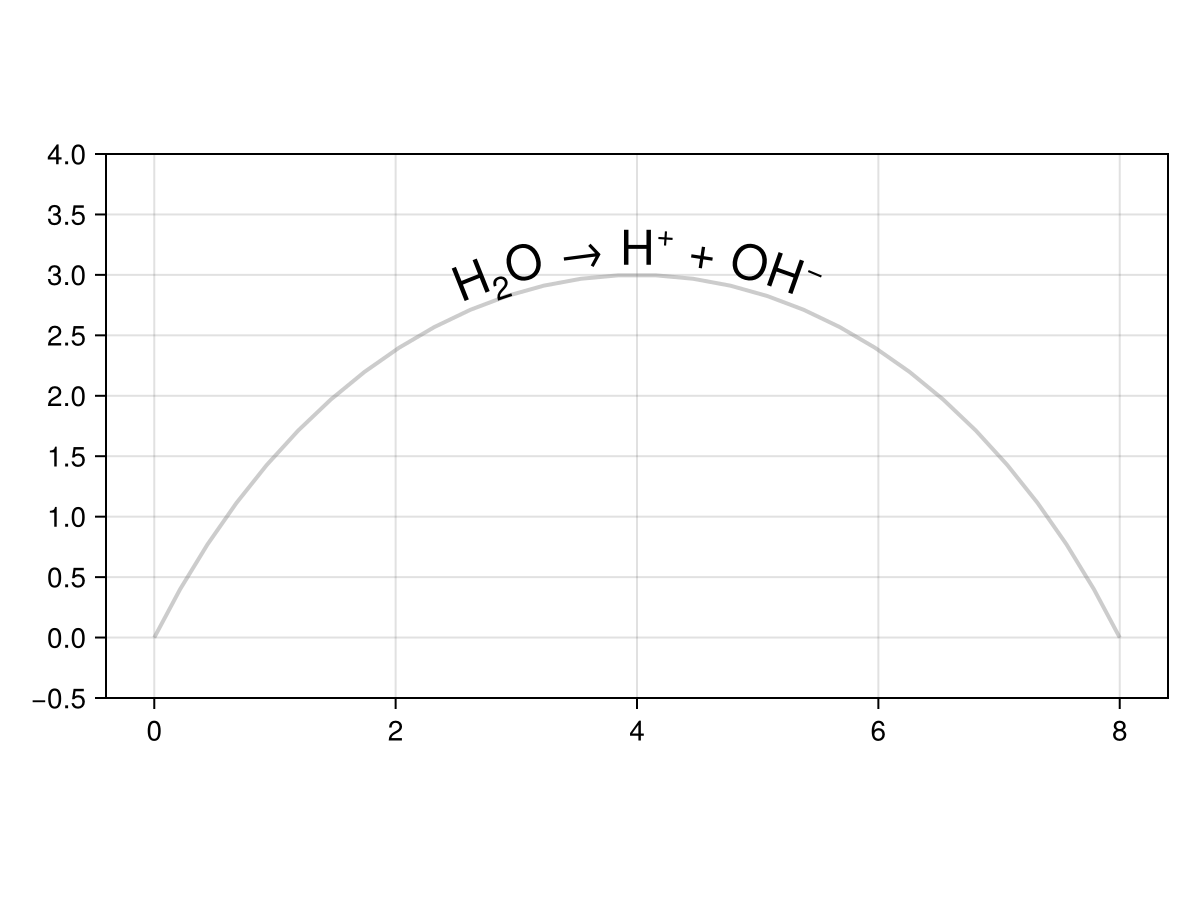

RichText with sub/superscripts ​

julia
using CairoMakie
bp = BezierPath([
    MoveTo(Point2(0, 0)),
    CurveTo(Point2(2, 4), Point2(6, 4), Point2(8, 0)),
])

f = Figure()
ax = Axis(f[1, 1], aspect = DataAspect(), limits = (nothing, (-0.5, 4)))
lines!(ax, bp, color = (:gray, 0.4), linewidth = 2)
pathtext!(ax, bp,
    text = rich("H", subscript("2"), "O → H", superscript("+"), " + OH", superscript("−")),
    fontsize = 24, align = (:center, :bottom))
f

Attributes ​

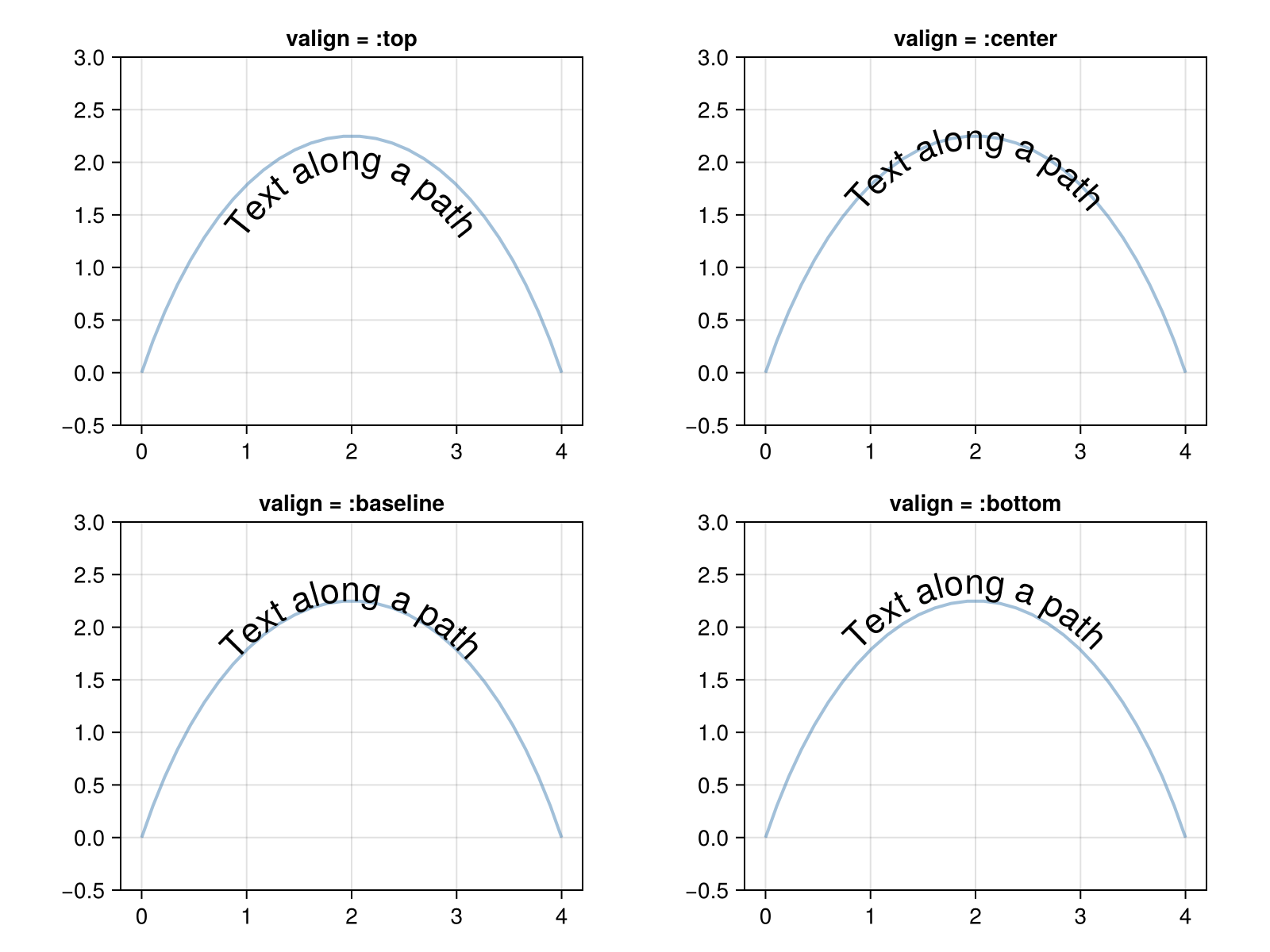

align ​

Defaults to (:left, :baseline)

Alignment of the text relative to the path, as a (halign, valign) tuple. halign controls position along the path (:left, :center, :right, or a Real fraction 0–1). valign controls perpendicular placement (:baseline, :bottom, :center, :top).

julia
using CairoMakie
bp = BezierPath([
    MoveTo(Point2(0, 0)),
    CurveTo(Point2(1, 3), Point2(3, 3), Point2(4, 0)),
])
fig = Figure(size = (800, 600))
for (i, va) in enumerate((:top, :center, :baseline, :bottom))
    r, c = fldmod1(i, 2)
    ax = Axis(fig[r, c], aspect = DataAspect(), title = "valign = $(repr(va))",
        limits = (nothing, (-0.5, 3)))
    lines!(ax, bp, color = (:steelblue, 0.5), linewidth = 2)
    pathtext!(ax, bp, text = "Text along a path", fontsize = 22,
        align = (:center, va))
end
fig

alpha ​

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)), will get multiplied.

clip_planes ​

Defaults to @inherit clip_planes automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color ​

Defaults to @inherit textcolor

The color of the text. May be a single value or a vector with one entry per character.

colormap ​

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange ​

Defaults to automatic

The values representing the start and end points of colormap.

colorscale ​

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10, Makie.Symlog10, Makie.AsinhScale, Makie.SinhScale, Makie.LogScale, Makie.LuptonAsinhScale, and Makie.PowerScale.

depth_shift ​

Defaults to 0.0

Adjusts the depth value of a plot after all other transformations, i.e. in clip space, where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

font ​

Defaults to @inherit font

Sets the font. Can be a Symbol that is looked up in fonts or a font path/name.

fonts ​

Defaults to @inherit fonts

Dictionary of fonts that can be referenced by Symbol.

fontsize ​

Defaults to @inherit fontsize

Font size in pixels.

fxaa ​

Defaults to true

Adjusts whether the plot is rendered with fxaa (fast approximate anti-aliasing, GLMakie only). Note that some plots implement a better native anti-aliasing solution (scatter, text, lines). For them fxaa = true generally lowers quality. Plots that show smoothly interpolated data (e.g. image, surface) may also degrade in quality as fxaa = true can cause blurring.

highclip ​

Defaults to automatic

The color for any value above the colorrange.

inspectable ​

Defaults to @inherit inspectable

Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear ​

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover ​

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label ​

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

lowclip ​

Defaults to automatic

The color for any value below the colorrange.

model ​

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color ​

Defaults to :transparent

The color for NaN values.

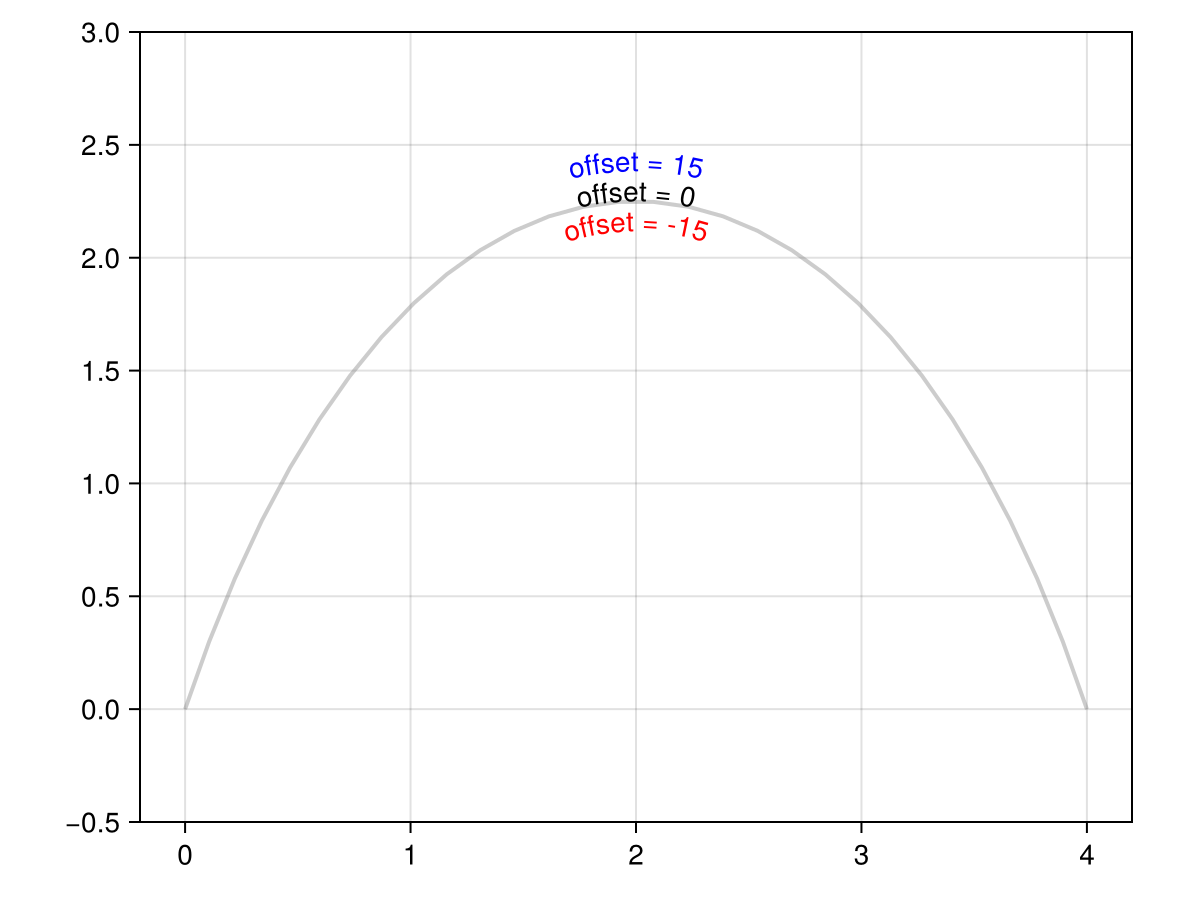

offset ​

Defaults to 0.0

Additional perpendicular offset (in pixels) from the path, applied on top of valign. Positive values shift the text to the left of the path's direction of travel.

julia
using CairoMakie
bp = BezierPath([
    MoveTo(Point2(0, 0)),
    CurveTo(Point2(1, 3), Point2(3, 3), Point2(4, 0)),
])
fig = Figure()
ax = Axis(fig[1, 1], aspect = DataAspect(), limits = (nothing, (-0.5, 3)))
lines!(ax, bp, color = (:gray, 0.4), linewidth = 2)
for (off, col) in zip((-15, 0, 15), (:red, :black, :blue))
    pathtext!(ax, bp, text = "offset = $off", fontsize = 14,
        align = (:center, :baseline), offset = off, color = col)
end
fig

overdraw ​

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

space ​

Defaults to :data

Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao ​

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

strokecolor ​

Defaults to :black

Color of the text stroke. May be per-character.

strokewidth ​

Defaults to 0

Width of the text stroke in pixels. May be per-character.

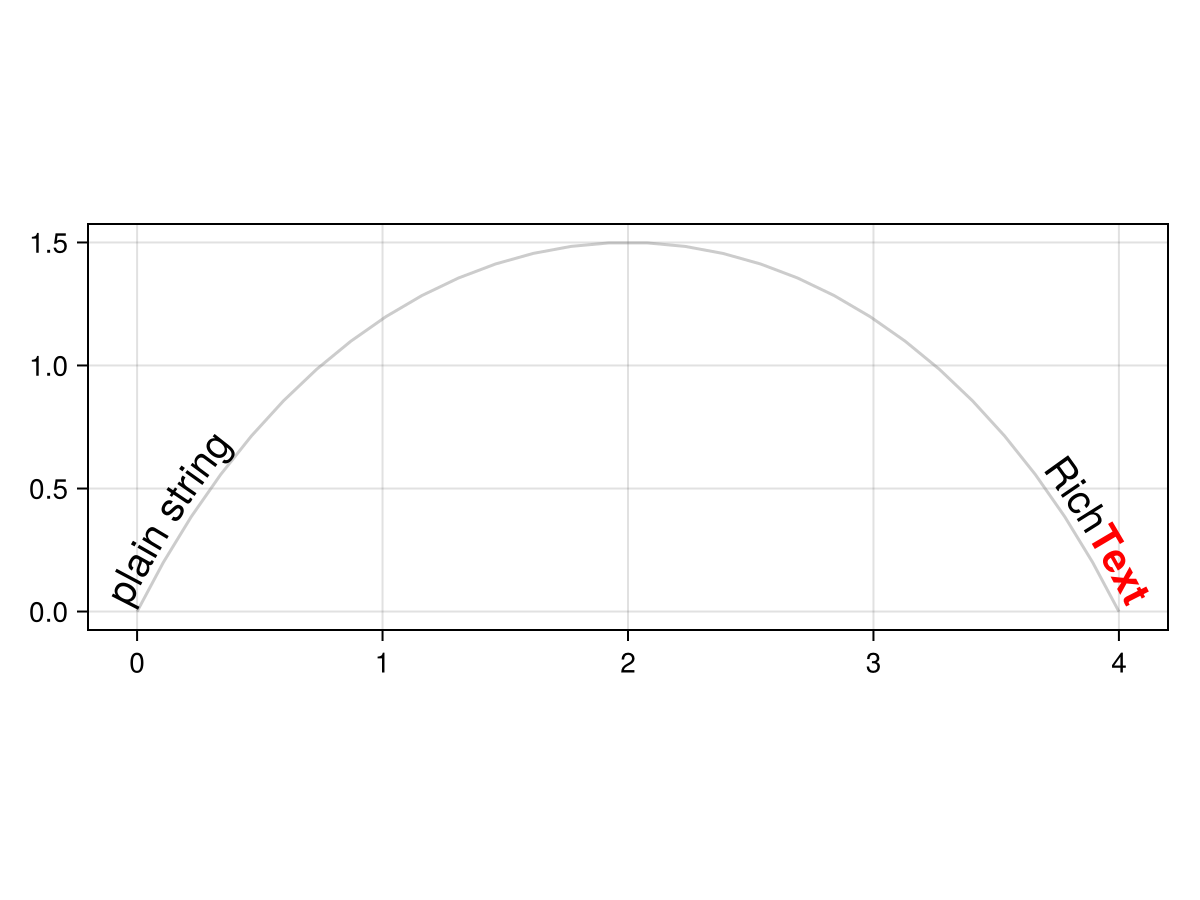

text ​

Defaults to ""

The text to place along the path. May be String or RichText. Must not contain newlines.

julia
using CairoMakie
bp = BezierPath([
    MoveTo(Point2(0, 0)),
    CurveTo(Point2(1, 2), Point2(3, 2), Point2(4, 0)),
])
fig = Figure()
ax = Axis(fig[1, 1], aspect = DataAspect())
lines!(ax, bp, color = (:gray, 0.4))
pathtext!(ax, bp, text = "plain string", fontsize = 20, align = (:left, :bottom))
pathtext!(ax, bp, text = rich("Rich", rich("Text"; color = :red, font = :bold)),
    fontsize = 20, align = (:right, :bottom))
fig

transformation ​

Defaults to :automatic

Controls the inheritance or directly sets the transformations of a plot. Transformations include the transform function and model matrix as generated by translate!(...), scale!(...) and rotate!(...). They can be set directly by passing a Transformation() object or inherited from the parent plot or scene. Inheritance options include:

  • :automatic: Inherit transformations if the parent and child space is compatible

  • :inherit: Inherit transformations

  • :inherit_model: Inherit only model transformations

  • :inherit_transform_func: Inherit only the transform function

  • :nothing: Inherit neither, fully disconnecting the child's transformations from the parent

Another option is to pass arguments to the transform!() function which then get applied to the plot. For example transformation = (:xz, 1.0) which rotates the xy plane to the xz plane and translates by 1.0. For this inheritance defaults to :automatic but can also be set through e.g. (:nothing, (:xz, 1.0)).

transparency ​

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible ​

Defaults to true

Controls whether the plot gets rendered or not.
