mesh ​

MakieCore.mesh Function
julia
mesh(x, y, z)
mesh(mesh_object)
mesh(x, y, z, faces)
mesh(xyz, faces)

Plots a 3D or 2D mesh. Supported mesh_objects include Mesh types from GeometryBasics.jl.

Plot type

The plot type alias for the mesh function is Mesh.

source

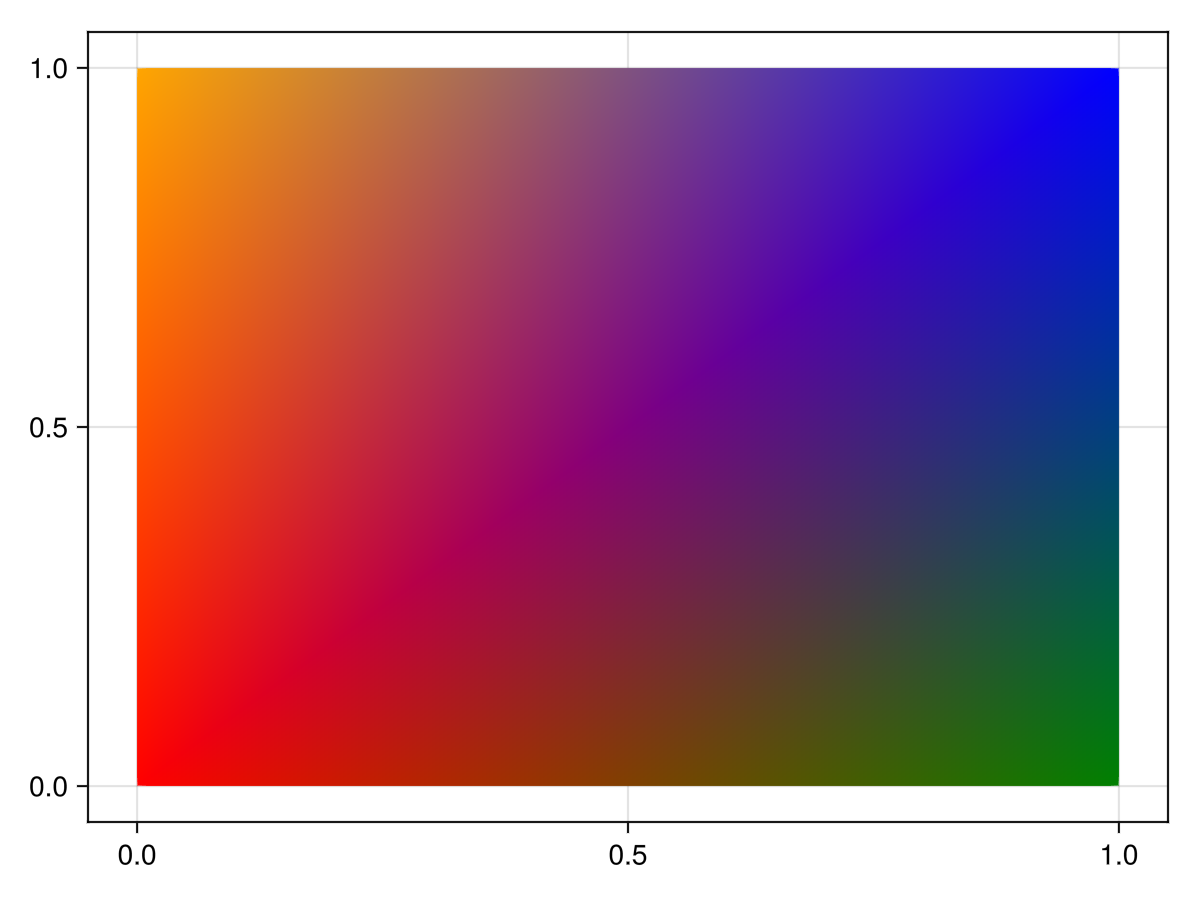

Examples ​

julia
using GLMakie
vertices = [
    0.0 0.0;
    1.0 0.0;
    1.0 1.0;
    0.0 1.0;
]

faces = [
    1 2 3;
    3 4 1;
]

colors = [:red, :green, :blue, :orange]

mesh(vertices, faces, color = colors, shading = NoShading)

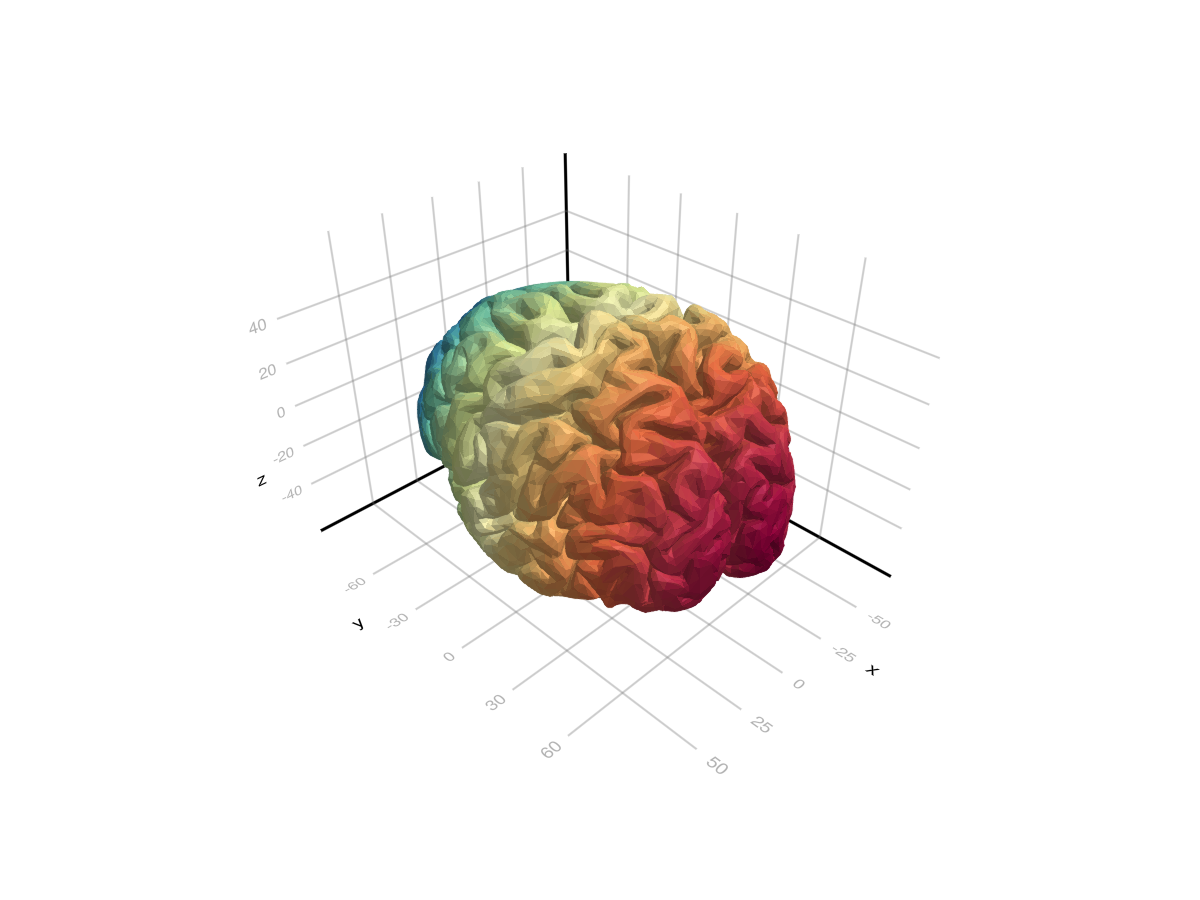

julia
using GLMakie
using FileIO

brain = load(assetpath("brain.stl"))

mesh(
    brain,
    color = [tri[1][2] for tri in brain for i in 1:3],
    colormap = Reverse(:Spectral)
)

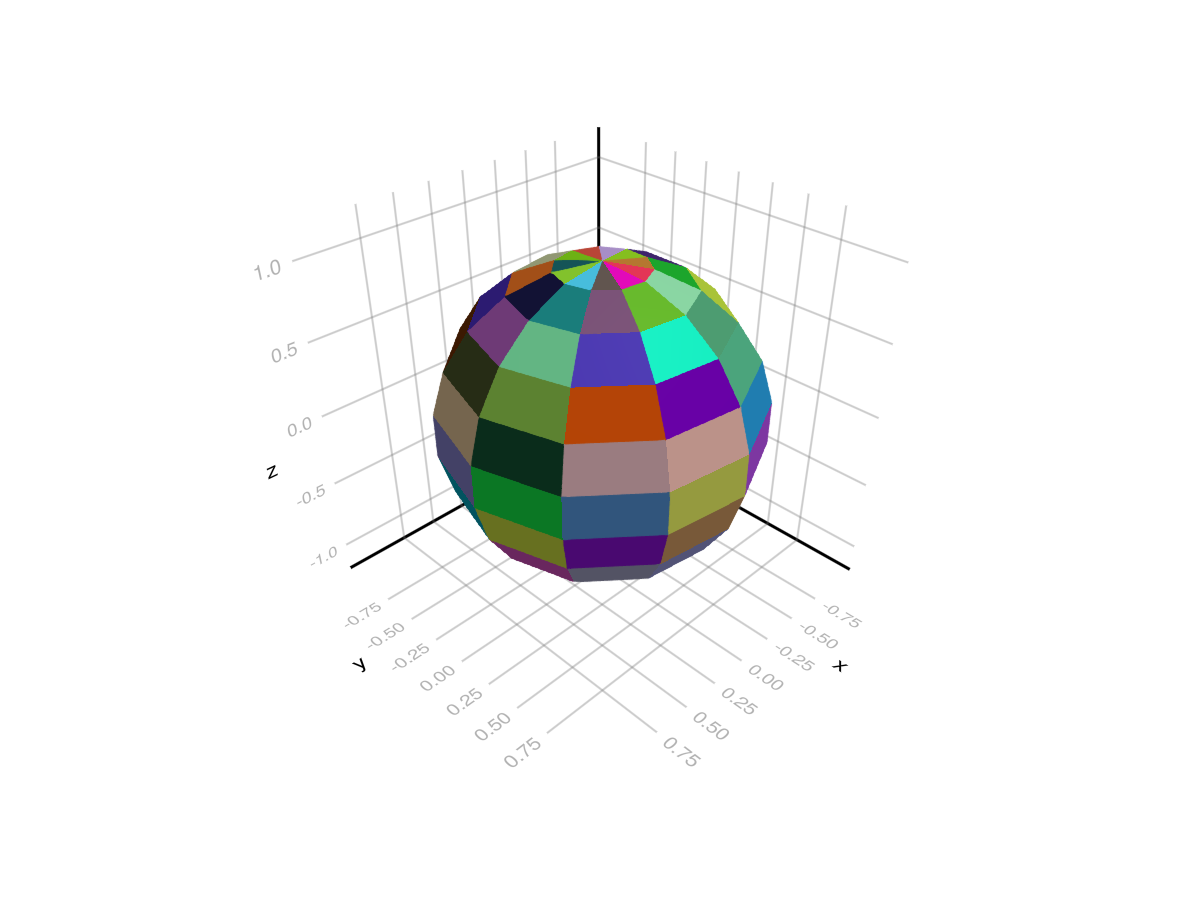

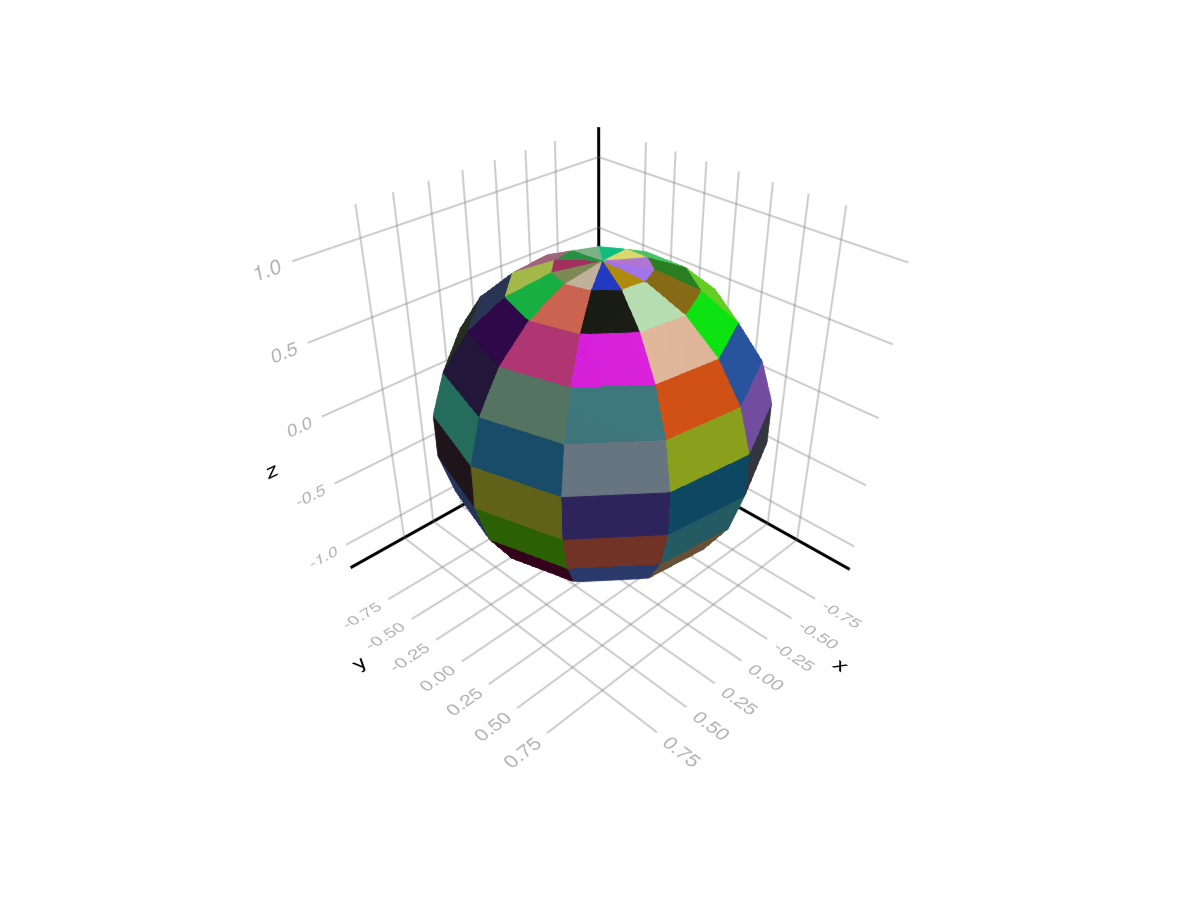

Face colors and normals ​

julia
using GLMakie
using GeometryBasics

# Reduce quality of sphere
s = Tessellation(Sphere(Point3f(0), 1f0), 12)
ps = coordinates(s)
fs = faces(s)

# Use a FaceView to with a new set of faces which refer to one color per face.
# Each face must have the same length as the respective face in fs.
# (Using the same face type guarantees this)
FT = eltype(fs); N = length(fs)
cs = FaceView(rand(RGBf, N), [FT(i) for i in 1:N])

# generate normals per face (this creates a FaceView as well)
ns = face_normals(ps, fs)

# Create mesh
m = GeometryBasics.mesh(ps, fs, normal = ns, color = cs)

mesh(m)

Using GeometryBasics.Mesh and Buffer/Sampler type ​

We can also create a mesh to specify normals, uv coordinates:

julia
using GeometryBasics, LinearAlgebra, GLMakie, FileIO


# Create vertices for a Sphere
r = 0.5f0
n = 30
θ = LinRange(0, pi, n)
φ2 = LinRange(0, 2pi, 2 * n)
x2 = [r * cos(φv) * sin(θv) for θv in θ, φv in φ2]
y2 = [r * sin(φv) * sin(θv) for θv in θ, φv in φ2]
z2 = [r * cos(θv) for θv in θ, φv in 2φ2]
points = vec([Point3f(xv, yv, zv) for (xv, yv, zv) in zip(x2, y2, z2)])

# The coordinates form a matrix, so to connect neighboring vertices with a face
# we can just use the faces of a rectangle with the same dimension as the matrix:
_faces = decompose(QuadFace{GLIndex}, Tessellation(Rect(0, 0, 1, 1), size(z2)))
# Normals of a centered sphere are easy, they're just the vertices normalized.
_normals = normalize.(points)

# Now we generate UV coordinates, which map the image (texture) to the vertices.
# (0, 0) means lower left edge of the image, while (1, 1) means upper right corner.
function gen_uv(shift)
    return vec(map(CartesianIndices(size(z2))) do ci
        tup = ((ci[1], ci[2]) .- 1) ./ ((size(z2) .* shift) .- 1)
        return Vec2f(reverse(tup))
    end)
end

# We add some shift to demonstrate how UVs work:
uv = gen_uv(0.0)
# We can use a Buffer to update single elements in an array directly on the GPU
# with GLMakie. They work just like normal arrays, but forward any updates written to them directly to the GPU
uv_buff = Buffer(uv)
gb_mesh = GeometryBasics.Mesh(points, _faces; uv = uv_buff, normal = _normals)

f, ax, pl = mesh(gb_mesh,  color = rand(100, 100), colormap=:blues)
wireframe!(ax, gb_mesh, color=(:black, 0.2), linewidth=2, transparency=true)
record(f, "uv_mesh.mp4", LinRange(0, 1, 100)) do shift
    uv_buff[1:end] = gen_uv(shift)
end

The uv coordinates that go out of bounds will get repeated per default. One can use a Sampler object to change that behaviour:

julia
#=
Possible values:
:clamp_to_edge (default)
:mirrored_repeat
:repeat
=#
data = load(Makie.assetpath("earth.png"))
color = Sampler(rotl90(data'), x_repeat=:mirrored_repeat,y_repeat=:repeat)
f, ax, pl = mesh(gb_mesh,  color = color)
wireframe!(ax, gb_mesh, color=(:black, 0.2), linewidth=2, transparency=true)

record(f, "uv_mesh_mirror.mp4", LinRange(0, 1, 100)) do shift
    uv_buff[1:end] = gen_uv(shift)
end

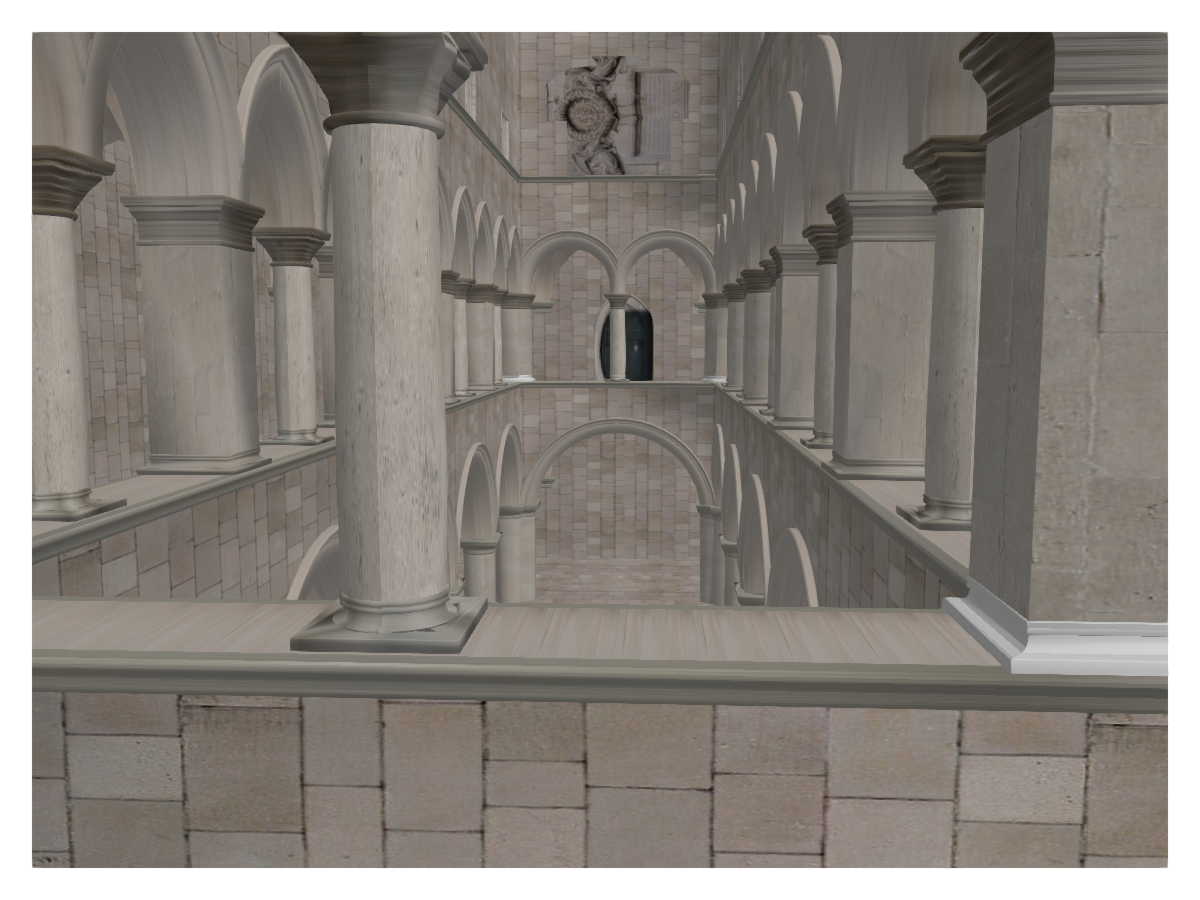

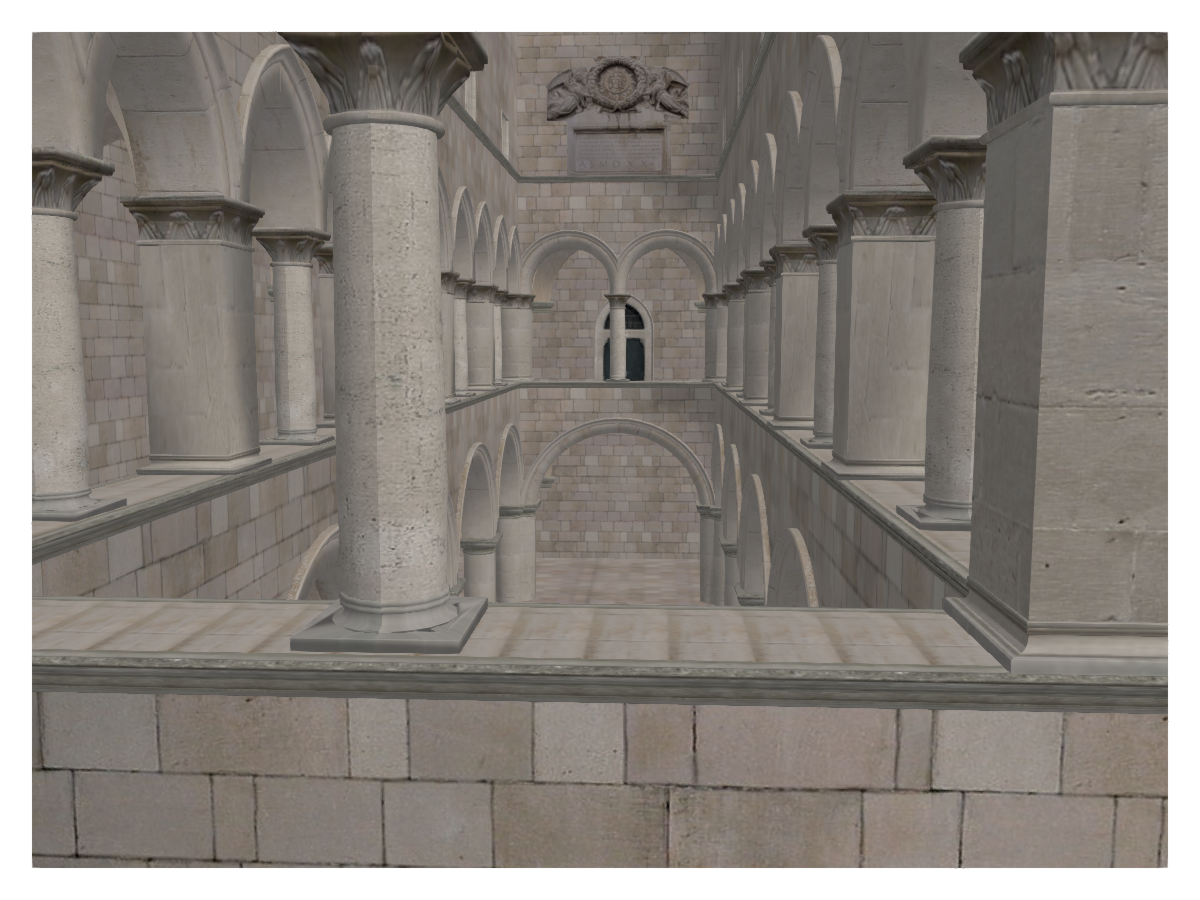

Complex Meshes (Experimental) ​

julia
using GLMakie
using FileIO

# Load a mesh with material information. This will produce a GeometryBasics.MetaMesh
sponza = load(assetpath("sponza/sponza.obj"))

# The MetaMesh contains a standard GeometryBasics.Mesh in `sponza.mesh` with
# `mesh.views` defining the different sub-meshes, and material metadata in the
# `sponza.meta` Dict. The metadata includes:
# - meta[:material_names] which maps each view in `mesh.views` to a material name
# - meta[:materials] which maps a material name to a nested Dict of the loaded properties
# When a MetaMesh is given to Makie.mesh(), it will look for these entries and
# try to build a plot accordingly.
f, a, p = mesh(sponza)

# Set up camera
update_cam!(a.scene, Vec3f(-15, 7, 1), Vec3f(3, 5, 0), Vec3f(0,1,0))
cameracontrols(a).settings.center[] = false # don't recenter on display
cameracontrols(a).settings.fixed_axis[] = false # rotate freely

f

Attributes ​

alpha ​

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

backlight ​

Defaults to 0.0

Sets a weight for secondary light calculation with inverted normals.

clip_planes ​

Defaults to automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color ​

Defaults to @inherit patchcolor

Sets the color of the mesh. Can be a Vector{<:Colorant} for per vertex colors or a single Colorant. A Matrix{<:Colorant} can be used to color the mesh with a texture, which requires the mesh to contain texture coordinates.

colormap ​

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange ​

Defaults to automatic

The values representing the start and end points of colormap.

colorscale ​

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

cycle ​

Defaults to [:color => :patchcolor]

No docs available.

depth_shift ​

Defaults to 0.0

adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

diffuse ​

Defaults to 1.0

Sets how strongly the red, green and blue channel react to diffuse (scattered) light.

fxaa ​

Defaults to true

adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

highclip ​

Defaults to automatic

The color for any value above the colorrange.

inspectable ​

Defaults to true

sets whether this plot should be seen by DataInspector.

inspector_clear ​

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover ​

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label ​

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

interpolate ​

Defaults to true

sets whether colors should be interpolated

lowclip ​

Defaults to automatic

The color for any value below the colorrange.

matcap ​

Defaults to nothing

No docs available.

material ​

Defaults to nothing

RPRMakie only attribute to set complex RadeonProRender materials. Warning, how to set an RPR material may change and other backends will ignore this attribute

model ​

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color ​

Defaults to :transparent

The color for NaN values.

overdraw ​

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

shading ​

Defaults to automatic

Sets the lighting algorithm used. Options are NoShading (no lighting), FastShading (AmbientLight + PointLight) or MultiLightShading (Multiple lights, GLMakie only). Note that this does not affect RPRMakie.

shininess ​

Defaults to 32.0

Sets how sharp the reflection is.

space ​

Defaults to :data

sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

specular ​

Defaults to 0.2

Sets how strongly the object reflects light in the red, green and blue channels.

ssao ​

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

transformation ​

Defaults to automatic

No docs available.

transparency ​

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

uv_transform ​

Defaults to automatic

Sets a transform for uv coordinates, which controls how a texture is mapped to a mesh. The attribute can be I, scale::VecTypes{2}, (translation::VecTypes{2}, scale::VecTypes{2}), any of :rotr90, :rotl90, :rot180, :swap_xy/:transpose, :flip_x, :flip_y, :flip_xy, or most generally a Makie.Mat{2, 3, Float32} or Makie.Mat3f as returned by Makie.uv_transform(). They can also be changed by passing a tuple (op3, op2, op1).

visible ​

Defaults to true

Controls whether the plot will be rendered or not.
