ablines ​

Makie.ablines Function
julia
ablines(intercepts, slopes; attrs...)

Creates a line defined by f(x) = slope * x + intercept crossing a whole Scene with 2D projection at its current limits. You can pass one or multiple intercepts or slopes.

Plot type

The plot type alias for the ablines function is ABLines.

source

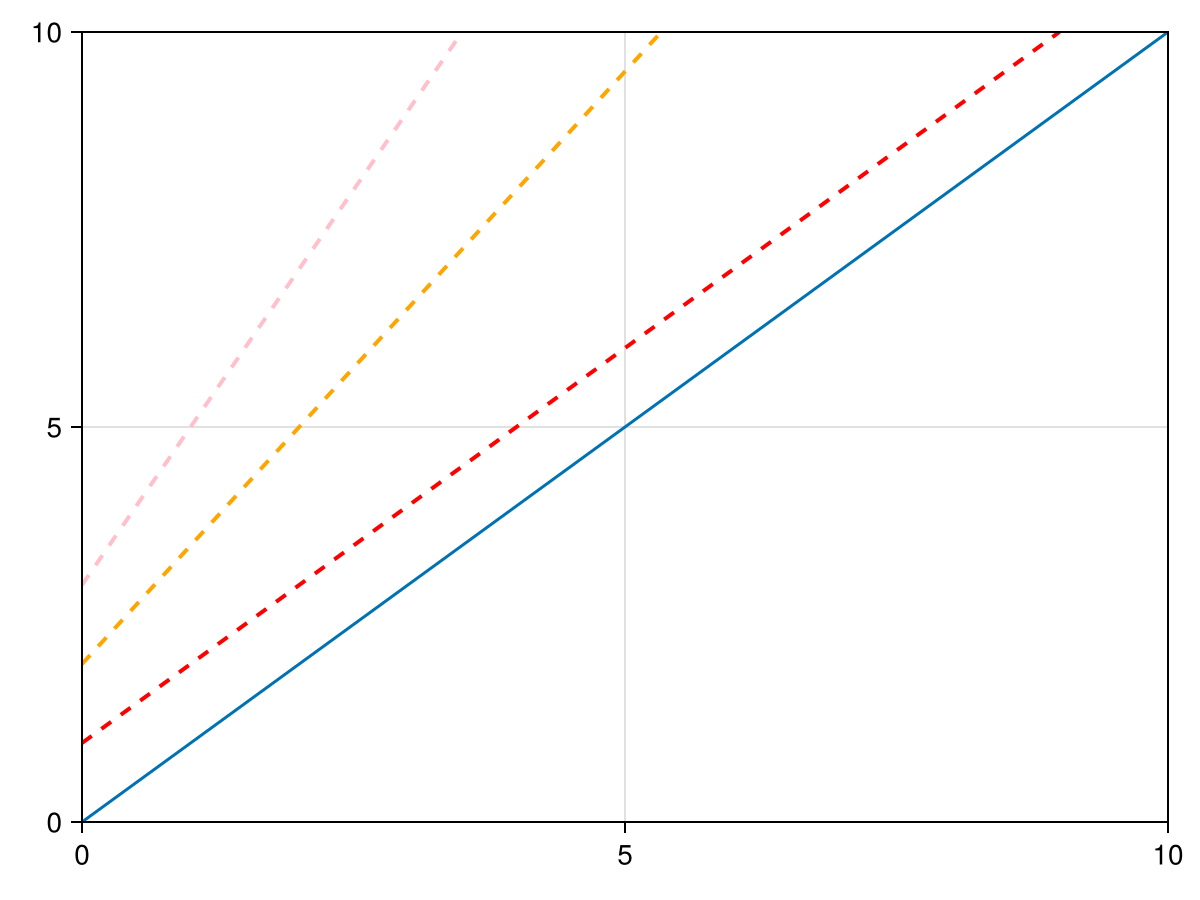

julia
using CairoMakie
ablines(0, 1)
ablines!([1, 2, 3], [1, 1.5, 2], color = [:red, :orange, :pink], linestyle=:dash, linewidth=2)
current_figure()

Attributes ​

alpha ​

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

clip_planes ​

Defaults to automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color ​

Defaults to @inherit linecolor

The color of the line.

colormap ​

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange ​

Defaults to automatic

The values representing the start and end points of colormap.

colorscale ​

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

cycle ​

Defaults to [:color]

Sets which attributes to cycle when creating multiple plots.

depth_shift ​

Defaults to 0.0

adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

fxaa ​

Defaults to false

adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

highclip ​

Defaults to automatic

The color for any value above the colorrange.

inspectable ​

Defaults to true

sets whether this plot should be seen by DataInspector.

inspector_clear ​

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover ​

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label ​

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

linecap ​

Defaults to @inherit linecap

Sets the type of linecap used, i.e. :butt (flat with no extrusion), :square (flat with 1 linewidth extrusion) or :round.

linestyle ​

Defaults to nothing

Sets the dash pattern of the line. Options are :solid (equivalent to nothing), :dot, :dash, :dashdot and :dashdotdot. These can also be given in a tuple with a gap style modifier, either :normal, :dense or :loose. For example, (:dot, :loose) or (:dashdot, :dense).

For custom patterns have a look at Makie.Linestyle.

linewidth ​

Defaults to @inherit linewidth

Sets the width of the line in pixel units

lowclip ​

Defaults to automatic

The color for any value below the colorrange.

model ​

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color ​

Defaults to :transparent

The color for NaN values.

overdraw ​

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

space ​

Defaults to :data

sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao ​

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

transformation ​

Defaults to automatic

No docs available.

transparency ​

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible ​

Defaults to true

Controls whether the plot will be rendered or not.
