LScene

If you need a normal Makie scene in a layout, for example for 3D plots, you have to use LScene right now. It's just a wrapper around the normal Scene that makes it block. The underlying Scene is accessible via the scene field. You can plot into the LScene directly, though.

You can pass keyword arguments to the underlying Scene object to the scenekw keyword. Currently, it can be necessary to pass a couple of attributes explicitly to make sure they are not inherited from the main scene. To see what parameters are applicable, have a look at the scene docs

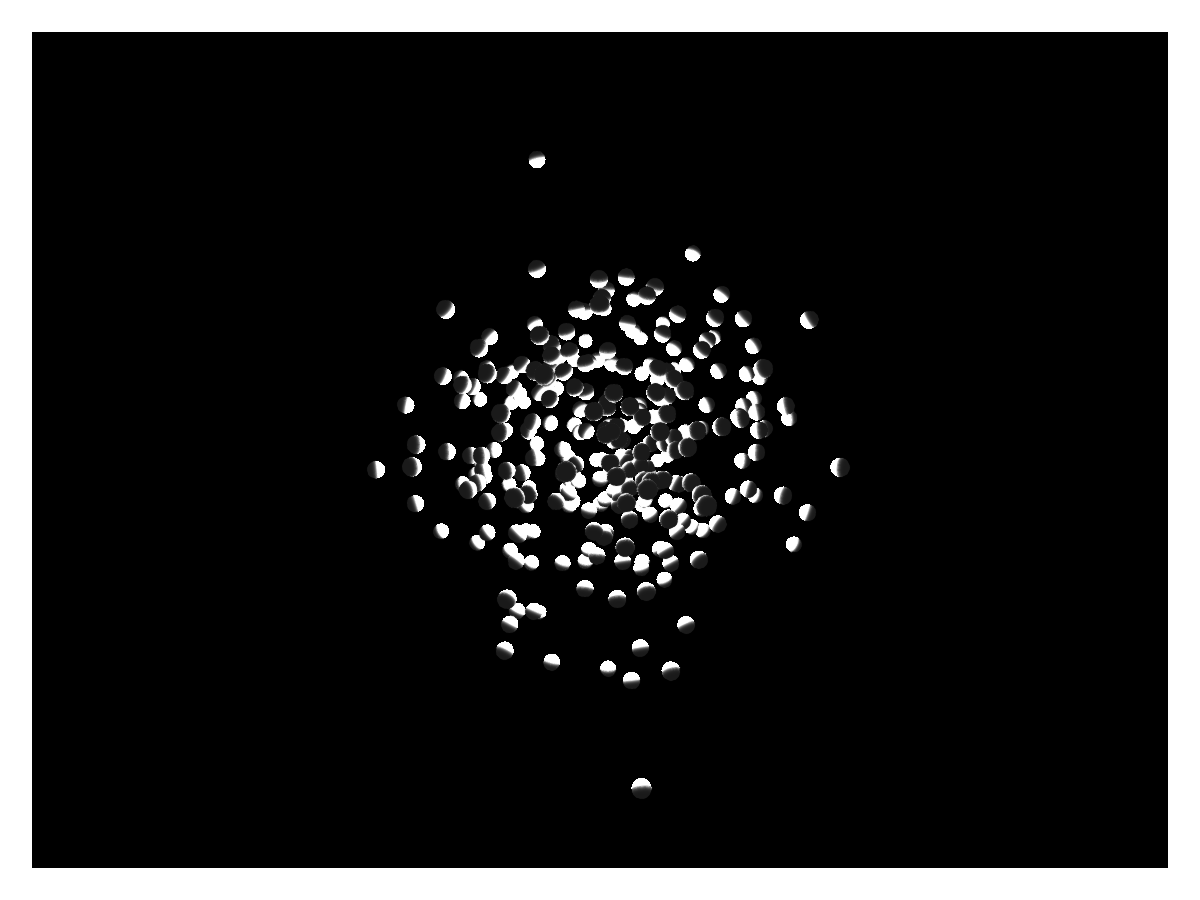

using GLMakie
GLMakie.activate!()

fig = Figure()
pl = PointLight(Point3f(0), RGBf(20, 20, 20))
al = AmbientLight(RGBf(0.2, 0.2, 0.2))
lscene = LScene(fig[1, 1], show_axis=false, scenekw = (lights = [pl, al], backgroundcolor=:black, clear=true))
# now you can plot into lscene like you're used to
p = meshscatter!(lscene, randn(300, 3), color=:gray)
fig

Attributes

alignmode

Defaults to Inside()

The alignment of the scene in its suggested bounding box.

halign

Defaults to :center

The horizontal alignment of the scene in its suggested bounding box.

height

Defaults to nothing

The height setting of the scene.

show_axis

Defaults to true

Controls the visibility of the 3D axis plot object.

tellheight

Defaults to true

Controls if the parent layout can adjust to this element's height

tellwidth

Defaults to true

Controls if the parent layout can adjust to this element's width

valign

Defaults to :center

The vertical alignment of the scene in its suggested bounding box.

width

Defaults to nothing

The width setting of the scene.
