textlabel

julia

textlabel(positions, text; attributes...)
textlabel(position; text, attributes...)
textlabel(text_position; attributes...)

Plots the given text(s) with a background(s) at the given position(s).

Plot type

The plot type alias for the textlabel function is TextLabel.

source

Examples

julia

using CairoMakie
using CairoMakie
using FileIO

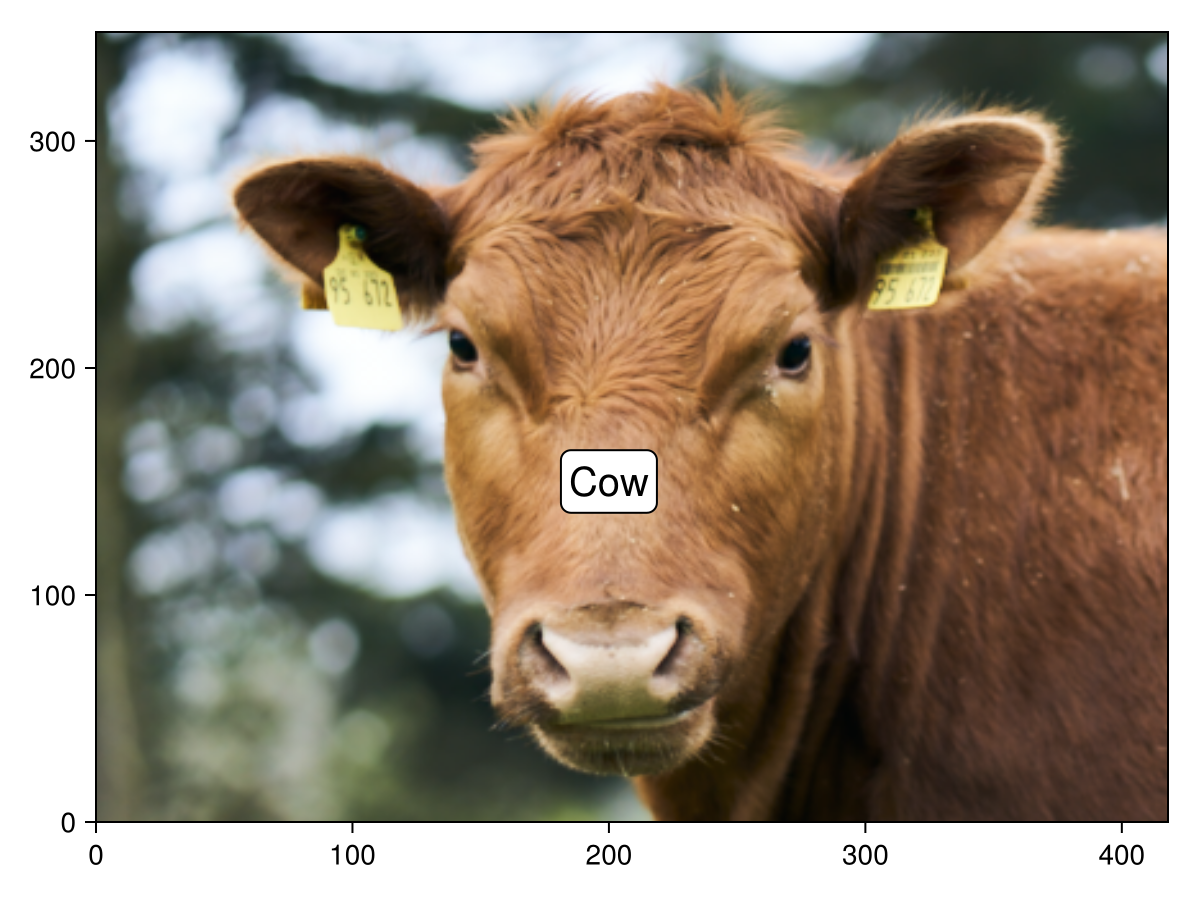

f, a, p = image(rotr90(load(assetpath("cow.png"))))
textlabel!(a, Point2f(200, 150), text = "Cow", fontsize = 20)
f

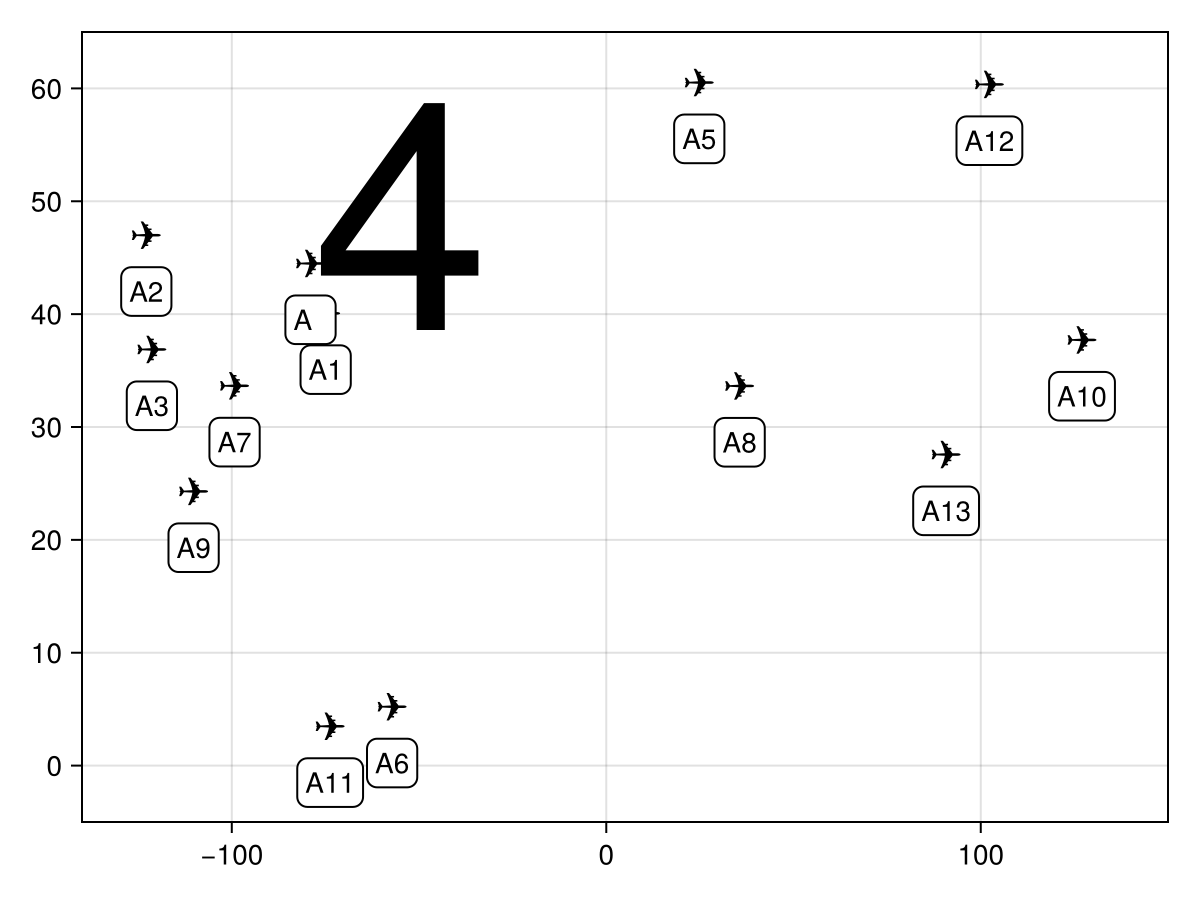

julia

using CairoMakie
using CairoMakie
using DelimitedFiles

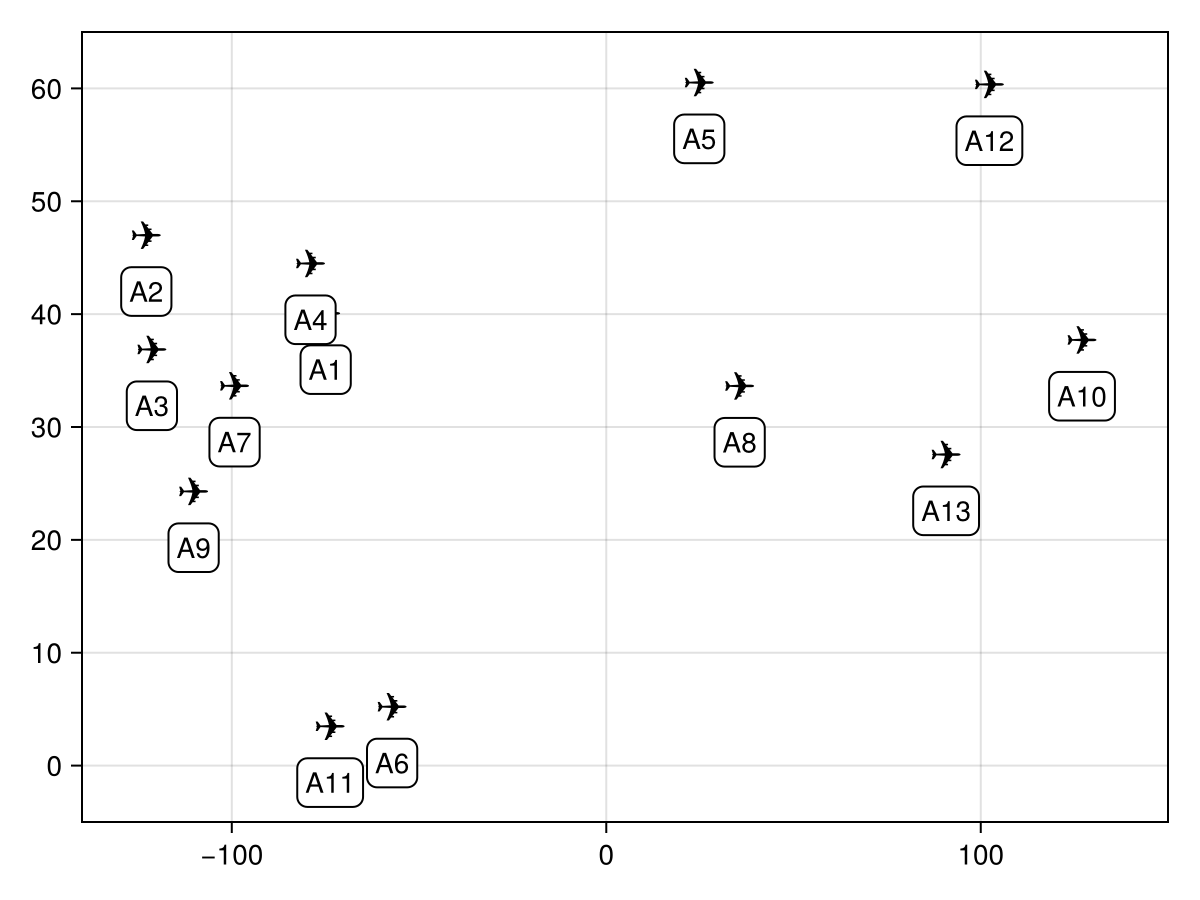

loc = readdlm(assetpath("airportlocations.csv"))

f, a, p = scatter(
    loc[1:5004:end, :], marker = '✈', markersize = 20, color = :black
)
textlabel!(
    a, loc[1:5004:end, :], text = ["A$i" for i in axes(loc[1:5004:end, :], 1)],
    offset = (0, -20), text_align = (:center, :top)
)

xlims!(a, -140, 150)
ylims!(a, -5, 65)

f

Custom Background Shapes

The background shape can be adjusted with the shape attribute. It can be anything that converts to a vector of points through convert_arguments, e.g. a GeometryPrimitive, a BezierPath, a vector of points, etc. These points are then transformed to fit the text bounding box of the label. More specifically, they are transformed such that shape_limits gets scaled up to the text bounding box plus padding.

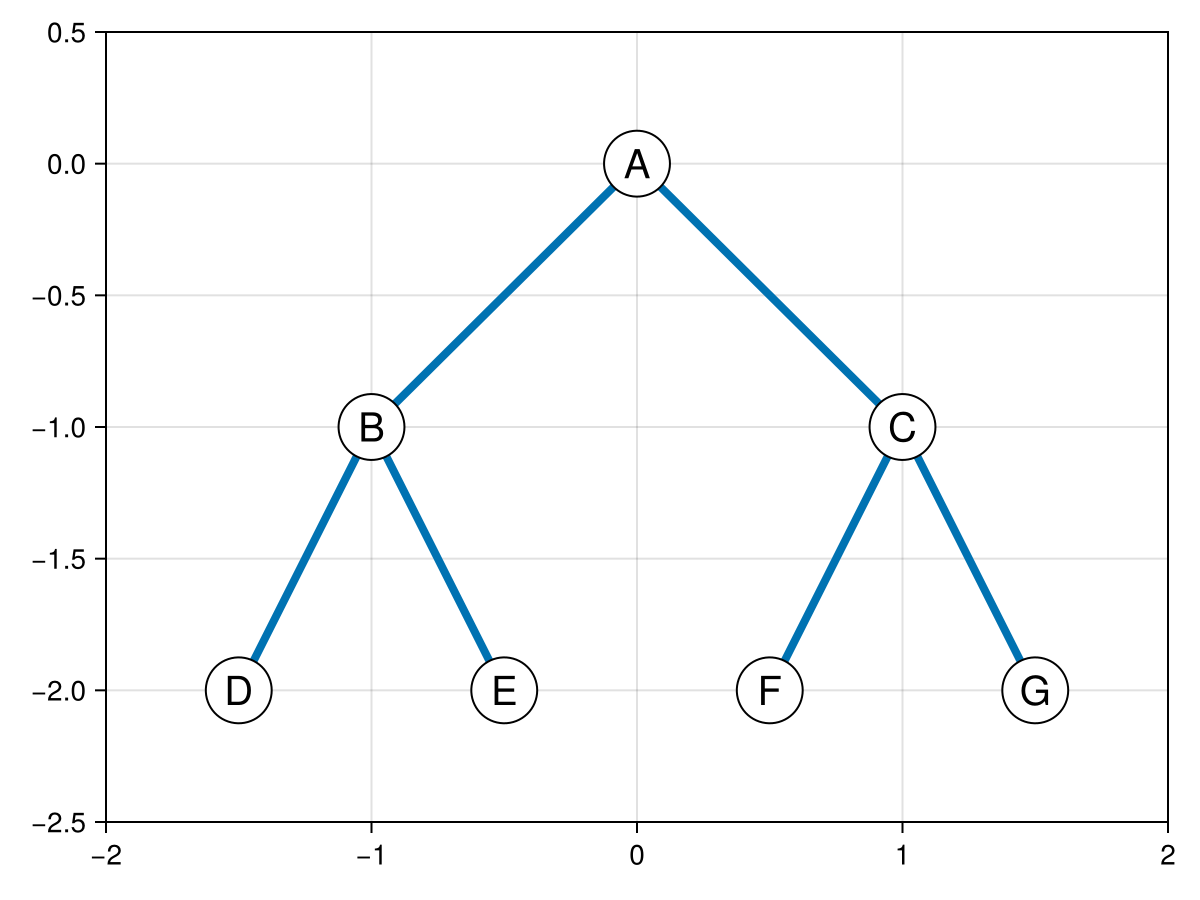

Let's consider using a Circle(Point2f(0), 1f0) as our background shape. We want the text to fit inside the circle, so we want the text boundingbox to relate to an inner bounding box of the circle. We can choose this to be a square from -sqrt(0.5) .. sqrt(0.5) resulting in shape_limits = Rect2f(-sqrt(0.5), -sqrt(0.5), sqrt(2), sqrt(2)):

julia

using CairoMakie
using CairoMakie

ps = Point2f[
    (0, 0),
    (-1, -1), (1, -1),
    (-1.5, -2), (-0.5, -2), (0.5, -2), (1.5, -2)
]
f,a,p = textlabel(
    ps,
    ["A", "B", "C", "D",  "E", "F", "G"],
    fontsize = 20, padding = 0,
    shape = Circle(Point2f(0), 1f0),
    shape_limits = Rect2f(-sqrt(0.5), -sqrt(0.5), sqrt(2), sqrt(2)),
    keep_aspect = true
)
linesegments!(a, [
    ps[1], ps[2], ps[1], ps[3],
    ps[2], ps[4], ps[2], ps[5], ps[3], ps[6], ps[3], ps[7]
], linewidth = 4)

xlims!(a, -2, 2)
ylims!(a, -2.5, 0.5)
f

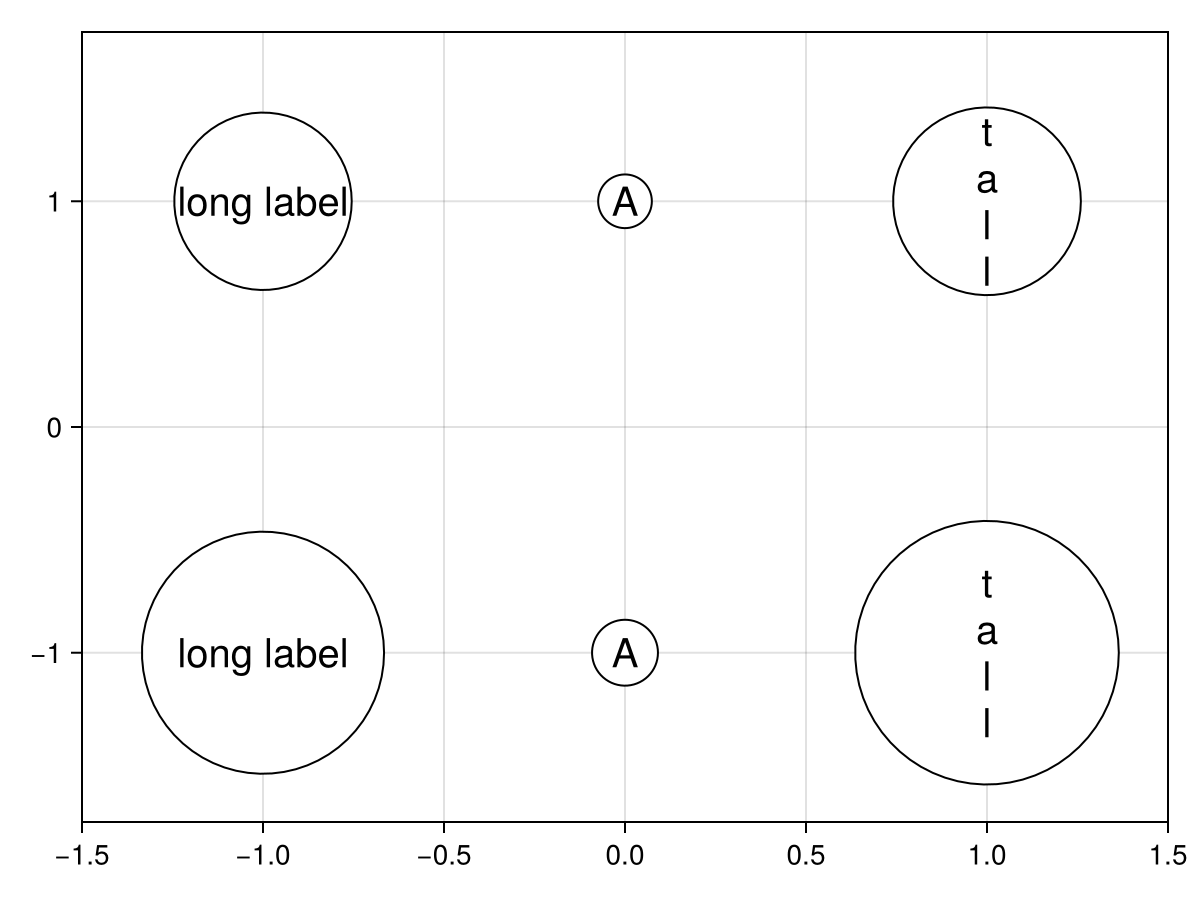

Another option for shape is to pass a function that constructs an already transformed vector of points from a translation and scale. If shape_limits = Rect2f(0,0,1,1) those are the origin and size of text boundingbox plus padding. This can be used, for example, to construct a circle that more tightly fits the text bounding box:

julia

using CairoMakie
using CairoMakie
using GeometryBasics
using LinearAlgebra

function build_shape(origin, size)
    radius = norm(0.5 * size)
    center = Point2f(origin + 0.5 * size)
    return coordinates(Circle(center, radius))
end

f, a, p = textlabel(
    [-1, 0, 1], [1, 1, 1], ["long label", "A", "t\na\nl\nl"],
    shape = build_shape, fontsize = 20, padding = 0
)
textlabel!(
    a, [-1, 0, 1], [-1, -1, -1], ["long label", "A", "t\na\nl\nl"],
    shape = Circle(Point2f(0), 1f0), fontsize = 20, padding = 0,
    shape_limits = Rect2f(-sqrt(0.5), -sqrt(0.5), sqrt(2), sqrt(2)),
    keep_aspect = true
)
xlims!(a, -1.5, 1.5)
ylims!(a, -1.75, 1.75)
f

Attributes

alpha

Defaults to 1.0

Sets the alpha value (opaqueness) of the background.

background_color

Defaults to :white

Sets the color of the background. Can be a Vector{<:Colorant} for per vertex colors, a single Colorant or an <: AbstractPattern to cover the poly with a regular pattern, e.g. for hatching.

clip_planes

Defaults to Plane3f[]

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

cornerradius

Defaults to 5.0

Sets the corner radius when given a Rect2 background shape.

cornervertices

Defaults to 10

Sets the number of vertices involved in a rounded corner. Must be at least 2.

depth_shift

Defaults to 0.0

Adjusts the depth value of the textlabel after all other transformations, i.e. in clip space where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

draw_on_top

Defaults to true

Controls whether the textlabel is drawn in front (true, default) or at a depth appropriate to its position.

font

Defaults to @inherit font

Sets the font. Can be a Symbol which will be looked up in the fonts dictionary or a String specifying the (partial) name of a font or the file path of a font file

fonts

Defaults to @inherit fonts

Used as a dictionary to look up fonts specified by Symbol, for example :regular, :bold or :italic.

fxaa

Defaults to false

Controls whether the background renders with fxaa (anti-aliasing, GLMakie only). This is set to false by default to prevent artifacts around text.

inspectable

Defaults to @inherit inspectable

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

joinstyle

Defaults to @inherit joinstyle

Controls the rendering of outline corners. Options are :miter for sharp corners, :bevel for "cut off" corners, and :round for rounded corners. If the corner angle is below miter_limit, :miter is equivalent to :bevel to avoid long spikes.

justification

Defaults to automatic

Sets the alignment of text with respect to its bounding box. Can be :left, :center, :right or a fraction. Will default to the horizontal alignment in text_align.

keep_aspect

Defaults to false

Controls whether the aspect ratio of the background shape is kept during rescaling

lineheight

Defaults to 1.0

The lineheight multiplier.

linestyle

Defaults to nothing

Sets the dash pattern of the outline. Options are :solid (equivalent to nothing), :dot, :dash, :dashdot and :dashdotdot. These can also be given in a tuple with a gap style modifier, either :normal, :dense or :loose. For example, (:dot, :loose) or (:dashdot, :dense).

For custom patterns have a look at Makie.Linestyle.

miter_limit

Defaults to @inherit miter_limit

Sets the minimum inner join angle below which miter joins truncate. See also Makie.miter_distance_to_angle.

offset

Defaults to (0.0, 0.0)

The offset of the textlabel from the given position in markerspace units.

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

padding

Defaults to 4

Sets the padding between the text bounding box and background shape.

position

Defaults to (0, 0)

Deprecated: Specifies the position of the text. Use the positional argument to text instead.

shading

Defaults to NoShading

Controls whether the background reacts to light.

shape

Defaults to Rect2f(0, 0, 1, 1)

Controls the shape of the background. Can be a GeometryPrimitive, mesh or function (origin, size) -> coordinates. The former two options are automatically rescaled to the padded bounding box of the rendered text. By default (0, 0) will be the lower left corner and (1, 1) the upper right corner of the padded bounding box. See shape_limits.

shape_limits

Defaults to Rect2f(0, 0, 1, 1)

Sets the coordinates in shape space that should be transformed to match the size of the text bounding box. For example, shape_limits = Rect2f(-1, -1, 2, 2) results in transforming (-1, 1) to the lower left corner of the padded text bounding box and (1, 1) to the upper right corner. If the shape contains coordinates outside this range, they will rendered outside the padded text bounding box.

space

Defaults to :data

sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

stroke_alpha

Defaults to 1.0

Sets the alpha value (opaqueness) of the background outline.

strokecolor

Defaults to :black

Sets the color of the outline around the background

strokewidth

Defaults to 1

Sets the width of the outline.

text

Defaults to ""

Specifies one piece of text or a vector of texts to show, where the number has to match the number of positions given. Makie supports String which is used for all normal text and LaTeXString which layouts mathematical expressions using MathTeXEngine.jl.

text_align

Defaults to (:center, :center)

Sets the alignment of the string with respect to position. Uses :left, :center, :right, :top, :bottom, :baseline or fractions.

text_alpha

Defaults to 1.0

Sets the alpha value (opaqueness) of the text.

text_color

Defaults to @inherit textcolor

Sets the color of the text. One can set one color per glyph by passing a Vector{<:Colorant} or one colorant for the whole text.

text_fxaa

Defaults to false

Controls whether the text renders with fxaa (anti-aliasing, GLMakie only). Setting this to true will reduce text quality.

text_glowcolor

Defaults to (:black, 0.0)

Sets the color of the glow effect around text.

text_glowwidth

Defaults to 0.0

Sets the size of a glow effect around text.

text_rotation

Defaults to 0.0

Rotates the text around the given position. This affects the size of the textlabel but not its rotation

text_strokecolor

Defaults to (:black, 0.0)

Sets the color of the outline around text.

text_strokewidth

Defaults to 0

Sets the width of the outline around text.

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot will be rendered or not.

word_wrap_width

Defaults to -1

Specifies a linewidth limit for text. If a word overflows this limit, a newline is inserted before it. Negative numbers disable word wrapping.
