Makie.bracket Function
julia
bracket(x1, y1, x2, y2; kwargs...)
bracket(x1s, y1s, x2s, y2s; kwargs...)
bracket(point1, point2; kwargs...)
bracket(vec_of_point_tuples; kwargs...)

Draws a bracket between each pair of points (x1, y1) and (x2, y2) with a text label at the midpoint.

By default each label is rotated parallel to the line between the bracket points.

Plot type

The plot type alias for the bracket function is Bracket.

source

Examples

Scalar arguments

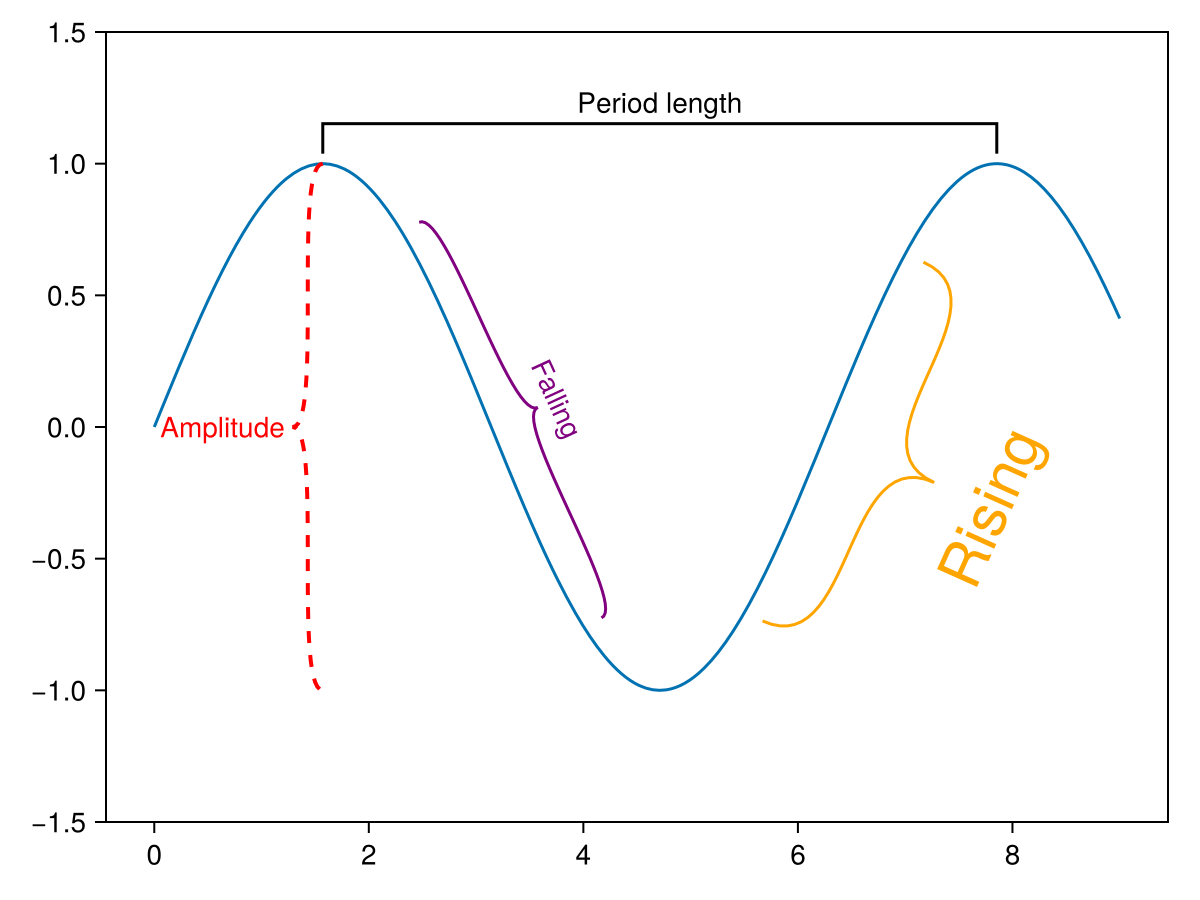

julia
using CairoMakie
f, ax, l = lines(0..9, sin; axis = (; xgridvisible = false, ygridvisible = false))
ylims!(ax, -1.5, 1.5)

bracket!(pi/2, 1, 5pi/2, 1, offset = 5, text = "Period length", style = :square)

bracket!(pi/2, 1, pi/2, -1, text = "Amplitude", orientation = :down,
    linestyle = :dash, rotation = 0, align = (:right, :center), textoffset = 4, linewidth = 2, color = :red, textcolor = :red)

bracket!(2.3, sin(2.3), 4.0, sin(4.0),
    text = "Falling", offset = 10, orientation = :up, color = :purple, textcolor = :purple)

bracket!(Point(5.5, sin(5.5)), Point(7.0, sin(7.0)),
    text = "Rising", offset = 10, orientation = :down, color = :orange, textcolor = :orange,
    fontsize = 30, textoffset = 30, width = 50)
f

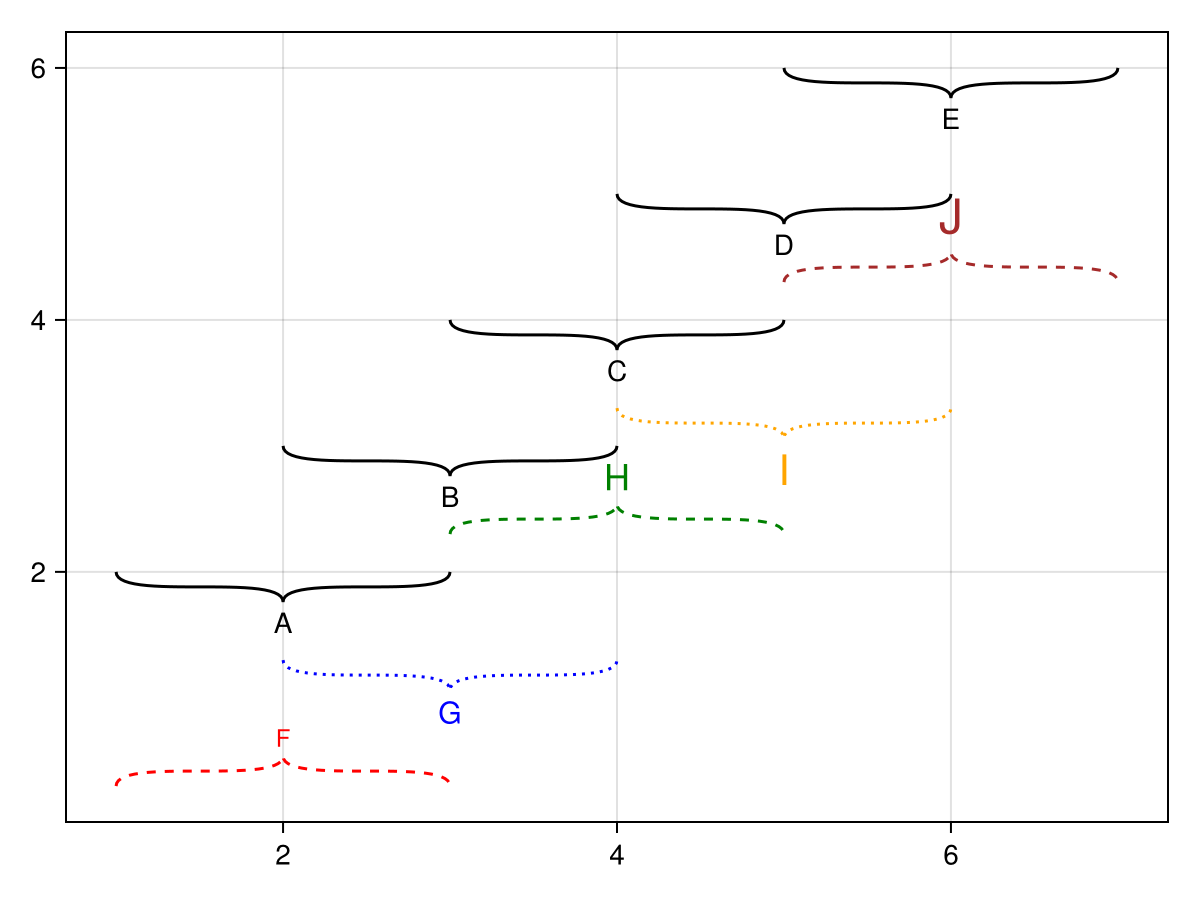

Vector arguments

julia
using CairoMakie
f = Figure()
ax = Axis(f[1, 1])

bracket!(ax,
    1:5,
    2:6,
    3:7,
    2:6,
    text = ["A", "B", "C", "D", "E"],
    orientation = :down,
)

bracket!(ax,
    [(Point2f(i, i-0.7), Point2f(i+2, i-0.7)) for i in 1:5],
    text = ["F", "G", "H", "I", "J"],
    color = [:red, :blue, :green, :orange, :brown],
    linestyle = [:dash, :dot, :dash, :dot, :dash],
    orientation = [:up, :down, :up, :down, :up],
    textcolor = [:red, :blue, :green, :orange, :brown],
    fontsize = range(12, 24, length = 5),
)

f

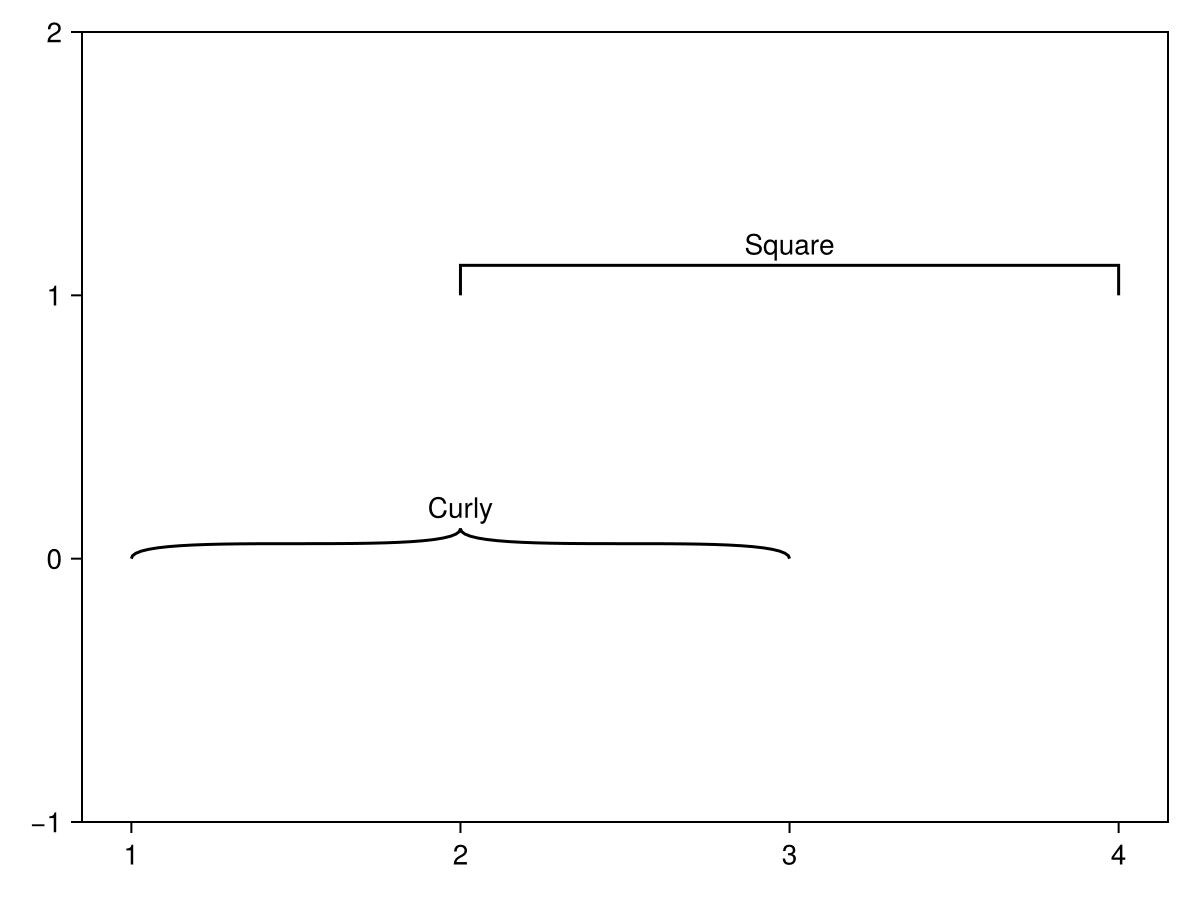

Styles

julia
using CairoMakie
f = Figure()
ax = Axis(f[1, 1], xgridvisible = false, ygridvisible = false)
ylims!(ax, -1, 2)
bracket!(ax, 1, 0, 3, 0, text = "Curly", style = :curly)
bracket!(ax, 2, 1, 4, 1, text = "Square", style = :square)

f

Attributes

align

Defaults to (:center, :center)

The alignment of text.

color

Defaults to @inherit linecolor

Sets the color of the bracket line.

font

Defaults to @inherit font

The font used for text.

fontsize

Defaults to @inherit fontsize

Sets the fontsize of text

joinstyle

Defaults to @inherit joinstyle

Controls the rendering at line corners. Options are :miter for sharp corners, :bevel for cut-off corners, and :round for rounded corners. If the corner angle is below miter_limit, :miter is equivalent to :bevel to avoid long spikes.

justification

Defaults to automatic

Sets the justification of multi-line text.

linecap

Defaults to @inherit linecap

Sets the type of line cap used for bracket lines. Options are :butt (flat without extrusion), :square (flat with half a linewidth extrusion) or :round.

linestyle

Defaults to nothing

Sets the line pattern of the bracket line. See ?lines for more information.

linewidth

Defaults to @inherit linewidth

Sets the width of the bracket line.

miter_limit

Defaults to @inherit miter_limit

" Sets the minimum inner line join angle below which miter joins truncate. See also Makie.miter_distance_to_angle.

offset

Defaults to 0

The offset of the bracket perpendicular to the line from start to end point in screen units. The direction depends on the orientation attribute.

orientation

Defaults to :up

Which way the bracket extends relative to the line from start to end point. Can be :up or :down.

rotation

Defaults to automatic

Sets the rotation of text. By default text is rotated to be parallel to the line from the start to end point of the bracket, and never upside-down.

space

Defaults to :data

Sets the space for the start and end points of brackets.

style

Defaults to :curly

Sets the style of drawn bracket. The current options are :curly for curly braces } and :square for brackets ]. More bracket types can be implemented by providing a method of Makie.bracket_bezierpath(...), see ?Makie.bracket_bezierpath.

text

Defaults to ""

The text(s) displayed at the center of the bracket(s).

textcolor

Defaults to @inherit textcolor

Sets the color of the text.

textoffset

Defaults to automatic

Undirected offset between text and the center of the bracket. By default this is set to 75% of the fontsize. The direction of the offset is always perpendicular to the line from the start to the end point.

width

Defaults to 15

The width of the bracket (perpendicularly away from the line from start to end point) in screen units.
