volume

MakieCore.volume Function
julia
volume(volume_data)
volume(x, y, z, volume_data)

Plots a volume, with optional physical dimensions x, y, z. Available algorithms are:

  • :iso => IsoValue

  • :absorption => Absorption

  • :mip => MaximumIntensityProjection

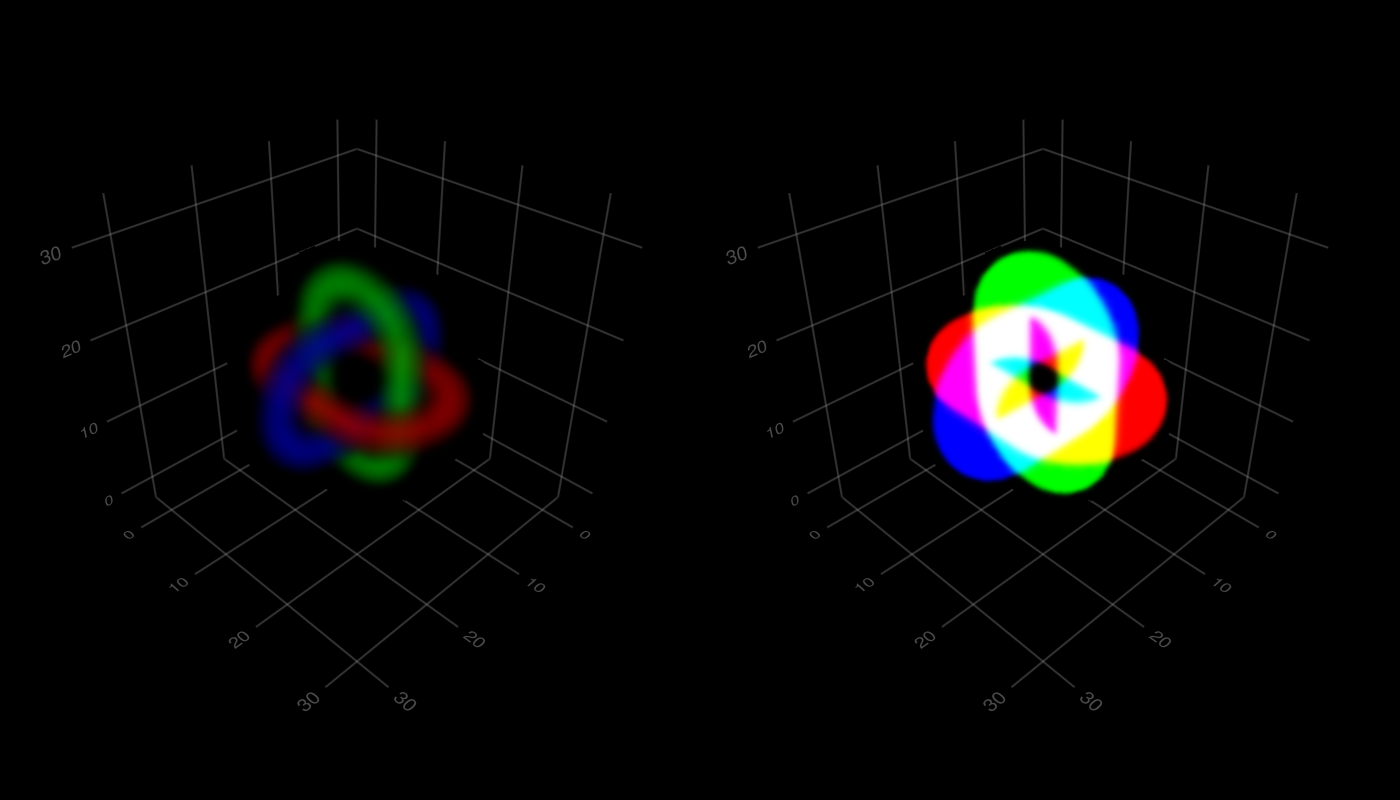

  • :absorptionrgba => AbsorptionRGBA

  • :additive => AdditiveRGBA

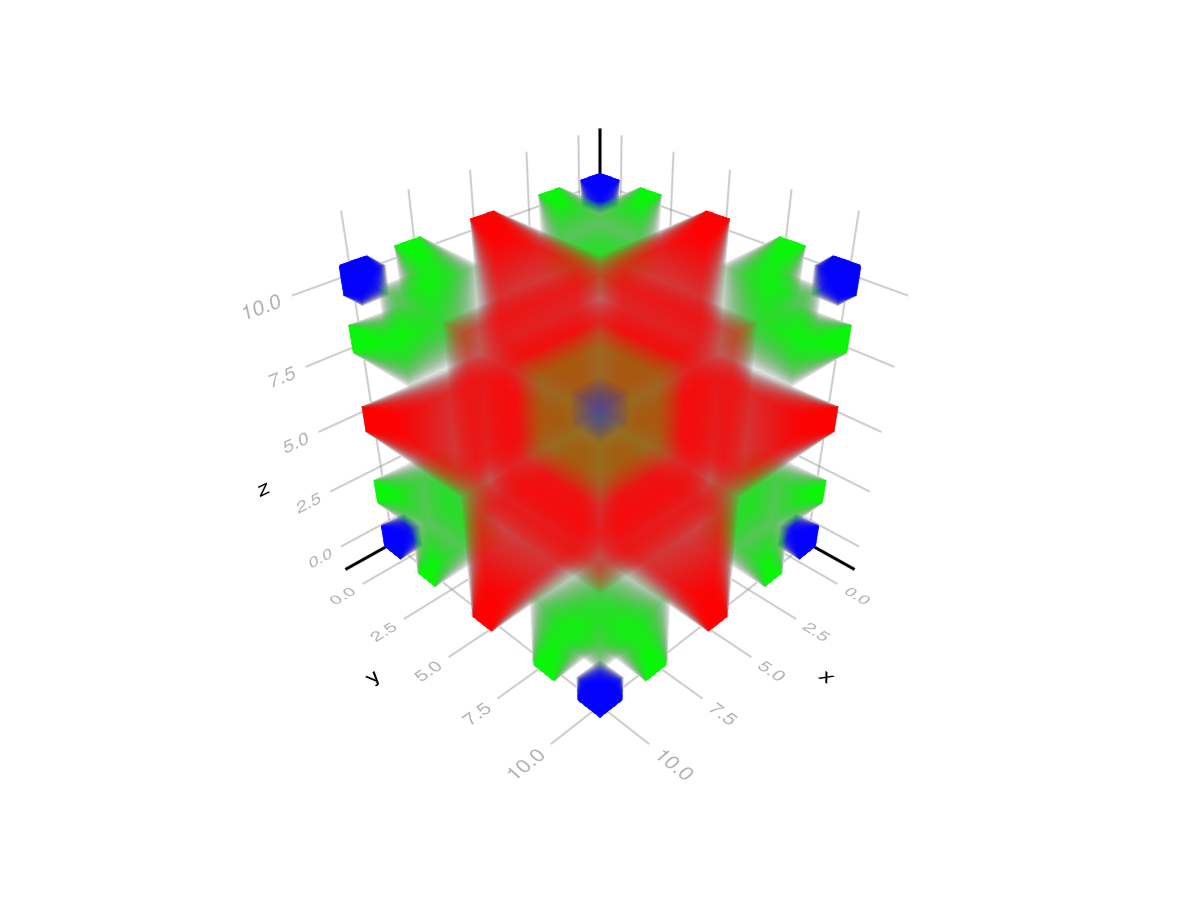

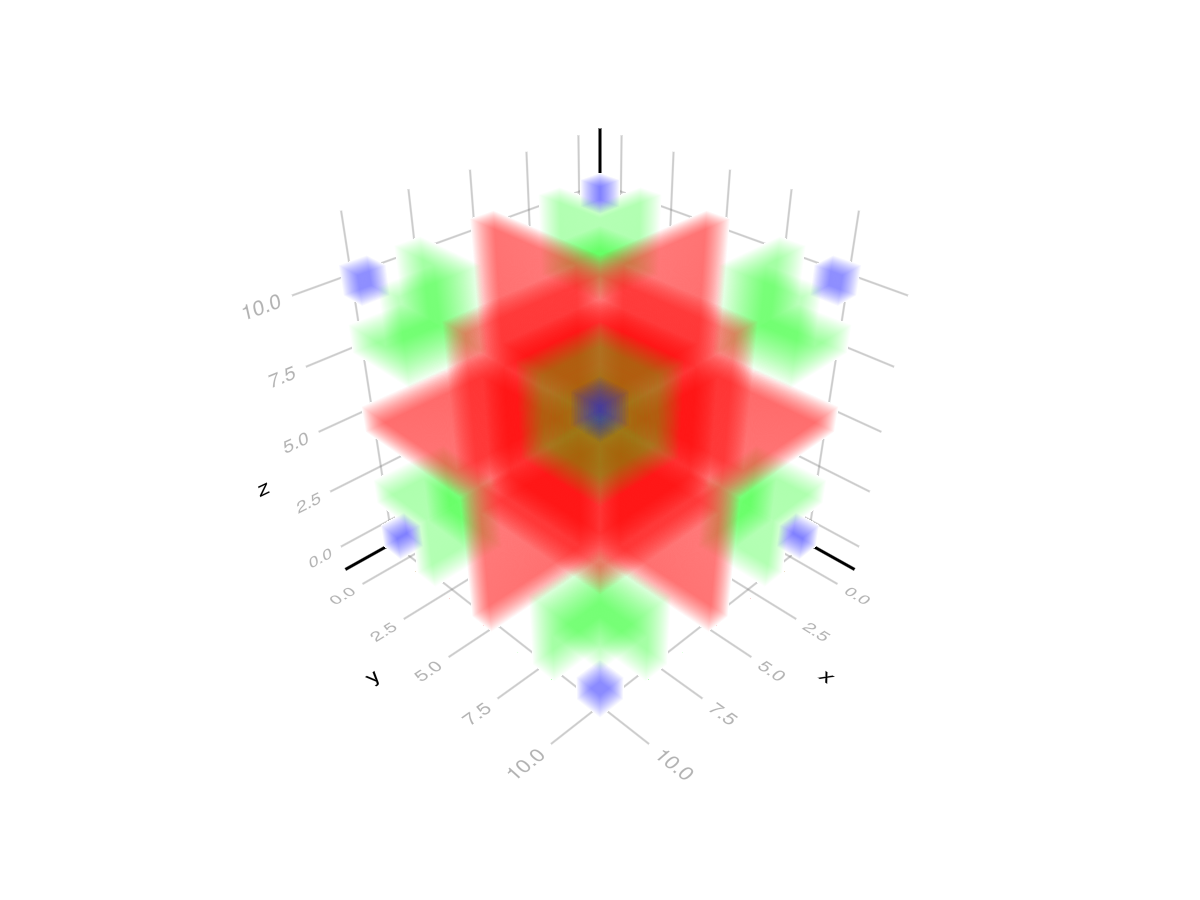

  • :indexedabsorption => IndexedAbsorptionRGBA

Plot type

The plot type alias for the volume function is Volume.

source

Examples

julia
using GLMakie
r = LinRange(-1, 1, 100)
cube = [(x.^2 + y.^2 + z.^2) for x = r, y = r, z = r]

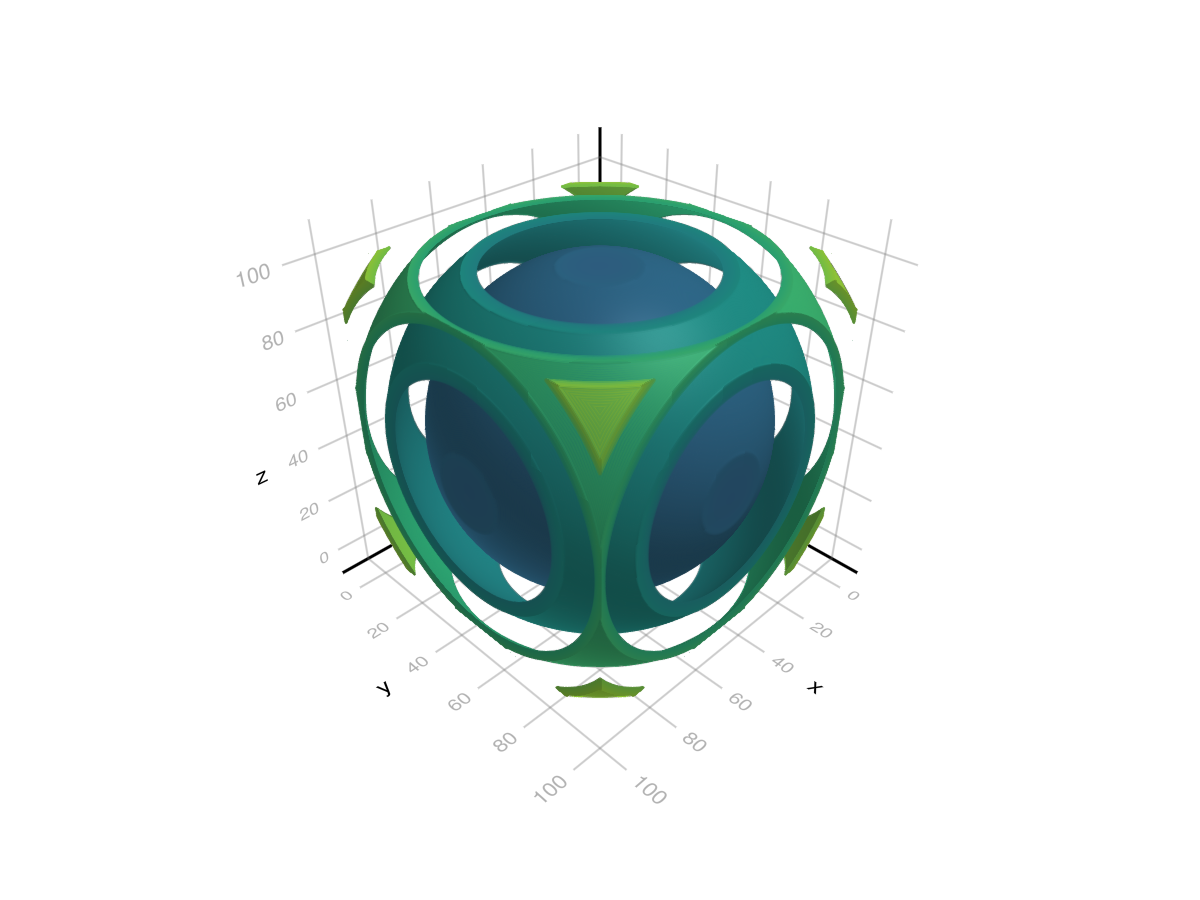

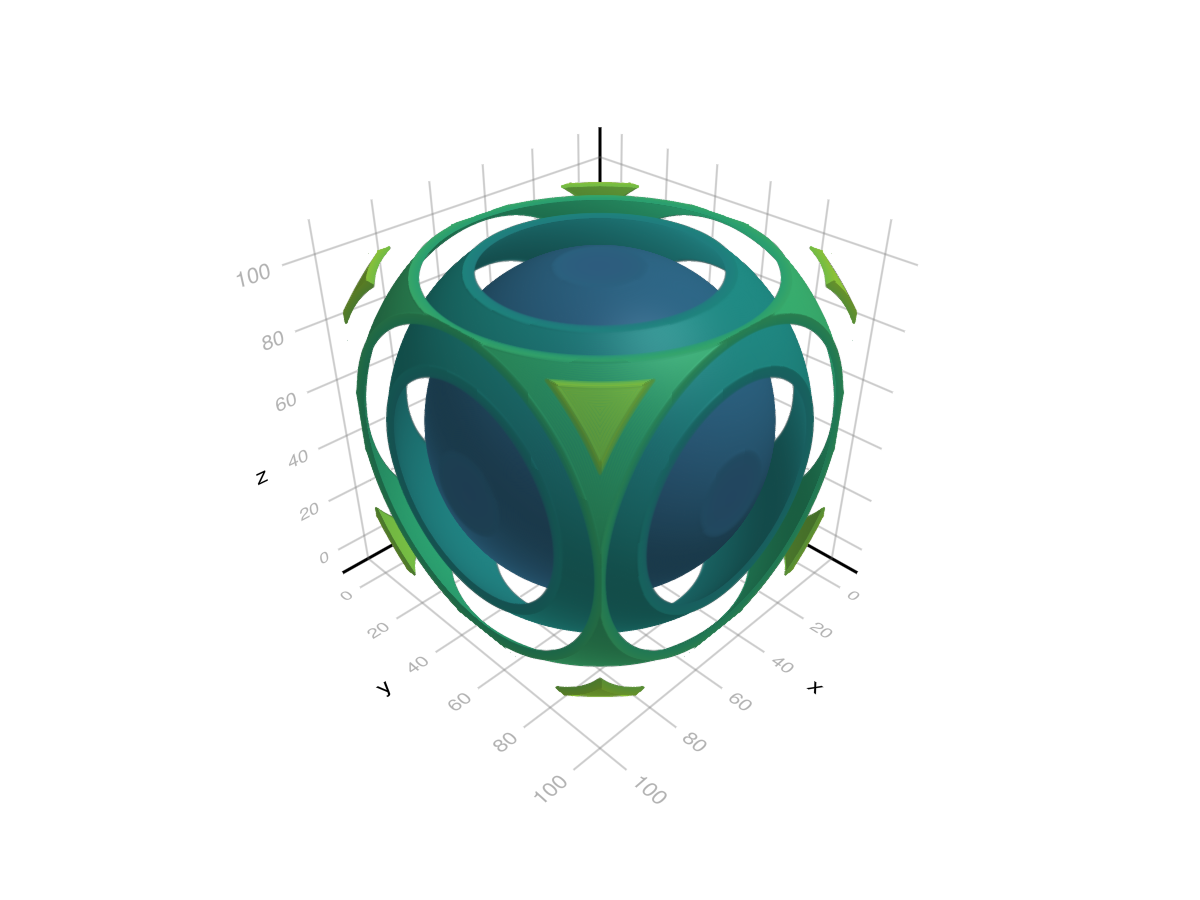

contour(cube, alpha=0.5)
julia

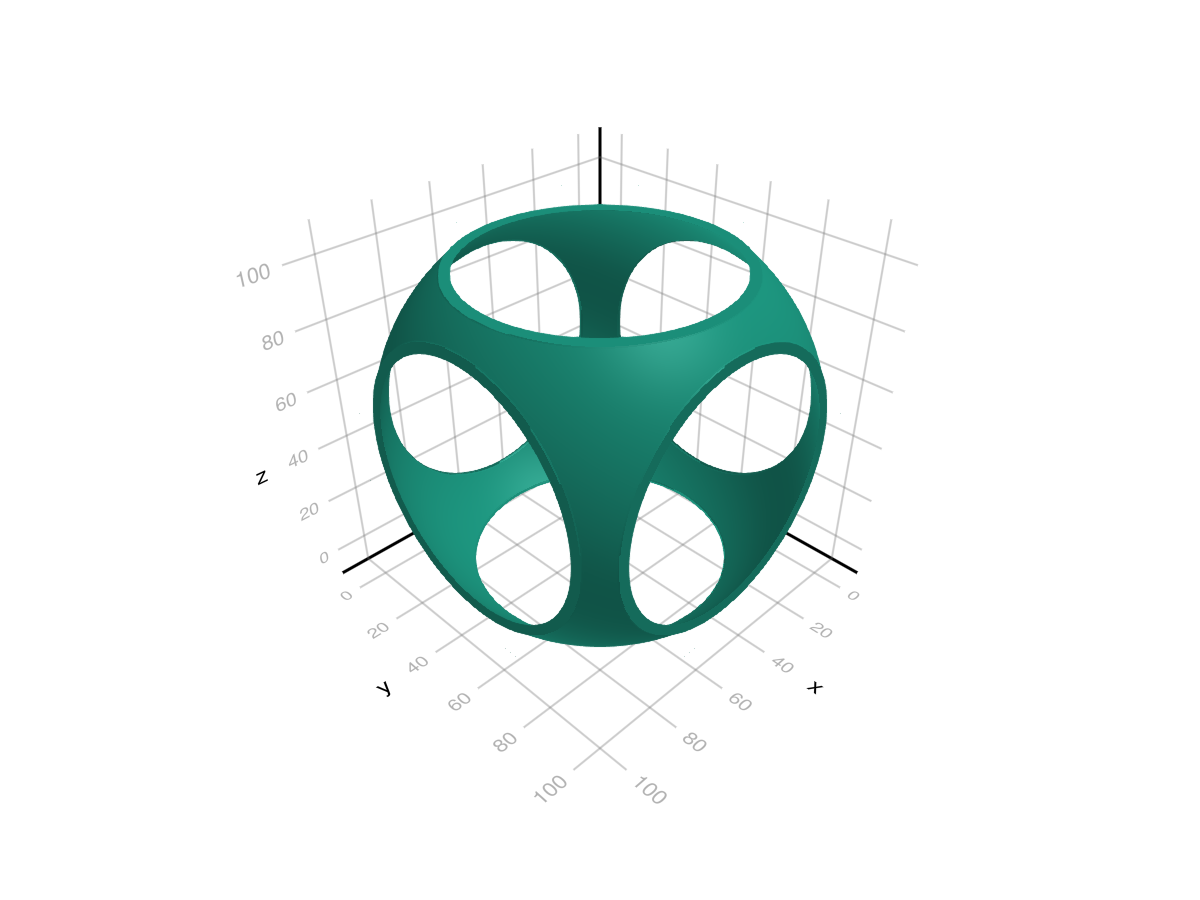

cube_with_holes = cube .* (cube .> 1.4)
volume(cube_with_holes, algorithm = :iso, isorange = 0.05, isovalue = 1.7)
julia
using GLMakie
using NIfTI
brain = niread(Makie.assetpath("brain.nii.gz")).raw
mini, maxi = extrema(brain)
normed = Float32.((brain .- mini) ./ (maxi - mini))

fig = Figure(size=(1000, 450))
# Make a colormap, with the first value being transparent
colormap = to_colormap(:plasma)
colormap[1] = RGBAf(0,0,0,0)

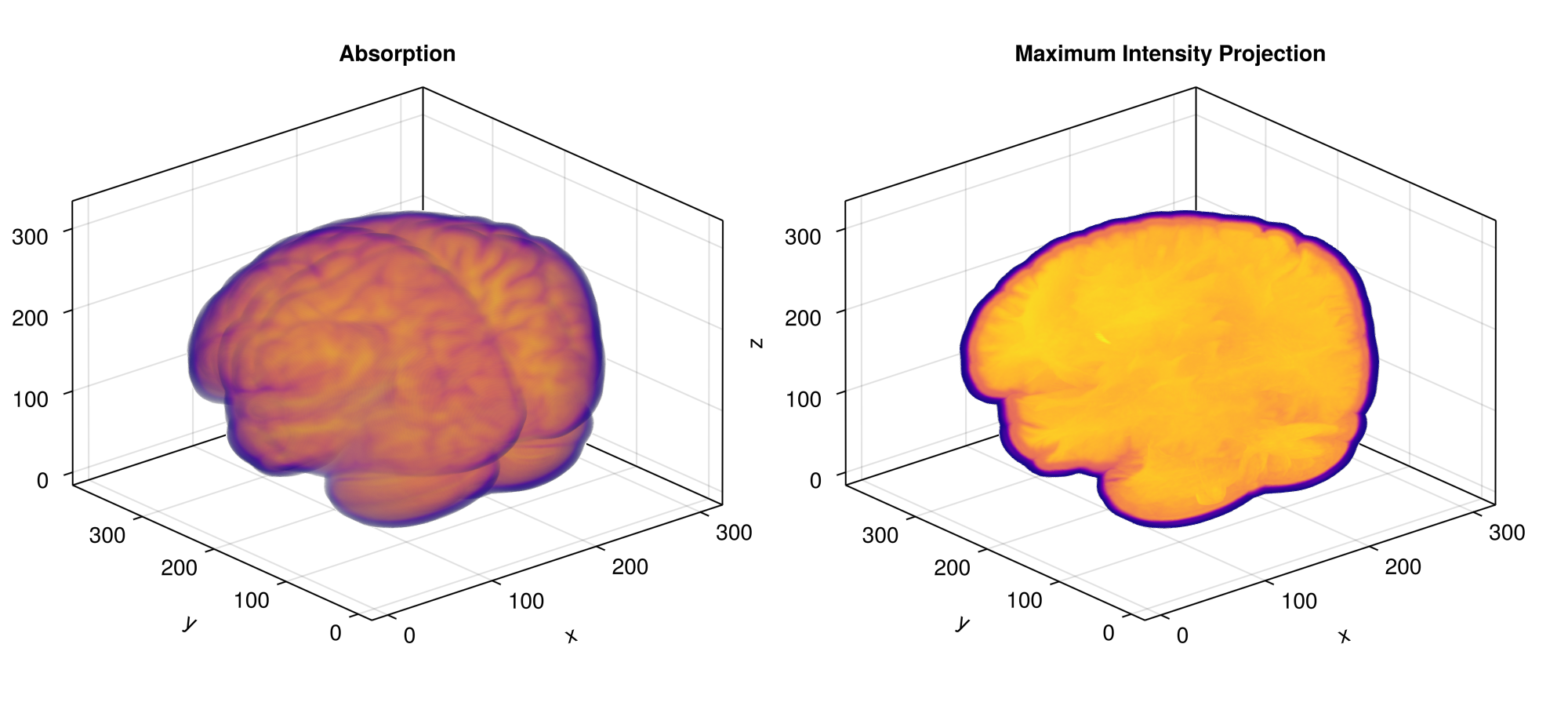

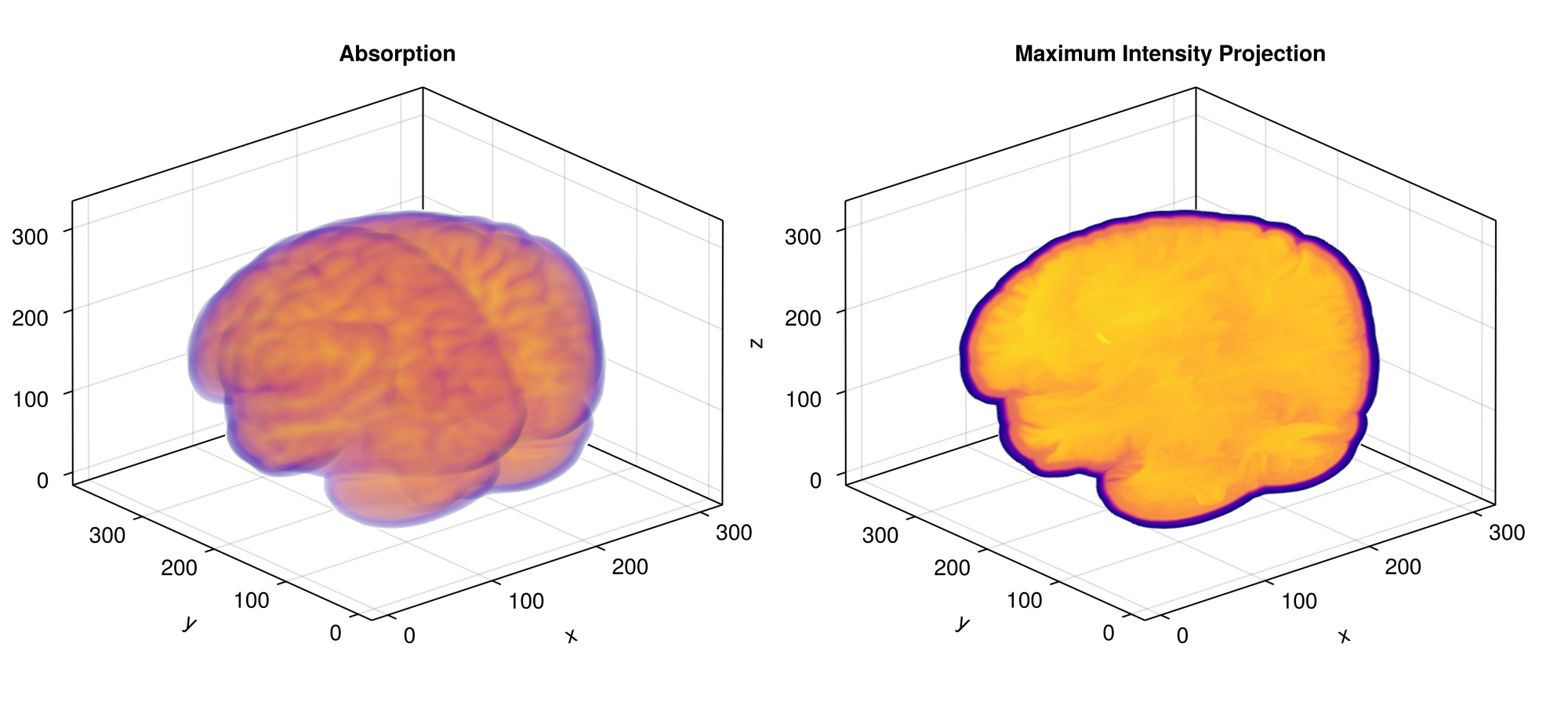

volume(fig[1, 1], normed, algorithm = :absorption, absorption=4f0, colormap=colormap, axis=(type=Axis3, title = "Absorption"))
volume(fig[1, 2], normed, algorithm = :mip, colormap=colormap, axis=(type=Axis3, title="Maximum Intensity Projection"))
fig

Attributes

absorption

Defaults to 1.0

Absorption multiplier for algorithm=:absorption. This changes how much light each voxel absorbs.

algorithm

Defaults to :mip

Sets the volume algorithm that is used.

alpha

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

backlight

Defaults to 0.0

Sets a weight for secondary light calculation with inverted normals.

clip_planes

Defaults to automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

colormap

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange

Defaults to automatic

The values representing the start and end points of colormap.

colorscale

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

depth_shift

Defaults to 0.0

adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

diffuse

Defaults to 1.0

Sets how strongly the red, green and blue channel react to diffuse (scattered) light.

enable_depth

Defaults to true

Enables depth write for Volume, so that volume correctly occludes other objects.

fxaa

Defaults to true

adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

highclip

Defaults to automatic

The color for any value above the colorrange.

inspectable

Defaults to true

sets whether this plot should be seen by DataInspector.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

interpolate

Defaults to true

Sets whether the volume data should be sampled with interpolation.

isorange

Defaults to 0.05

Sets the range of values picked up by the IsoValue algorithm.

isovalue

Defaults to 0.5

Sets the target value for the IsoValue algorithm.

lowclip

Defaults to automatic

The color for any value below the colorrange.

material

Defaults to nothing

RPRMakie only attribute to set complex RadeonProRender materials. Warning, how to set an RPR material may change and other backends will ignore this attribute

model

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color

Defaults to :transparent

The color for NaN values.

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

shading

Defaults to automatic

Sets the lighting algorithm used. Options are NoShading (no lighting), FastShading (AmbientLight + PointLight) or MultiLightShading (Multiple lights, GLMakie only). Note that this does not affect RPRMakie.

shininess

Defaults to 32.0

Sets how sharp the reflection is.

space

Defaults to :data

sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

specular

Defaults to 0.2

Sets how strongly the object reflects light in the red, green and blue channels.

ssao

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

transformation

Defaults to automatic

No docs available.

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot will be rendered or not.
