streamplot

Makie.streamplot Function
julia
streamplot(f::function, xinterval, yinterval; color = norm, kwargs...)

f must either accept f(::Point) or f(x::Number, y::Number). f must return a Point2.

Example:

julia
v(x::Point2{T}) where T = Point2f(x[2], 4*x[1])
streamplot(v, -2..2, -2..2)

Implementation

See the function Makie.streamplot_impl for implementation details.

Plot type

The plot type alias for the streamplot function is StreamPlot.

source

Examples

julia
using CairoMakie
struct FitzhughNagumo{T}
    ϵ::T
    s::T
    γ::T
    β::T
end

P = FitzhughNagumo(0.1, 0.0, 1.5, 0.8)

f(x, P::FitzhughNagumo) = Point2f(
    (x[1]-x[2]-x[1]^3+P.s)/P.ϵ,
    P.γ*x[1]-x[2] + P.β
)

f(x) = f(x, P)

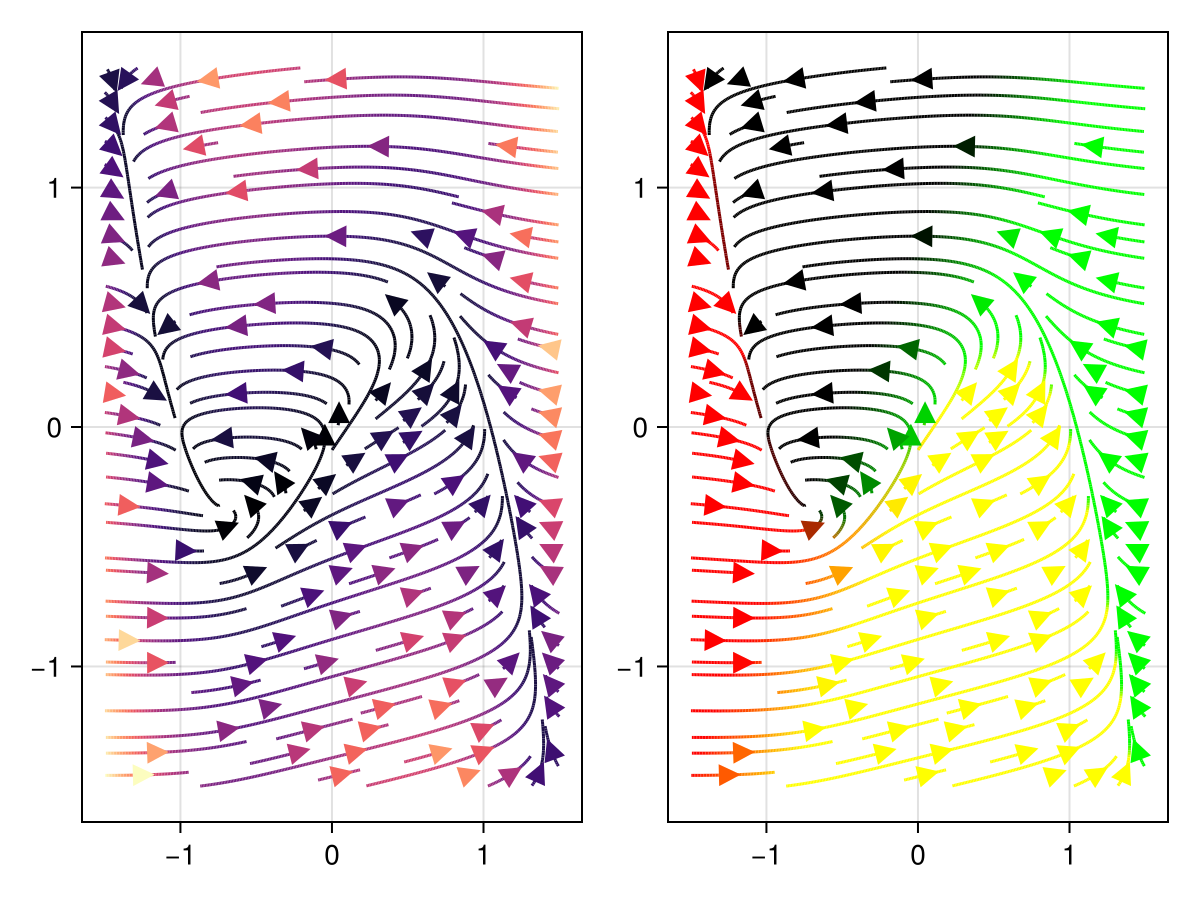

fig, ax, pl = streamplot(f, -1.5..1.5, -1.5..1.5, colormap = :magma)
# you can also pass a function to `color`, to either return a number or color value
streamplot(fig[1,2], f, -1.5 .. 1.5, -1.5 .. 1.5, color=(p)-> RGBAf(p..., 0.0, 1))
fig

Attributes

alpha

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

arrow_head

Defaults to automatic

No docs available.

arrow_size

Defaults to automatic

No docs available.

clip_planes

Defaults to automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color

Defaults to norm

One can choose the color of the lines by passing a function color_func(dx::Point) to the color attribute. This can be set to any function or composition of functions. The dx which is passed to color_func is the output of f at the point being colored.

colormap

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange

Defaults to automatic

The values representing the start and end points of colormap.

colorscale

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

density

Defaults to 1.0

No docs available.

depth_shift

Defaults to 0.0

adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

fxaa

Defaults to true

adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

gridsize

Defaults to (32, 32, 32)

No docs available.

highclip

Defaults to automatic

The color for any value above the colorrange.

inspectable

Defaults to true

sets whether this plot should be seen by DataInspector.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

joinstyle

Defaults to @inherit joinstyle

No docs available.

linecap

Defaults to @inherit linecap

No docs available.

linestyle

Defaults to nothing

No docs available.

linewidth

Defaults to @inherit linewidth

No docs available.

lowclip

Defaults to automatic

The color for any value below the colorrange.

maxsteps

Defaults to 500

No docs available.

miter_limit

Defaults to @inherit miter_limit

No docs available.

model

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color

Defaults to :transparent

The color for NaN values.

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

quality

Defaults to 16

No docs available.

space

Defaults to :data

sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

stepsize

Defaults to 0.01

No docs available.

transformation

Defaults to automatic

No docs available.

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot will be rendered or not.
