rangebars
rangebars(val, low, high; kwargs...)
rangebars(val, low_high; kwargs...)
rangebars(val_low_high; kwargs...)Plots rangebars at val in one dimension, extending from low to high in the other dimension given the chosen direction. The low_high argument can be a vector of tuples or intervals.
If you want to plot errors relative to a reference value, use errorbars.
Plot type
The plot type alias for the rangebars function is Rangebars.
Examples

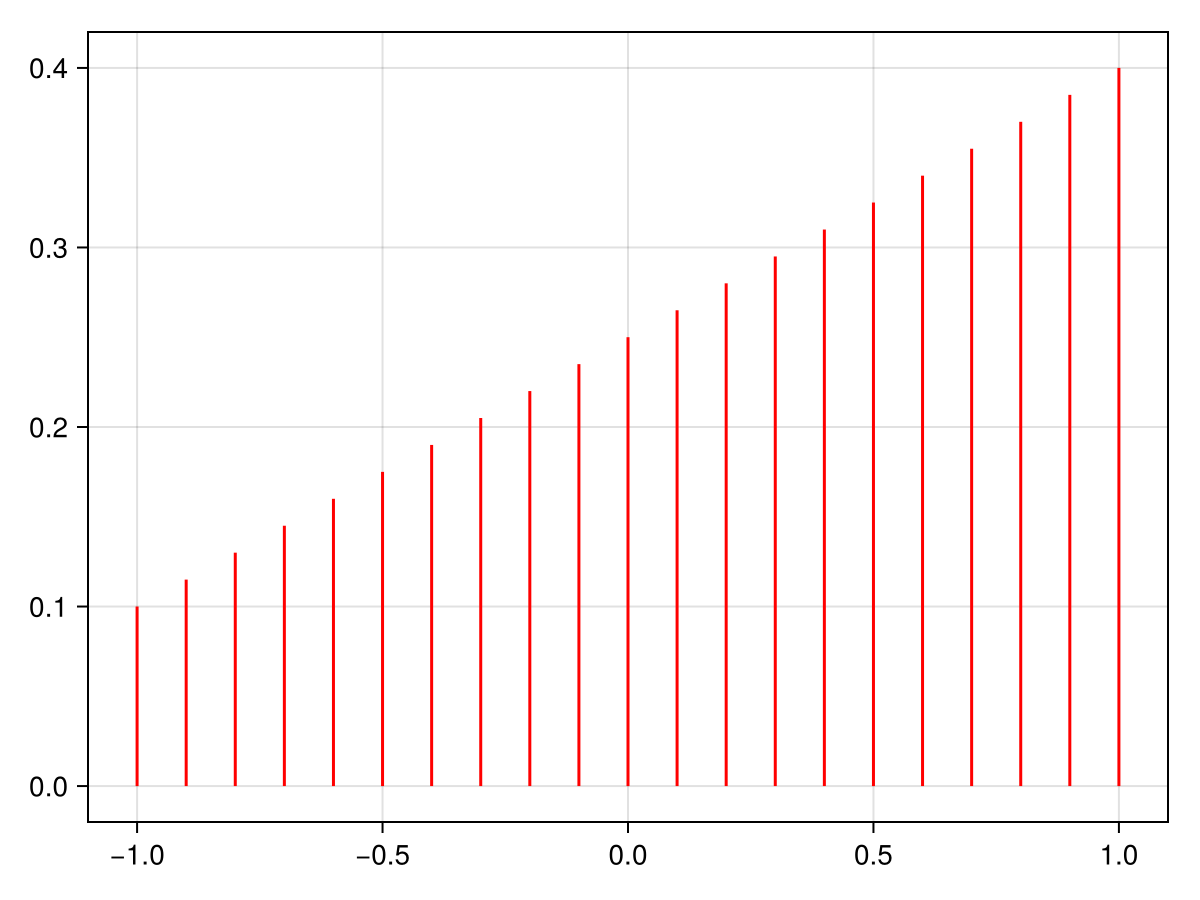

using CairoMakie
f = Figure()
Axis(f[1, 1])
vals = -1:0.1:1
lows = zeros(length(vals))
highs = LinRange(0.1, 0.4, length(vals))
rangebars!(vals, lows, highs, color = :red)
f

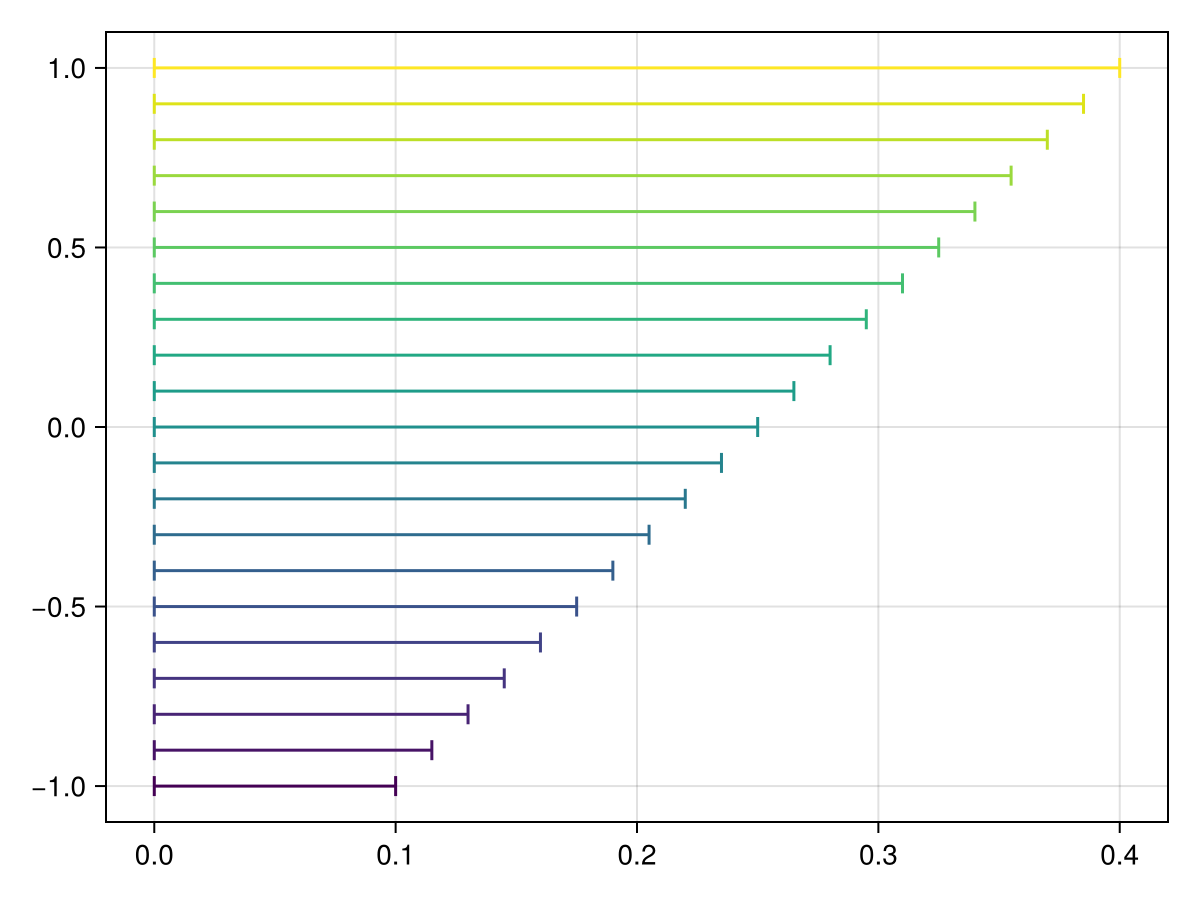

using CairoMakie
f = Figure()
Axis(f[1, 1])
vals = -1:0.1:1
lows = zeros(length(vals))
highs = LinRange(0.1, 0.4, length(vals))
rangebars!(vals, lows, highs, color = LinRange(0, 1, length(vals)),
whiskerwidth = 10, direction = :x)
f
Attributes
alpha
Defaults to 1.0
The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.
color
Defaults to @inherit linecolor
The color of the lines. Can be an array to color each bar separately.
colormap
Defaults to @inherit colormap :viridis
Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().
colorrange
Defaults to automatic
The values representing the start and end points of colormap.
colorscale
Defaults to identity
The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.
cycle
Defaults to [:color]
No docs available.
depth_shift
Defaults to 0.0
adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
direction
Defaults to :y
The direction in which the bars are drawn. Can be :x or :y.
fxaa
Defaults to true
adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
highclip
Defaults to automatic
The color for any value above the colorrange.
inspectable
Defaults to true
sets whether this plot should be seen by DataInspector.
inspector_clear
Defaults to automatic
Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.
inspector_hover
Defaults to automatic
Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.
inspector_label
Defaults to automatic
Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.
linecap
Defaults to @inherit linecap
No docs available.
linewidth
Defaults to @inherit linewidth
The thickness of the lines in screen units.
lowclip
Defaults to automatic
The color for any value below the colorrange.
model
Defaults to automatic
Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.
nan_color
Defaults to :transparent
The color for NaN values.
overdraw
Defaults to false
Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
space
Defaults to :data
sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.
ssao
Defaults to false
Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.
transformation
Defaults to automatic
No docs available.
transparency
Defaults to false
Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.
visible
Defaults to true
Controls whether the plot will be rendered or not.
whiskerwidth
Defaults to 0
The width of the whiskers or line caps in screen units.
