hexbin
hexbin(xs, ys; kwargs...)
Plots a heatmap with hexagonal bins for the observations xs
and ys
.
Plot type
The plot type alias for the hexbin
function is Hexbin
.
Examples
Setting the number of bins
Setting bins
to an integer sets the number of bins to this value for both x and y. The minimum number of bins in one dimension is 2.
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = rand(300)
y = rand(300)
for i in 2:5
ax = Axis(f[fldmod1(i-1, 2)...], title = "bins = $i", aspect = DataAspect())
hexbin!(ax, x, y, bins = i)
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f

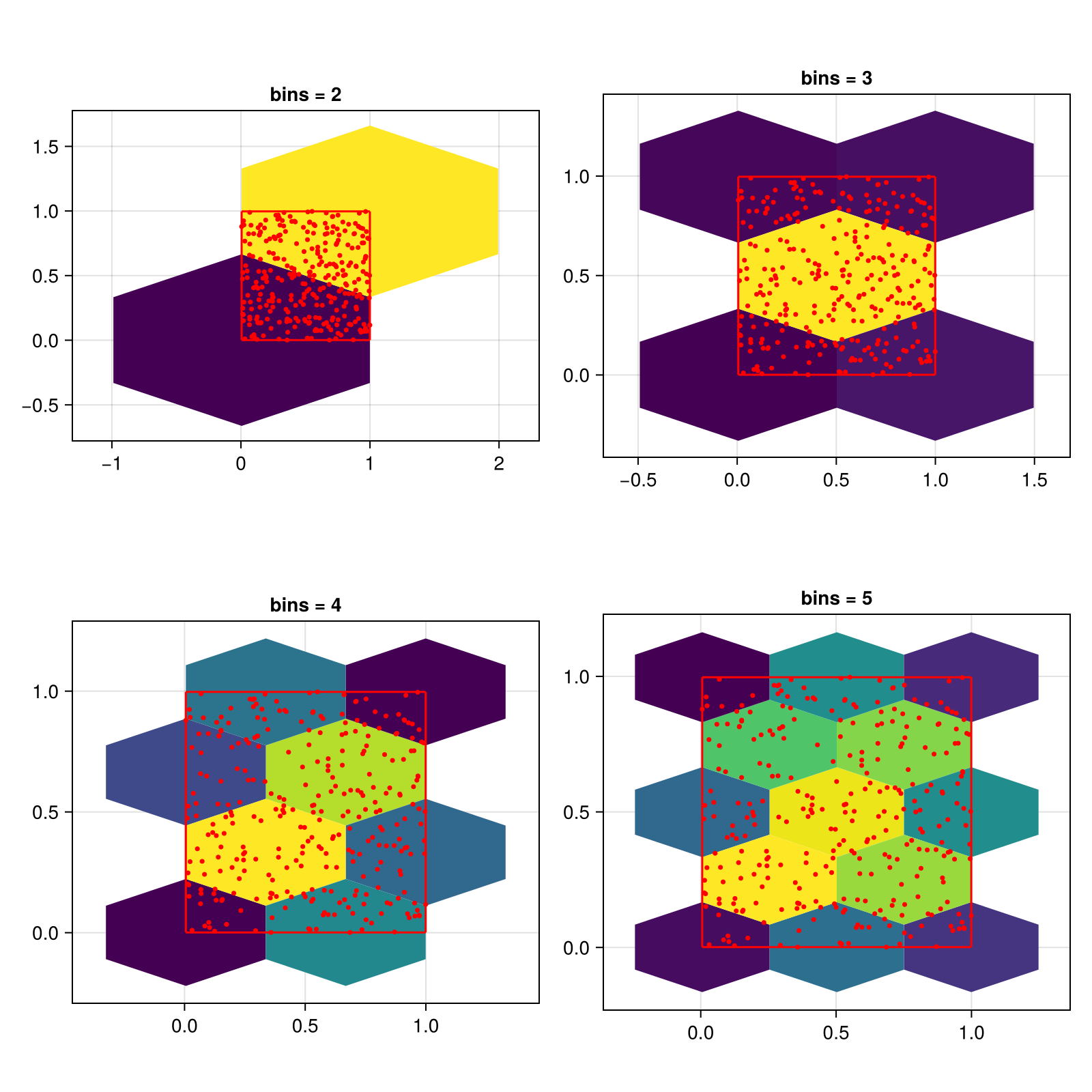

![](/v0.21/assets/3f9b505.BITNUBs-.png)
You can also pass a tuple of integers to control x and y separately.
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = rand(300)
y = rand(300)
for i in 2:5
ax = Axis(f[fldmod1(i-1, 2)...], title = "bins = (3, $i)", aspect = DataAspect())
hexbin!(ax, x, y, bins = (3, i))
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f

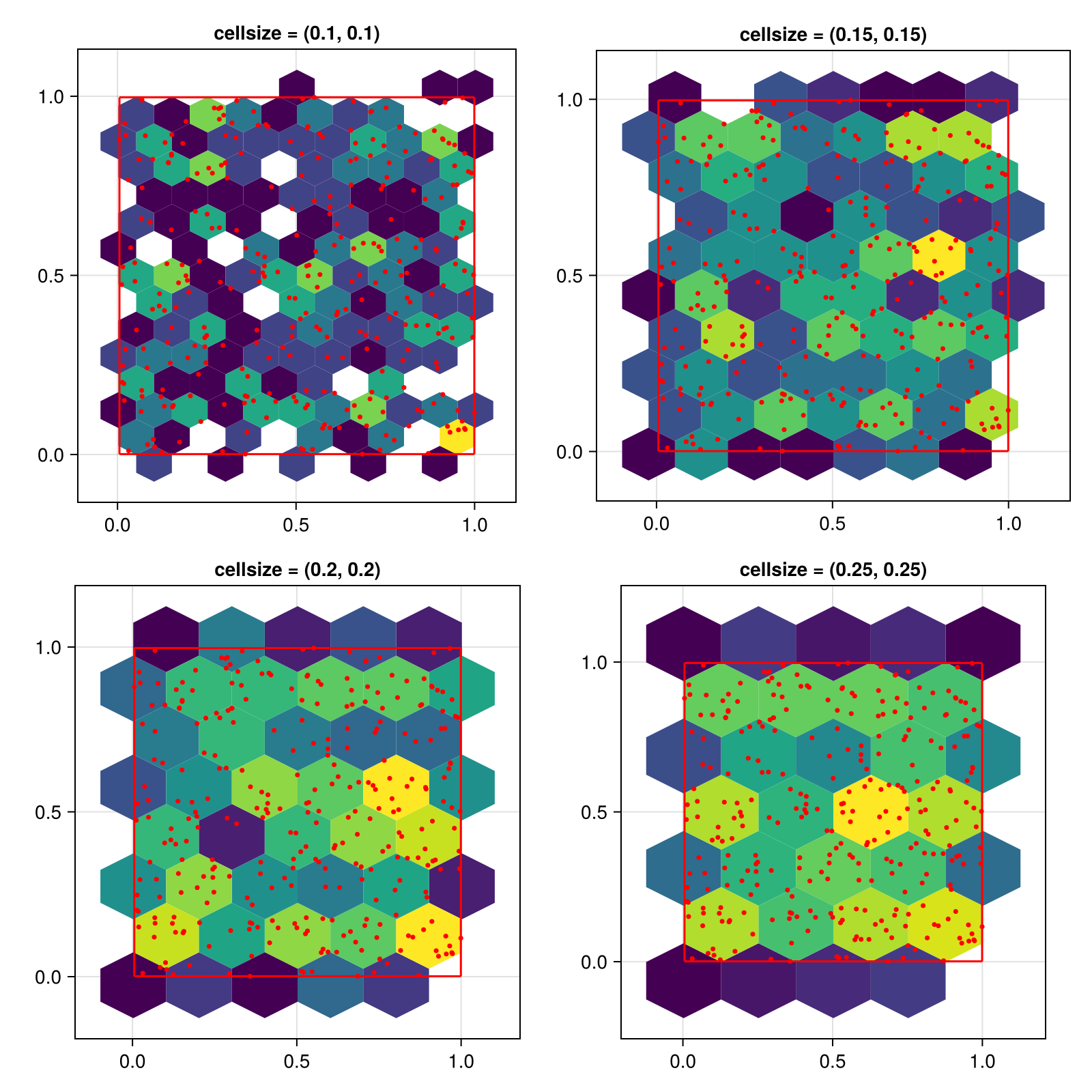

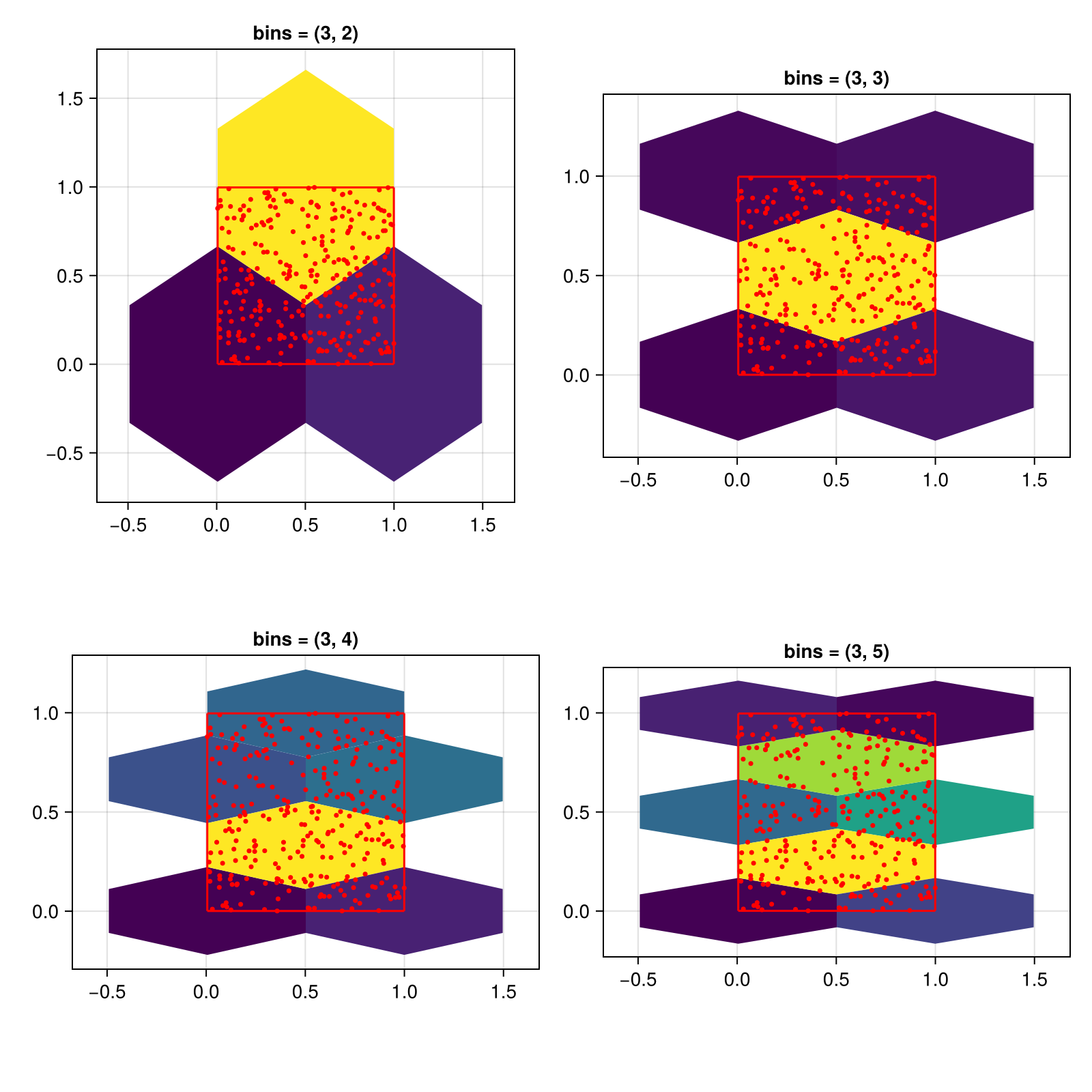

![](/v0.21/assets/f012652.DRn1dT8O.png)
Setting the size of cells
You can also control the cell size directly by setting the cellsize
keyword. In this case, the bins
setting is ignored.
The height of a hexagon is larger than its width. This is why setting the same size for x and y will result in uneven hexagons.
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = rand(300)
y = rand(300)
for (i, cellsize) in enumerate([0.1, 0.15, 0.2, 0.25])
ax = Axis(f[fldmod1(i, 2)...], title = "cellsize = ($cellsize, $cellsize)", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = (cellsize, cellsize))
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f

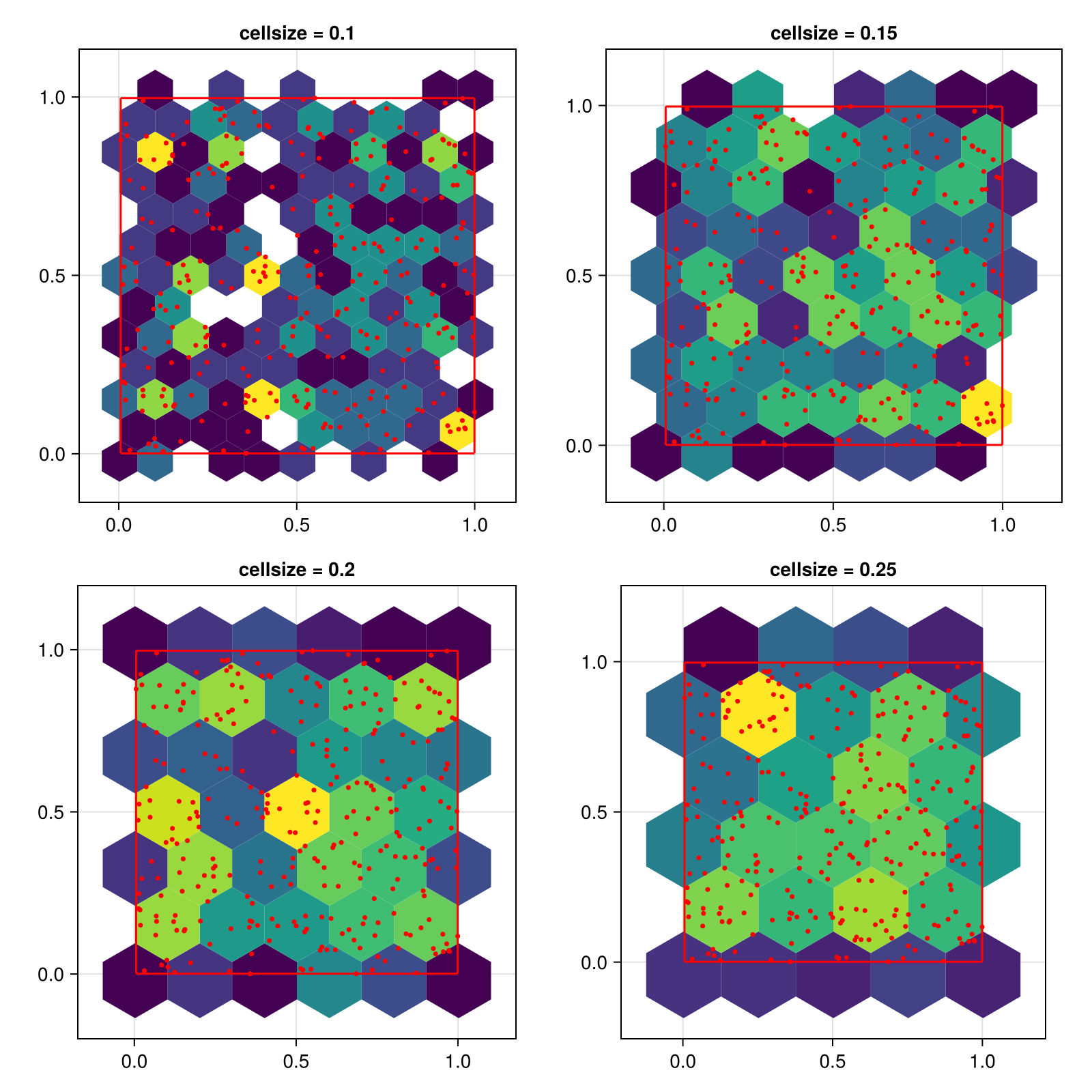

![](/v0.21/assets/99cbf95.CXZJyVcF.png)
To get evenly sized hexagons, set the cell size to a single number. This number defines the cell width, the height will be computed as 2 * step_x / sqrt(3)
. Note that the visual appearance of the hexagons will only be even if the x and y axis have the same scaling, which is why we use aspect = DataAspect()
in these examples.
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = rand(300)
y = rand(300)
for (i, cellsize) in enumerate([0.1, 0.15, 0.2, 0.25])
ax = Axis(f[fldmod1(i, 2)...], title = "cellsize = $cellsize", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = cellsize)
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f
![](/v0.21/assets/6af42dc.iUkq6X6n.png)
Hiding hexagons with low counts
All hexagons with a count lower than threshold
will be removed:
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = randn(100000)
y = randn(100000)
for (i, threshold) in enumerate([1, 10, 100, 500])
ax = Axis(f[fldmod1(i, 2)...], title = "threshold = $threshold", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = 0.4, threshold = threshold)
end
f

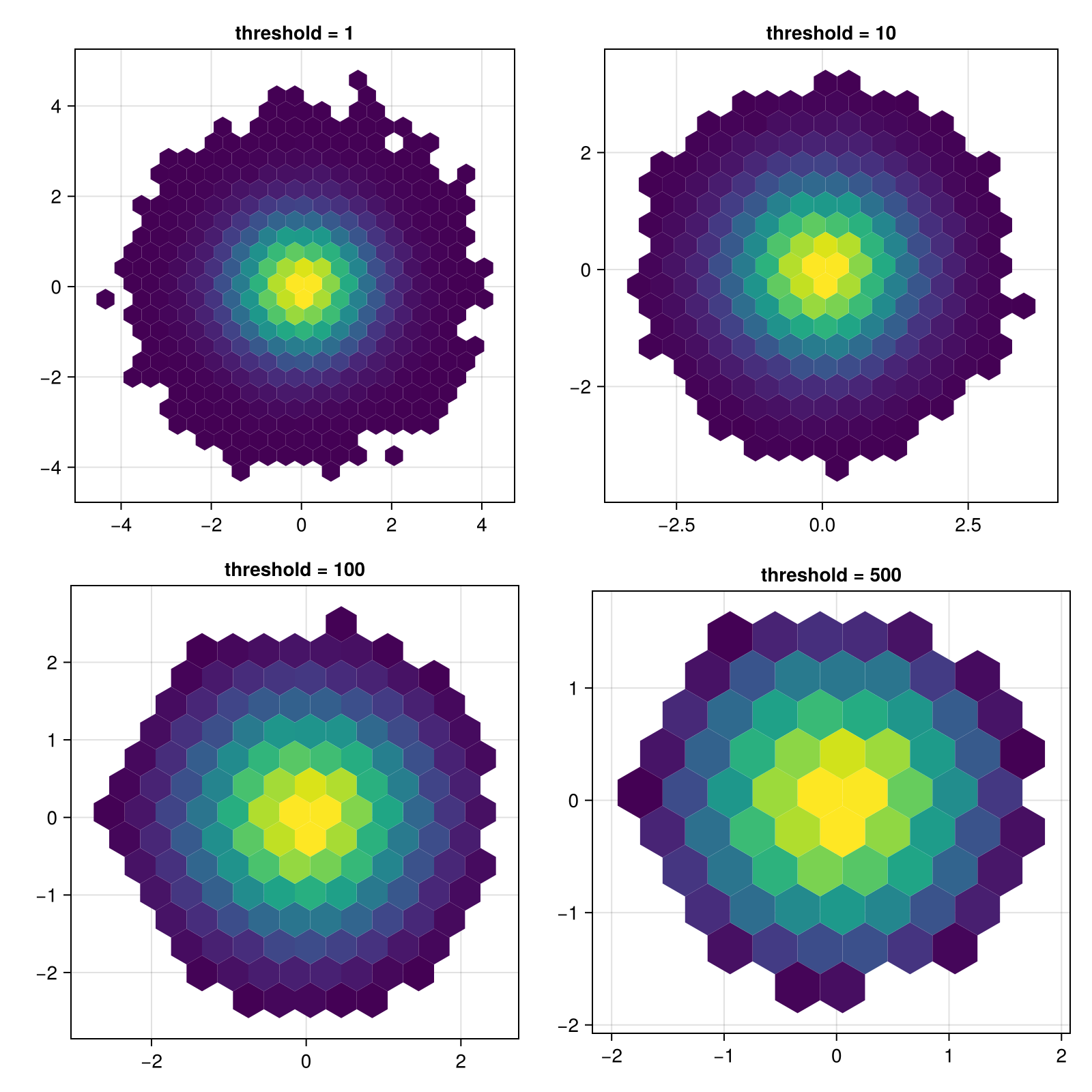

![](/v0.21/assets/28b0647.Tj0fufcw.png)
Changing the scale of the number of observations in a bin
You can pass a scale function to via the colorscale
keyword, which will be applied to the bin counts before plotting.
using CairoMakie
using Random
Random.seed!(1234)
x = randn(100000)
y = randn(100000)
f = Figure()
hexbin(f[1, 1], x, y, bins = 40,
axis = (aspect = DataAspect(), title = "colorscale = identity"))
hexbin(f[1, 2], x, y, bins = 40, colorscale=log10,
axis = (aspect = DataAspect(), title = "colorscale = log10"))
f

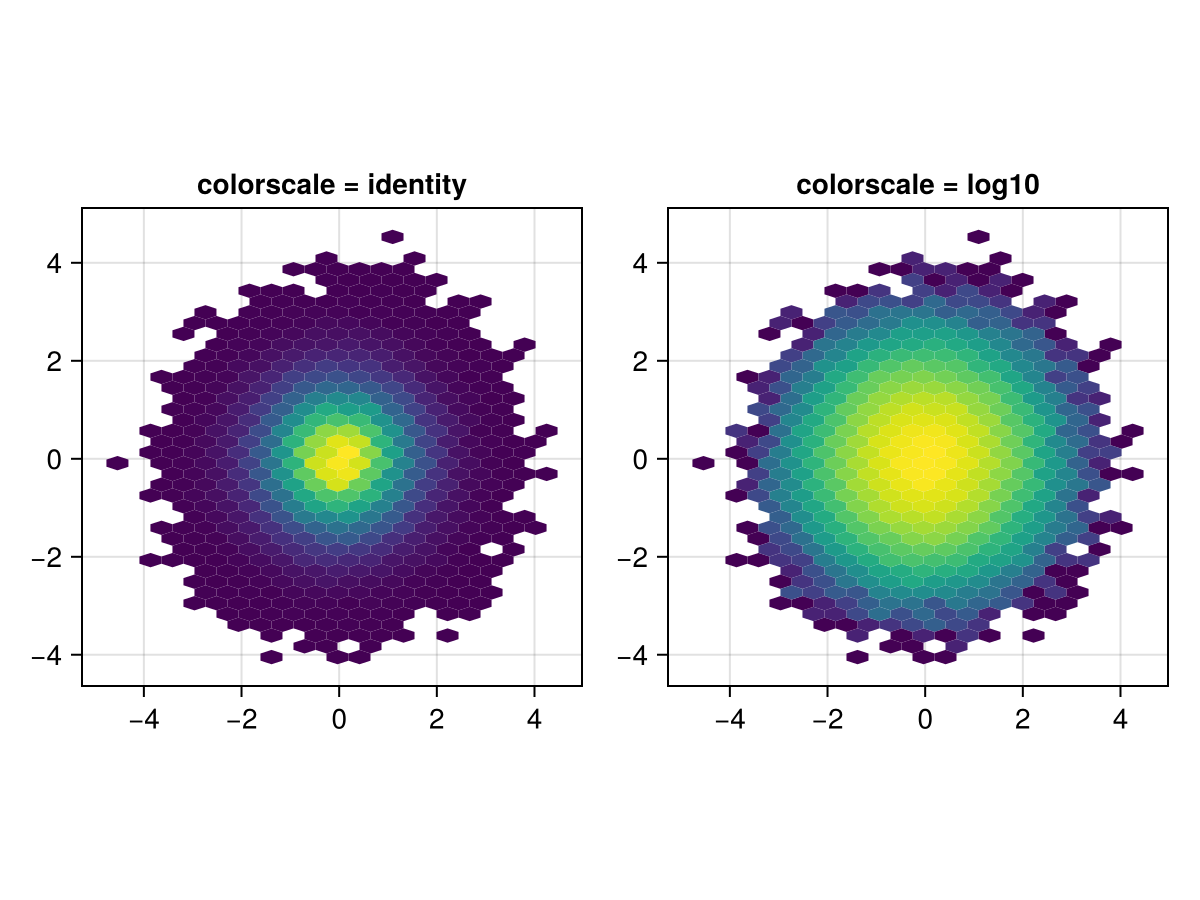

![](/v0.21/assets/894c898.CHh-ChL0.png)
Showing zero count hexagons
By setting threshold = 0
, all hexagons that fit into the limits of the input data are shown. In this example, we add a transparent color to the start of the colormap and stroke each hexagon so the empty hexagons are visible but not too distracting.
using CairoMakie
using DelimitedFiles
a = map(Point2f, eachrow(readdlm(assetpath("airportlocations.csv"))))
f, ax, hb = hexbin(a,
cellsize = 6,
axis = (; aspect = DataAspect()),
threshold = 0,
colormap = [Makie.to_color(:transparent); Makie.to_colormap(:viridis)],
strokewidth = 0.5,
strokecolor = :gray50,
colorscale = Makie.pseudolog10)
tightlimits!(ax)
Colorbar(f[1, 2], hb,
label = "Number of airports",
height = Relative(0.5)
)
f

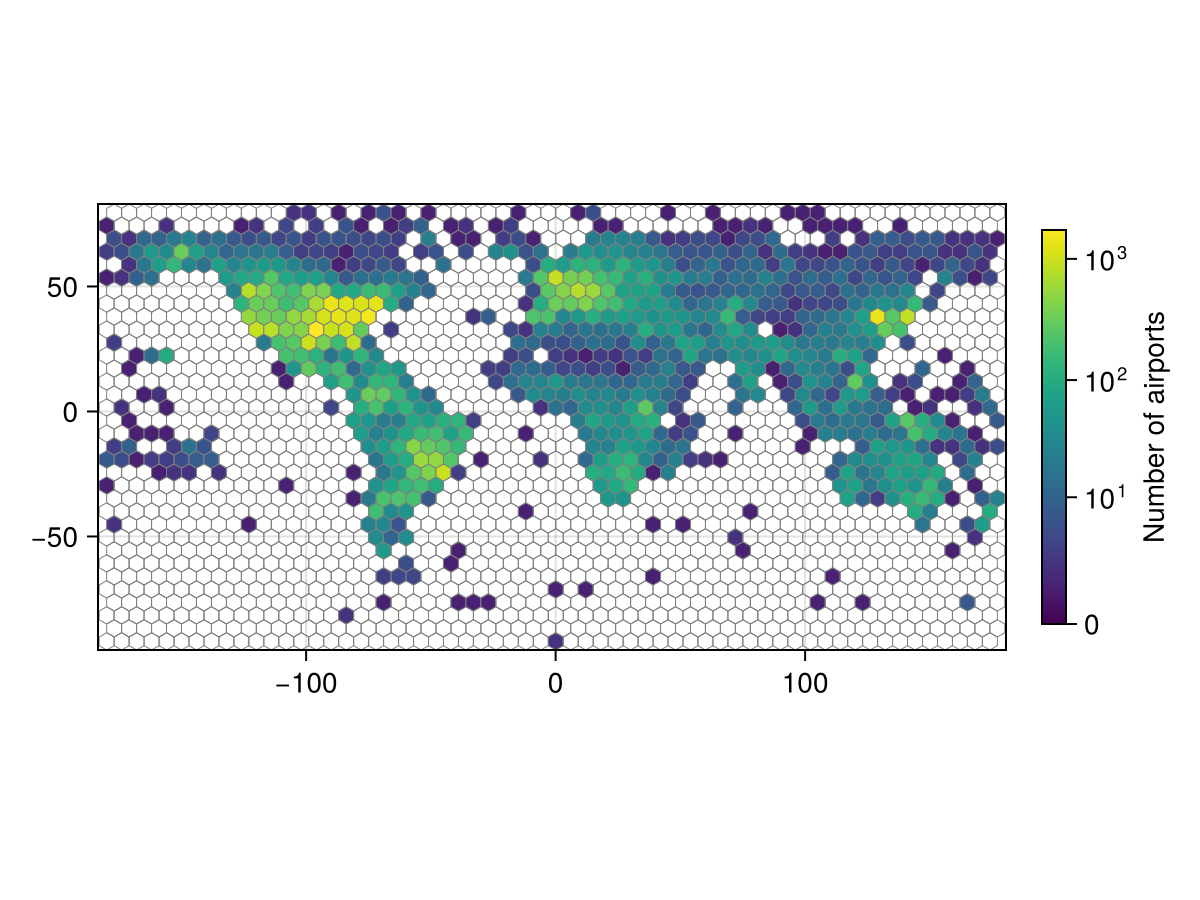

![](/v0.21/assets/8e317fb.BpZvloDX.png)
Applying weights to observations
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(size = (800, 800))
x = 1:100
y = 1:100
points = vec(Point2f.(x, y'))
weights = [nothing, rand(length(points)), Makie.StatsBase.eweights(length(points), 0.005), Makie.StatsBase.weights(randn(length(points)))]
weight_labels = ["No weights", "Vector{<: Real}", "Exponential weights (StatsBase.eweights)", "StatesBase.weights(randn(...))"]
for (i, (weight, title)) in enumerate(zip(weights, weight_labels))
ax = Axis(f[fldmod1(i, 2)...], title = title, aspect = DataAspect())
hexbin!(ax, points; weights = weight)
autolimits!(ax)
end
f

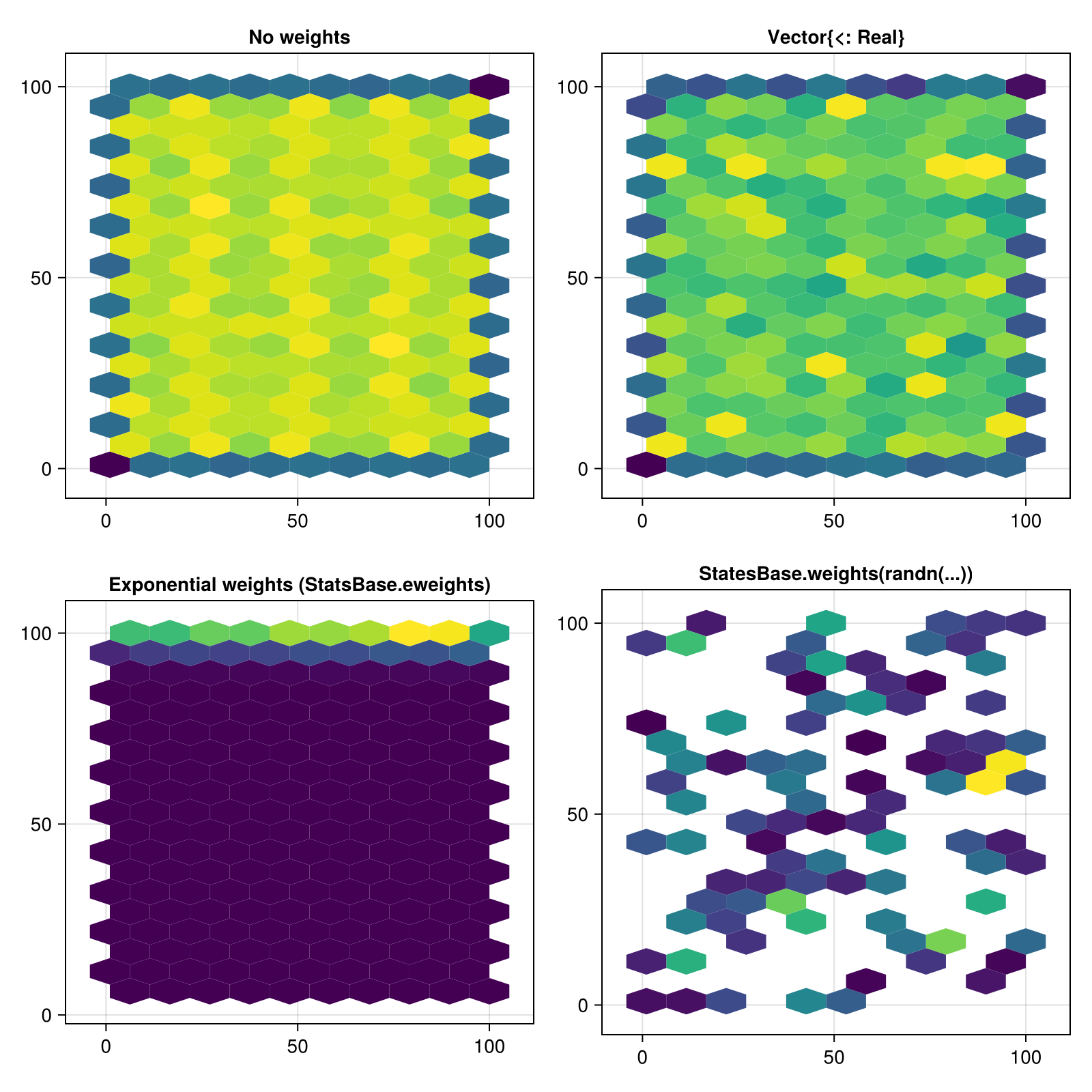

![](/v0.21/assets/9054432.B7XiwJug.png)
Attributes
alpha
Defaults to 1.0
The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)
, will get multiplied.
bins
Defaults to 20
If an Int
, sets the number of bins in x and y direction. If a Tuple{Int, Int}
, sets the number of bins for x and y separately.
cellsize
Defaults to nothing
If a Real
, makes equally-sided hexagons with width cellsize
. If a Tuple{Real, Real}
specifies hexagon width and height separately.
colormap
Defaults to @inherit colormap :viridis
Sets the colormap that is sampled for numeric color
s. PlotUtils.cgrad(...)
, Makie.Reverse(any_colormap)
can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients()
.
colorrange
Defaults to automatic
The values representing the start and end points of colormap
.
colorscale
Defaults to identity
The color transform function. Can be any function, but only works well together with Colorbar
for identity
, log
, log2
, log10
, sqrt
, logit
, Makie.pseudolog10
and Makie.Symlog10
.
highclip
Defaults to automatic
The color for any value above the colorrange.
lowclip
Defaults to automatic
The color for any value below the colorrange.
nan_color
Defaults to :transparent
The color for NaN values.
strokecolor
Defaults to :black
No docs available.
strokewidth
Defaults to 0
No docs available.
threshold
Defaults to 1
The minimal number of observations in the bin to be shown. If 0, all zero-count hexagons fitting into the data limits will be shown.
weights
Defaults to nothing
Weights for each observation. Can be nothing
(each observation carries weight 1) or any AbstractVector{<: Real}
or StatsBase.AbstractWeights
.
