# Makie.bracket — Function.
julia
bracket(x1, y1, x2, y2; kwargs...)
bracket(x1s, y1s, x2s, y2s; kwargs...)
bracket(point1, point2; kwargs...)
bracket(vec_of_point_tuples; kwargs...)

Draws a bracket between each pair of points (x1, y1) and (x2, y2) with a text label at the midpoint.

By default each label is rotated parallel to the line between the bracket points.

Plot type

The plot type alias for the bracket function is Bracket.

source


Examples ​

Scalar arguments ​

julia
using CairoMakie
f, ax, l = lines(0..9, sin; axis = (; xgridvisible = false, ygridvisible = false))
ylims!(ax, -1.5, 1.5)

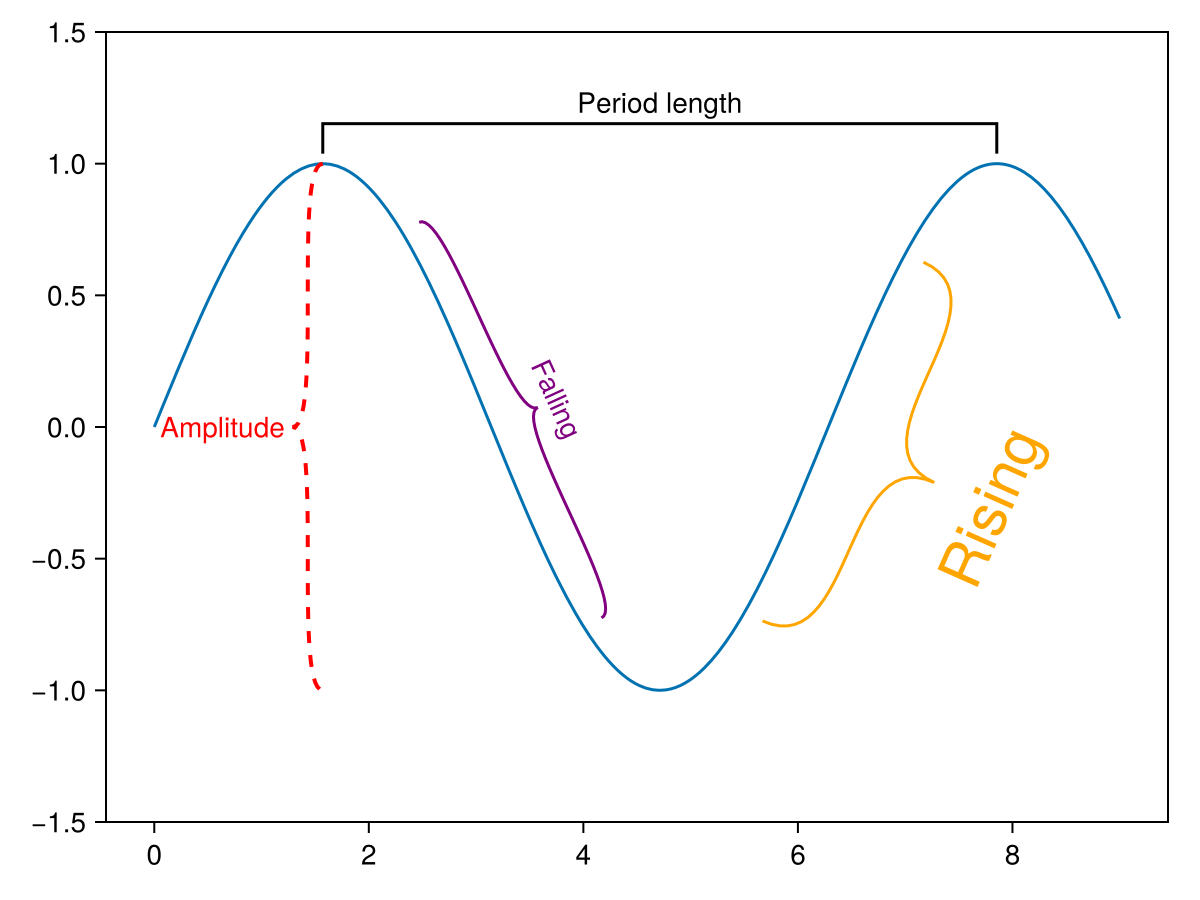

bracket!(pi/2, 1, 5pi/2, 1, offset = 5, text = "Period length", style = :square)

bracket!(pi/2, 1, pi/2, -1, text = "Amplitude", orientation = :down,
    linestyle = :dash, rotation = 0, align = (:right, :center), textoffset = 4, linewidth = 2, color = :red, textcolor = :red)

bracket!(2.3, sin(2.3), 4.0, sin(4.0),
    text = "Falling", offset = 10, orientation = :up, color = :purple, textcolor = :purple)

bracket!(Point(5.5, sin(5.5)), Point(7.0, sin(7.0)),
    text = "Rising", offset = 10, orientation = :down, color = :orange, textcolor = :orange,
    fontsize = 30, textoffset = 30, width = 50)
f

Vector arguments ​

julia
using CairoMakie
f = Figure()
ax = Axis(f[1, 1])

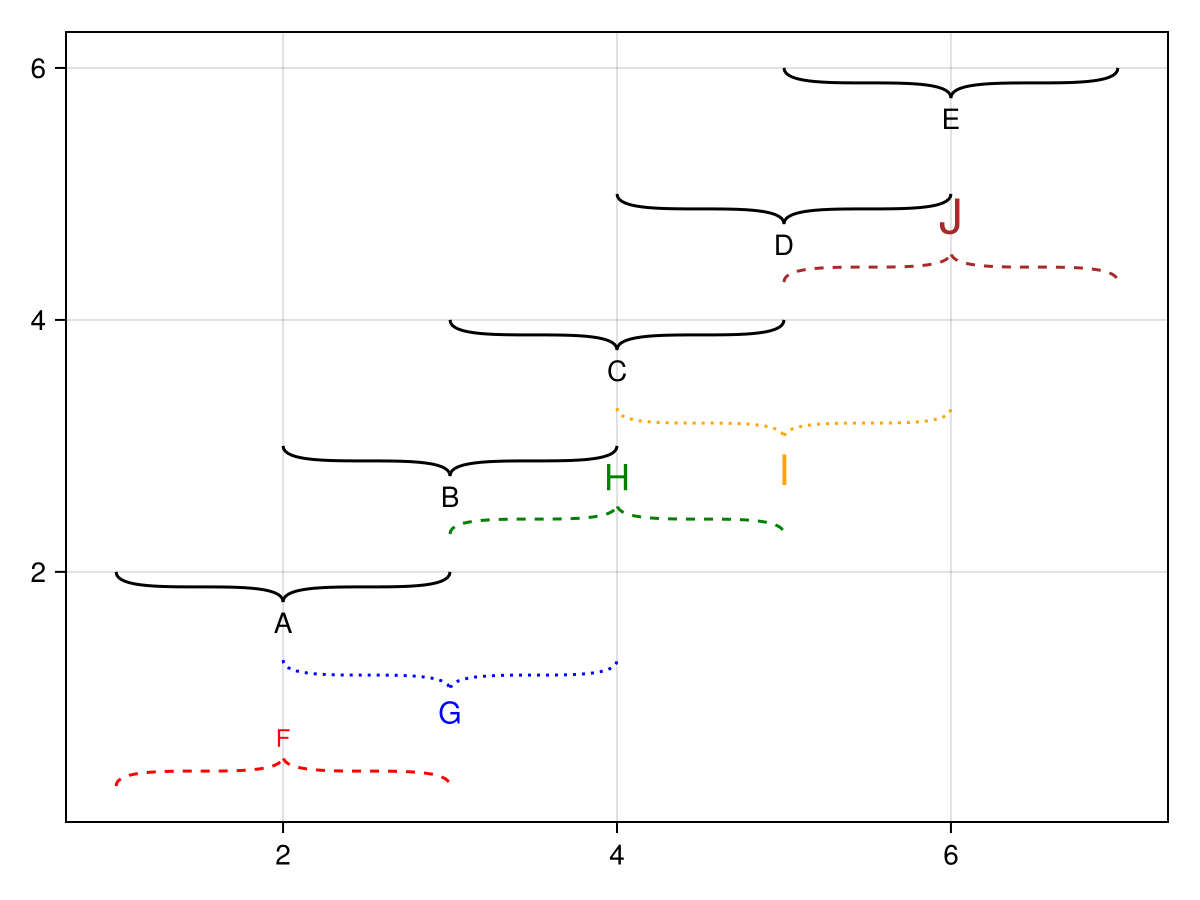

bracket!(ax,
    1:5,
    2:6,
    3:7,
    2:6,
    text = ["A", "B", "C", "D", "E"],
    orientation = :down,
)

bracket!(ax,
    [(Point2f(i, i-0.7), Point2f(i+2, i-0.7)) for i in 1:5],
    text = ["F", "G", "H", "I", "J"],
    color = [:red, :blue, :green, :orange, :brown],
    linestyle = [:dash, :dot, :dash, :dot, :dash],
    orientation = [:up, :down, :up, :down, :up],
    textcolor = [:red, :blue, :green, :orange, :brown],
    fontsize = range(12, 24, length = 5),
)

f

Styles ​

julia
using CairoMakie
f = Figure()
ax = Axis(f[1, 1], xgridvisible = false, ygridvisible = false)
ylims!(ax, -1, 2)

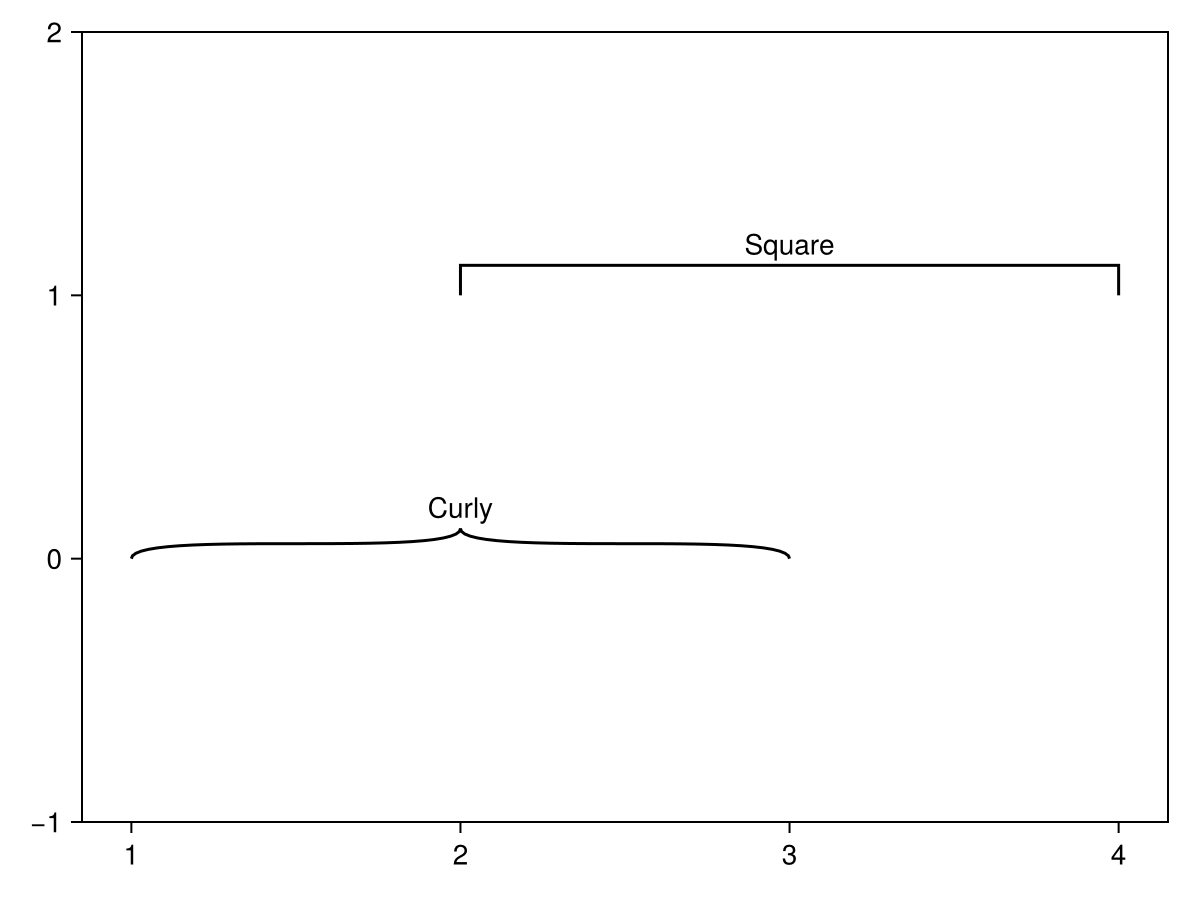

bracket!(ax, 1, 0, 3, 0, text = "Curly", style = :curly)
bracket!(ax, 2, 1, 4, 1, text = "Square", style = :square)

f

Attributes ​

align ​

Defaults to (:center, :center)

No docs available.

color ​

Defaults to @inherit linecolor

No docs available.

font ​

Defaults to @inherit font

No docs available.

fontsize ​

Defaults to @inherit fontsize

No docs available.

joinstyle ​

Defaults to @inherit joinstyle

No docs available.

justification ​

Defaults to automatic

No docs available.

linecap ​

Defaults to @inherit linecap

No docs available.

linestyle ​

Defaults to :solid

No docs available.

linewidth ​

Defaults to @inherit linewidth

No docs available.

miter_limit ​

Defaults to @inherit miter_limit

No docs available.

offset ​

Defaults to 0

The offset of the bracket perpendicular to the line from start to end point in screen units. The direction depends on the orientation attribute.

orientation ​

Defaults to :up

Which way the bracket extends relative to the line from start to end point. Can be :up or :down.

rotation ​

Defaults to automatic

No docs available.

style ​

Defaults to :curly

No docs available.

text ​

Defaults to ""

No docs available.

textcolor ​

Defaults to @inherit textcolor

No docs available.

textoffset ​

Defaults to automatic

No docs available.

width ​

Defaults to 15

The width of the bracket (perpendicularly away from the line from start to end point) in screen units.
