Label ​

A Label is text within a rectangular boundingbox. The halign and valign attributes always refer to unrotated horizontal and vertical. This is different from text, where alignment is relative to text flow direction.

A Label's size is known, so if tellwidth and tellheight are set to true (the default values) a GridLayout with Auto column or row sizes can shrink to fit.

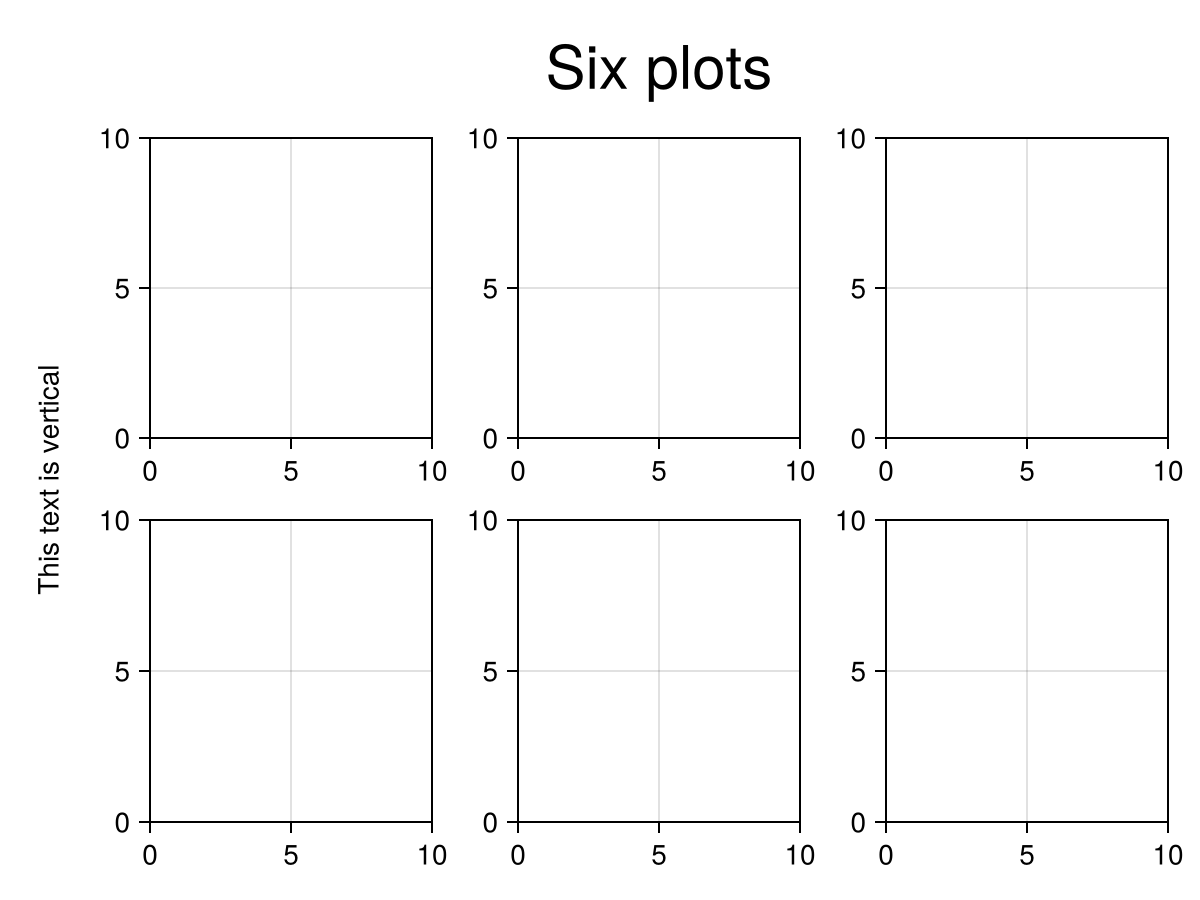

julia
using CairoMakie

fig = Figure()

fig[1:2, 1:3] = [Axis(fig) for _ in 1:6]

supertitle = Label(fig[0, :], "Six plots", fontsize = 30)

sideinfo = Label(fig[1:2, 0], "This text is vertical", rotation = pi/2)

fig

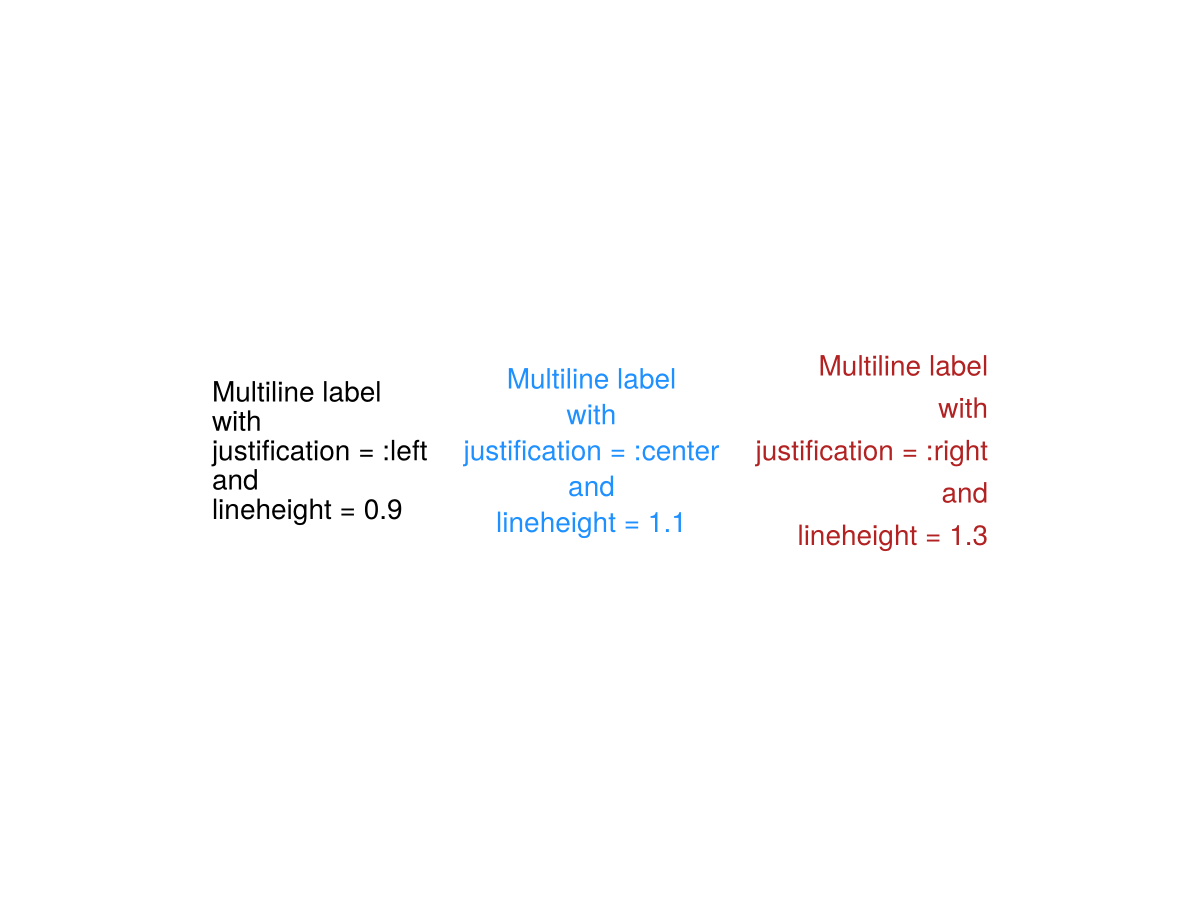

Justification and lineheight of a label can be controlled just like with normal text.

julia
using CairoMakie

f = Figure()

Label(f[1, 1],
    "Multiline label\nwith\njustification = :left\nand\nlineheight = 0.9",
    justification = :left,
    lineheight = 0.9
)
Label(f[1, 2],
    "Multiline label\nwith\njustification = :center\nand\nlineheight = 1.1",
    justification = :center,
    lineheight = 1.1,
    color = :dodgerblue,
)
Label(f[1, 3],
    "Multiline label\nwith\njustification = :right\nand\nlineheight = 1.3",
    justification = :right,
    lineheight = 1.3,
    color = :firebrick
)

f

Attributes ​

alignmode ​

Defaults to Inside()

The align mode of the text in its parent GridLayout.

color ​

Defaults to @inherit :textcolor :black

The color of the text.

font ​

Defaults to :regular

The font family of the text.

fontsize ​

Defaults to @inherit :fontsize 16.0f0

The font size of the text.

halign ​

Defaults to :center

The horizontal alignment of the text in its suggested boundingbox

height ​

Defaults to Auto()

The height setting of the text.

justification ​

Defaults to :center

The justification of the text (:left, :right, :center).

lineheight ​

Defaults to 1.0

The lineheight multiplier for the text.

padding ​

Defaults to (0.0f0, 0.0f0, 0.0f0, 0.0f0)

The extra space added to the sides of the text boundingbox.

rotation ​

Defaults to 0.0

The counterclockwise rotation of the text in radians.

tellheight ​

Defaults to true

Controls if the parent layout can adjust to this element's height

tellwidth ​

Defaults to true

Controls if the parent layout can adjust to this element's width

text ​

Defaults to "Text"

The displayed text string.

valign ​

Defaults to :center

The vertical alignment of the text in its suggested boundingbox

visible ​

Defaults to true

Controls if the text is visible.

width ​

Defaults to Auto()

The width setting of the text.

word_wrap ​

Defaults to false

Enable word wrapping to the suggested width of the Label.
