tooltip

tooltip(position, string)
tooltip(x, y, string)

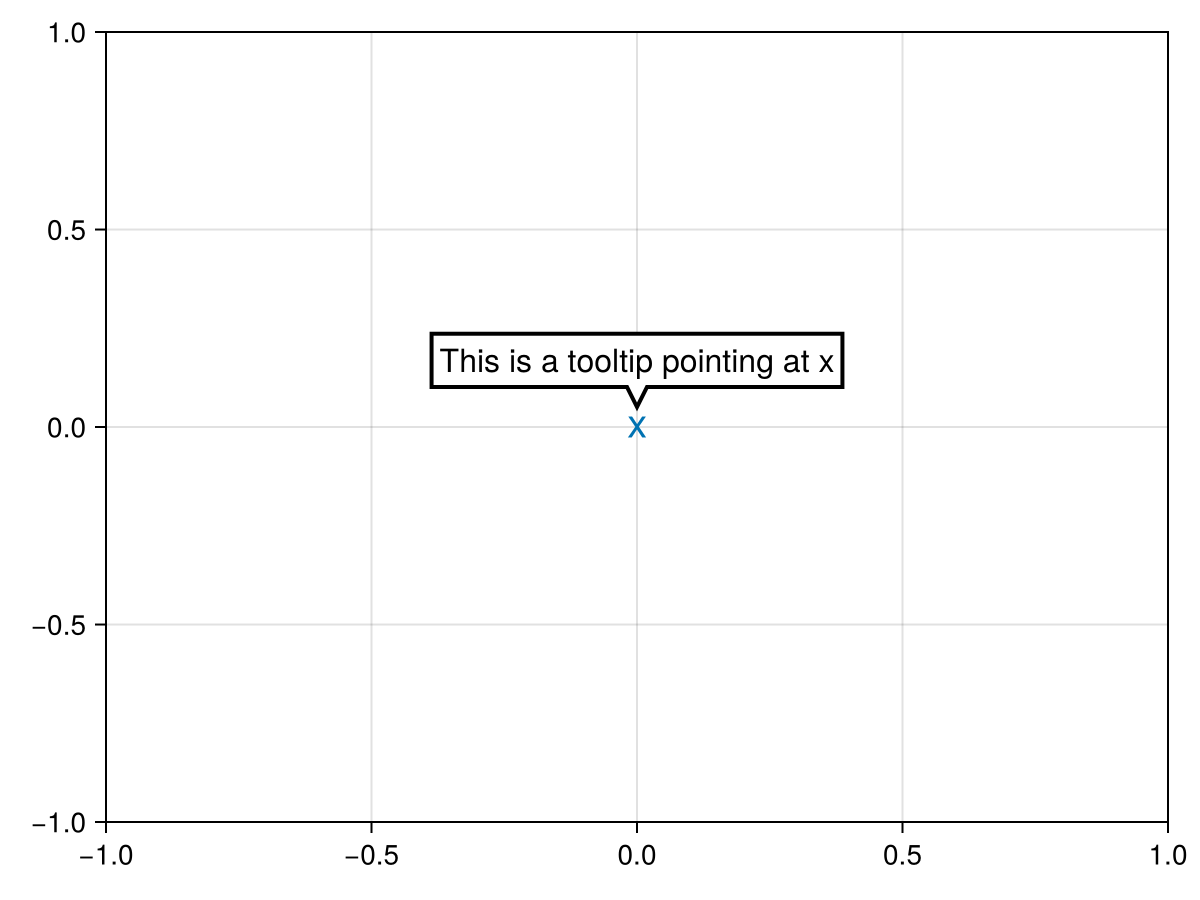

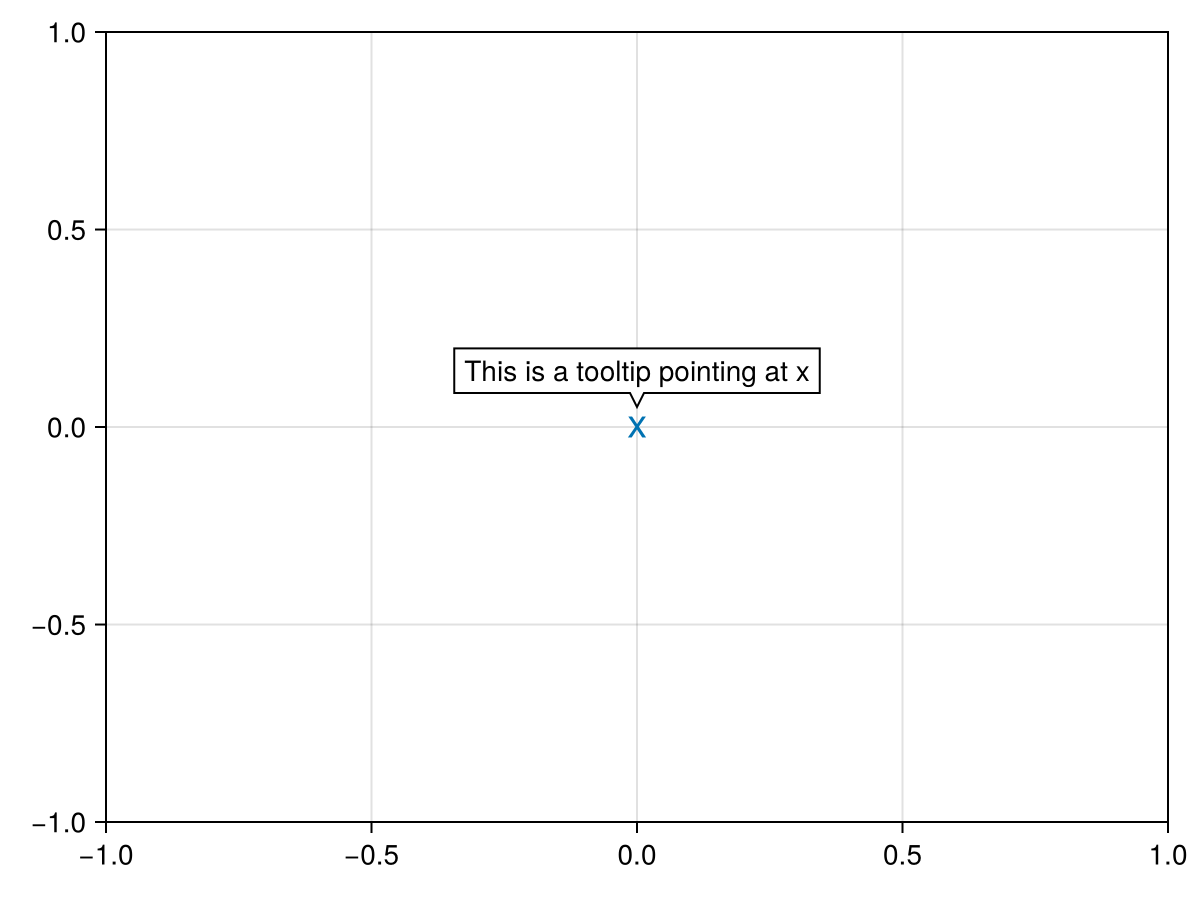

Creates a tooltip pointing at position displaying the given `string

Plot type

The plot type alias for the tooltip function is Tooltip.

Attributes

align = 0.5 — Sets the alignment of the tooltip relative position. With align = 0.5 the tooltip is centered above/below/left/right the position.

backgroundcolor = :white — Sets the background color of the tooltip.

depth_shift = 0.0 — adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

font = @inherit font — Sets the font.

fontsize = 16 — Sets the text size in screen units.

fxaa = true — adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

inspectable = false — sets whether this plot should be seen by DataInspector.

inspector_clear = automatic — Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover = automatic — Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label = automatic — Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

justification = :left — Sets whether text is aligned to the :left, :center or :right within its bounding box.

model = automatic — Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

offset = 10 — Sets the offset between the given position and the tip of the triangle pointing at that position.

outline_color = :black — Sets the color of the tooltip outline.

outline_linestyle = nothing — Sets the linestyle of the tooltip outline.

outline_linewidth = 2.0 — Sets the linewidth of the tooltip outline.

overdraw = false — Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

placement = :above — Sets where the tooltip should be placed relative to position. Can be :above, :below, :left, :right.

space = :data — sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao = false — Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

strokecolor = :white — Sets the text outline color.

strokewidth = 0 — Gives text an outline if set to a positive value.

text = "" — No docs available.

textcolor = @inherit textcolor — Sets the text color.

textpadding = (4, 4, 4, 4) — Sets the padding around text in the tooltip. This is given as (left, right, bottom, top) offsets.

transformation = automatic — No docs available.

transparency = false — Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

triangle_size = 10 — Sets the size of the triangle pointing at position.

visible = true — Controls whether the plot will be rendered or not.

xautolimits = false — No docs available.

yautolimits = false — No docs available.

zautolimits = false — No docs available.
