scatterlines
scatterlines(xs, ys, [zs]; kwargs...)
Plots scatter
markers and lines
between them.
Plot type
The plot type alias for the scatterlines
function is ScatterLines
.
Attributes
alpha
= 1.0
— The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)
, will get multiplied.
color
= @inherit linecolor
— The color of the line, and by default also of the scatter markers.
colormap
= @inherit colormap :viridis
— Sets the colormap that is sampled for numeric color
s. PlotUtils.cgrad(...)
, Makie.Reverse(any_colormap)
can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients()
.
colorrange
= automatic
— The values representing the start and end points of colormap
.
colorscale
= identity
— The color transform function. Can be any function, but only works well together with Colorbar
for identity
, log
, log2
, log10
, sqrt
, logit
, Makie.pseudolog10
and Makie.Symlog10
.
cycle
= [:color]
— No docs available.
depth_shift
= 0.0
— adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1
. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
fxaa
= true
— adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
highclip
= automatic
— The color for any value above the colorrange.
inspectable
= true
— sets whether this plot should be seen by DataInspector
.
inspector_clear
= automatic
— Sets a callback function (inspector, plot) -> ...
for cleaning up custom indicators in DataInspector.
inspector_hover
= automatic
— Sets a callback function (inspector, plot, index) -> ...
which replaces the default show_data
methods.
inspector_label
= automatic
— Sets a callback function (plot, index, position) -> string
which replaces the default label generated by DataInspector.
joinstyle
= @inherit joinstyle
— No docs available.
linecap
= @inherit linecap
— No docs available.
linestyle
= nothing
— Sets the pattern of the line e.g. :solid
, :dot
, :dashdot
. For custom patterns look at Linestyle(Number[...])
linewidth
= @inherit linewidth
— Sets the width of the line in screen units
lowclip
= automatic
— The color for any value below the colorrange.
marker
= @inherit marker
— Sets the scatter marker.
markercolor
= automatic
— No docs available.
markercolormap
= automatic
— No docs available.
markercolorrange
= automatic
— No docs available.
markersize
= @inherit markersize
— Sets the size of the marker.
miter_limit
= @inherit miter_limit
— No docs available.
model
= automatic
— Sets a model matrix for the plot. This overrides adjustments made with translate!
, rotate!
and scale!
.
nan_color
= :transparent
— The color for NaN values.
overdraw
= false
— Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
space
= :data
— sets the transformation space for box encompassing the plot. See Makie.spaces()
for possible inputs.
ssao
= false
— Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true
.
strokecolor
= @inherit markerstrokecolor
— Sets the color of the outline around a marker.
strokewidth
= @inherit markerstrokewidth
— Sets the width of the outline around a marker.
transformation
= automatic
— No docs available.
transparency
= false
— Adjusts how the plot deals with transparency. In GLMakie transparency = true
results in using Order Independent Transparency.
visible
= true
— Controls whether the plot will be rendered or not.

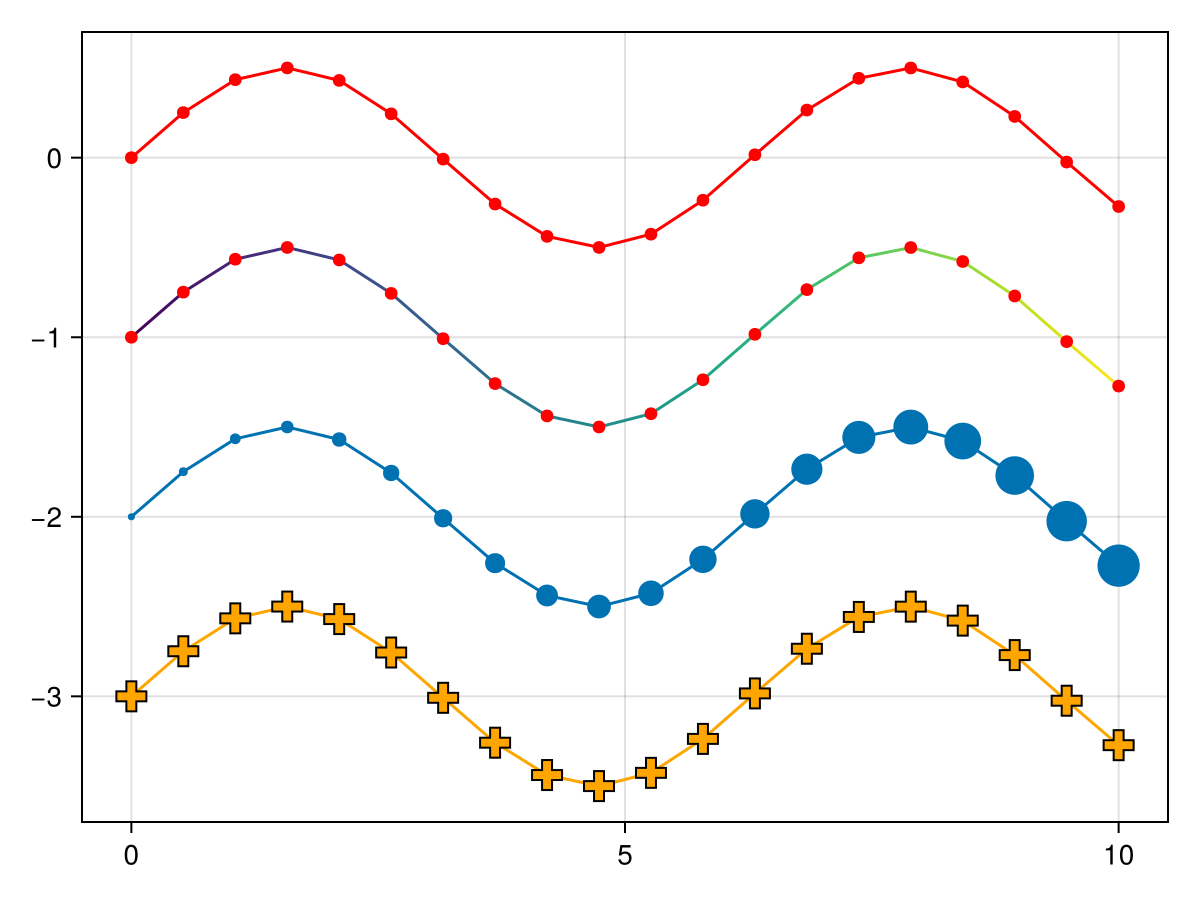

Examples
using CairoMakie
f = Figure()
Axis(f[1, 1])
xs = LinRange(0, 10, 20)
ys = 0.5 .* sin.(xs)
scatterlines!(xs, ys, color = :red)
scatterlines!(xs, ys .- 1, color = xs, markercolor = :red)
scatterlines!(xs, ys .- 2, markersize = LinRange(5, 30, 20))
scatterlines!(xs, ys .- 3, marker = :cross, strokewidth = 1,
markersize = 20, color = :orange, strokecolor = :black)
f
These docs were autogenerated using Makie: v0.21.0, GLMakie: v0.10.0, CairoMakie: v0.12.0, WGLMakie: v0.10.0
