meshscatter
meshscatter(positions)
meshscatter(x, y)
meshscatter(x, y, z)
Plots a mesh for each element in (x, y, z)
, (x, y)
, or positions
(similar to scatter
). markersize
is a scaling applied to the primitive passed as marker
.
Plot type
The plot type alias for the meshscatter
function is MeshScatter
.
Attributes
alpha
= 1.0
— The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)
, will get multiplied.
backlight
= 0.0
— Sets a weight for secondary light calculation with inverted normals.
color
= @inherit markercolor
— Sets the color of the marker.
colormap
= @inherit colormap :viridis
— Sets the colormap that is sampled for numeric color
s. PlotUtils.cgrad(...)
, Makie.Reverse(any_colormap)
can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients()
.
colorrange
= automatic
— The values representing the start and end points of colormap
.
colorscale
= identity
— The color transform function. Can be any function, but only works well together with Colorbar
for identity
, log
, log2
, log10
, sqrt
, logit
, Makie.pseudolog10
and Makie.Symlog10
.
cycle
= [:color]
— No docs available.
depth_shift
= 0.0
— adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1
. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
diffuse
= 1.0
— Sets how strongly the red, green and blue channel react to diffuse (scattered) light.
fxaa
= true
— adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
highclip
= automatic
— The color for any value above the colorrange.
inspectable
= true
— sets whether this plot should be seen by DataInspector
.
inspector_clear
= automatic
— Sets a callback function (inspector, plot) -> ...
for cleaning up custom indicators in DataInspector.
inspector_hover
= automatic
— Sets a callback function (inspector, plot, index) -> ...
which replaces the default show_data
methods.
inspector_label
= automatic
— Sets a callback function (plot, index, position) -> string
which replaces the default label generated by DataInspector.
lowclip
= automatic
— The color for any value below the colorrange.
marker
= :Sphere
— Sets the scattered mesh.
markersize
= 0.1
— Sets the scale of the mesh. This can be given as a Vector
to apply to each scattered mesh individually.
material
= nothing
— RPRMakie only attribute to set complex RadeonProRender materials. Warning, how to set an RPR material may change and other backends will ignore this attribute
model
= automatic
— Sets a model matrix for the plot. This overrides adjustments made with translate!
, rotate!
and scale!
.
nan_color
= :transparent
— The color for NaN values.
overdraw
= false
— Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
rotation
= 0.0
— Sets the rotation of the mesh. A numeric rotation is around the z-axis, a Vec3f
causes the mesh to rotate such that the the z-axis is now that vector, and a quaternion describes a general rotation. This can be given as a Vector to apply to each scattered mesh individually.
shading
= automatic
— Sets the lighting algorithm used. Options are NoShading
(no lighting), FastShading
(AmbientLight + PointLight) or MultiLightShading
(Multiple lights, GLMakie only). Note that this does not affect RPRMakie.
shininess
= 32.0
— Sets how sharp the reflection is.
space
= :data
— sets the transformation space for box encompassing the plot. See Makie.spaces()
for possible inputs.
specular
= 0.2
— Sets how strongly the object reflects light in the red, green and blue channels.
ssao
= false
— Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true
.
transformation
= automatic
— No docs available.
transparency
= false
— Adjusts how the plot deals with transparency. In GLMakie transparency = true
results in using Order Independent Transparency.
visible
= true
— Controls whether the plot will be rendered or not.
Examples

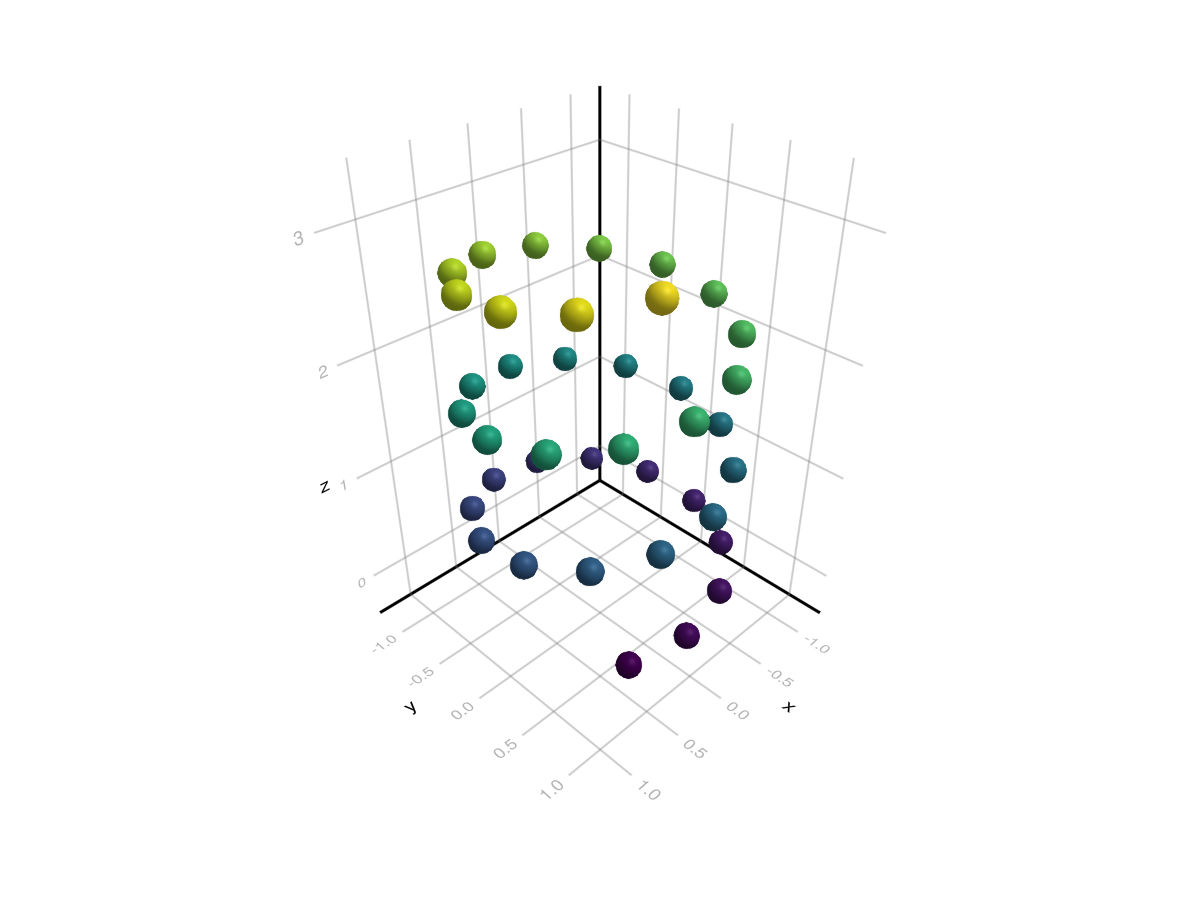

using GLMakie
xs = cos.(1:0.5:20)
ys = sin.(1:0.5:20)
zs = LinRange(0, 3, length(xs))
meshscatter(xs, ys, zs, markersize = 0.1, color = zs)
