rangebars
rangebars(val, low, high; kwargs...)
rangebars(val, low_high; kwargs...)
rangebars(val_low_high; kwargs...)
Plots rangebars at val
in one dimension, extending from low
to high
in the other dimension given the chosen direction
. The low_high
argument can be a vector of tuples or intervals.
If you want to plot errors relative to a reference value, use errorbars
.
Plot type
The plot type alias for the rangebars
function is Rangebars
.
Attributes
alpha
= 1.0
— The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)
, will get multiplied.
color
= @inherit linecolor
— The color of the lines. Can be an array to color each bar separately.
colormap
= @inherit colormap :viridis
— Sets the colormap that is sampled for numeric color
s. PlotUtils.cgrad(...)
, Makie.Reverse(any_colormap)
can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients()
.
colorrange
= automatic
— The values representing the start and end points of colormap
.
colorscale
= identity
— The color transform function. Can be any function, but only works well together with Colorbar
for identity
, log
, log2
, log10
, sqrt
, logit
, Makie.pseudolog10
and Makie.Symlog10
.
cycle
= [:color]
— No docs available.
depth_shift
= 0.0
— adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1
. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
direction
= :y
— The direction in which the bars are drawn. Can be :x
or :y
.
fxaa
= true
— adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
highclip
= automatic
— The color for any value above the colorrange.
inspectable
= true
— sets whether this plot should be seen by DataInspector
.
inspector_clear
= automatic
— Sets a callback function (inspector, plot) -> ...
for cleaning up custom indicators in DataInspector.
inspector_hover
= automatic
— Sets a callback function (inspector, plot, index) -> ...
which replaces the default show_data
methods.
inspector_label
= automatic
— Sets a callback function (plot, index, position) -> string
which replaces the default label generated by DataInspector.
linecap
= @inherit linecap
— No docs available.
linewidth
= @inherit linewidth
— The thickness of the lines in screen units.
lowclip
= automatic
— The color for any value below the colorrange.
model
= automatic
— Sets a model matrix for the plot. This overrides adjustments made with translate!
, rotate!
and scale!
.
nan_color
= :transparent
— The color for NaN values.
overdraw
= false
— Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
space
= :data
— sets the transformation space for box encompassing the plot. See Makie.spaces()
for possible inputs.
ssao
= false
— Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true
.
transformation
= automatic
— No docs available.
transparency
= false
— Adjusts how the plot deals with transparency. In GLMakie transparency = true
results in using Order Independent Transparency.
visible
= true
— Controls whether the plot will be rendered or not.
whiskerwidth
= 0
— The width of the whiskers or line caps in screen units.
Examples

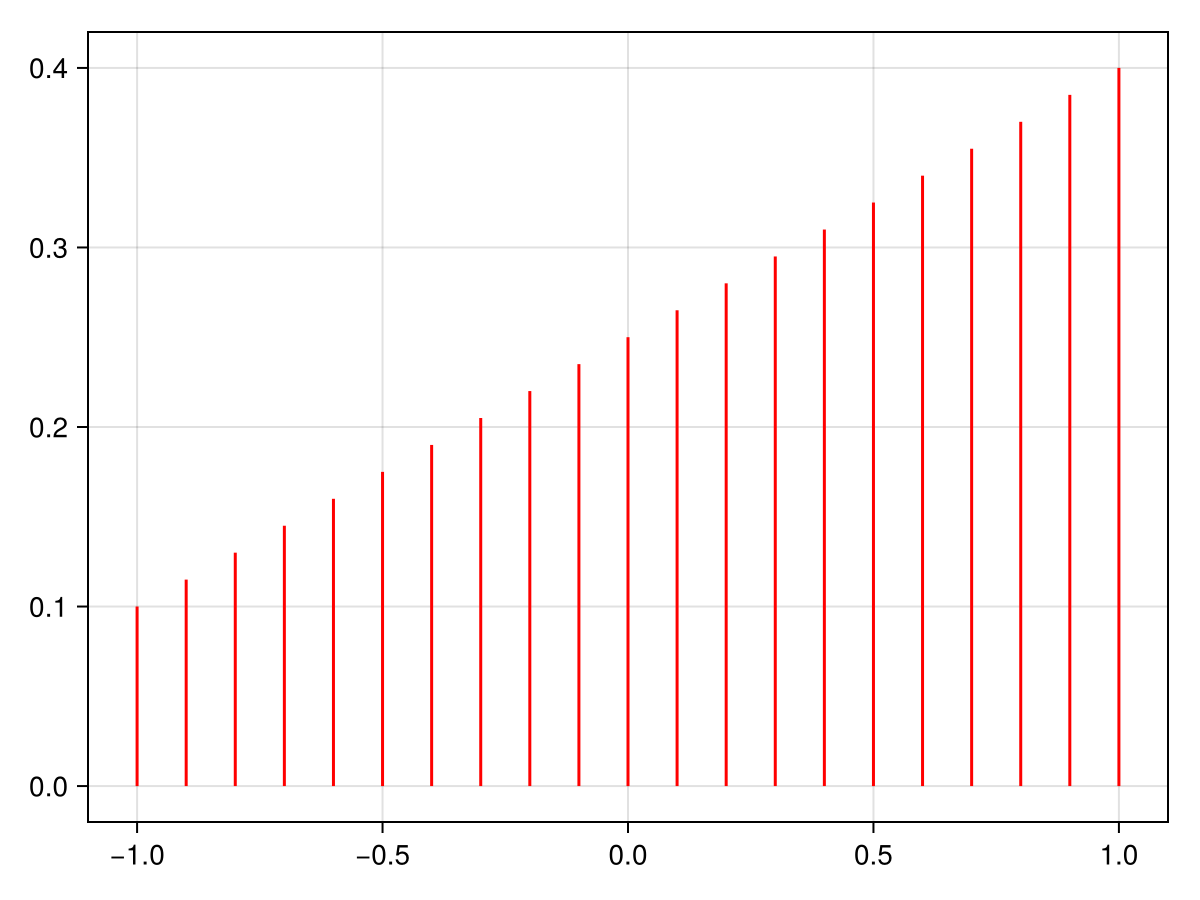

using CairoMakie
f = Figure()
Axis(f[1, 1])
vals = -1:0.1:1
lows = zeros(length(vals))
highs = LinRange(0.1, 0.4, length(vals))
rangebars!(vals, lows, highs, color = :red)
f

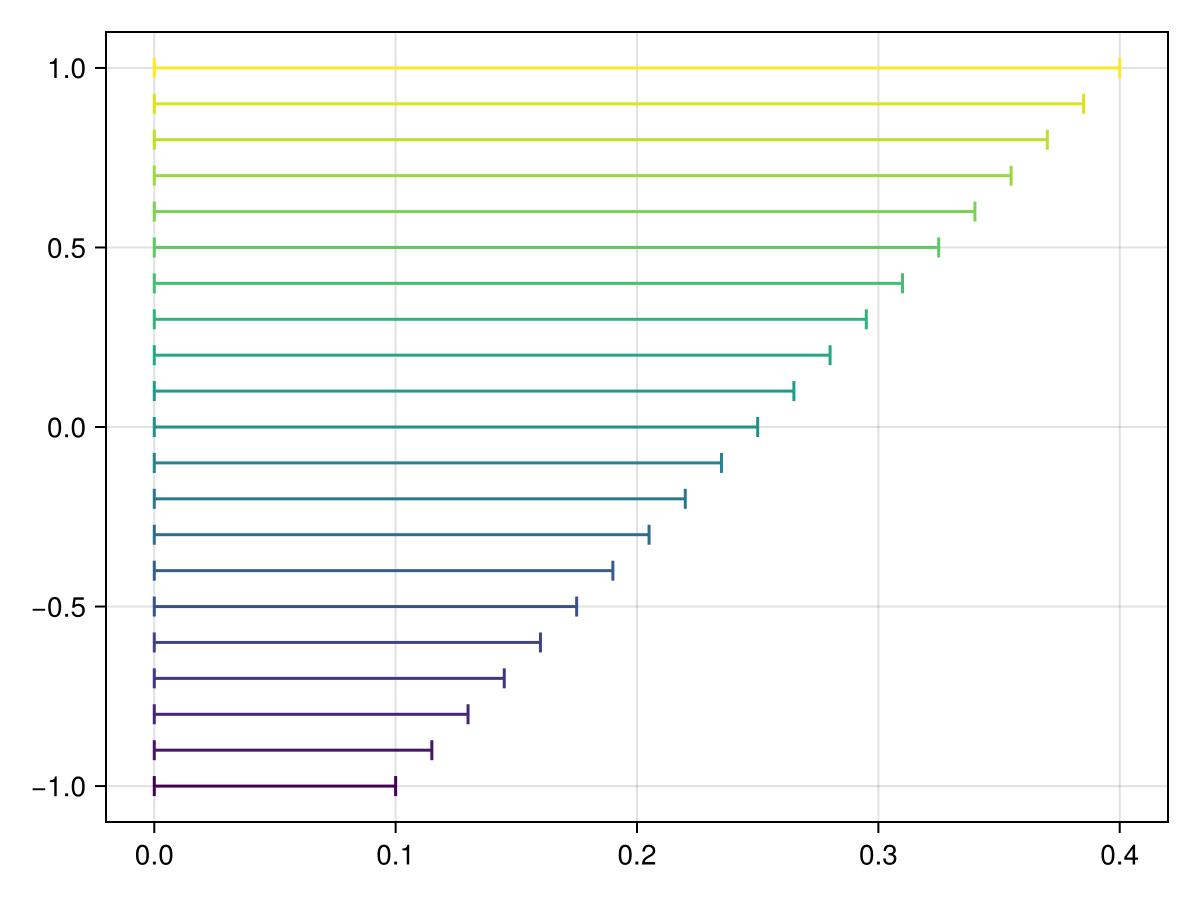

using CairoMakie
f = Figure()
Axis(f[1, 1])
vals = -1:0.1:1
lows = zeros(length(vals))
highs = LinRange(0.1, 0.4, length(vals))
rangebars!(vals, lows, highs, color = LinRange(0, 1, length(vals)),
whiskerwidth = 10, direction = :x)
f
These docs were autogenerated using Makie: v0.21.0, GLMakie: v0.10.0, CairoMakie: v0.12.0, WGLMakie: v0.10.0
