volumeslices
VolumeSlices
volumeslices(x, y, z, v)
Draws heatmap slices of the volume v
Plot type
The plot type alias for the volumeslices
function is VolumeSlices
.
Attributes
alpha
= 1.0
— The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)
, will get multiplied.
bbox_color
= RGBAf(0.5, 0.5, 0.5, 0.5)
— No docs available.
bbox_visible
= true
— No docs available.
colormap
= @inherit colormap :viridis
— Sets the colormap that is sampled for numeric color
s. PlotUtils.cgrad(...)
, Makie.Reverse(any_colormap)
can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients()
.
colorrange
= automatic
— The values representing the start and end points of colormap
.
colorscale
= identity
— The color transform function. Can be any function, but only works well together with Colorbar
for identity
, log
, log2
, log10
, sqrt
, logit
, Makie.pseudolog10
and Makie.Symlog10
.
depth_shift
= 0.0
— adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1
. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
fxaa
= true
— adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
highclip
= automatic
— The color for any value above the colorrange.
inspectable
= true
— sets whether this plot should be seen by DataInspector
.
inspector_clear
= automatic
— Sets a callback function (inspector, plot) -> ...
for cleaning up custom indicators in DataInspector.
inspector_hover
= automatic
— Sets a callback function (inspector, plot, index) -> ...
which replaces the default show_data
methods.
inspector_label
= automatic
— Sets a callback function (plot, index, position) -> string
which replaces the default label generated by DataInspector.
interpolate
= false
— Sets whether colors should be interpolated
lowclip
= automatic
— The color for any value below the colorrange.
model
= automatic
— Sets a model matrix for the plot. This overrides adjustments made with translate!
, rotate!
and scale!
.
nan_color
= :transparent
— The color for NaN values.
overdraw
= false
— Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
space
= :data
— sets the transformation space for box encompassing the plot. See Makie.spaces()
for possible inputs.
ssao
= false
— Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true
.
transformation
= automatic
— No docs available.
transparency
= false
— Adjusts how the plot deals with transparency. In GLMakie transparency = true
results in using Order Independent Transparency.
visible
= true
— Controls whether the plot will be rendered or not.

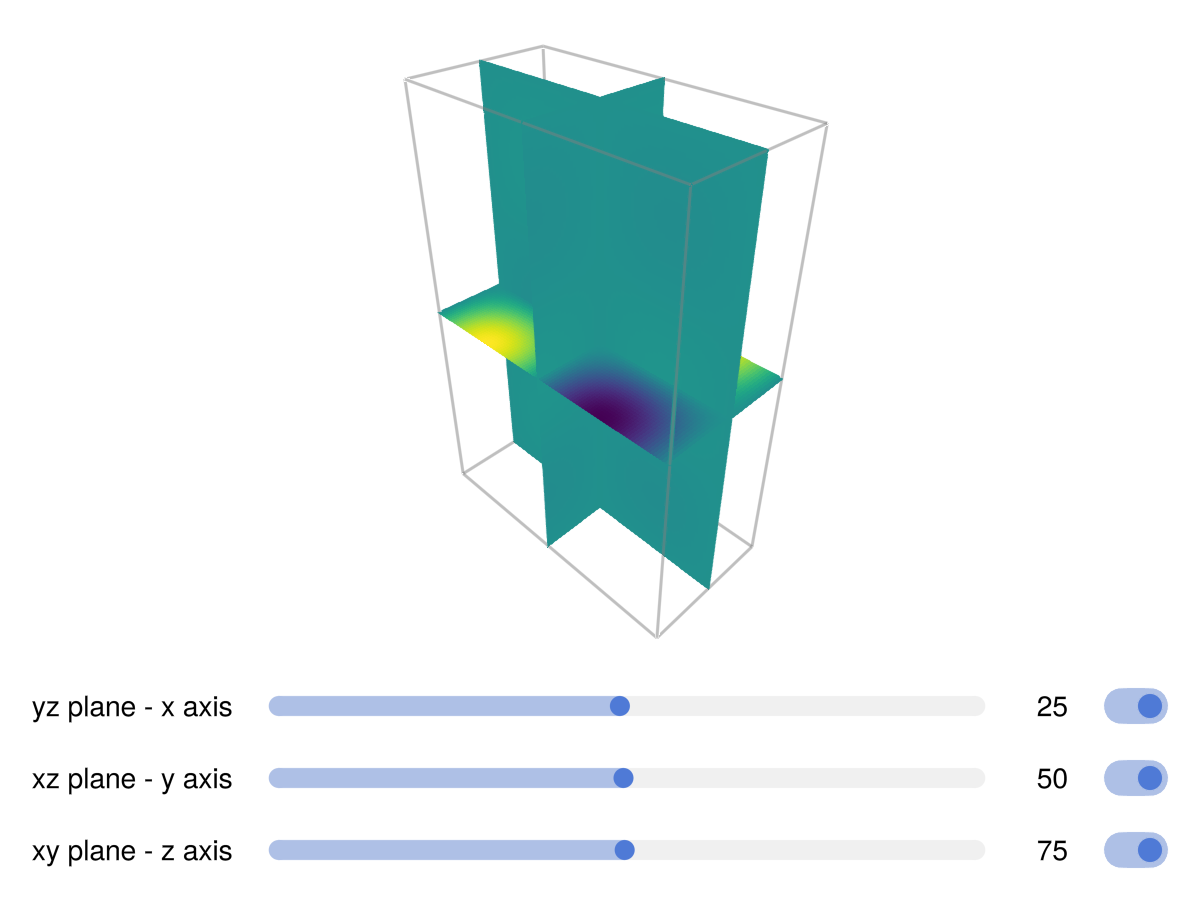

Examples
using GLMakie
fig = Figure()
ax = LScene(fig[1, 1], show_axis=false)
x = LinRange(0, π, 50)
y = LinRange(0, 2π, 100)
z = LinRange(0, 3π, 150)
sgrid = SliderGrid(
fig[2, 1],
(label = "yz plane - x axis", range = 1:length(x)),
(label = "xz plane - y axis", range = 1:length(y)),
(label = "xy plane - z axis", range = 1:length(z)),
)
lo = sgrid.layout
nc = ncols(lo)
vol = [cos(X)*sin(Y)*sin(Z) for X ∈ x, Y ∈ y, Z ∈ z]
plt = volumeslices!(ax, x, y, z, vol)
# connect sliders to `volumeslices` update methods
sl_yz, sl_xz, sl_xy = sgrid.sliders
on(sl_yz.value) do v; plt[:update_yz][](v) end
on(sl_xz.value) do v; plt[:update_xz][](v) end
on(sl_xy.value) do v; plt[:update_xy][](v) end
set_close_to!(sl_yz, .5length(x))
set_close_to!(sl_xz, .5length(y))
set_close_to!(sl_xy, .5length(z))
# add toggles to show/hide heatmaps
hmaps = [plt[Symbol(:heatmap_, s)][] for s ∈ (:yz, :xz, :xy)]
toggles = [Toggle(lo[i, nc + 1], active = true) for i ∈ 1:length(hmaps)]
map(zip(hmaps, toggles)) do (h, t)
connect!(h.visible, t.active)
end
# cam3d!(ax.scene, projectiontype=Makie.Orthographic)
fig
