arrows

Arrows are split into two plot types, arrows2d and arrows3d. They differ in the arrow markers they create - arrows2d creates 2D arrows and arrows3d creates 3D arrows. Both can be used with 2D and 3D coordinates.

Makie.arrows2d Function

julia

arrows2d(points, directions; kwargs...)
arrows2d(x, y, [z], u, v, [w])
arrows2d(x, y, [z], f::Function)

Plots arrows as 2D shapes.

Their positions are given by a vector of points or component vectors x, y and optionally z. A single point or value of x, y and z is also allowed. Which part of the arrow is aligned with the position depends on the align attribute.

Their directions are given by a vector of directions or component vectors u, v and optionally w just like positions. Additionally they can also be calculated by a function f which should return a Point or Vec for each arrow position::Point. Note that direction can also be interpreted as end points with argmode = :endpoint.

Plot type

The plot type alias for the arrows2d function is Arrows2D.

source

Makie.arrows3d Function

julia

arrows3d(points, directions; kwargs...)
arrows3d(x, y, [z], u, v, [w])
arrows3d(x, y, [z], f::Function)

Plots arrows as 3D shapes.

Plot type

The plot type alias for the arrows3d function is Arrows3D.

source

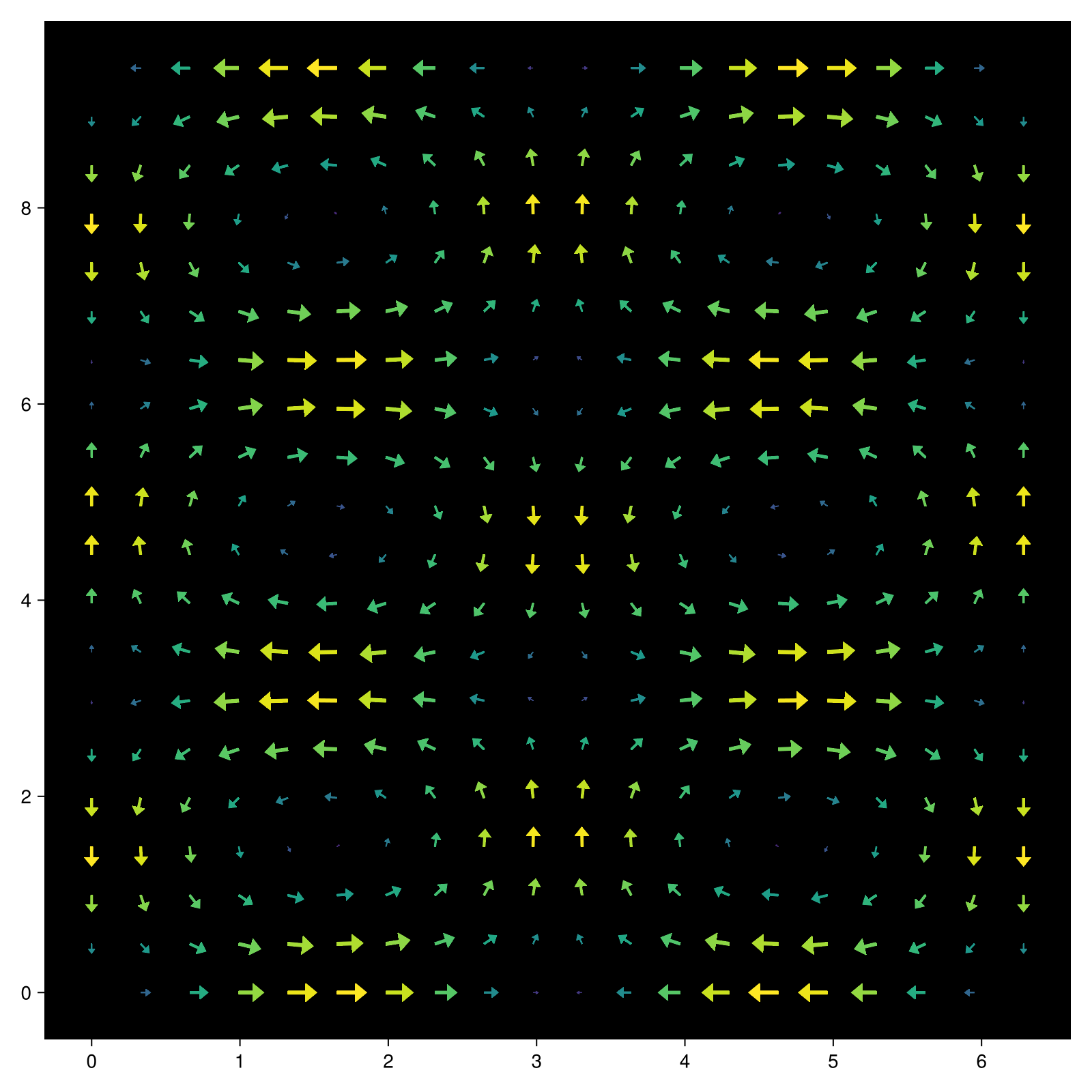

Examples

julia

using CairoMakie
f = Figure(size = (800, 800))
Axis(f[1, 1], backgroundcolor = "black")

xs = LinRange(0, 2pi, 20)
ys = LinRange(0, 3pi, 20)
us = [sin(x) * cos(y) for x in xs, y in ys]
vs = [-cos(x) * sin(y) for x in xs, y in ys]
strength = vec(sqrt.(us .^ 2 .+ vs .^ 2))

arrows2d!(xs, ys, us, vs, lengthscale = 0.2, color = strength)

f

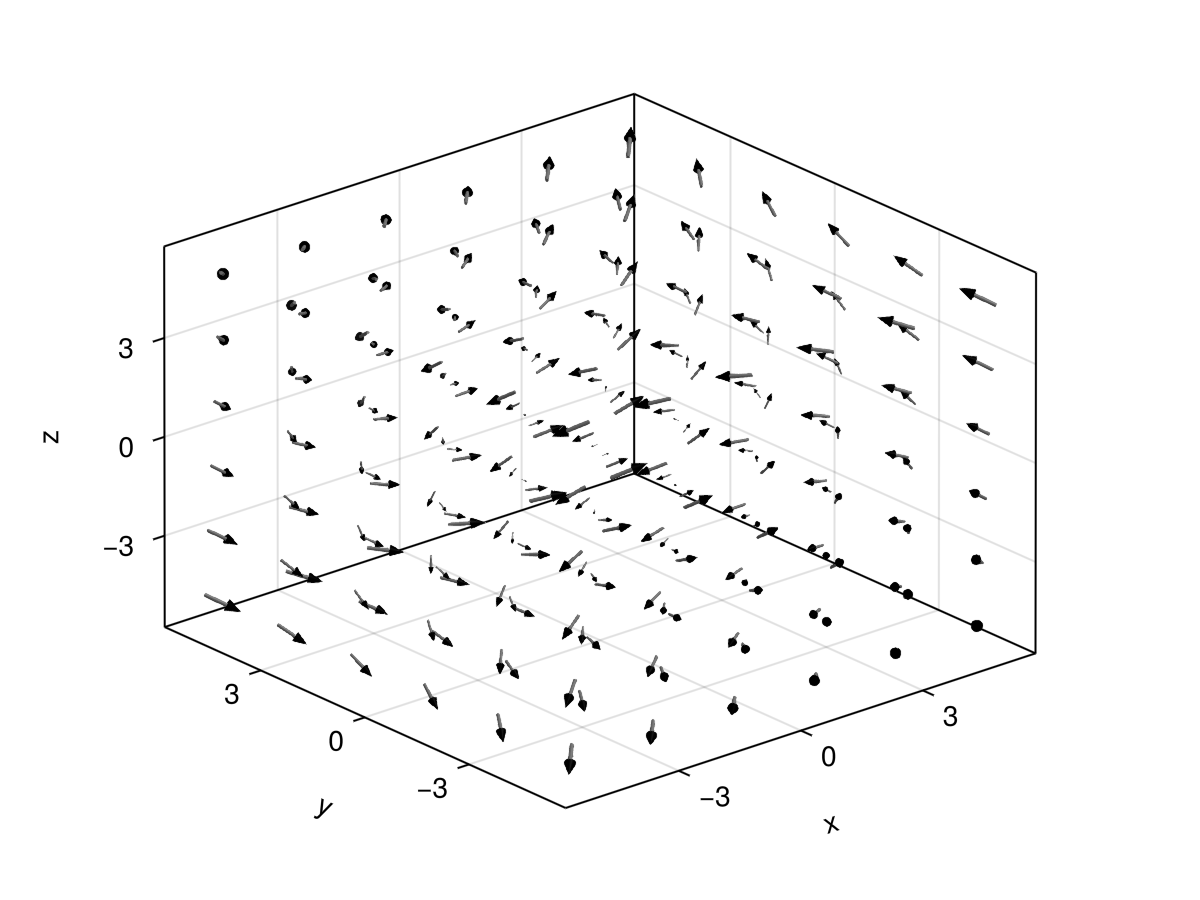

julia

using GLMakie
ps = [Point3f(x, y, z) for x in -5:2:5 for y in -5:2:5 for z in -5:2:5]
ns = map(p -> 0.1 * Vec3f(p[2], p[3], p[1]), ps)
arrows3d(
    ps, ns,
    shaftcolor = :gray, tipcolor = :black,
    align = :center, axis=(type=Axis3,)
)

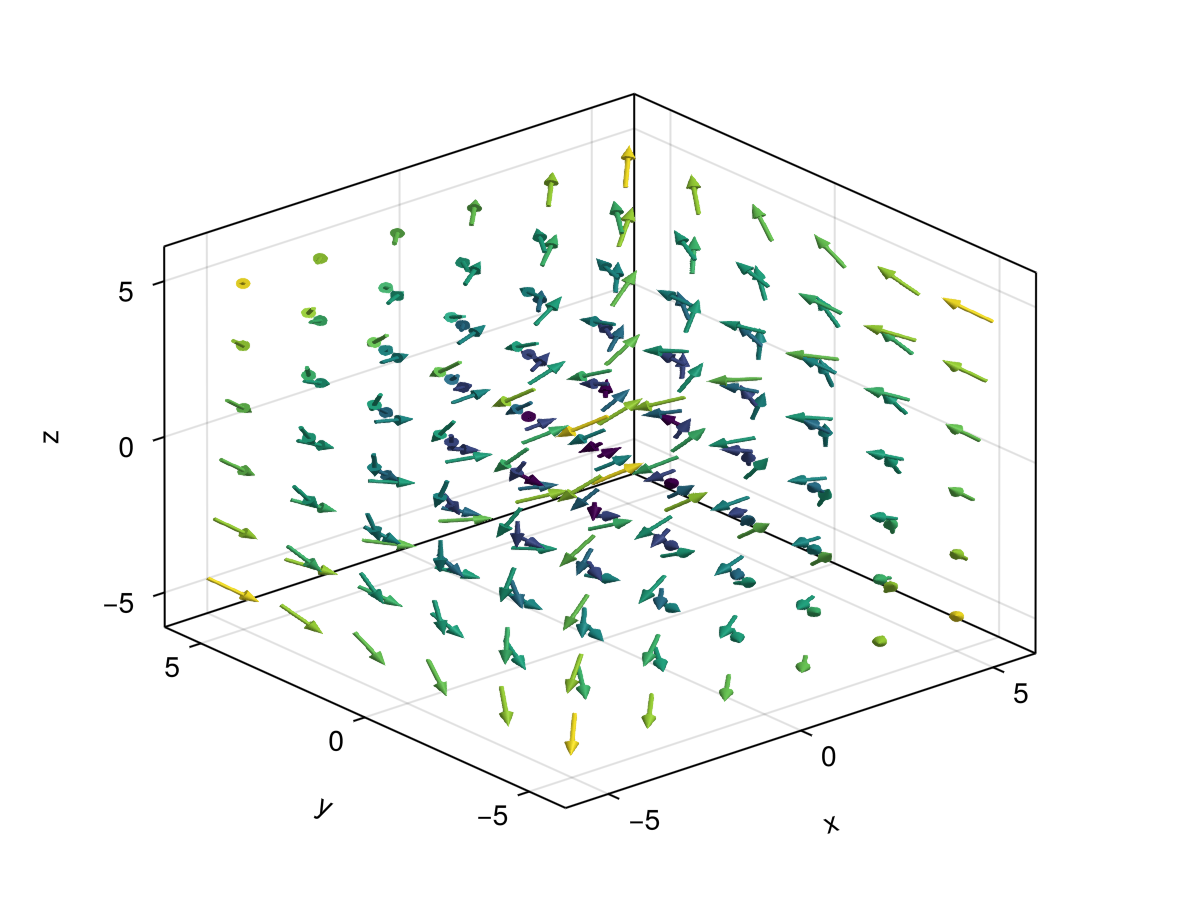

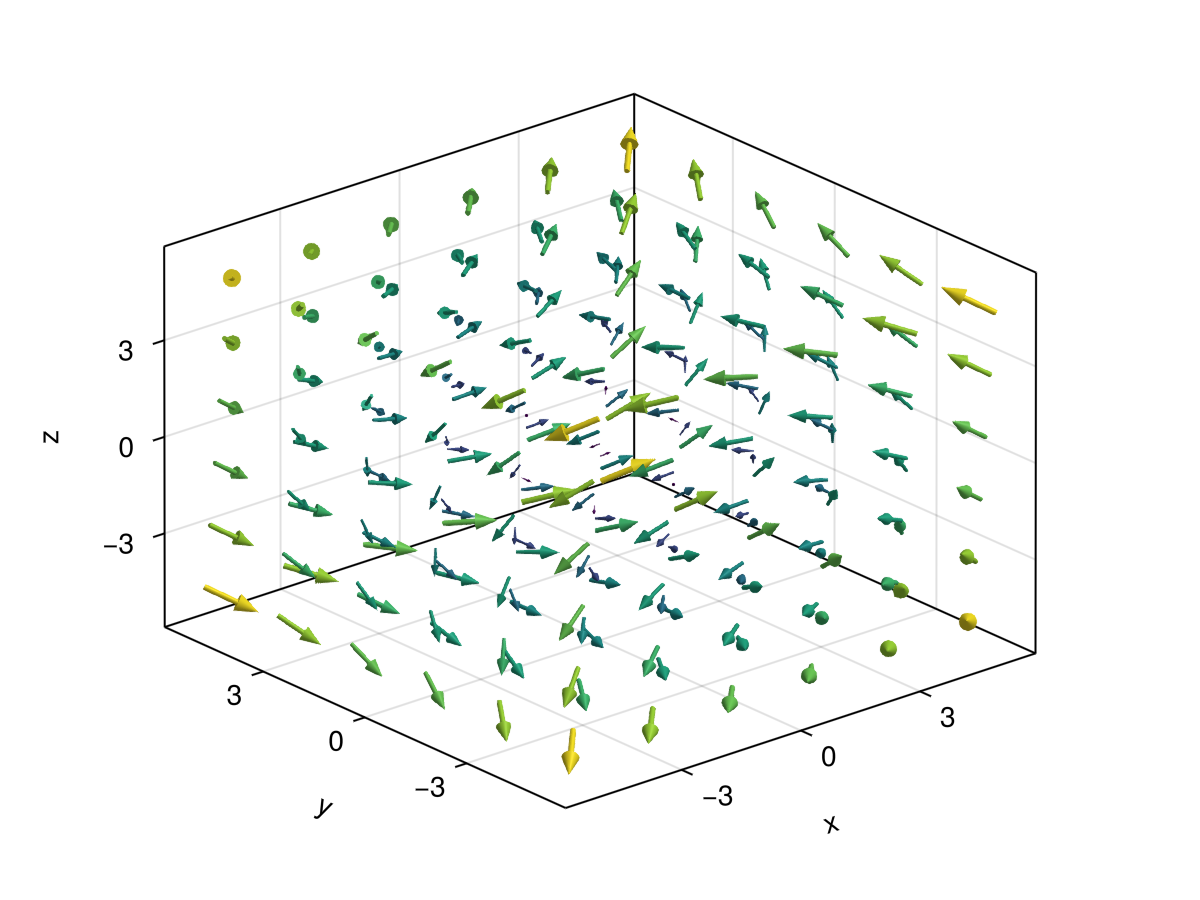

julia

using GLMakie
using LinearAlgebra

ps = [Point3f(x, y, z) for x in -5:2:5 for y in -5:2:5 for z in -5:2:5]
ns = map(p -> 0.1 * Vec3f(p[2], p[3], p[1]), ps)
lengths = norm.(ns)
arrows3d(
    ps, ns, color = lengths, lengthscale = 1.5,
    align = :center, axis=(type=Axis3,)
)

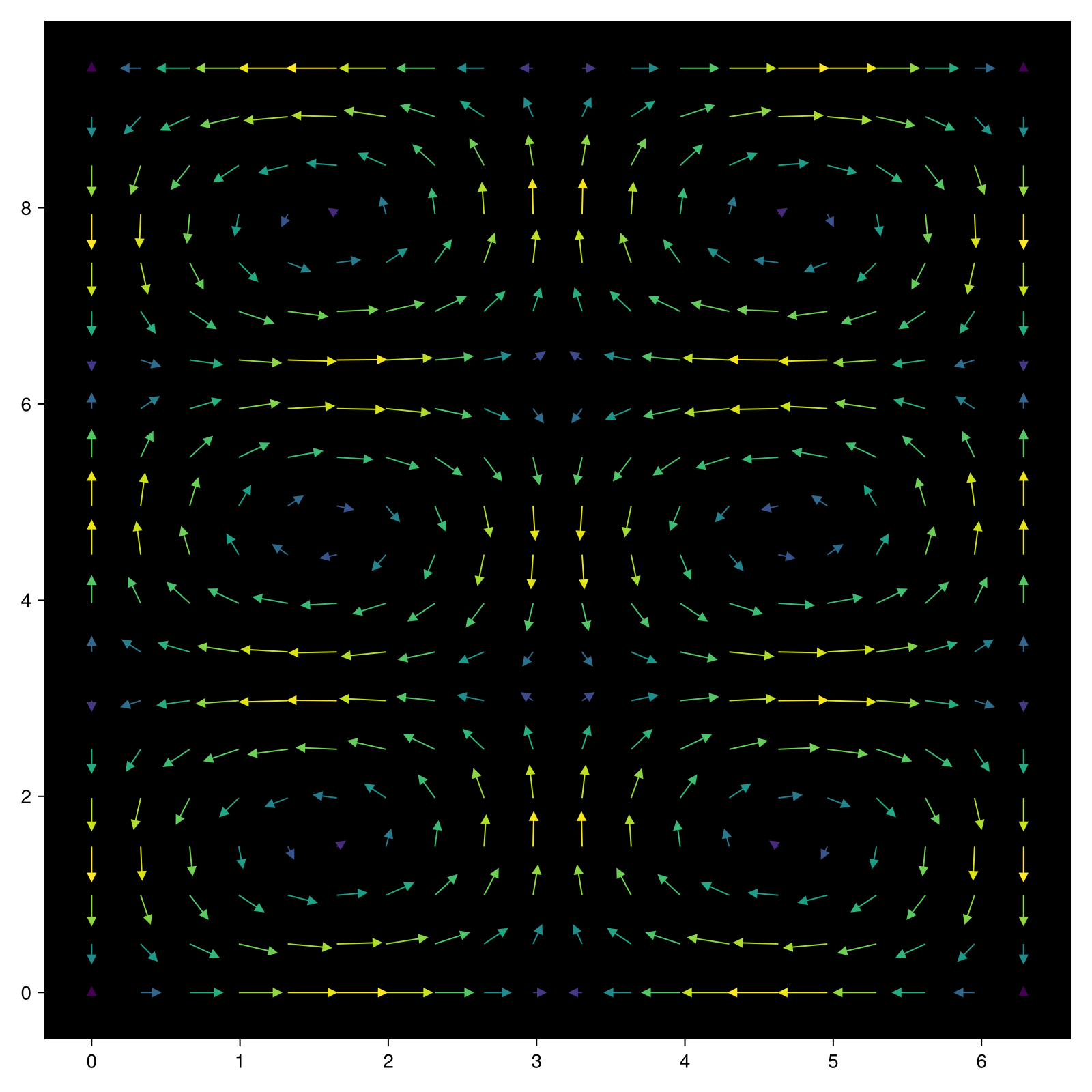

arrows can also take a function f(x::Point{N})::Point{N} which returns the arrow vector when given the arrow's origin.

julia

using CairoMakie
fig = Figure(size = (800, 800))
ax = Axis(fig[1, 1], backgroundcolor = "black")
xs = LinRange(0, 2pi, 20)
ys = LinRange(0, 3pi, 20)
# explicit method
us = [sin(x) * cos(y) for x in xs, y in ys]
vs = [-cos(x) * sin(y) for x in xs, y in ys]
strength = vec(sqrt.(us .^ 2 .+ vs .^ 2))
# function method
arrow_fun(x) = Point2f(sin(x[1])*cos(x[2]), -cos(x[1])*sin(x[2]))
arrows2d!(ax, xs, ys, arrow_fun, lengthscale = 0.3, color = strength)
fig

Arrow Components & Details

Arrow Length

The target size of each arrow is determined by its direction vector (second plot argument), normalize and lengthscale. From tail to tip, the length is given as lengthscale * norm(direction). If normalize = true the direction is normalized first, i.e. the length becomes just lengthscale.

There is also the option to treat the second plot argument as the arrows endpoint with argmode = :endpoint. In this case the directions are determined as direction = endpoint - startpoint and then follow the same principles.

Scaling

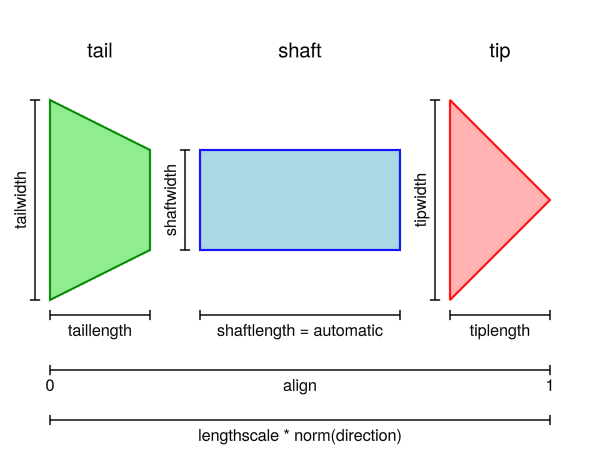

Arrow markers are separated into 3 components, a tail, a shaft and a tip. Each component comes with a length and width/radius (2D/3D) which determines its size. In 2D the sizes are given in pixel units by default (dependent on markerspace). In 3D they are given in relative units if markerscale = automatic (default) or data space units scaled by markerscale otherwise. To fit arrows to the length determined by directions, lengthscale and normalize, the shaftlength varies between minshaftlength and maxshaftlength if it is not explicitly set. Outside of this range or if it is explicitly set, all arrow lengths and widths/radii are scaled by a common factor instead.

Shapes

The base shape of each component is given by the tail, shaft and tip attributes. For arrows2d these can be anything compatible with poly, e.g. a 2D mesh, Polygon or Vector of points. Each component should be defined in a 0..1 x -0.5..0.5 range, where +x is the direction of the arrow. The shape can also be constructed by a callback function f(length, width, metrics) returning something poly-compatible. It is given the final length and width of the component as well as the all the other final lengths and widths through metrics. For arrows3d they should be a mesh or GeometryPrimitive defined in a -0.5..0.5 x -0.5..0.5 x 0..1 range. Here +z is the direction of the arrow.

Alignment

With argmode = :direction (default) arrows are aligned relative to the given positions (first argument). If align = :tail (or 0) the arrow will start at the respective position, align = :center (0.5) will centered and with align = :tip (1.0) it will end at the position. align can also take values outside the 0..1 range to create a gap between the position and the arrow marker.

If argmode = :endpoint alignment works differently and only takes effect if normalize = true or lengthscale != 1. Here align determines a point p = startpoint + align * (endpoint - startpoint) which aligns with same fraction of the arrow marker. So for example align = 0.5 (:center) aligns the midpoint between the plot arguments with the midpoint of each arrow marker. If the length of arrows is scaled down, this will create a matching gap on either side of the arrow.

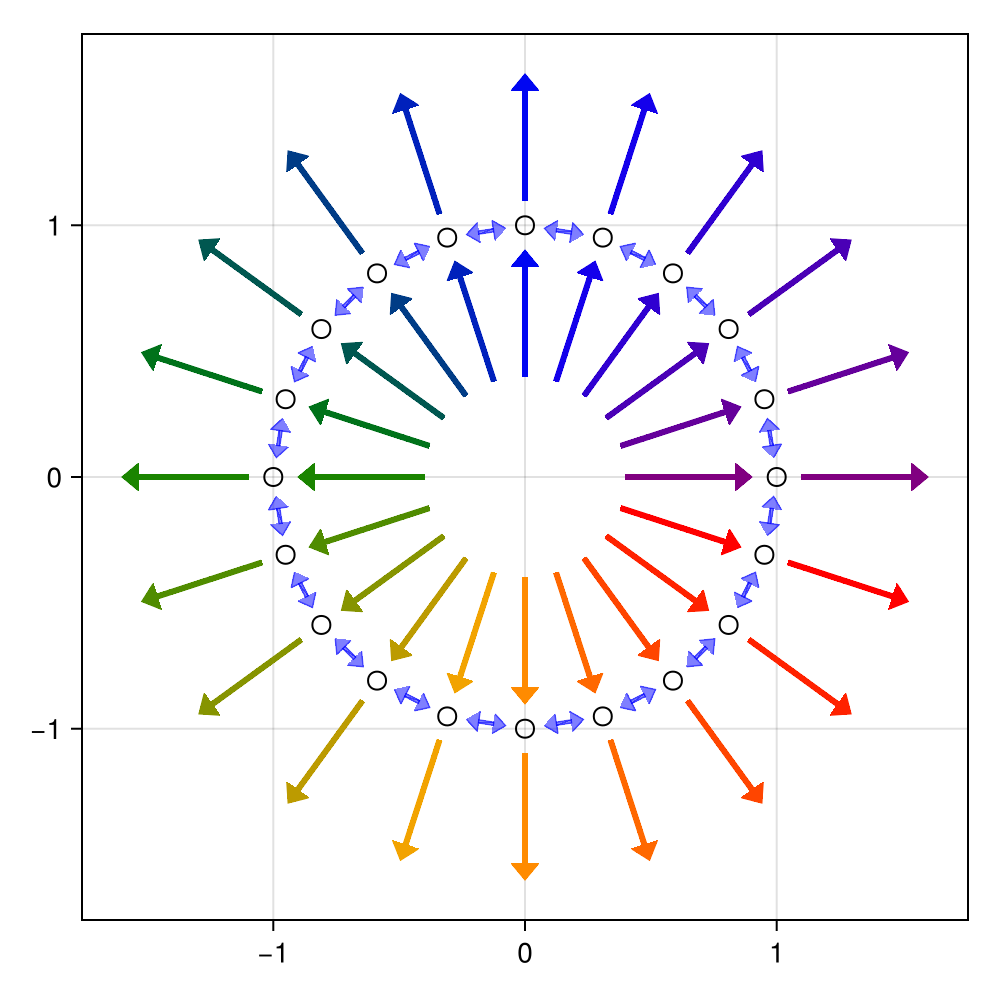

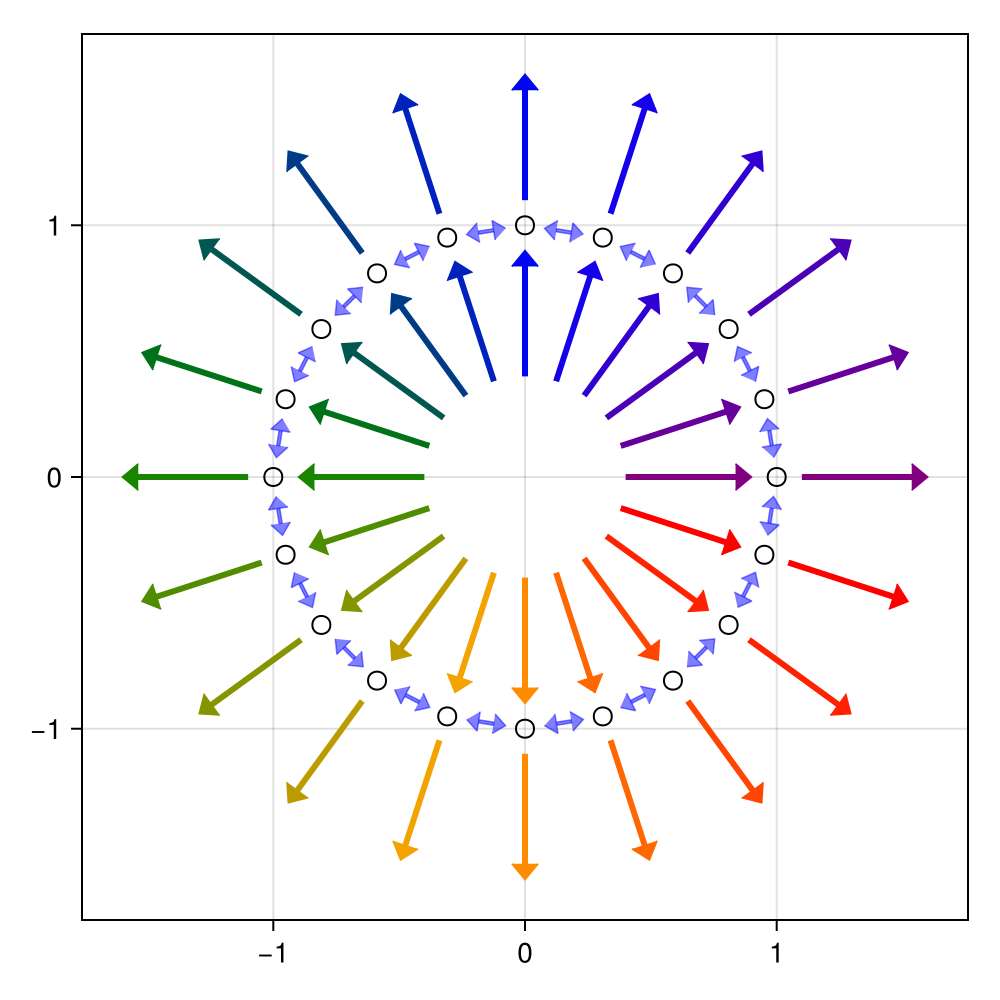

julia

using CairoMakie
f = Figure(size = (500, 500))

a = Axis(f[1,1], aspect = DataAspect())
ps = [Point2f(cos(a), sin(a)) for a in range(0, 2pi, length=21)[1:end-1]]
scatter!(ps, marker = Circle, color = :transparent, strokewidth = 1)

# Double headed arrow between two points, filling half the distance with
# :center alignment
p = arrows2d!(
    ps, [ps[2:end]..., ps[1]], color = (:blue, 0.5),
    align = :center, lengthscale = 0.5, argmode = :endpoint,
    tail = Point2f[(0, 0), (1, -0.5), (1, 0.5)], taillength = 8
)

# arrow pointing away from ps with a 0.2 gap between the tail and ps
arrows2d!(
    ps, ps, color = eachindex(ps), align = -0.2,
    colormap = :rainbow, lengthscale = 0.5
)

# arrow pointing to ps with a 0.2 gap between the tip and ps
arrows2d!(
    ps, ps, color = eachindex(ps), align = 1.2,
    colormap = :rainbow, lengthscale = 0.5
)
f

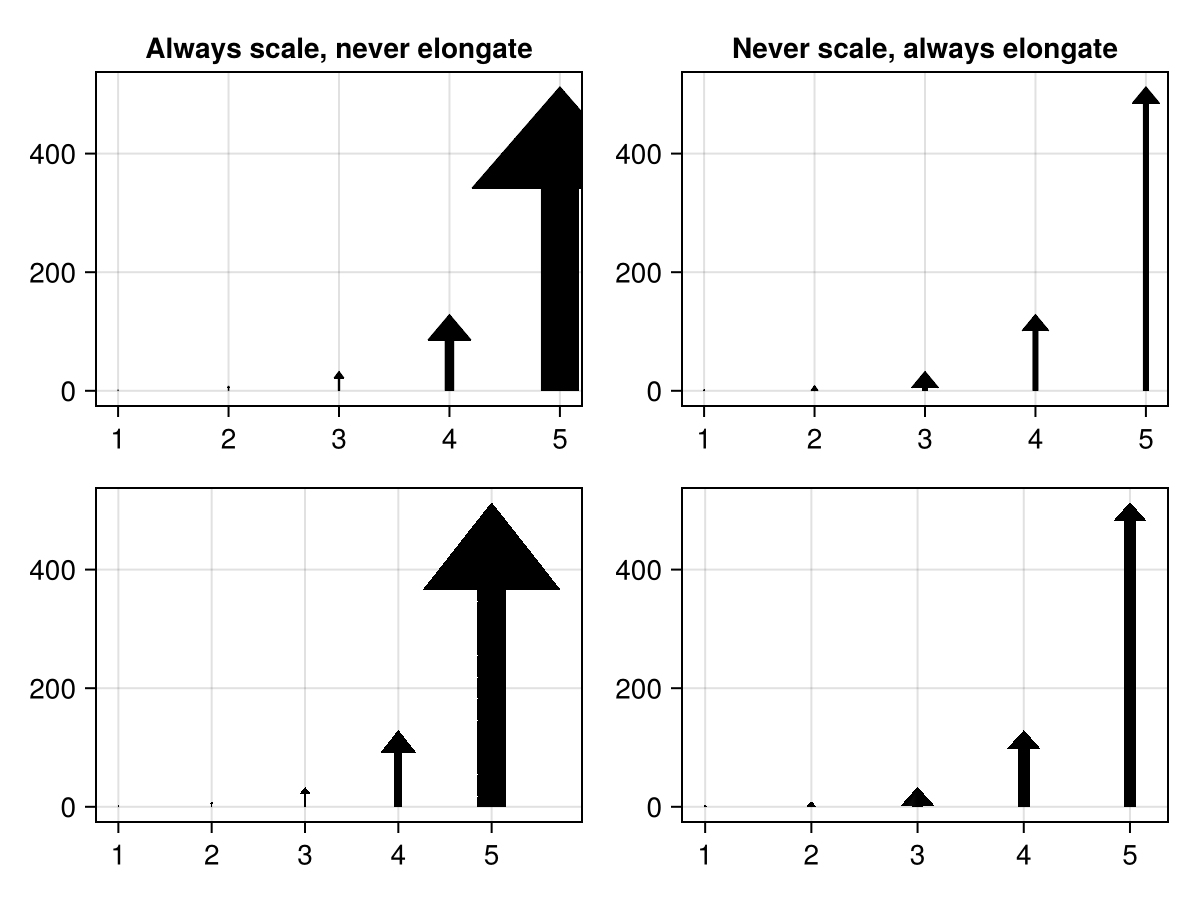

julia

using CairoMakie
ps = Point2f.(1:5, 0)
vs = Vec2f.(0, 2 .^ (1:2:10))

fig = Figure()

ax = Axis(fig[1, 1], title = "Always scale, never elongate")
arrows2d!(ax, ps, vs, shaftlength = 16)
ax = Axis(fig[2, 1])
# x and y coordinates are on different scales, so radius (x) and length (y) are too
arrows3d!(ax, ps, vs, shaftlength = 50,
    tipradius = 0.1, tiplength = 20, shaftradius = 0.02)

ax = Axis(fig[1, 2], title = "Never scale, always elongate")
arrows2d!(ax, ps, vs, minshaftlength = 0)
ax = Axis(fig[2, 2])
arrows3d!(ax, ps, vs, minshaftlength = 0,
    markerscale = 1, tiplength = 30)

fig

Attributes

Arrows2D

align

Defaults to :tail

Sets the alignment of the arrow, i.e. which part of the arrow is placed at the given positions.

align = :tail or align = 0 places the arrow tail at the given position. This makes the arrow point away from that position.
align = :center or align = 0.5 places the arrow center (based on its total length) at the given position
align = :tip or align = 1.0 places the tip of the arrow at the given position. This makes the arrow point to that position.

Values outside of (0, 1) can also be used to create gaps between the arrow and its anchor position.

With argmode = :endpoint alignment is not relative to the first argument passed to arrows. Instead the given fraction of the arrow marker is aligned to the fraction between the start and end point of the arrow. So align = :center will align the center of the arrow marker with the center between the passed positions. Because of this align only has an effect here if normalize = true or if lengthscale != 1.

alpha

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

argmode

Defaults to :direction

Controls whether the second argument is interpreted as a :direction or as an :endpoint.

clip_planes

Defaults to automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color

Defaults to :black

Sets the color of the arrow. Can be overridden separately using tailcolor, shaftcolor and tipcolor.

colormap

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange

Defaults to automatic

The values representing the start and end points of colormap.

colorscale

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

depth_shift

Defaults to 0.0

Adjusts the depth value of a plot after all other transformations, i.e. in clip space, where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

fxaa

Defaults to true

Adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

highclip

Defaults to automatic

The color for any value above the colorrange.

inspectable

Defaults to @inherit inspectable

Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

lengthscale

Defaults to 1.0

Scales the length of the arrow (as calculated from directions) by some factor.

lowclip

Defaults to automatic

The color for any value below the colorrange.

markerspace

Defaults to :pixel

Sets the space of arrow metrics like tipwidth, tiplength, etc.

maxshaftlength

Defaults to Inf

Sets the maximum shaft length, see shaftlength.

minshaftlength

Defaults to 10

Sets the minimum shaft length, see shaftlength.

model

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color

Defaults to :transparent

The color for NaN values.

normalize

Defaults to false

If set to true, normalizes directions.

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

shaft

Defaults to Rect2f(0, -0.5, 1, 1)

Sets the shape of the arrow shaft in units relative to the shaftwidth and shaftlength. The arrow shape extends left to right (towards increasing x) and should be defined in a 0..1 by -0.5..0.5 range.

shaftcolor

Defaults to automatic

Sets the color of the arrow shaft. Defaults to color

shaftlength

Defaults to automatic

Sets the length of the arrow shaft. When set to automatic the length of the shaft will be derived from the length of the arrow, the taillength and the tiplength. If the results falls outside minshaftlength to maxshaftlength it is clamped and all lengths and widths are scaled to fit. If the shaftlength is set to a value, the lengths and widths of the arrow are always scaled.

shaftwidth

Defaults to 3

Sets the width of the arrow shaft. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

space

Defaults to :data

Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

strokemask

Defaults to 0.75

Arrows2D relies on mesh rendering to draw arrows, which doesn't anti-alias well when the mesh gets thin. To mask this issue an outline is drawn over the mesh with lines. The width of that outline is given by strokemask. Setting this to 0 may improve transparent arrows.

tail

Defaults to arrowtail2d

Sets the shape of the arrow tail in units relative to the tailwidth and taillength. The arrow shape extends left to right (towards increasing x) and should be defined in a 0..1 by -0.5..0.5 range.

tailcolor

Defaults to automatic

Sets the color of the arrow tail. Defaults to color

taillength

Defaults to 0

Sets the length of the arrow tail. This length may get scaled down if the total arrow length exceeds the available space for the arrow. Setting this to 0 will result in no tail being drawn.

tailwidth

Defaults to 14

Sets the width of the arrow tail. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

tip

Defaults to Point2f[(0, -0.5), (1, 0), (0, 0.5)]

Sets the shape of the arrow tip in units relative to the tipwidth and tiplength. The arrow shape extends left to right (towards increasing x) and should be defined in a 0..1 by -0.5..0.5 range.

tipcolor

Defaults to automatic

Sets the color of the arrow tip. Defaults to color

tiplength

Defaults to 8

Sets the length of the arrow tip. This length may get scaled down if the total arrow length exceeds the available space for the arrow. Setting this to 0 will result in no tip being drawn.

tipwidth

Defaults to 14

Sets the width of the arrow tip. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

transformation

Defaults to :automatic

No docs available.

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot will be rendered or not.

Arrows3D

align

Defaults to :tail

Sets the alignment of the arrow, i.e. which part of the arrow is placed at the given positions.

align = :tail or align = 0 places the arrow tail at the given position. This makes the arrow point away from that position.
align = :center or align = 0.5 places the arrow center (based on its total length) at the given position
align = :tip or align = 1.0 places the tip of the arrow at the given position. This makes the arrow point to that position.

Values outside of (0, 1) can also be used to create gaps between the arrow and its anchor position.

alpha

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.

argmode

Defaults to :direction

Controls whether the second argument is interpreted as a :direction or as an :endpoint.

clip_planes

Defaults to automatic

color

Defaults to :black

Sets the color of the arrow. Can be overridden separately using tailcolor, shaftcolor and tipcolor.

colormap

Defaults to @inherit colormap :viridis

colorrange

Defaults to automatic

The values representing the start and end points of colormap.

colorscale

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.

depth_shift

Defaults to 0.0

fxaa

Defaults to true

Adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).

highclip

Defaults to automatic

The color for any value above the colorrange.

inspectable

Defaults to @inherit inspectable

Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

lengthscale

Defaults to 1.0

Scales the length of the arrow (as calculated from directions) by some factor.

lowclip

Defaults to automatic

The color for any value below the colorrange.

markerscale

Defaults to automatic

Scales all arrow components, i.e. all radii and lengths (including min/maxshaftlength). When set to automatic the scaling factor is based on the boundingbox of the given data. This does not affect the mapping between arrows and directions.

maxshaftlength

Defaults to Inf

Sets the maximum shaft length, see shaftlength

minshaftlength

Defaults to 0.6

Sets the minimum shaft length, see shaftlength.

model

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

nan_color

Defaults to :transparent

The color for NaN values.

normalize

Defaults to false

If set to true, normalizes directions.

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

quality

Defaults to 32

Sets the number of vertices used when generating meshes for the arrow tail, shaft and cone. More vertices will improve the roundness of the mesh but be more costly.

shaft

Defaults to Cylinder(Point3f(0, 0, 0), Point3f(0, 0, 1), 0.5)

Sets the mesh of the arrow shaft. The mesh should be defined in a Rect3(-0.5, -0.5, 0.0, 1, 1, 1) where +z is direction of the arrow. Anything outside this box will extend outside the area designated to the arrow shaft.

shaftcolor

Defaults to automatic

Sets the color of the arrow shaft. Defaults to color

shaftlength

Defaults to automatic

shaftradius

Defaults to 0.05

Sets the width of the arrow shaft. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

space

Defaults to :data

Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

tail

Defaults to Cylinder(Point3f(0, 0, 0), Point3f(0, 0, 1), 0.5)

Sets the mesh of the arrow tail. The mesh should be defined in a Rect3(-0.5, -0.5, 0.0, 1, 1, 1) where +z is direction of the arrow. Anything outside this box will extend outside the area designated to the arrow tail.

tailcolor

Defaults to automatic

Sets the color of the arrow tail. Defaults to color

taillength

Defaults to 0

Sets the length of the arrow tail. This length may get scaled down if the total arrow length exceeds the available space for the arrow. Setting this to 0 will result in no tail being drawn.

tailradius

Defaults to 0.15

Sets the width of the arrow tail. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

tip

Defaults to Cone(Point3f(0, 0, 0), Point3f(0, 0, 1), 0.5)

Sets the mesh of the arrow tip. The mesh should be defined in a Rect3(-0.5, -0.5, 0.0, 1, 1, 1) where +z is direction of the arrow. Anything outside this box will extend outside the area designated to the arrow tip.

tipcolor

Defaults to automatic

Sets the color of the arrow tip. Defaults to color

tiplength

Defaults to 0.4

Sets the length of the arrow tip. This length may get scaled down if the total arrow length exceeds the available space for the arrow. Setting this to 0 will result in no tip being drawn.

tipradius

Defaults to 0.15

Sets the width of the arrow tip. This width may get scaled down if the total arrow length exceeds the available space for the arrow.

transformation

Defaults to :automatic

No docs available.

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot will be rendered or not.

arrows ​

Examples ​

Arrow Components & Details ​

Arrow Length ​

Scaling ​

Shapes ​

Alignment ​

Attributes ​

Arrows2D ​

align ​

alpha ​

argmode ​

clip_planes ​

color ​

colormap ​

colorrange ​

colorscale ​

depth_shift ​

fxaa ​

highclip ​

inspectable ​

inspector_clear ​

inspector_hover ​

inspector_label ​

lengthscale ​

lowclip ​

markerspace ​

maxshaftlength ​

minshaftlength ​

model ​

nan_color ​

normalize ​

overdraw ​

shaft ​

shaftcolor ​

shaftlength ​

shaftwidth ​

space ​

ssao ​

strokemask ​

tail ​

tailcolor ​

taillength ​

tailwidth ​

tip ​

tipcolor ​

tiplength ​

tipwidth ​

transformation ​

transparency ​

visible ​

Arrows3D ​

align ​

alpha ​

argmode ​

clip_planes ​

color ​

colormap ​

colorrange ​

colorscale ​

depth_shift ​

fxaa ​

highclip ​

inspectable ​

inspector_clear ​

inspector_hover ​

inspector_label ​

lengthscale ​

lowclip ​

markerscale ​

maxshaftlength ​

minshaftlength ​

model ​

nan_color ​

normalize ​

overdraw ​

quality ​

shaft ​

shaftcolor ​

shaftlength ​

arrows

Examples

Arrow Components & Details

Arrow Length

Scaling

Shapes

Alignment

Attributes

Arrows2D

align

alpha

argmode

clip_planes

color

colormap

colorrange

colorscale

depth_shift

fxaa

highclip

inspectable

inspector_clear

inspector_hover

inspector_label

lengthscale

lowclip

markerspace

maxshaftlength

minshaftlength

model

nan_color

normalize

overdraw

shaft

shaftcolor

shaftlength

shaftwidth

space

ssao

strokemask

tail

tailcolor

taillength

tailwidth

tip

tipcolor

tiplength

tipwidth

transformation

transparency

visible

Arrows3D

align

alpha

argmode

clip_planes

color

colormap

colorrange

colorscale

depth_shift

fxaa

highclip

inspectable

inspector_clear

inspector_hover

inspector_label

lengthscale

lowclip

markerscale

maxshaftlength

minshaftlength

model

nan_color

normalize

overdraw

quality

shaft

shaftcolor

shaftlength
