crossbar

Makie.crossbar Function

crossbar(x, y, ymin, ymax; kwargs...)

Draw a crossbar. A crossbar represents a range with a (potentially notched) box. It is most commonly used as part of the boxplot.

Arguments

• x: position of the box

• y: position of the midline within the box

• ymin: lower limit of the box

• ymax: upper limit of the box

Plot type

The plot type alias for the crossbar function is CrossBar.

source

Examples

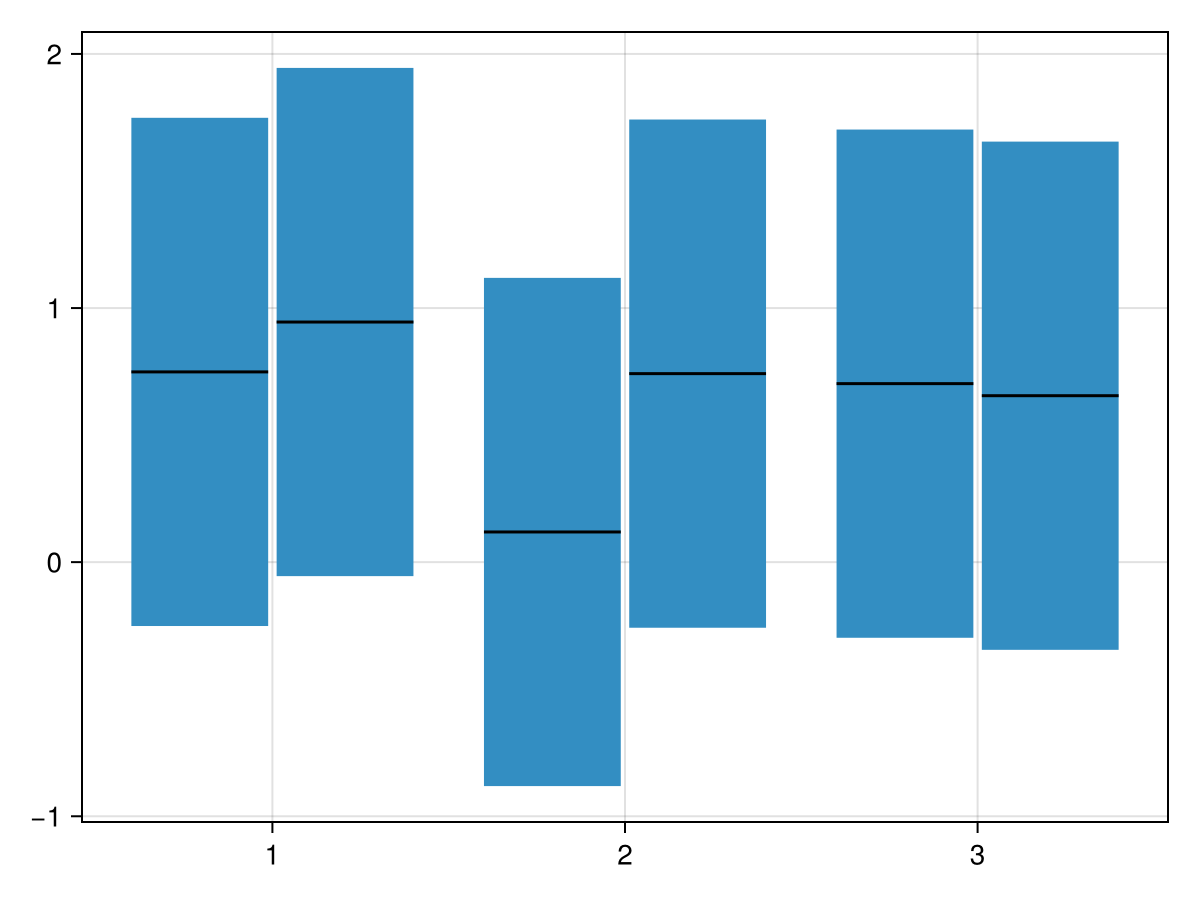

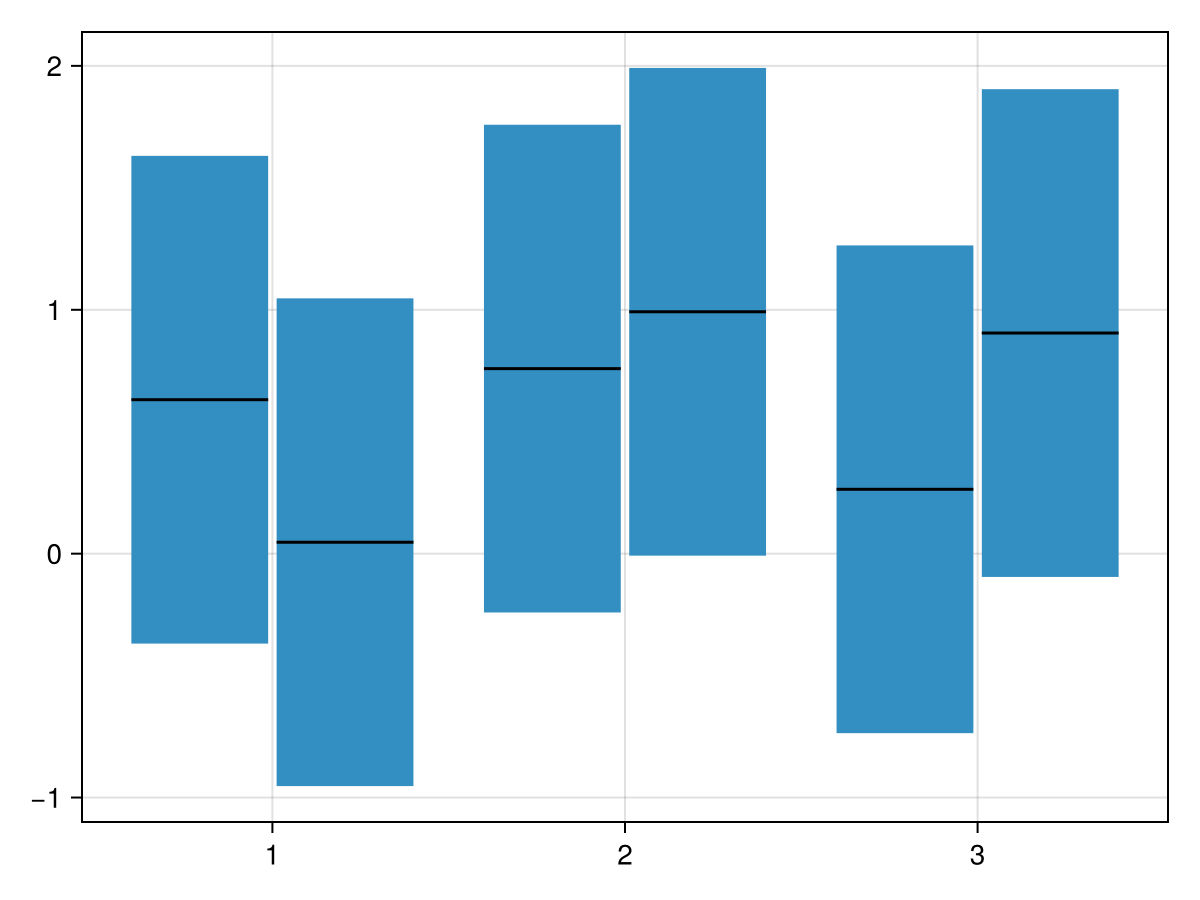

using CairoMakie
xs = [1, 1, 2, 2, 3, 3]
ys = rand(6)
ymins = ys .- 1
ymaxs = ys .+ 1
dodge = [1, 2, 1, 2, 1, 2]

crossbar(xs, ys, ymins, ymaxs, dodge = dodge, show_notch = true)

Attributes

alpha

Defaults to 1.0

The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5)), will get multiplied.

clip_planes

Defaults to @inherit clip_planes automatic

Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

color

Defaults to @inherit patchcolor

Sets the color of the drawn boxes. These can be values for colormapping.

colormap

Defaults to @inherit colormap :viridis

Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().

colorrange

Defaults to automatic

The values representing the start and end points of colormap.

colorscale

Defaults to identity

The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10, Makie.Symlog10, Makie.AsinhScale, Makie.SinhScale, Makie.LogScale, Makie.LuptonAsinhScale, and Makie.PowerScale.

cycle

Defaults to [:color => :patchcolor]

Sets which attributes to cycle when creating multiple plots. The values to cycle through are defined by the parent Theme. Multiple cycled attributes can be set by passing a vector. Elements can

• directly refer to a cycled attribute, e.g. :color

• map a cycled attribute to a palette attribute, e.g. :linecolor => :color

• map multiple cycled attributes to a palette attribute, e.g. [:linecolor, :markercolor] => :color

depth_shift

Defaults to 0.0

Adjusts the depth value of a plot after all other transformations, i.e. in clip space, where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

dodge

Defaults to automatic

Dodge can be used to separate crossbars drawn at the same x positions. For this each crossbar is given an integer value corresponding to its position relative to the given positions. E.g. with positions = [1, 1, 1, 2, 2, 2] we have 3 crossbars at each position which can be separated by dodge = [1, 2, 3, 1, 2, 3].

dodge_gap

Defaults to 0.03

Sets the gap between dodged crossbars relative to the size of them.

fxaa

Defaults to true

Adjusts whether the plot is rendered with fxaa (fast approximate anti-aliasing, GLMakie only). Note that some plots implement a better native anti-aliasing solution (scatter, text, lines). For them fxaa = true generally lowers quality. Plots that show smoothly interpolated data (e.g. image, surface) may also degrade in quality as fxaa = true can cause blurring.

gap

Defaults to 0.2

Size of the gap between crossbars. The modified width is width * (1 - gap).

highclip

Defaults to automatic

The color for any value above the colorrange.

inspectable

Defaults to @inherit inspectable

Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear

Defaults to automatic

Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover

Defaults to automatic

Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label

Defaults to automatic

Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

lowclip

Defaults to automatic

The color for any value below the colorrange.

midlinecap

Defaults to @inherit linecap

Sets the linecap of the midline.

midlinecolor

Defaults to automatic

Sets the color of the midline.

midlinestyle

Defaults to @inherit linestyle

Sets the linestyle of the midline.

midlinewidth

Defaults to @inherit linewidth

Sets the width of the midline.

model

Defaults to automatic

Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

n_dodge

Defaults to automatic

Sets the maximum integer for dodge. This sets how many crossbars can be placed at a given position, controlling their width.

nan_color

Defaults to :transparent

The color for NaN values.

notchmax

Defaults to automatic

Upper limit of the notch. These are given per position.

notchmin

Defaults to automatic

Lower limit of the notch. These are given per position.

notchwidth

Defaults to 0.5

Multiplier of width for narrowest width of notch at the midline/y.

orientation

Defaults to :vertical

Orientation of box (:vertical or :horizontal).

overdraw

Defaults to false

Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

rasterize

Defaults to @inherit rasterize false

Controls whether CairoMakie rasterizes a plot (true, >0) or not (false, 0). If an integer is given, it sets the pixel density for rasterization.

show_midline

Defaults to true

Shows the midline.

show_notch

Defaults to false

Whether to draw the notch, which refers to a narrowed region around the midline/y.

space

Defaults to :data

Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao

Defaults to false

Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

strokecolor

Defaults to @inherit patchstrokecolor

Sets the outline color of crossbars.

strokejoinstyle

Defaults to @inherit joinstyle

Sets the joinstyle for the outline of crossbar.

strokemiterlimit

Defaults to @inherit miter_limit

Sets the miter limit for the outline of crossbar.

strokestyle

Defaults to @inherit linestyle nothing

Sets the linestyle for the outline of crossbar.

strokewidth

Defaults to @inherit patchstrokewidth

Sets the outline linewidth of crossbars.

transformation

Defaults to :automatic

Controls the inheritance or directly sets the transformations of a plot. Transformations include the transform function and model matrix as generated by translate!(...), scale!(...) and rotate!(...). They can be set directly by passing a Transformation() object or inherited from the parent plot or scene. Inheritance options include:

• :automatic: Inherit transformations if the parent and child space is compatible

• :inherit: Inherit transformations

• :inherit_model: Inherit only model transformations

• :inherit_transform_func: Inherit only the transform function

• :nothing: Inherit neither, fully disconnecting the child's transformations from the parent

Another option is to pass arguments to the transform!() function which then get applied to the plot. For example transformation = (:xz, 1.0) which rotates the xy plane to the xz plane and translates by 1.0. For this inheritance defaults to :automatic but can also be set through e.g. (:nothing, (:xz, 1.0)).

transparency

Defaults to false

Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible

Defaults to true

Controls whether the plot gets rendered or not.

width

Defaults to automatic

(Unscaled) width of the box.
