Colorbar ​

A Colorbar needs a colormap and a tuple of low/high limits. The colormap's axis will then span from low to high along the visual representation of the colormap. You can set ticks in a similar way to Axis.

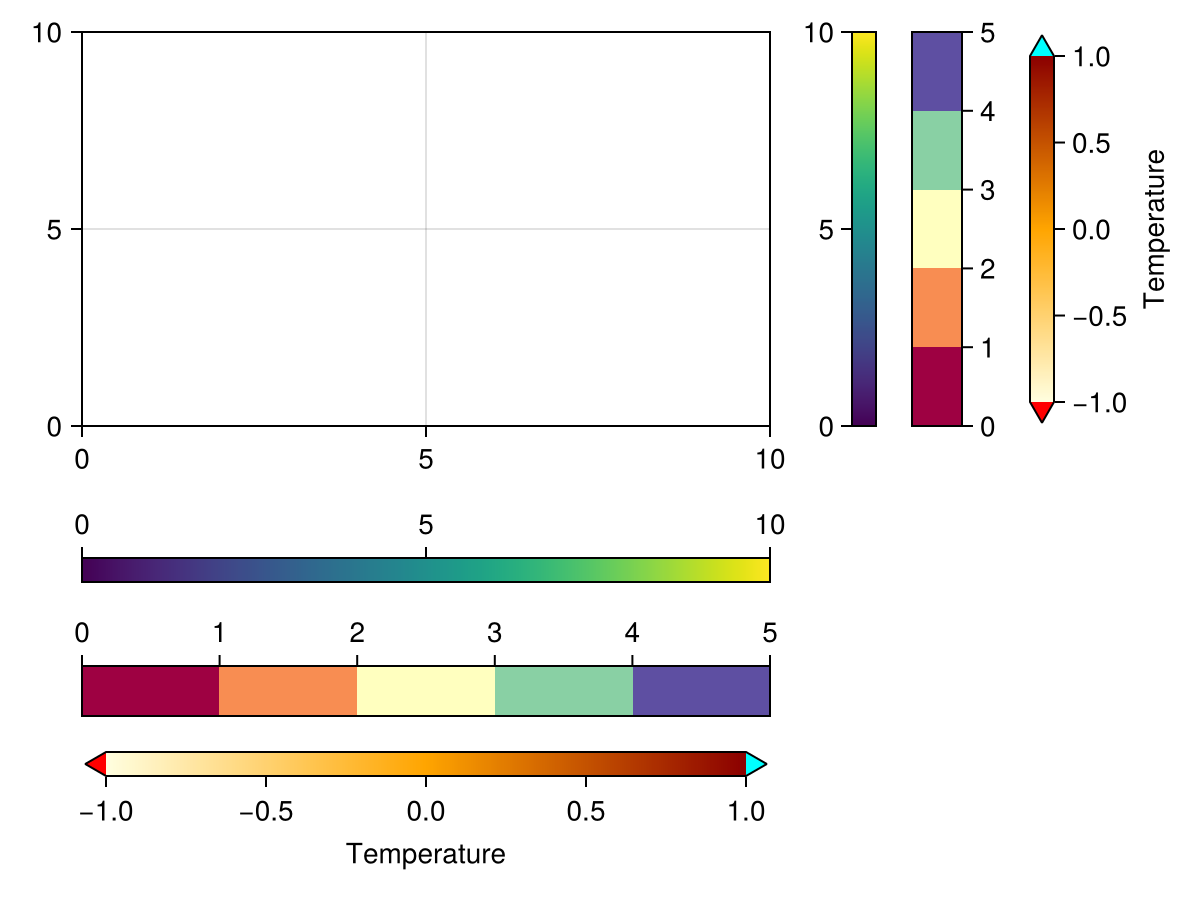

Here's how you can create Colorbars manually.

julia
using CairoMakie

fig = Figure()

Axis(fig[1, 1])

# vertical colorbars
Colorbar(fig[1, 2], limits = (0, 10), colormap = :viridis,
    flipaxis = false)
Colorbar(fig[1, 3], limits = (0, 5),
    colormap = cgrad(:Spectral, 5, categorical = true), size = 25)
Colorbar(fig[1, 4], limits = (-1, 1), colormap = :heat,
    highclip = :cyan, lowclip = :red, label = "Temperature")

# horizontal colorbars
Colorbar(fig[2, 1], limits = (0, 10), colormap = :viridis,
    vertical = false)
Colorbar(fig[3, 1], limits = (0, 5), size = 25,
    colormap = cgrad(:Spectral, 5, categorical = true), vertical = false)
Colorbar(fig[4, 1], limits = (-1, 1), colormap = :heat,
    label = "Temperature", vertical = false, flipaxis = false,
    highclip = :cyan, lowclip = :red)

fig

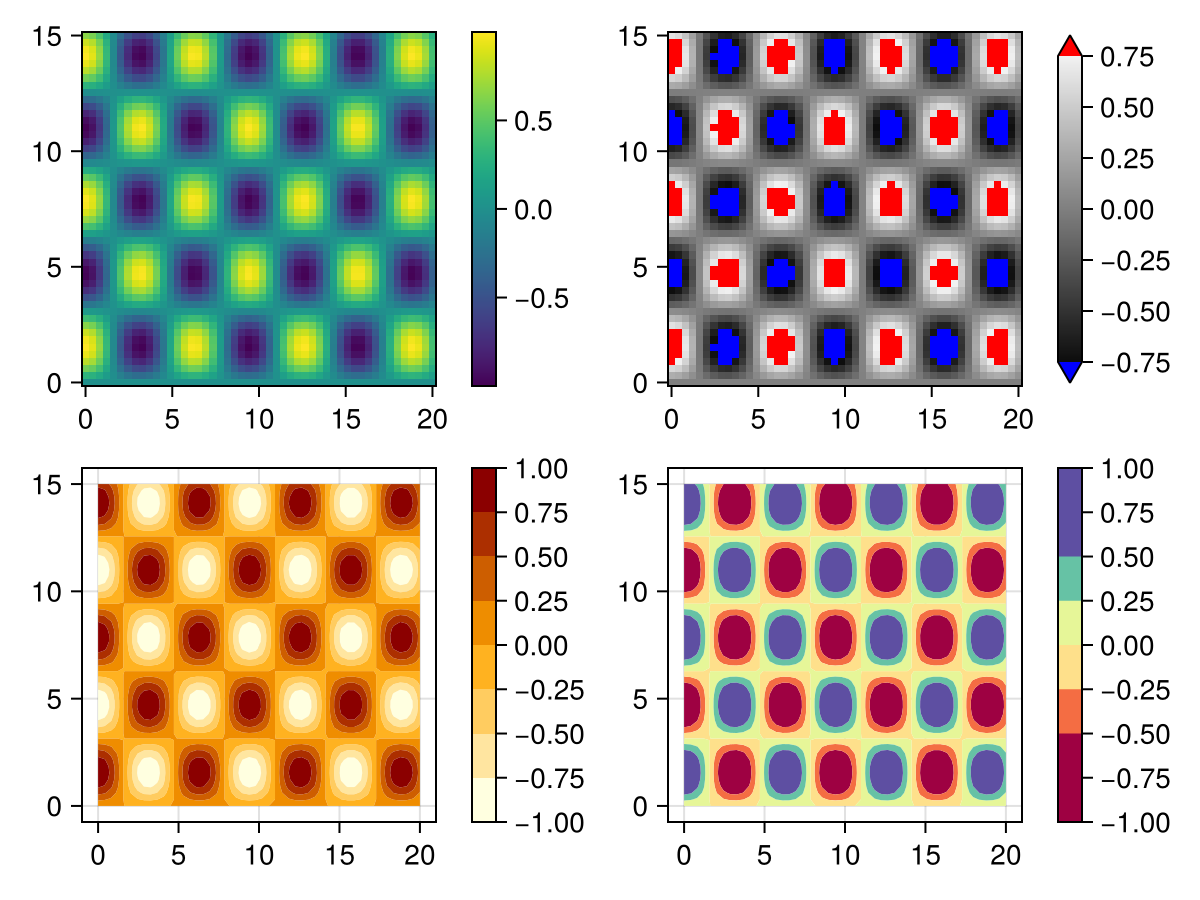

If you pass a plotobject, a heatmap or contourf, the Colorbar is set up automatically such that it tracks these objects' relevant attributes like colormap, colorrange, highclip and lowclip. If you want to adjust these attributes afterwards, change them in the plot object, otherwise the Colorbar and the plot object will go out of sync.

julia
using CairoMakie

xs = LinRange(0, 20, 50)
ys = LinRange(0, 15, 50)
zs = [cos(x) * sin(y) for x in xs, y in ys]

fig = Figure()

ax, hm = heatmap(fig[1, 1][1, 1], xs, ys, zs)
Colorbar(fig[1, 1][1, 2], hm)

ax, hm = heatmap(fig[1, 2][1, 1], xs, ys, zs, colormap = :grays,
    colorrange = (-0.75, 0.75), highclip = :red, lowclip = :blue)
Colorbar(fig[1, 2][1, 2], hm)

ax, hm = contourf(fig[2, 1][1, 1], xs, ys, zs,
    levels = -1:0.25:1, colormap = :heat)
Colorbar(fig[2, 1][1, 2], hm, ticks = -1:0.25:1)

ax, hm = contourf(fig[2, 2][1, 1], xs, ys, zs,
    colormap = :Spectral, levels = [-1, -0.5, -0.25, 0, 0.25, 0.5, 1])
Colorbar(fig[2, 2][1, 2], hm, ticks = -1:0.25:1)

fig

Experimental Categorical support ​

Warning

This feature might change outside breaking releases, since the API is not yet finalized

You can create a true categorical map with good default ticks, by wrapping a colormap into Makie.Categorical(cmap):

julia
using CairoMakie

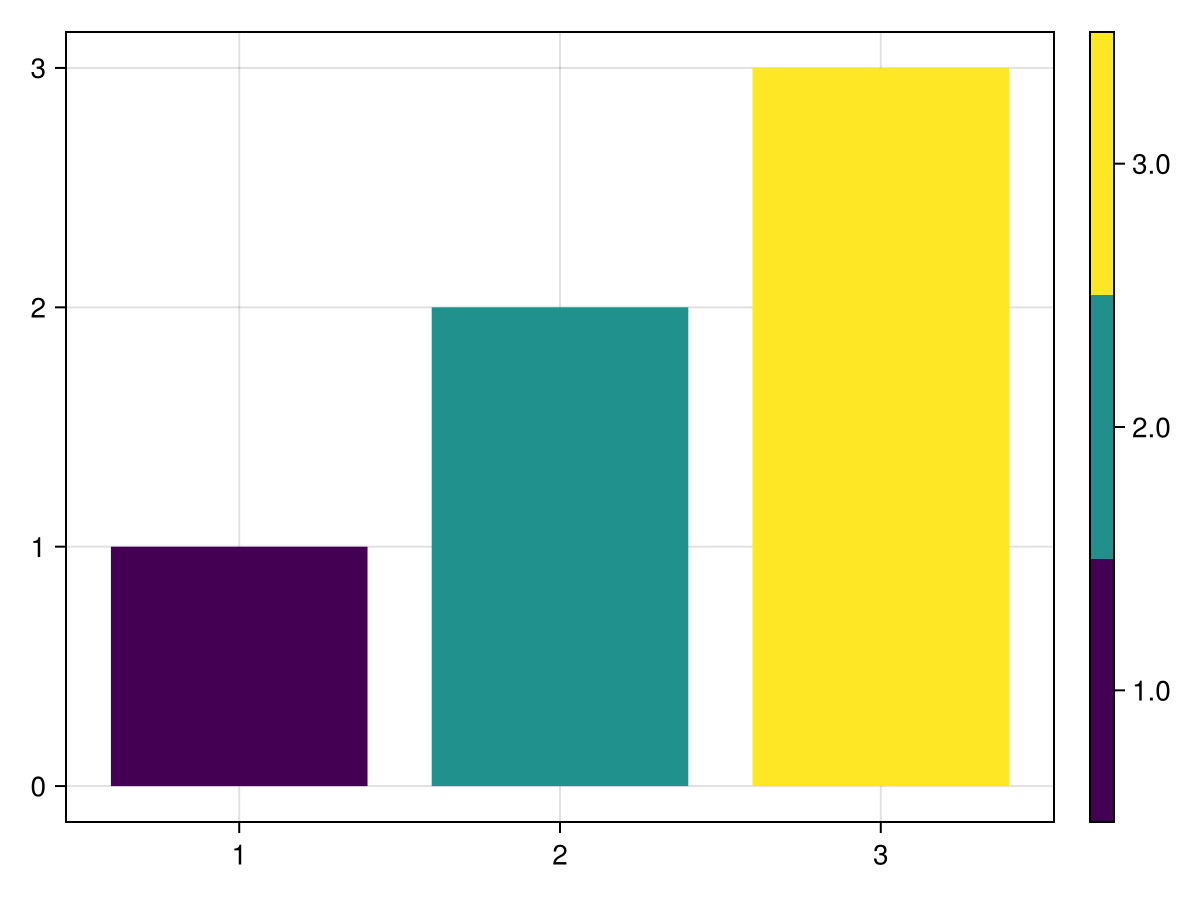

fig, ax, pl = barplot(1:3; color=1:3, colormap=Makie.Categorical(:viridis))
Colorbar(fig[1, 2], pl)
fig

We can't use cgrad(...; categorical=true) for this, since it has an ambiguous meaning for true categorical values.

Attributes ​

alignmode ​

Defaults to Inside()

The align mode of the colorbar in its parent GridLayout.

bottomspinecolor ​

Defaults to RGBf(0, 0, 0)

The color of the bottom spine.

bottomspinevisible ​

Defaults to true

Controls if the bottom spine is visible.

colormap ​

Defaults to @inherit :colormap :viridis

The colormap that the colorbar uses.

colorrange ​

Defaults to nothing

The range of values depicted in the colorbar.

flip_vertical_label ​

Defaults to false

Flips the colorbar label if the axis is vertical.

flipaxis ​

Defaults to true

Flips the axis to the right if vertical and to the top if horizontal.

halign ​

Defaults to :center

The horizontal alignment of the colorbar in its suggested bounding box.

height ​

Defaults to Auto()

The height setting of the colorbar.

highclip ​

Defaults to nothing

The color of the high clip triangle.

label ​

Defaults to ""

The color bar label string.

labelcolor ​

Defaults to @inherit :textcolor :black

The label color.

labelfont ​

Defaults to :regular

The label font family.

labelpadding ​

Defaults to 5.0

The gap between the label and the ticks.

labelrotation ​

Defaults to Makie.automatic

The label rotation in radians.

labelsize ​

Defaults to @inherit :fontsize 16.0f0

The label font size.

labelvisible ​

Defaults to true

Controls if the label is visible.

leftspinecolor ​

Defaults to RGBf(0, 0, 0)

The color of the left spine.

leftspinevisible ​

Defaults to true

Controls if the left spine is visible.

limits ​

Defaults to nothing

The range of values depicted in the colorbar.

lowclip ​

Defaults to nothing

The color of the low clip triangle.

minortickalign ​

Defaults to 0.0

The alignment of minor ticks on the axis spine

minortickcolor ​

Defaults to :black

The tick color of minor ticks

minorticks ​

Defaults to IntervalsBetween(5)

The tick locator for the minor ticks

minorticksize ​

Defaults to 3.0

The tick size of minor ticks

minorticksvisible ​

Defaults to false

Controls if minor ticks are visible

minortickwidth ​

Defaults to 1.0

The tick width of minor ticks

nsteps ​

Defaults to 100

The number of steps in the heatmap underlying the colorbar gradient.

rightspinecolor ​

Defaults to RGBf(0, 0, 0)

The color of the right spine.

rightspinevisible ​

Defaults to true

Controls if the right spine is visible.

scale ​

Defaults to identity

The axis scale

size ​

Defaults to 12

The width or height of the colorbar, depending on if it's vertical or horizontal, unless overridden by width / height

spinewidth ​

Defaults to 1.0

The line width of the spines.

tellheight ​

Defaults to true

Controls if the parent layout can adjust to this element's height

tellwidth ​

Defaults to true

Controls if the parent layout can adjust to this element's width

tickalign ​

Defaults to 0.0

The alignment of the tick marks relative to the axis spine (0 = out, 1 = in).

tickcolor ​

Defaults to RGBf(0, 0, 0)

The color of the tick marks.

tickformat ​

Defaults to Makie.automatic

Format for ticks.

ticklabelalign ​

Defaults to Makie.automatic

The horizontal and vertical alignment of the tick labels.

ticklabelcolor ​

Defaults to @inherit :textcolor :black

The color of the tick labels.

ticklabelfont ​

Defaults to :regular

The font family of the tick labels.

ticklabelpad ​

Defaults to 3.0

The gap between tick labels and tick marks.

ticklabelrotation ​

Defaults to 0.0

The rotation of the ticklabels.

ticklabelsize ​

Defaults to @inherit :fontsize 16.0f0

The font size of the tick labels.

ticklabelspace ​

Defaults to Makie.automatic

The space reserved for the tick labels. Can be set to Makie.automatic to automatically determine the space needed, :max_auto to only ever grow to fit the current ticklabels, or a specific value.

ticklabelsvisible ​

Defaults to true

Controls if the tick labels are visible.

ticks ​

Defaults to Makie.automatic

The ticks.

ticksize ​

Defaults to 5.0

The size of the tick marks.

ticksvisible ​

Defaults to true

Controls if the tick marks are visible.

tickwidth ​

Defaults to 1.0

The line width of the tick marks.

topspinecolor ​

Defaults to RGBf(0, 0, 0)

The color of the top spine.

topspinevisible ​

Defaults to true

Controls if the top spine is visible.

valign ​

Defaults to :center

The vertical alignment of the colorbar in its suggested bounding box.

vertical ​

Defaults to true

Controls if the colorbar is oriented vertically.

width ​

Defaults to Auto()

The width setting of the colorbar. Use size to set width or height relative to colorbar orientation instead.
