# hexbin

`hexbin(xs, ys; kwargs...)`

Plots a heatmap with hexagonal bins for the observations `xs`

and `ys`

.

## Attributes

### Specific to `Hexbin`

`weights = nothing`

: Weights for each observation. Can be`nothing`

(each observation carries weight 1) or any`AbstractVector{<: Real}`

or`StatsBase.AbstractWeights`

.`bins = 20`

: If an`Int`

, sets the number of bins in x and y direction. If a`Tuple{Int, Int}`

, sets the number of bins for x and y separately.`cellsize = nothing`

: If a`Real`

, makes equally-sided hexagons with width`cellsize`

. If a`Tuple{Real, Real}`

specifies hexagon width and height separately.`threshold::Int = 1`

: The minimal number of observations in the bin to be shown. If 0, all zero-count hexagons fitting into the data limits will be shown.`colorscale = identity`

: A function to scale the number of observations in a bin, eg. log10.

### Generic

`colormap::Union{Symbol, Vector{<:Colorant}} = :viridis`

`colorrange::Tuple(<:Real,<:Real} = Makie.automatic`

sets the values representing the start and end points of`colormap`

.

## Examples

### Setting the number of bins

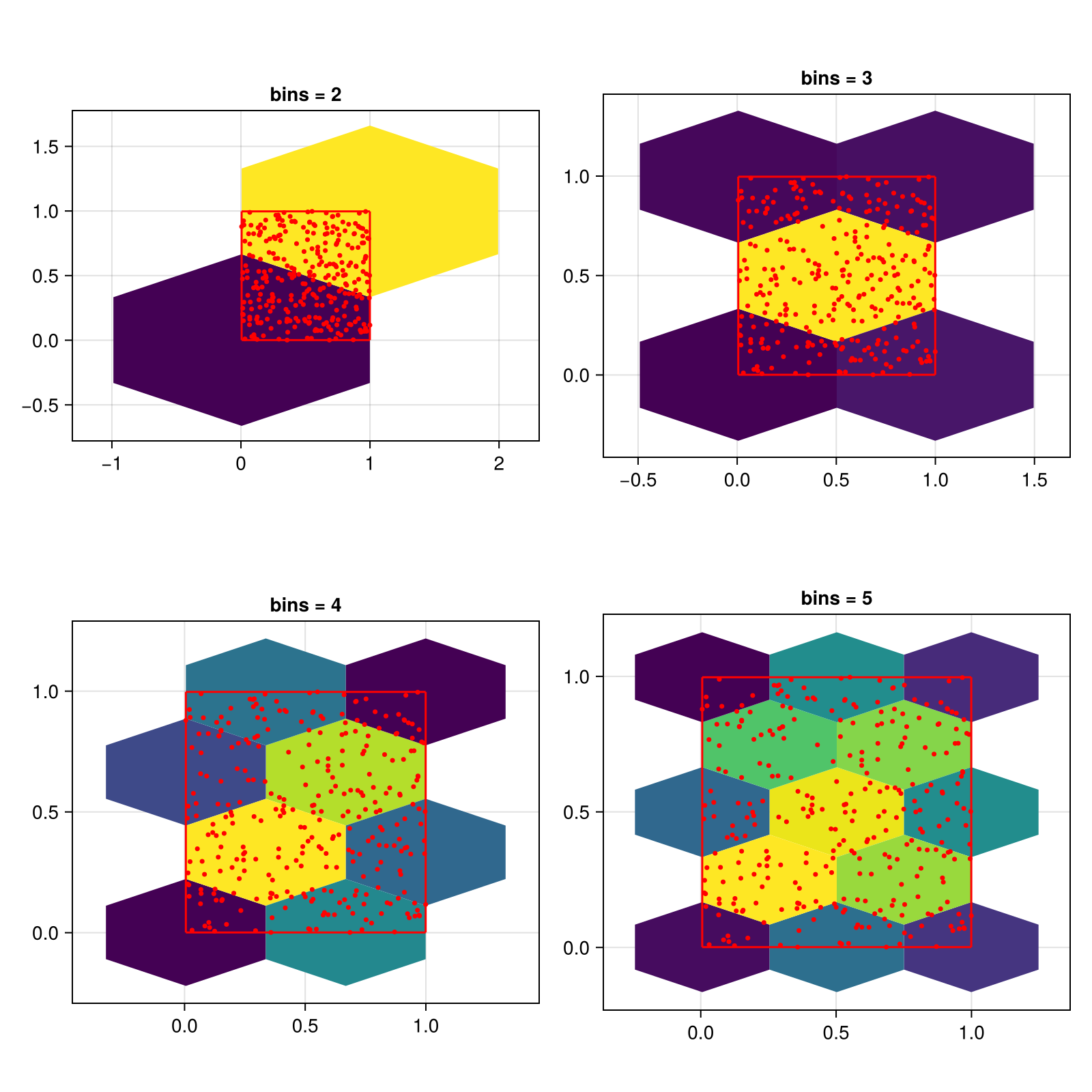

Setting `bins`

to an integer sets the number of bins to this value for both x and y. The minimum number of bins in one dimension is 2.

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = rand(300)
y = rand(300)
for i in 2:5
ax = Axis(f[fldmod1(i-1, 2)...], title = "bins = $i", aspect = DataAspect())
hexbin!(ax, x, y, bins = i)
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f
```

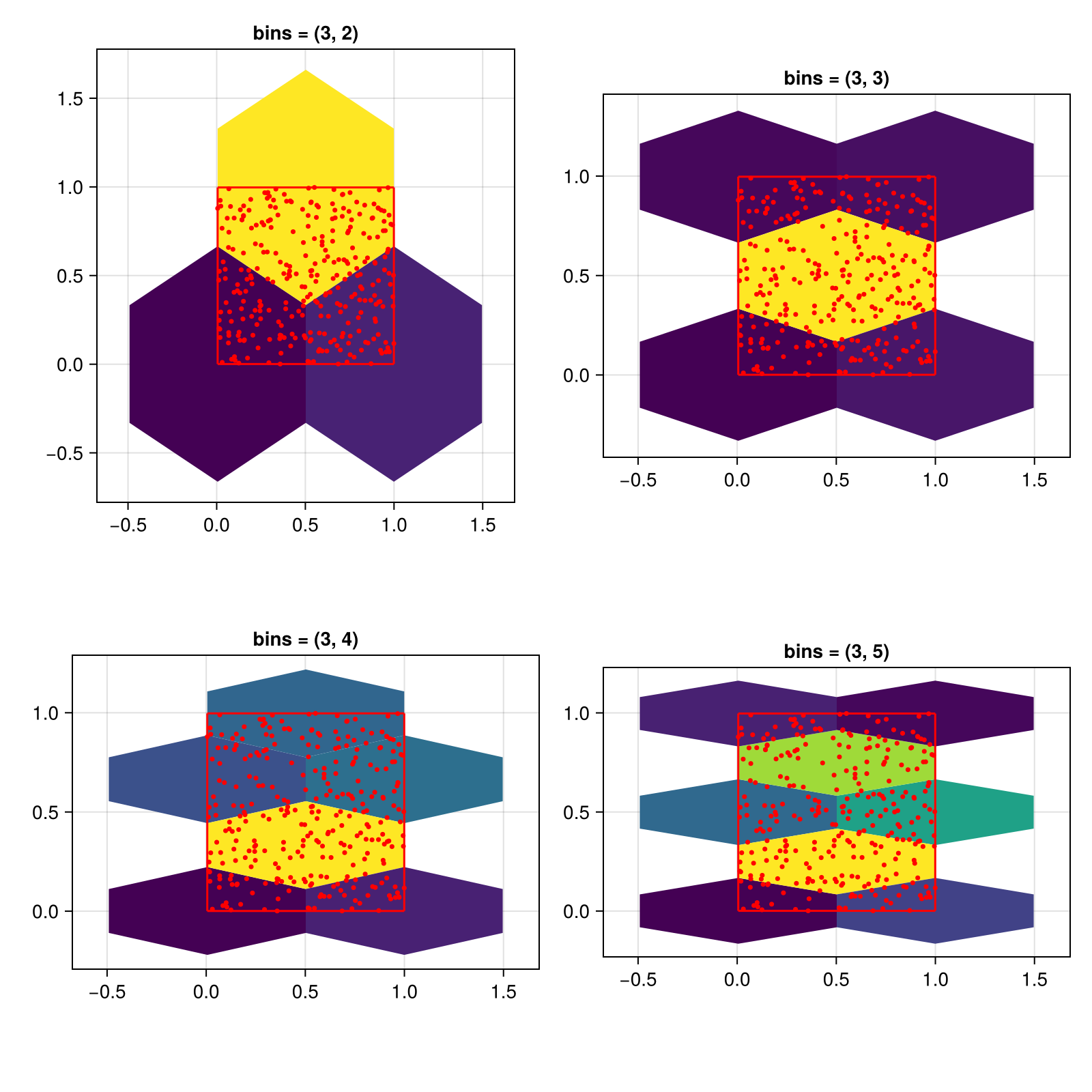

You can also pass a tuple of integers to control x and y separately.

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = rand(300)
y = rand(300)
for i in 2:5
ax = Axis(f[fldmod1(i-1, 2)...], title = "bins = (3, $i)", aspect = DataAspect())
hexbin!(ax, x, y, bins = (3, i))
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f
```

### Setting the size of cells

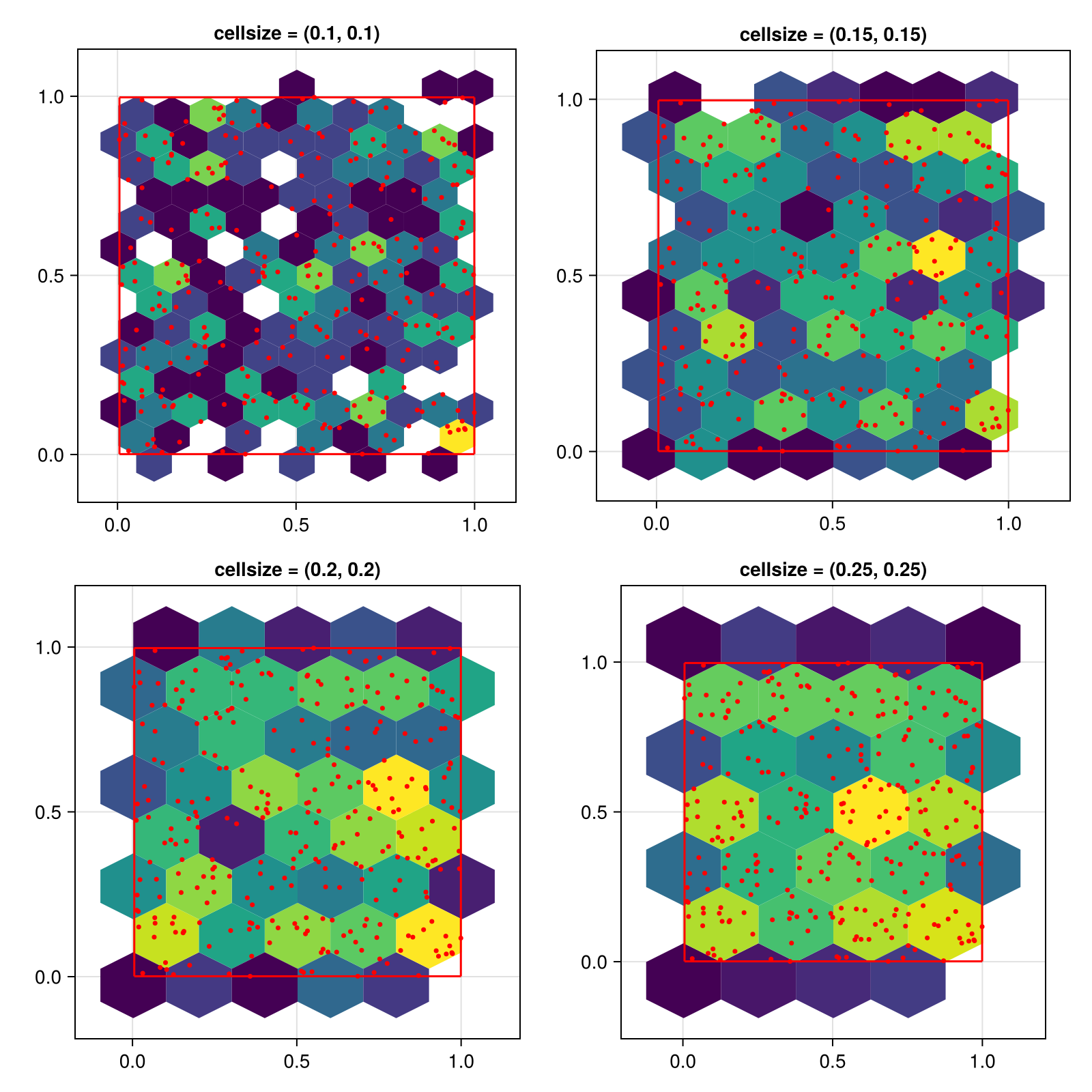

You can also control the cell size directly by setting the `cellsize`

keyword. In this case, the `bins`

setting is ignored.

The height of a hexagon is larger than its width. This is why setting the same size for x and y will result in uneven hexagons.

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = rand(300)
y = rand(300)
for (i, cellsize) in enumerate([0.1, 0.15, 0.2, 0.25])
ax = Axis(f[fldmod1(i, 2)...], title = "cellsize = ($cellsize, $cellsize)", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = (cellsize, cellsize))
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f
```

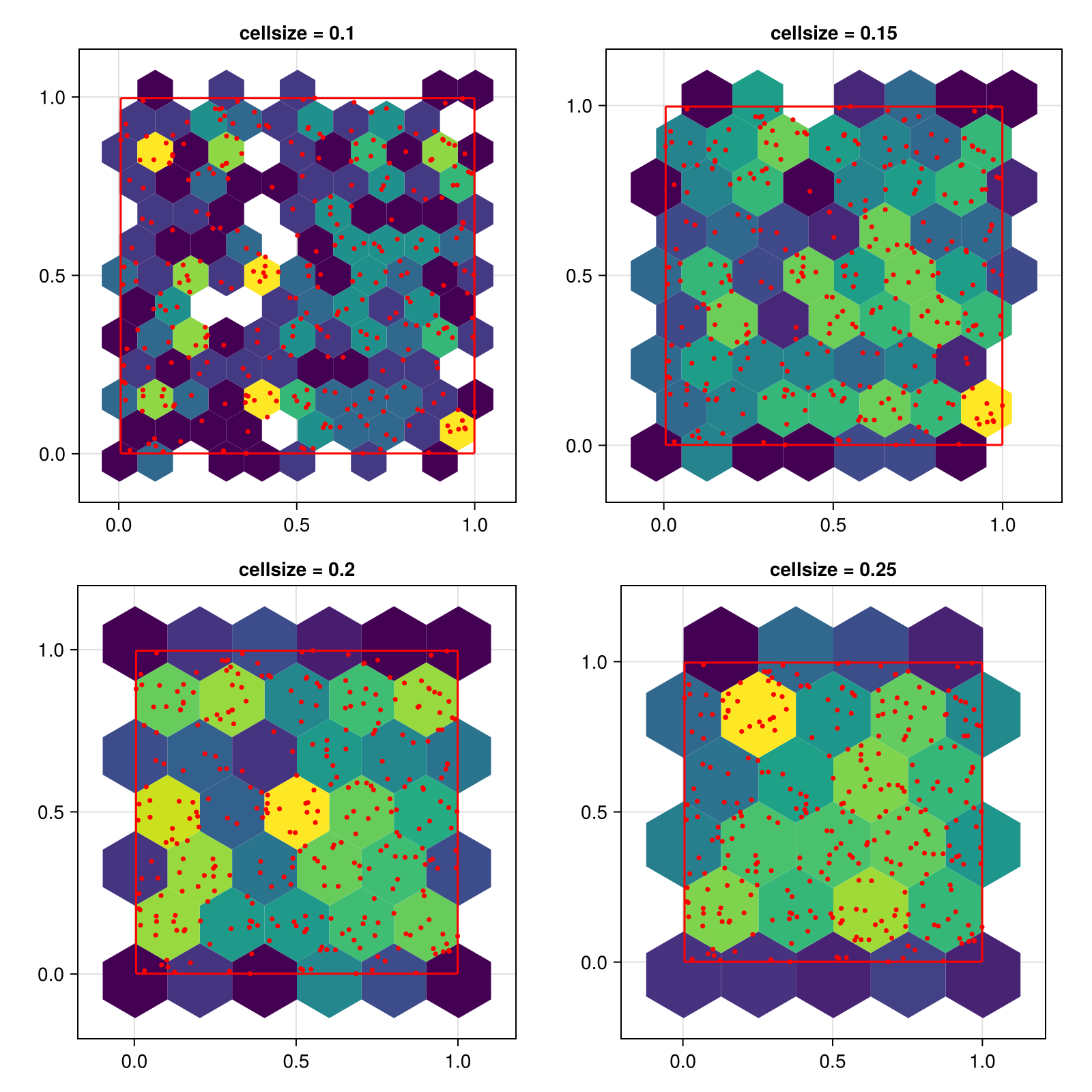

To get evenly sized hexagons, set the cell size to a single number. This number defines the cell width, the height will be computed as `2 * step_x / sqrt(3)`

. Note that the visual appearance of the hexagons will only be even if the x and y axis have the same scaling, which is why we use `aspect = DataAspect()`

in these examples.

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = rand(300)
y = rand(300)
for (i, cellsize) in enumerate([0.1, 0.15, 0.2, 0.25])
ax = Axis(f[fldmod1(i, 2)...], title = "cellsize = $cellsize", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = cellsize)
wireframe!(ax, Rect2f(Point2f.(x, y)), color = :red)
scatter!(ax, x, y, color = :red, markersize = 5)
end
f
```

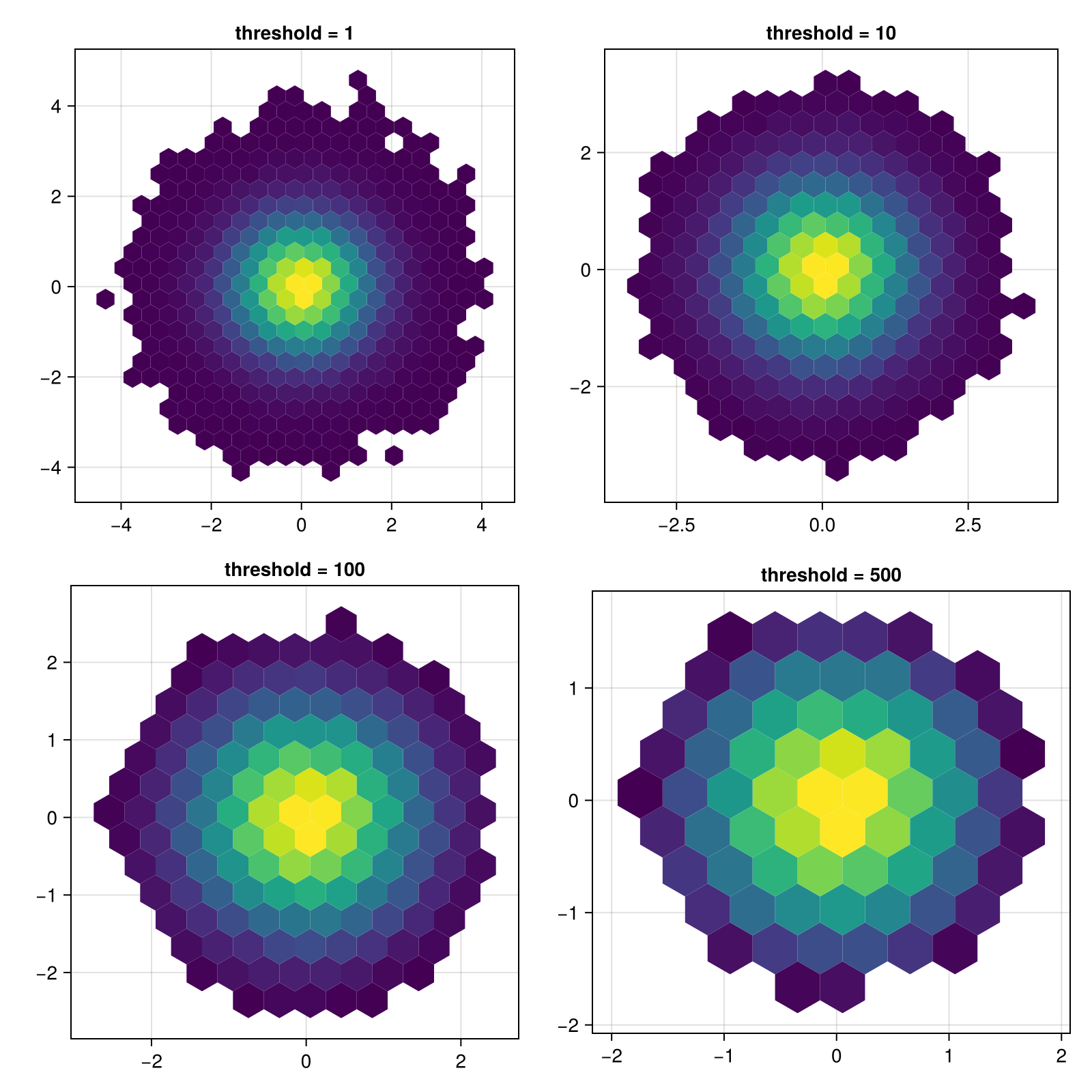

### Hiding hexagons with low counts

All hexagons with a count lower than `threshold`

will be removed:

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = randn(100000)
y = randn(100000)
for (i, threshold) in enumerate([1, 10, 100, 500])
ax = Axis(f[fldmod1(i, 2)...], title = "threshold = $threshold", aspect = DataAspect())
hexbin!(ax, x, y, cellsize = 0.4, threshold = threshold)
end
f
```

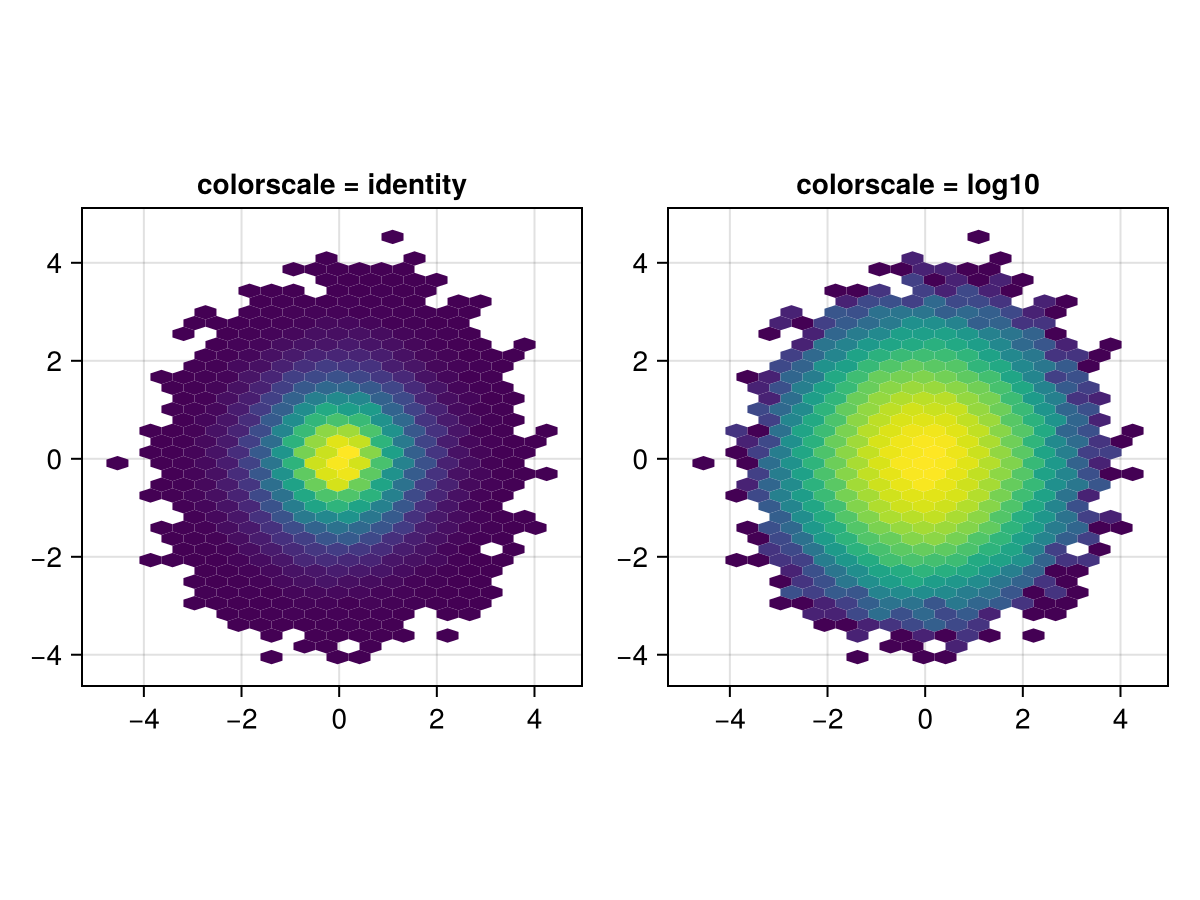

### Changing the scale of the number of observations in a bin

You can pass a scale function to via the `scale`

keyword, which will be applied to the bin counts before plotting.

```
using CairoMakie
using Random
Random.seed!(1234)
x = randn(100000)
y = randn(100000)
f = Figure()
hexbin(f[1, 1], x, y, bins = 40,
axis = (aspect = DataAspect(), title = "scale = identity"))
hexbin(f[1, 2], x, y, bins = 40, scale=log10,
axis = (aspect = DataAspect(), title = "scale = log10"))
f
```

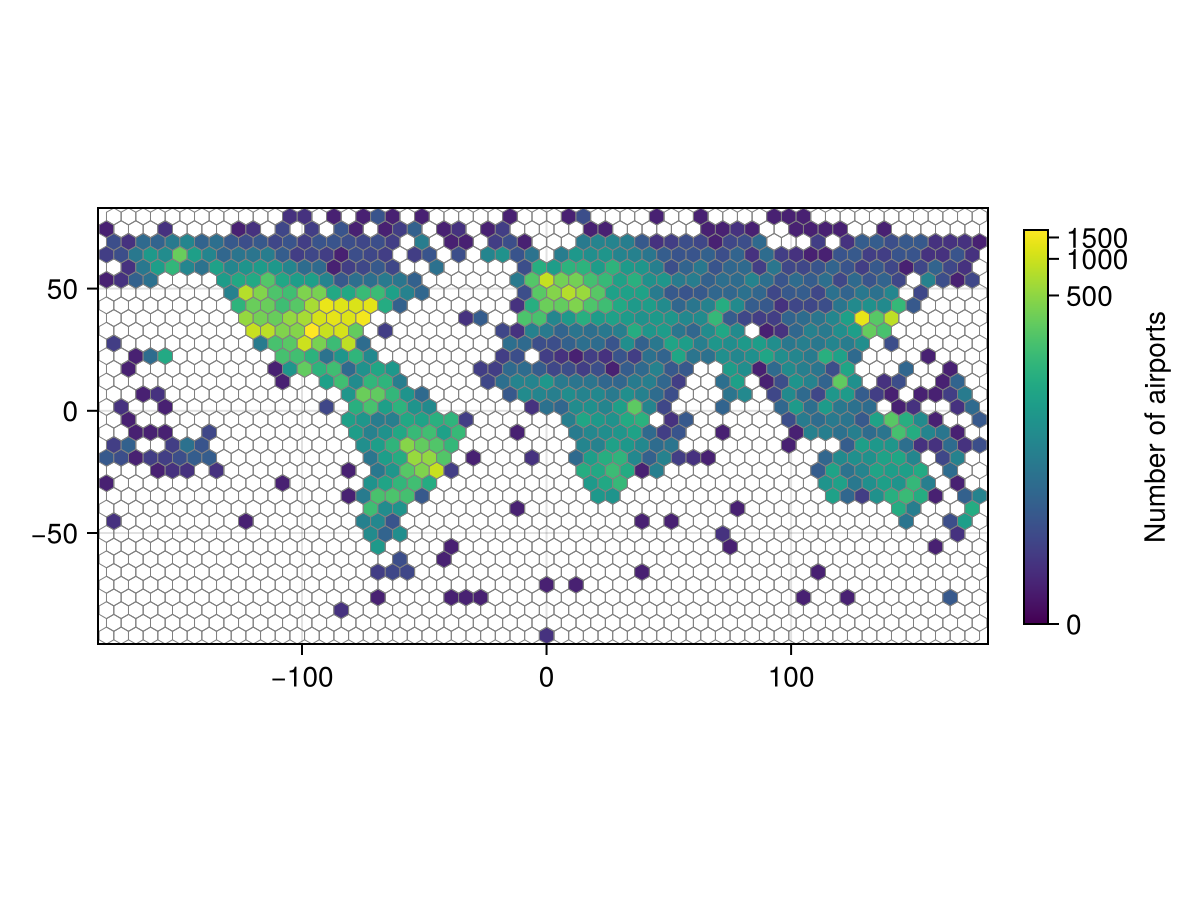

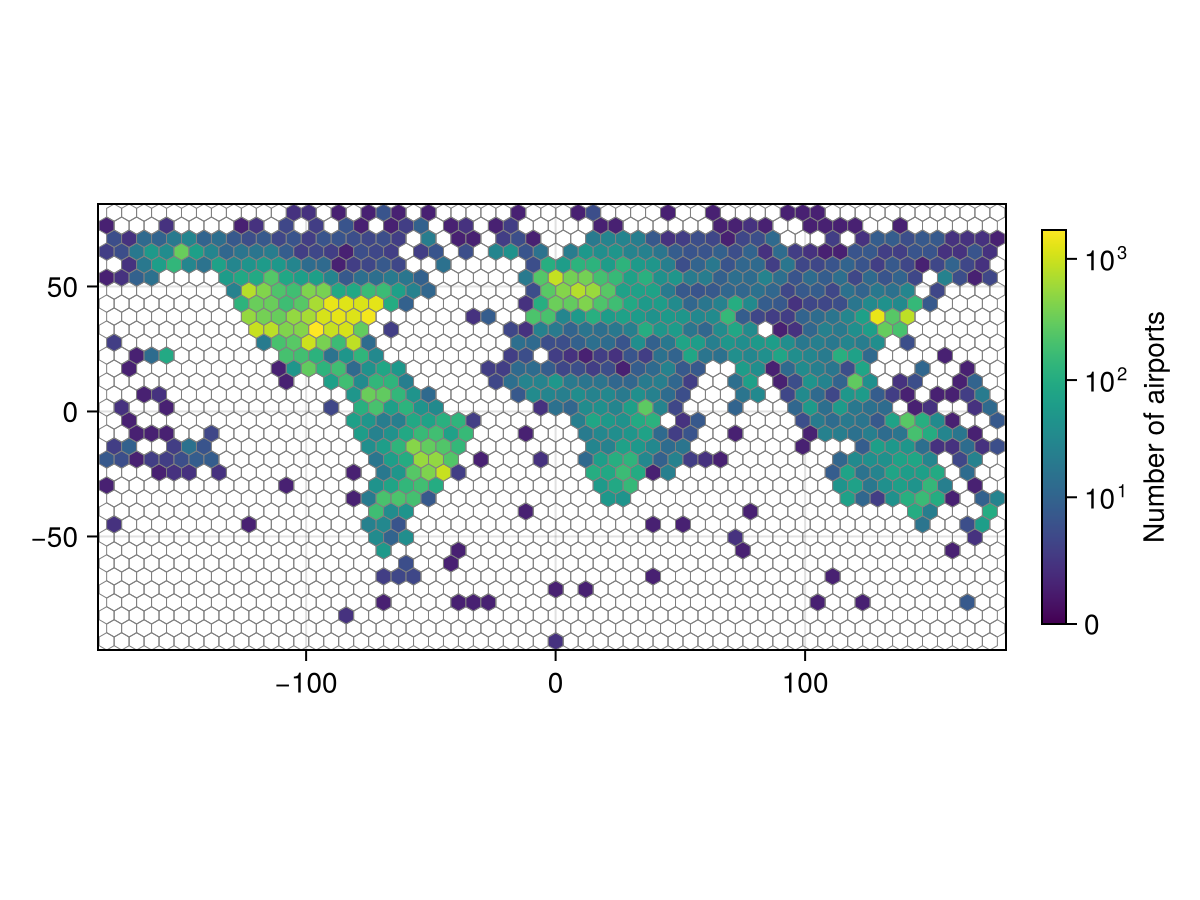

### Showing zero count hexagons

By setting `threshold = 0`

, all hexagons that fit into the limits of the input data are shown. In this example, we add a transparent color to the start of the colormap and stroke each hexagon so the empty hexagons are visible but not too distracting.

```
using CairoMakie
using DelimitedFiles
a = map(Point2f, eachrow(readdlm(assetpath("airportlocations.csv"))))
f, ax, hb = hexbin(a,
cellsize = 6,
axis = (; aspect = DataAspect()),
threshold = 0,
colormap = [Makie.to_color(:transparent); Makie.to_colormap(:viridis)],
strokewidth = 0.5,
strokecolor = :gray50,
scale = Makie.pseudolog10)
tightlimits!(ax)
Colorbar(f[1, 2], hb,
label = "Number of airports",
height = Relative(0.5)
)
f
```

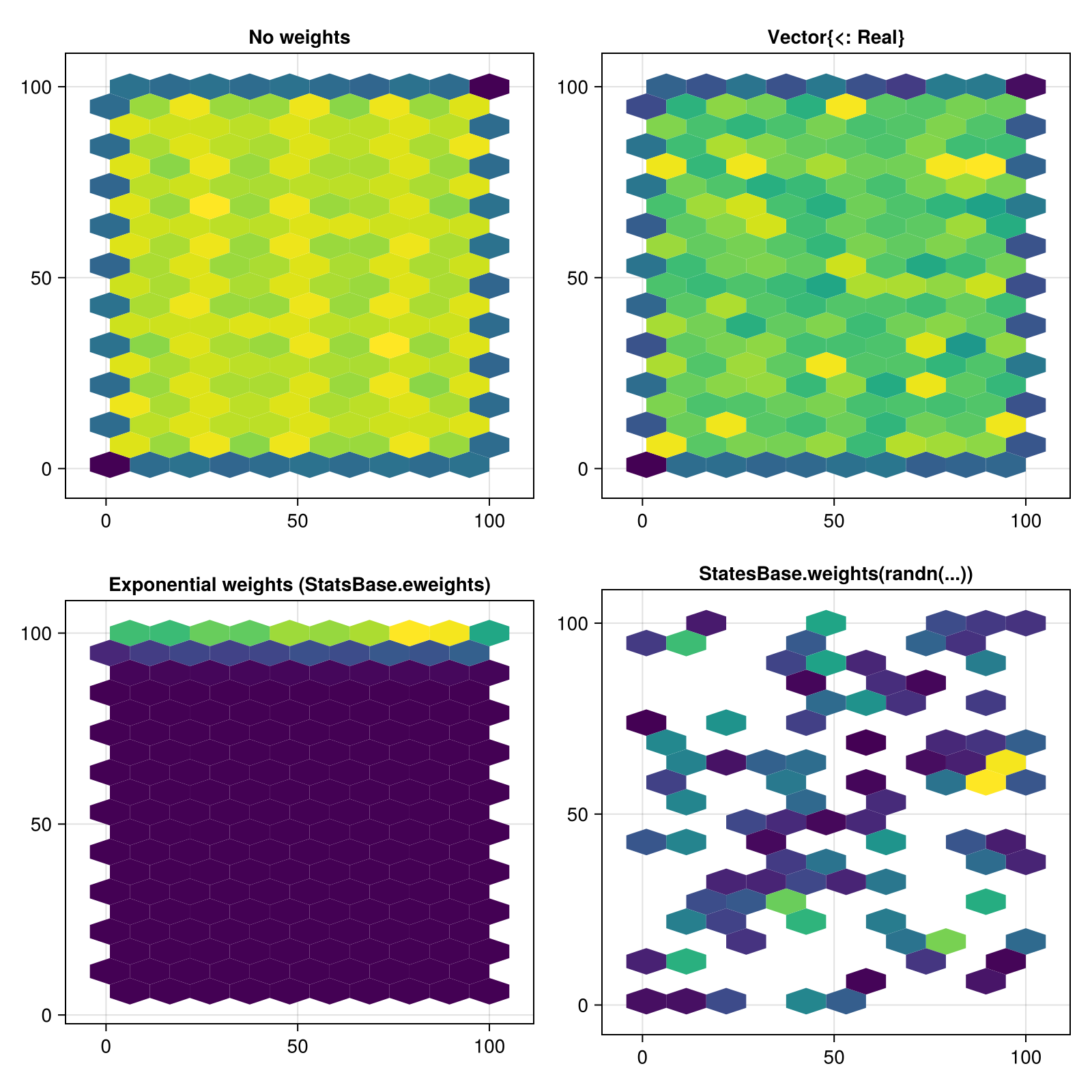

### Applying weights to observations

```
using CairoMakie
using Random
Random.seed!(1234)
f = Figure(resolution = (800, 800))
x = 1:100
y = 1:100
points = vec(Point2f.(x, y'))
weights = [nothing, rand(length(points)), Makie.StatsBase.eweights(length(points), 0.005), Makie.StatsBase.weights(randn(length(points)))]
weight_labels = ["No weights", "Vector{<: Real}", "Exponential weights (StatsBase.eweights)", "StatesBase.weights(randn(...))"]
for (i, (weight, title)) in enumerate(zip(weights, weight_labels))
ax = Axis(f[fldmod1(i, 2)...], title = title, aspect = DataAspect())
hexbin!(ax, points; weights = weight)
autolimits!(ax)
end
f
```
