arrows

arrows(points, directions; kwargs...)
arrows(x, y, u, v)
arrows(x::AbstractVector, y::AbstractVector, u::AbstractMatrix, v::AbstractMatrix)
arrows(x, y, z, u, v, w)
arrows(x, y, [z], f::Function)

  align           :origin
  alpha           1.0
  arrowcolor      MakieCore.Automatic()
  arrowhead       MakieCore.Automatic()
  arrowsize       MakieCore.Automatic()
  arrowtail       MakieCore.Automatic()
  backlight       0.0f0
  color           :black
  colormap        :viridis
  colorrange      MakieCore.Automatic()
  colorscale      identity
  depth_shift     0.0f0
  diffuse         1.0
  highclip        MakieCore.Automatic()
  inspectable     true
  lengthscale     1.0f0
  linecolor       MakieCore.Automatic()
  linestyle       "nothing"
  linewidth       MakieCore.Automatic()
  lowclip         MakieCore.Automatic()
  markerspace     :pixel
  nan_color       :transparent
  normalize       false
  overdraw        false
  quality         32
  shading         MakieCore.Automatic()
  shininess       32.0f0
  space           :data
  specular        0.2
  ssao            false
  transparency    false
  visible         true

Attributes

• arrowhead = automatic: Defines the marker (2D) or mesh (3D) that is used as the arrow head. The default for is '▲' in 2D and a cone mesh in 3D. For the latter the mesh should start at Point3f(0) and point in positive z-direction.

• arrowtail = automatic: Defines the mesh used to draw the arrow tail in 3D. It should start at Point3f(0) and extend in negative z-direction. The default is a cylinder. This has no effect on the 2D plot.

• quality = 32: Defines the number of angle subdivisions used when generating the arrow head and tail meshes. Consider lowering this if you have performance issues. Only applies to 3D plots.

• linecolor = :black: Sets the color used for the arrow tail which is represented by a line in 2D.

• arrowcolor = linecolor: Sets the color of the arrow head.

• arrowsize = automatic: Scales the size of the arrow head. This defaults to 0.3 in the 2D case and Vec3f(0.2, 0.2, 0.3) in the 3D case. For the latter the first two components scale the radius (in x/y direction) and the last scales the length of the cone. If the arrowsize is set to 1, the cone will have a diameter and length of 1.

• linewidth = automatic: Scales the width/diameter of the arrow tail. Defaults to 1 for 2D and 0.05 for the 3D case.

• lengthscale = 1f0: Scales the length of the arrow tail.

• linestyle = nothing: Sets the linestyle used in 2D. Does not apply to 3D plots.

• normalize = false: By default the lengths of the directions given to arrows are used to scale the length of the arrow tails. If this attribute is set to true the directions are normalized, skipping this scaling.

• align = :origin: Sets how arrows are positioned. By default arrows start at the given positions and extend along the given directions. If this attribute is set to :head, :lineend, :tailend, :headstart or :center the given positions will be between the head and tail of each arrow instead.

Examples

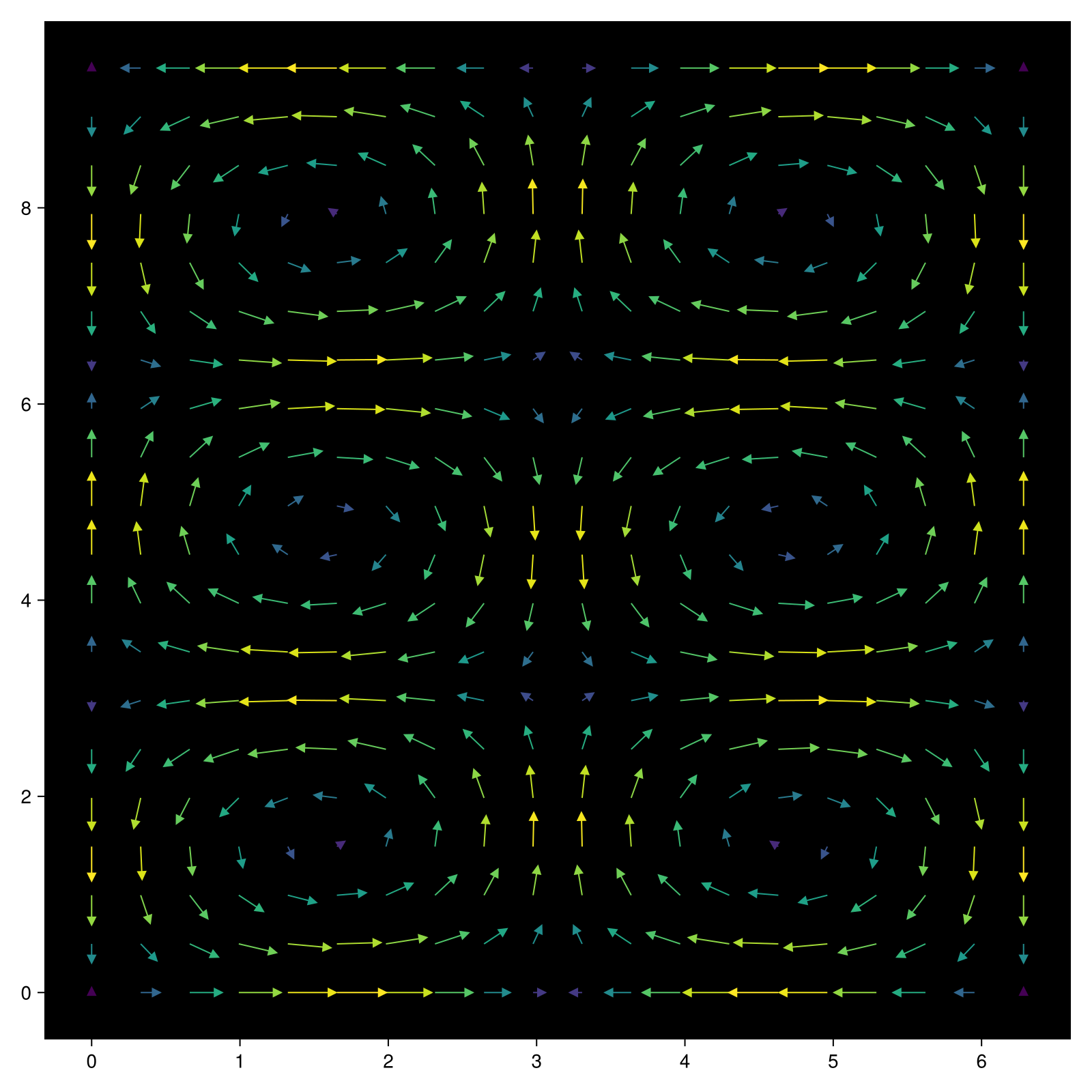

using CairoMakie


f = Figure(size = (800, 800))
Axis(f[1, 1], backgroundcolor = "black")

xs = LinRange(0, 2pi, 20)
ys = LinRange(0, 3pi, 20)
us = [sin(x) * cos(y) for x in xs, y in ys]
vs = [-cos(x) * sin(y) for x in xs, y in ys]
strength = vec(sqrt.(us .^ 2 .+ vs .^ 2))

arrows!(xs, ys, us, vs, arrowsize = 10, lengthscale = 0.3,
    arrowcolor = strength, linecolor = strength)

f

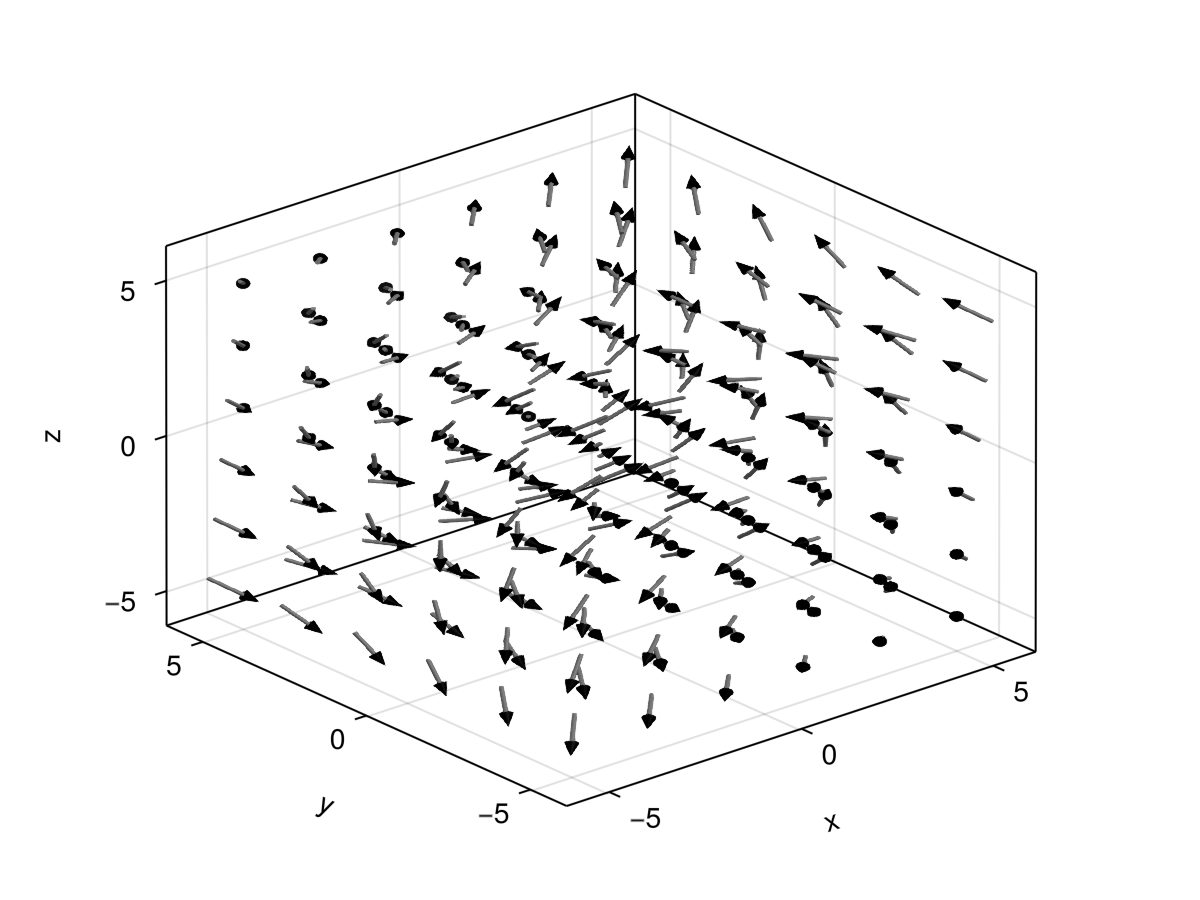

using GLMakie


ps = [Point3f(x, y, z) for x in -5:2:5 for y in -5:2:5 for z in -5:2:5]
ns = map(p -> 0.1 * Vec3f(p[2], p[3], p[1]), ps)
arrows(
    ps, ns, fxaa=true, # turn on anti-aliasing
    linecolor = :gray, arrowcolor = :black,
    linewidth = 0.1, arrowsize = Vec3f(0.3, 0.3, 0.4),
    align = :center, axis=(type=Axis3,)
)

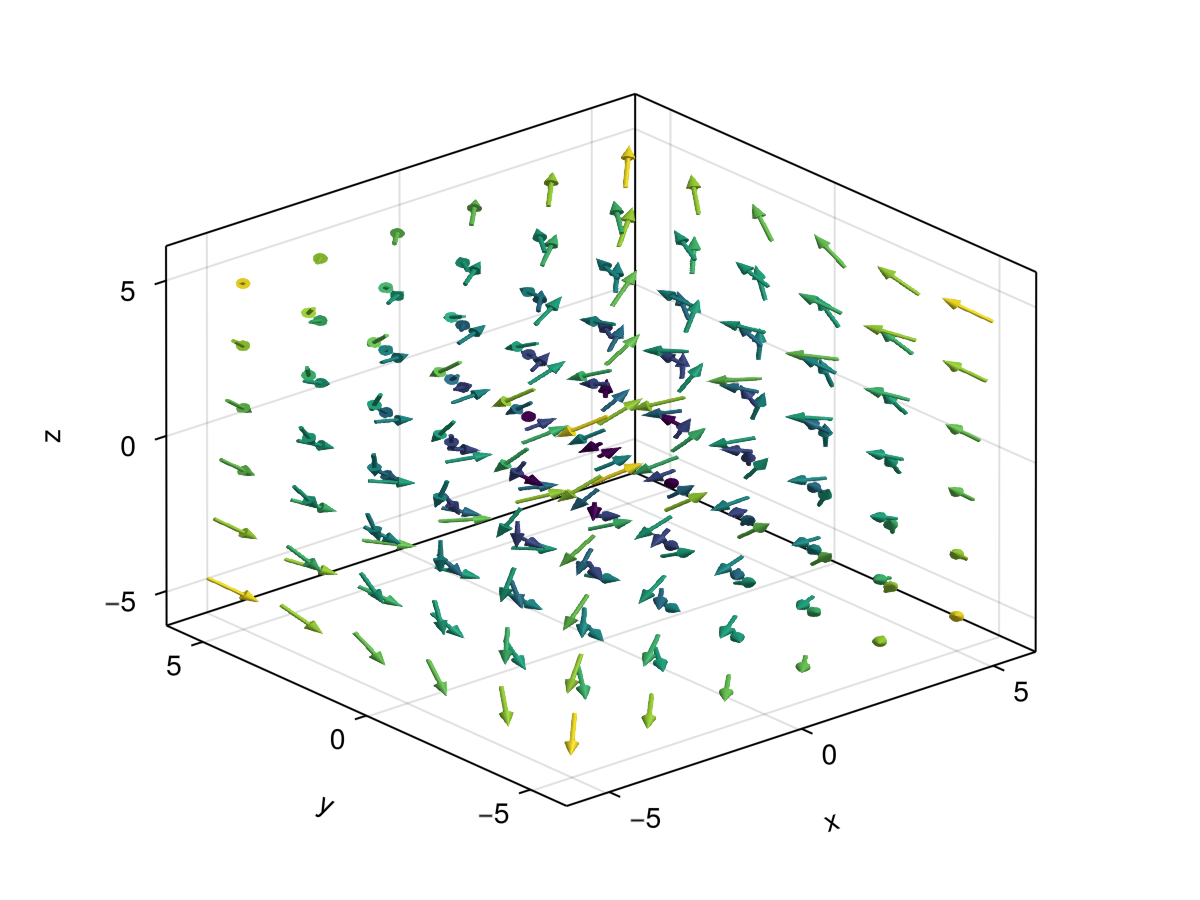

using GLMakie

using LinearAlgebra

ps = [Point3f(x, y, z) for x in -5:2:5 for y in -5:2:5 for z in -5:2:5]
ns = map(p -> 0.1 * Vec3f(p[2], p[3], p[1]), ps)
lengths = norm.(ns)
arrows(
    ps, ns, fxaa=true, # turn on anti-aliasing
    color=lengths,
    linewidth = 0.1, arrowsize = Vec3f(0.3, 0.3, 0.4),
    align = :center, axis=(type=Axis3,)
)

arrows can also take a function f(x::Point{N})::Point{N} which returns the arrow vector when given the arrow's origin.

using CairoMakie


fig = Figure(size = (800, 800))
ax = Axis(fig[1, 1], backgroundcolor = "black")
xs = LinRange(0, 2pi, 20)
ys = LinRange(0, 3pi, 20)
# explicit method
us = [sin(x) * cos(y) for x in xs, y in ys]
vs = [-cos(x) * sin(y) for x in xs, y in ys]
strength = vec(sqrt.(us .^ 2 .+ vs .^ 2))
# function method
arrow_fun(x) = Point2f(sin(x[1])*cos(x[2]), -cos(x[1])*sin(x[2]))
arrows!(ax, xs, ys, arrow_fun, arrowsize = 10, lengthscale = 0.3,
    arrowcolor = strength, linecolor = strength)
fig
