Scene tutorial

The scene constructor:

scene = Scene(;
    # clear everything behind scene
    clear = true,
    # the camera struct of the scene.
    visible = true,
    # ssao and light are explained in more detail in `Documetation/Lighting`
    ssao = Makie.SSAO(),
    # Creates lights from theme, which right now defaults to `
    # set_theme!(lightposition=:eyeposition, ambient=RGBf(0.5, 0.5, 0.5))`
    lights = Makie.automatic,
    backgroundcolor = :gray,
    resolution = (500, 500);
    # gets filled in with the currently set global theme
    theme_kw...
)

A scene is doing four things:

  • holds a local theme, that gets applied to all plot objects in that scene

  • manages the camera, projection and transformation matrices

  • defines the window size. For sub-scenes, the child scene can have smaller window areas than the parent area.

  • holds a reference to all window events

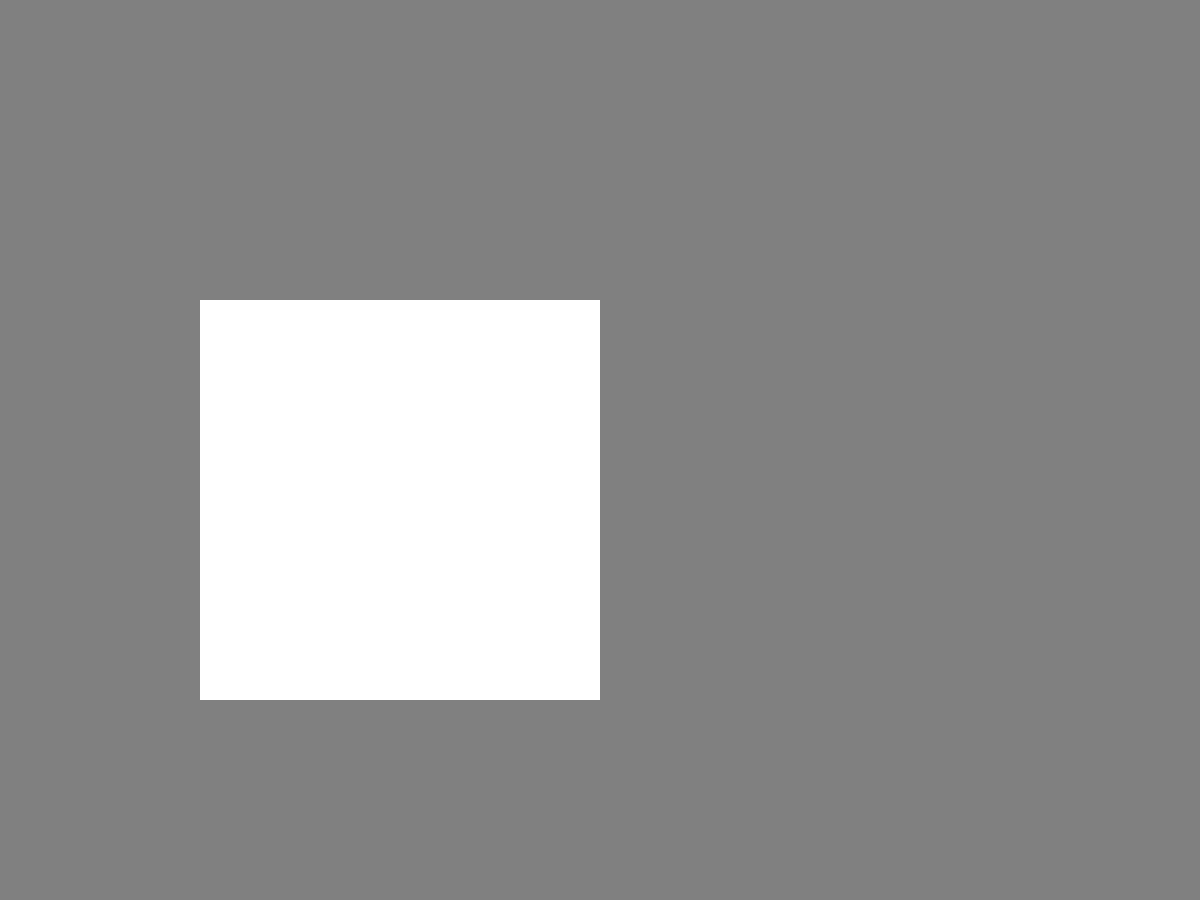

Scenes and subwindows

With scenes, one can create subwindows. The window extends are given by a Rect{2, Int} and the position is always in window pixels and relative to the parent.

using GLMakie, Makie
GLMakie.activate!()
scene = Scene(backgroundcolor=:gray)
subwindow = Scene(scene, px_area=Rect(100, 100, 200, 200), clear=true, backgroundcolor=:white)
scene

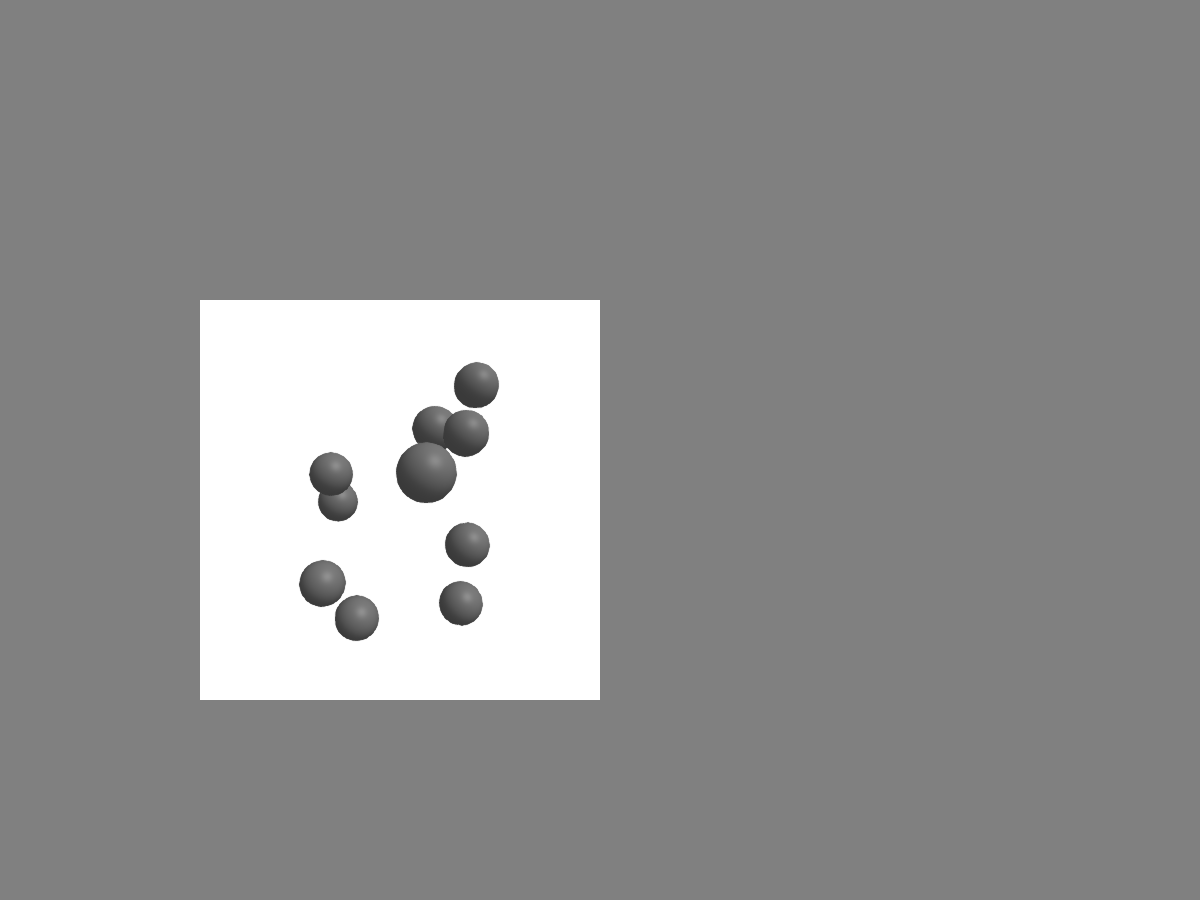

When using Scenes directly, one needs to manually set up the camera and center the camera to the content of the scene As described in more detail the camera section, we have multiple cam***! functions to set a certain projection and camera type for the scene.

cam3d!(subwindow)
meshscatter!(subwindow, rand(Point3f, 10), color=:gray)
center!(subwindow)
scene

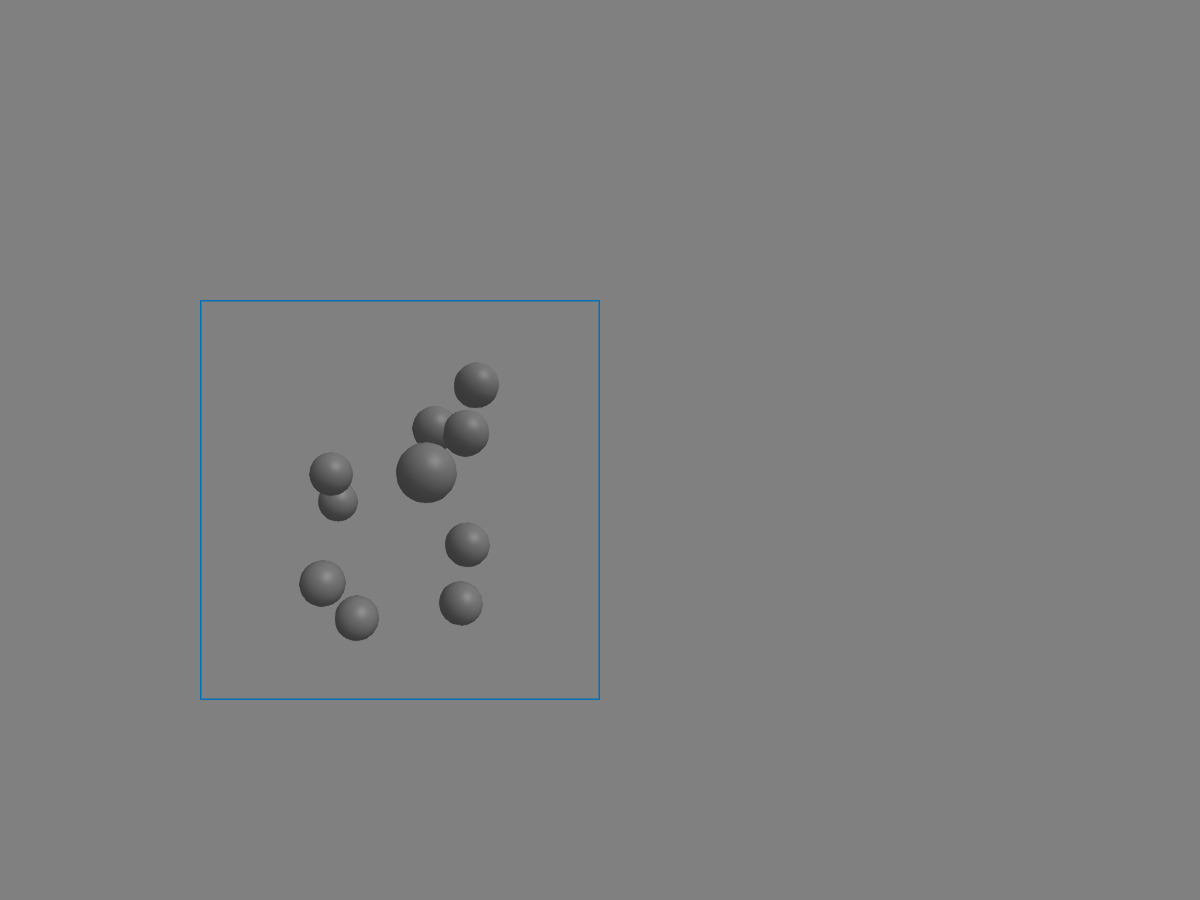

Instead of a white background, we can also stop clearing the background to make the scene see-through, and give it an outline instead. The easiest way to create an outline is, to make a sub scene with a projection that goes from 0..1 for the whole window. To make a subscene with a certain projection type, Makie offers for each camera function a version without !, that will create a subscene, and apply the camera type. We call the space that goes from 0..1 relative space, so camrelative will give this projection:

subwindow.clear = false
relative_space = Makie.camrelative(subwindow)
# this draws a line at the scene window boundary
lines!(relative_space, Rect(0, 0, 1, 1))
scene

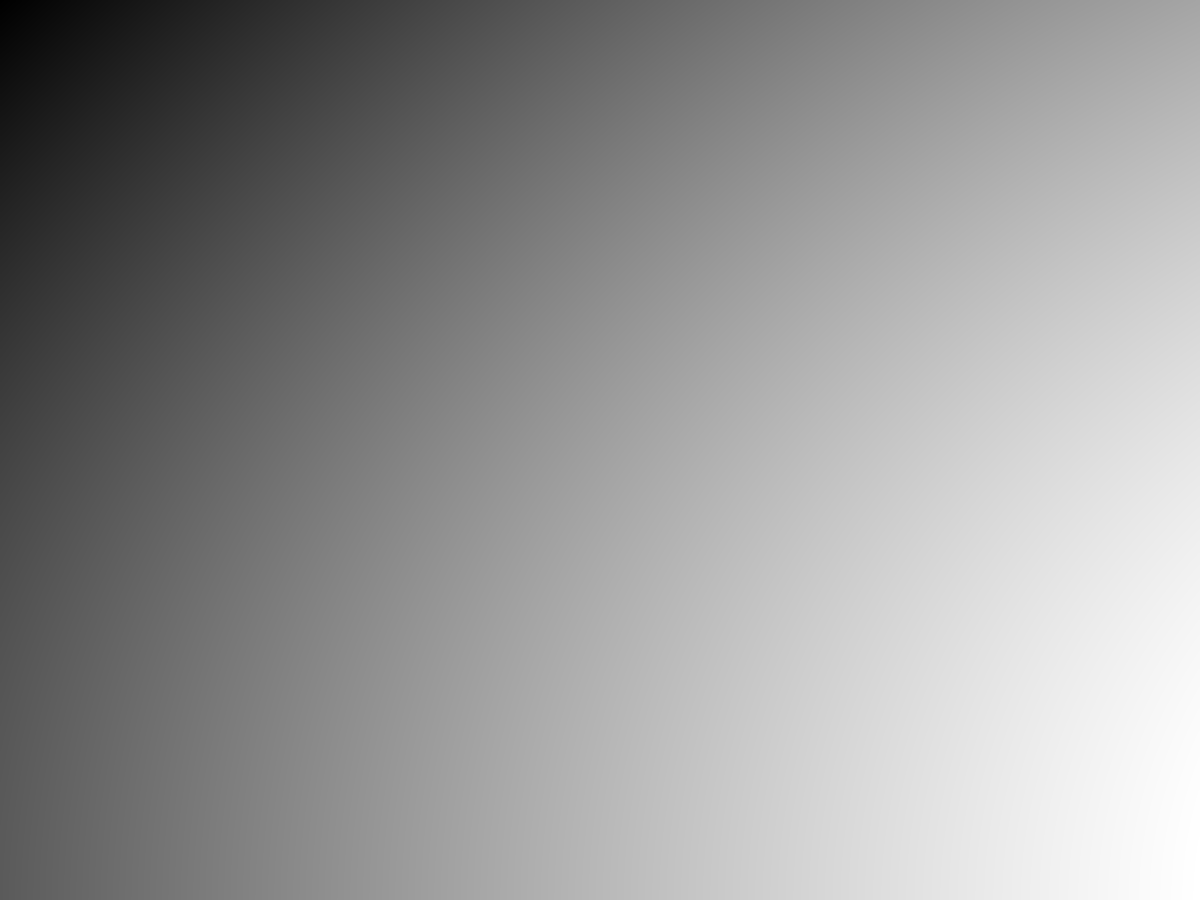

We can also now give the parent scene a more exciting background by using campixel! and plotting an image to the window:

campixel!(scene)
w, h = size(scene) # get the size of the scene in pixels
# this draws a line at the scene window boundary
image!(scene, [sin(i/w) + cos(j/h) for i in 1:w, j in 1:h])
scene

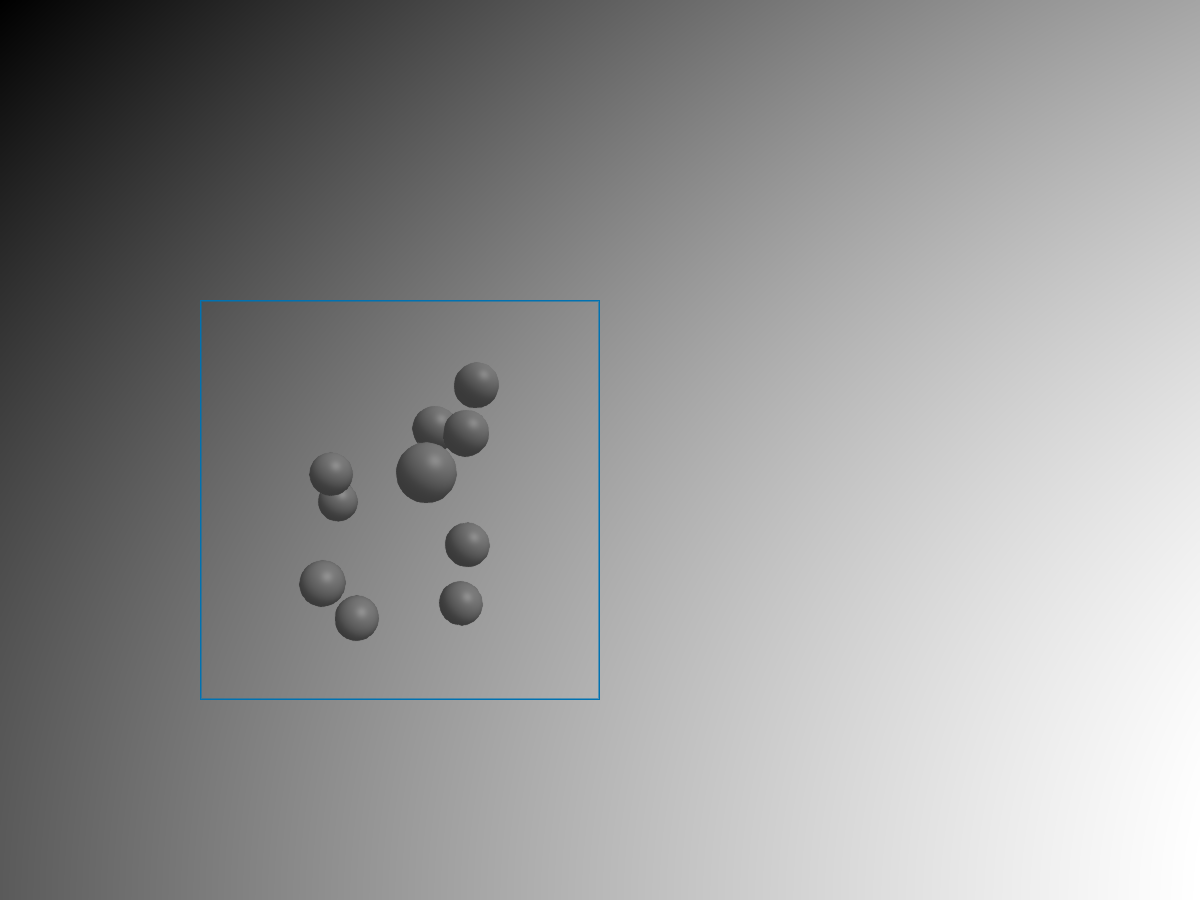

We can fix this by translating the scene further back:

translate!(scene.plots[1], 0, 0, -1000)
scene

We need a fairly high translation, since the far + near plane for campixel! goes from -1000 to 1000, while for cam3d! those get automatically adjusted to the camera parameters. Both end up in the same depthbuffer, transformed to the range 0..1 by the far & near plane, so to stay behind the 3d scene, it needs to be set to a high value.

With clear = true we wouldn't have this problem!

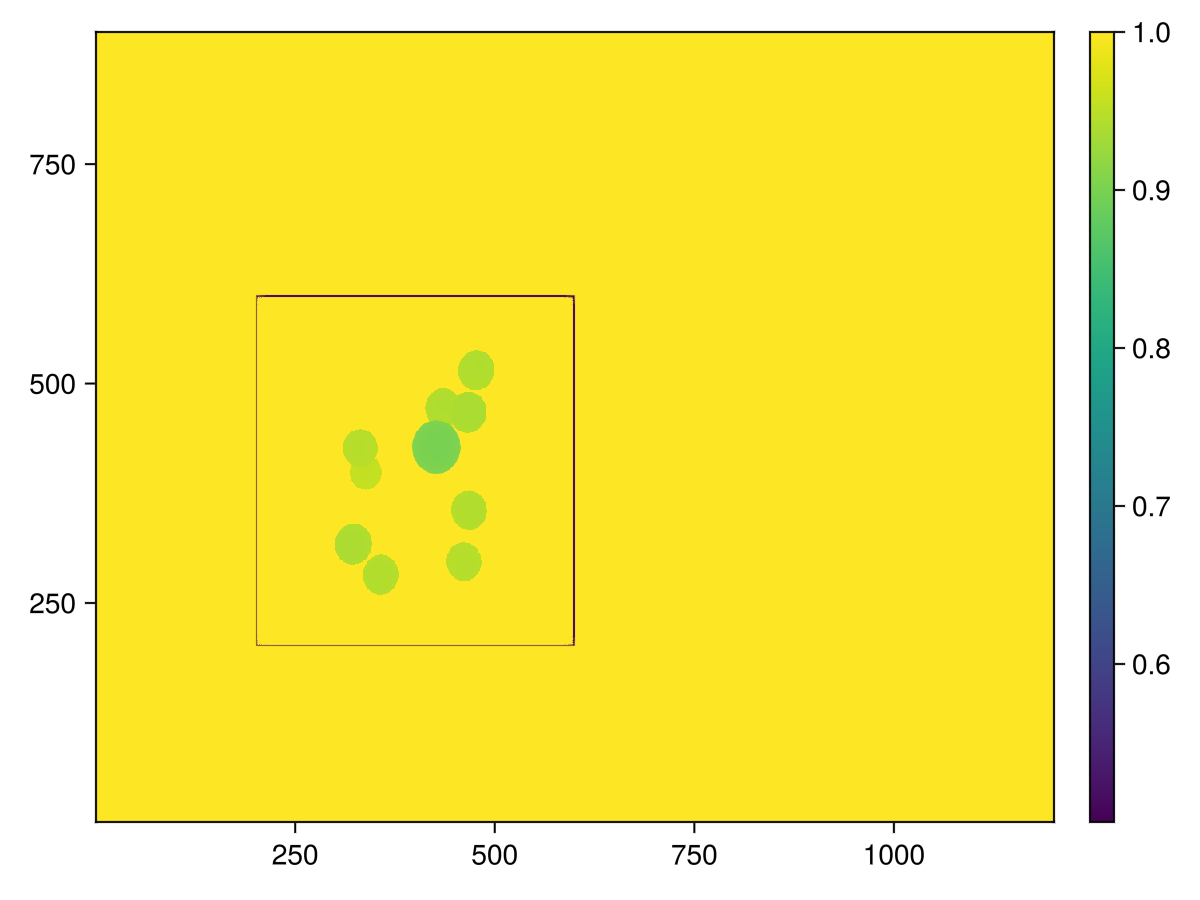

In GLMakie, we can actually take a look at the depthbuffer, to see how it looks now:

screen = display(scene) # use display, to get a reference to the screen object
depth_color = GLMakie.depthbuffer(screen)
# Look at result:
f, ax, pl = heatmap(depth_color)
Colorbar(f[1, 2], pl)
f

Window Events

Every scene also holds a reference to all global window events:

scene.events
Events:
  window_area:      GeometryBasics.HyperRectangle{2, Int64}([0, 0], [800, 600])
  window_dpi:       96.09458128078816
  window_open:      true
  mousebutton:      Makie.MouseButtonEvent(Makie.Mouse.none, Makie.Mouse.release)
  mousebuttonstate: Set{Makie.Mouse.Button}()
  mouseposition:    (0.0, 0.0)
  scroll:           (0.0, 0.0)
  keyboardbutton:   Makie.KeyEvent(Makie.Keyboard.unknown, Makie.Keyboard.release)
  keyboardstate:    Set{Makie.Keyboard.Button}()
  unicode_input:    \0
  dropped_files:    String[]
  hasfocus:         false
  entered_window:   true

We can use those events to e.g. move the subwindow. If you execute the below in GLMakie, you can move the sub-window around by pressing left mouse & ctrl:

on(scene.events.mouseposition) do mousepos
    if ispressed(subwindow, Mouse.left & Keyboard.left_control)
        subwindow.px_area[] = Rect(Int.(mousepos)..., 200, 200)
    end
end

Projections and Camera

We've already talked a bit about cameras, but not really how it works. Lets start from zero. By default, the scene x/y extends go from -1 to 1. So, to draw a rectangle outlining the scene window, the following rectangle does the job:

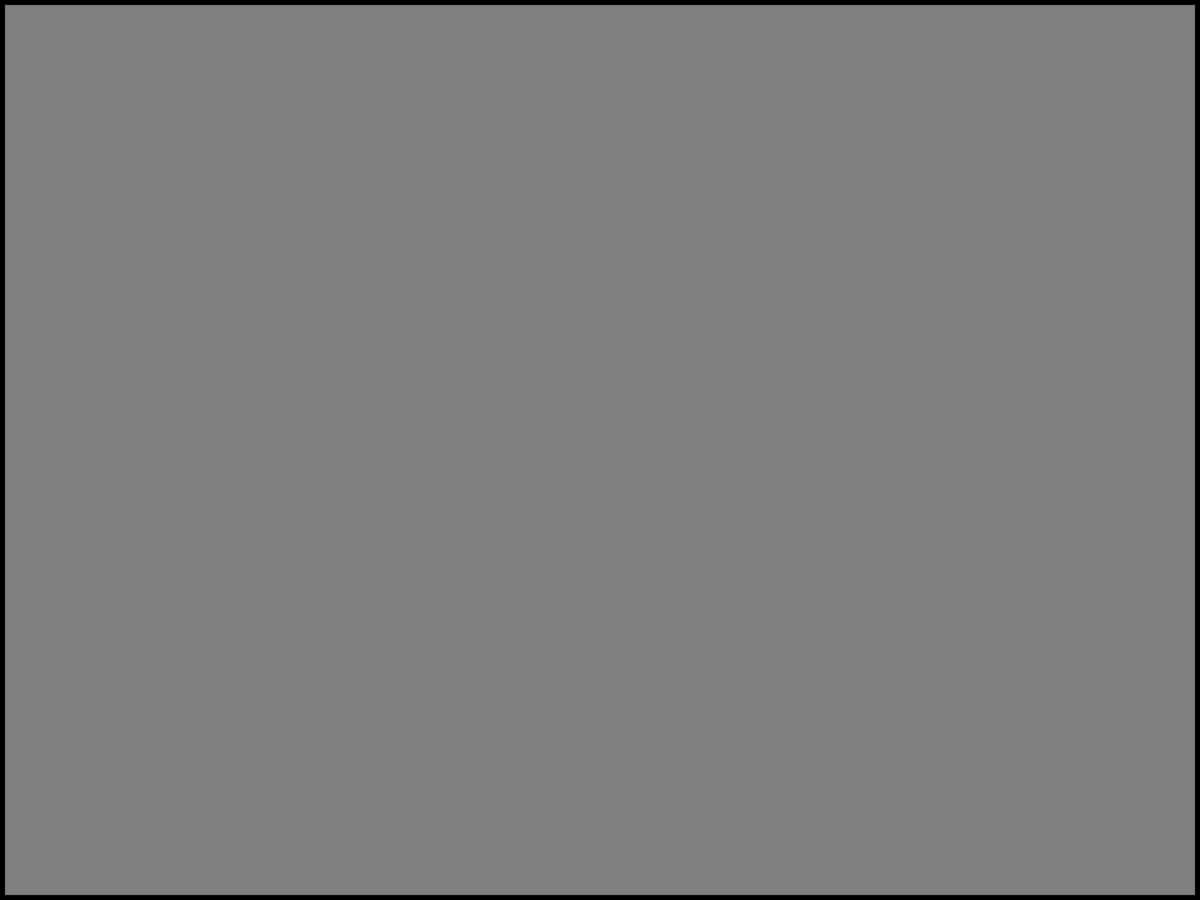

scene = Scene(backgroundcolor=:gray)
lines!(scene, Rect2f(-1, -1, 2, 2), linewidth=5, color=:black)
scene

this is, because the projection matrix and view matrix are the identity matrix by default, and Makie's unit space is what's called Clip space in the OpenGL world

cam = Makie.camera(scene) # this is how to access the scenes camera
Camera:
  0 steering observables connected
  pixel_space: Float32[0.0025 0.0 0.0 -1.0; 0.0 0.0033333334 0.0 -1.0; 0.0 0.0 -0.0001 -0.0; 0.0 0.0 0.0 1.0]
  view: Float32[1.0 0.0 0.0 0.0; 0.0 1.0 0.0 0.0; 0.0 0.0 1.0 0.0; 0.0 0.0 0.0 1.0]
  projection: Float32[1.0 0.0 0.0 0.0; 0.0 1.0 0.0 0.0; 0.0 0.0 1.0 0.0; 0.0 0.0 0.0 1.0]
  projectionview: Float32[1.0 0.0 0.0 0.0; 0.0 1.0 0.0 0.0; 0.0 0.0 1.0 0.0; 0.0 0.0 0.0 1.0]
  resolution: Float32[800.0, 600.0]
  eyeposition: Float32[1.0, 1.0, 1.0]

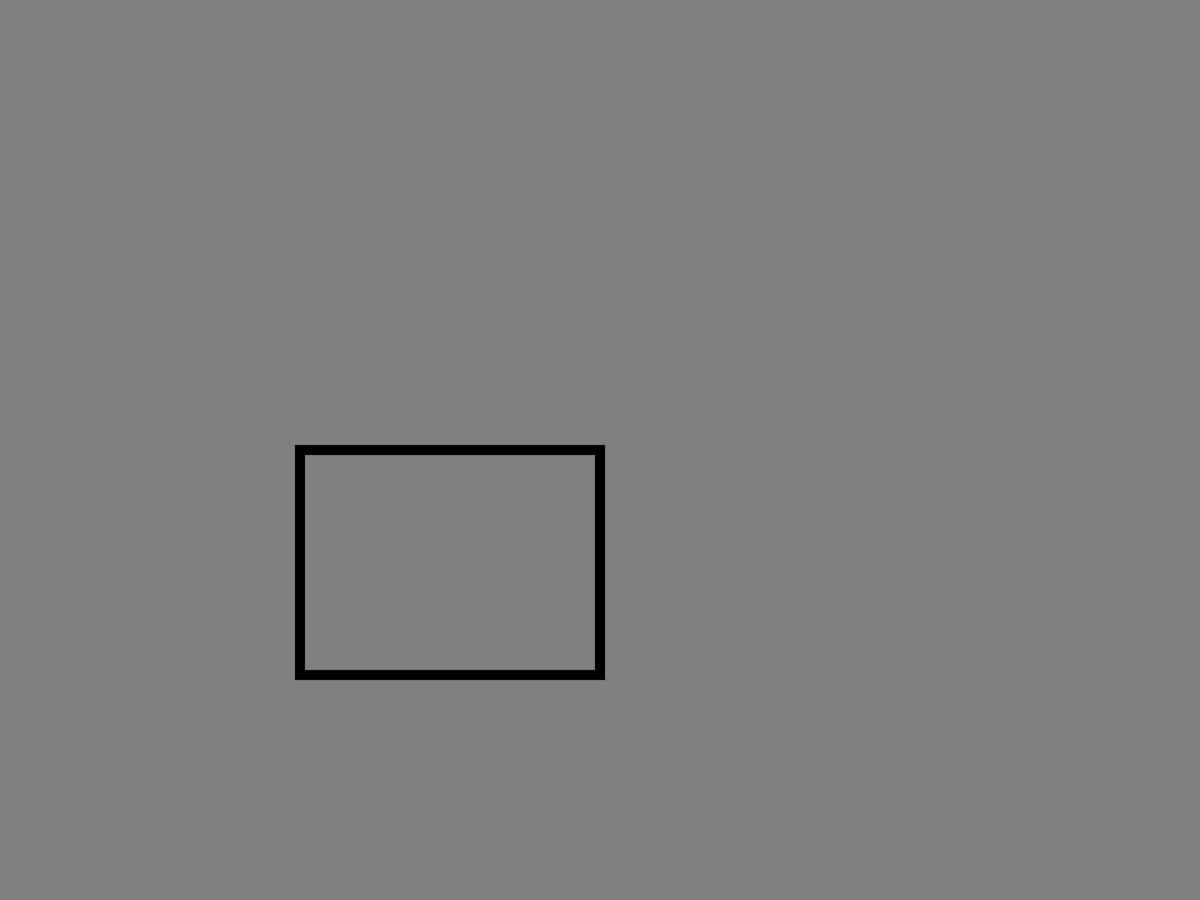

One can change the mapping, to e.g. draw from -3 to 5 with an orthographic projection matrix:

cam.projection[] = Makie.orthographicprojection(-3f0, 5f0, -3f0, 5f0, -100f0, 100f0)
scene

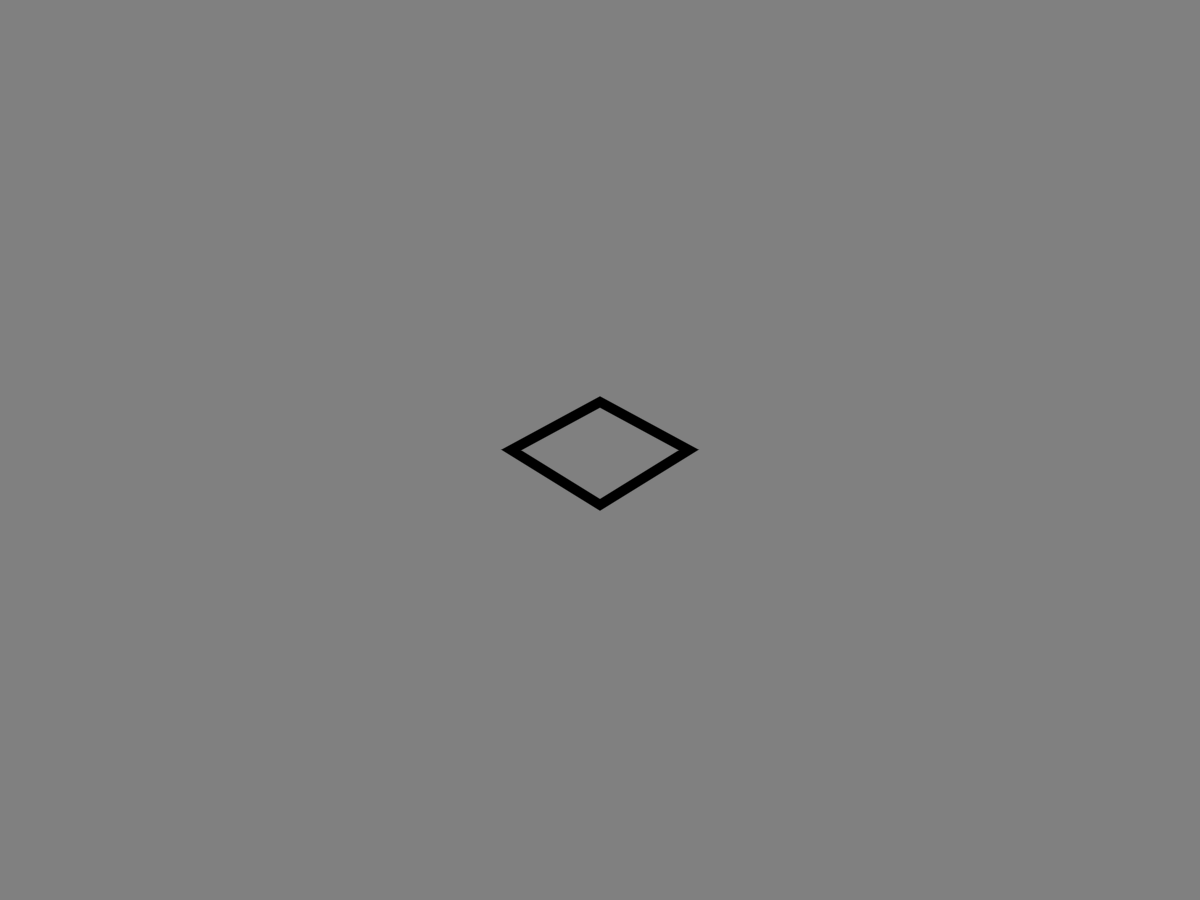

one can also change the camera to a perspective 3d projection:

w, h = size(scene)
nearplane = 0.1f0
farplane = 100f0
aspect = Float32(w / h)
cam.projection[] = Makie.perspectiveprojection(45f0, aspect, nearplane, farplane)
# Now, we also need to change the view matrix
# to "put" the camera into some place.
eyeposition = Vec3f(10)
lookat = Vec3f(0)
upvector = Vec3f(0, 0, 1)
cam.view[] = Makie.lookat(eyeposition, lookat, upvector)
scene

Interaction with Axis & Layouts

The Axis contains a scene, which has the projection set to make the coordinates go from (x/y)limits_min ... (x/y)limits_max. That's what we plot into. Besides that, it's a normal scene, which we can use to create subscenes with smaller window size or a different projection.

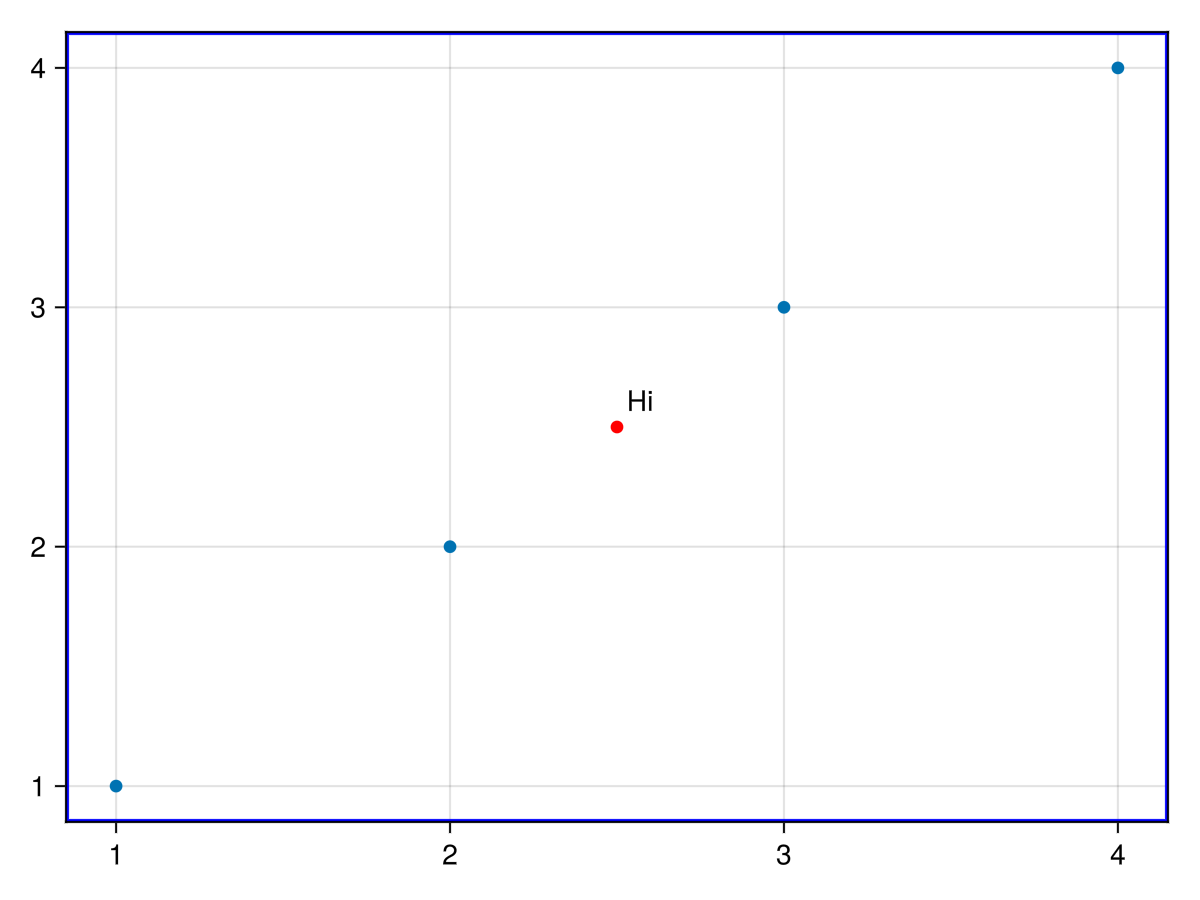

So, we can use camrelative and friends to e.g. plot in the middle of the axis:

figure, axis, plot_object = scatter(1:4)
relative_projection = Makie.camrelative(axis.scene);
scatter!(relative_projection, [Point2f(0.5)], color=:red)
# offset & text are in pixelspace
text!(relative_projection, "Hi", position=Point2f(0.5), offset=Vec2f(5))
lines!(relative_projection, Rect(0, 0, 1, 1), color=:blue, linewidth=3)
figure

Transformations and Scene graph

So far we've been discussing only camera transformations of the scene. In contrast, there are also scene transformations, or commonly referred to as world transformations. To learn more about the different spaces, learn opengl offers some pretty nice explanations

The "world" transformation is implemented via the Transformation struct in Makie. Scenes and plots both contain these, so these types are considered as "Makie.Transformable". The transformation of a scene will get inherited by all plots added to the scene. An easy way to manipulate any Transformable is via these 3 functions:

translate!(scene::Transformable, xyz::VecTypes)
translate!(scene::Transformable, xyz...)

Apply an absolute translation to the Scene, translating it to x, y, z.

translate!(Accum, scene::Transformable, xyz...)

Translate the scene relative to its current position.

rotate!(Accum, scene::Transformable, axis_rot...)

Apply a relative rotation to the Scene, by multiplying by the current rotation.

rotate!(t::Transformable, axis_rot::Quaternion)
rotate!(t::Transformable, axis_rot::AbstractFloat)
rotate!(t::Transformable, axis_rot...)

Apply an absolute rotation to the Scene. Rotations are all internally converted to Quaternions.

scale!(t::Transformable, x, y)
scale!(t::Transformable, x, y, z)
scale!(t::Transformable, xyz)
scale!(t::Transformable, xyz...)

Scale the given Transformable (a Scene or Plot) to the given arguments. Can take x, y or x, y, z. This is an absolute scaling, and there is no option to perform relative scaling.

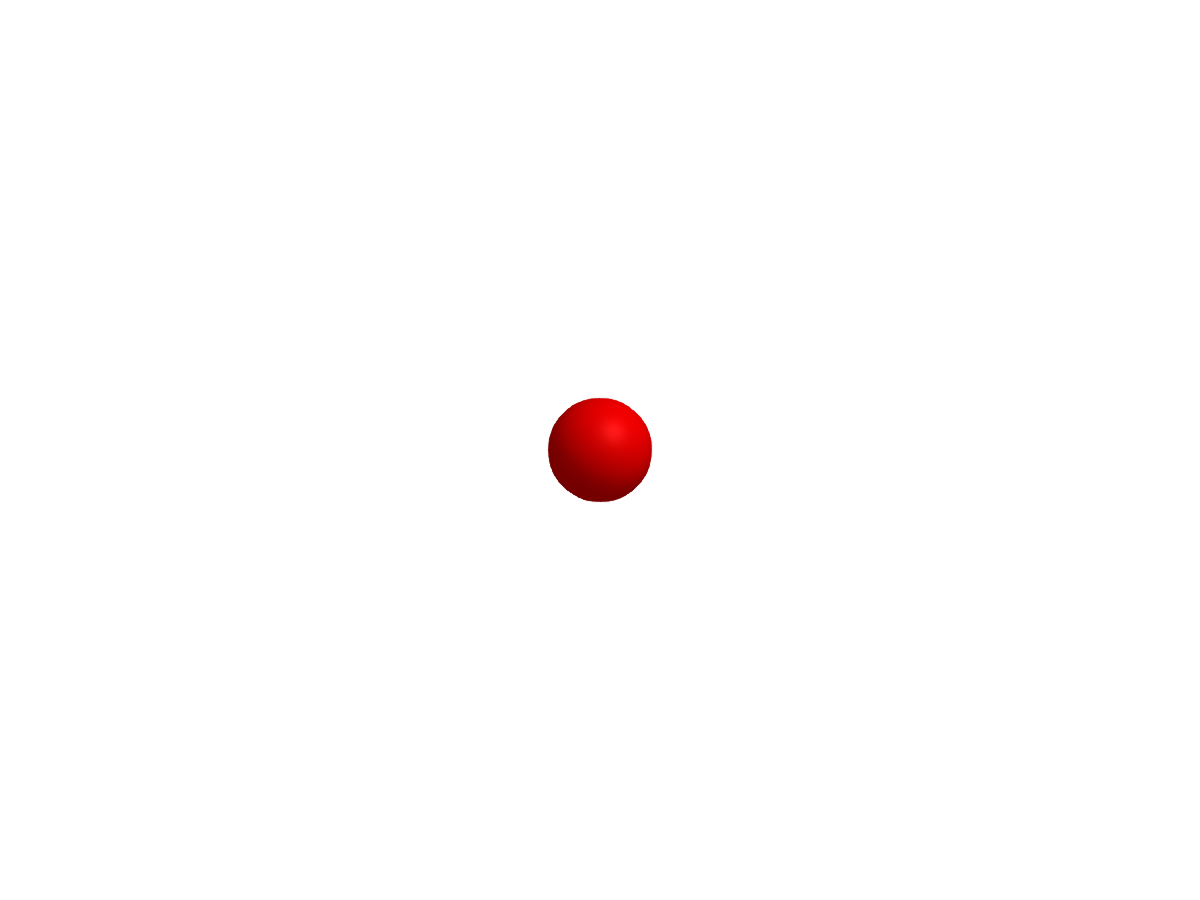

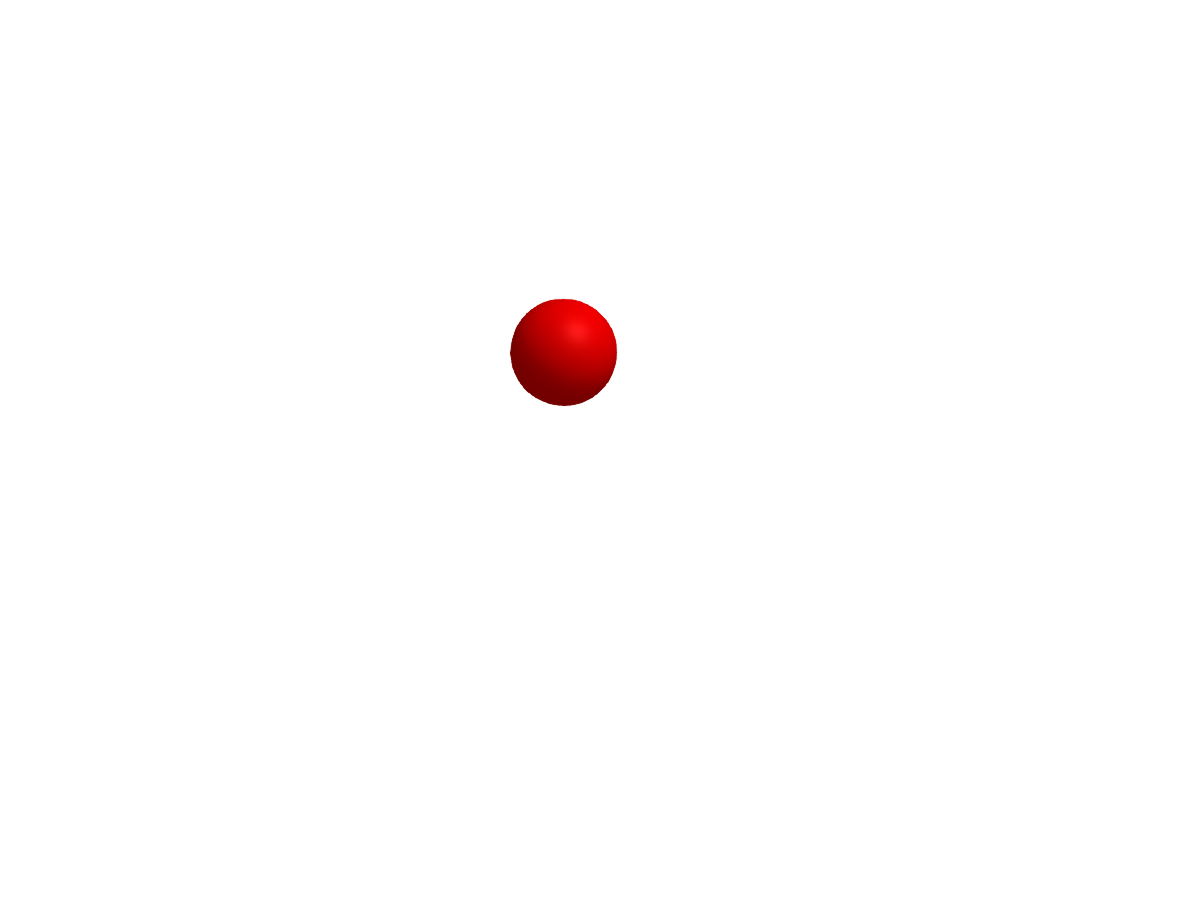

scene = Scene()
cam3d!(scene)
sphere_plot = mesh!(scene, Sphere(Point3f(0), 0.5), color=:red)
scale!(scene, 0.5, 0.5, 0.5)
rotate!(scene, Vec3f(1, 0, 0), 0.5) # 0.5 rad around the y axis
scene

One can also transform the plot objects directly, which then adds the transformation from the plot object on top of the transformation from the scene. One can add subscenes and interact with those dynamically. Makie offers here what's usually referred to as a scene graph.

translate!(sphere_plot, Vec3f(0, 0, 1))
scene

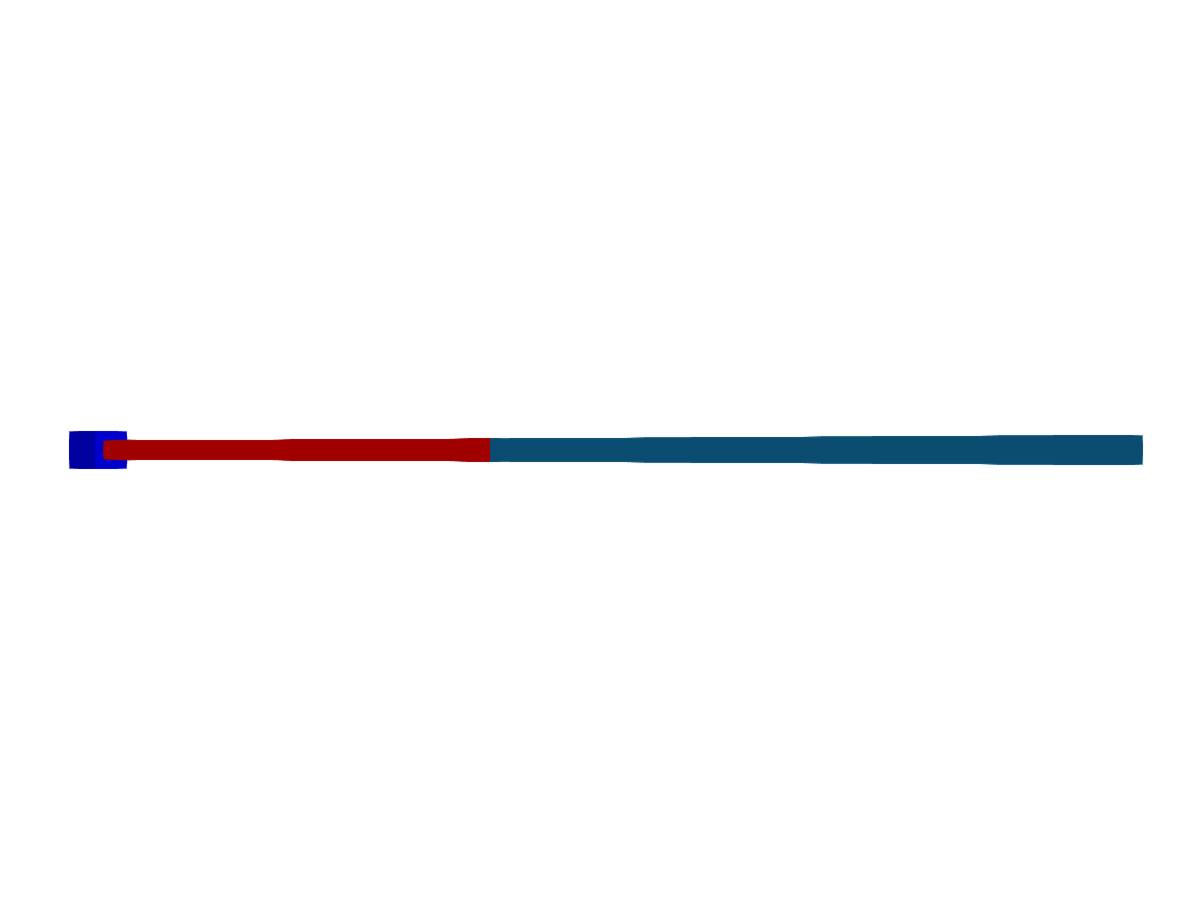

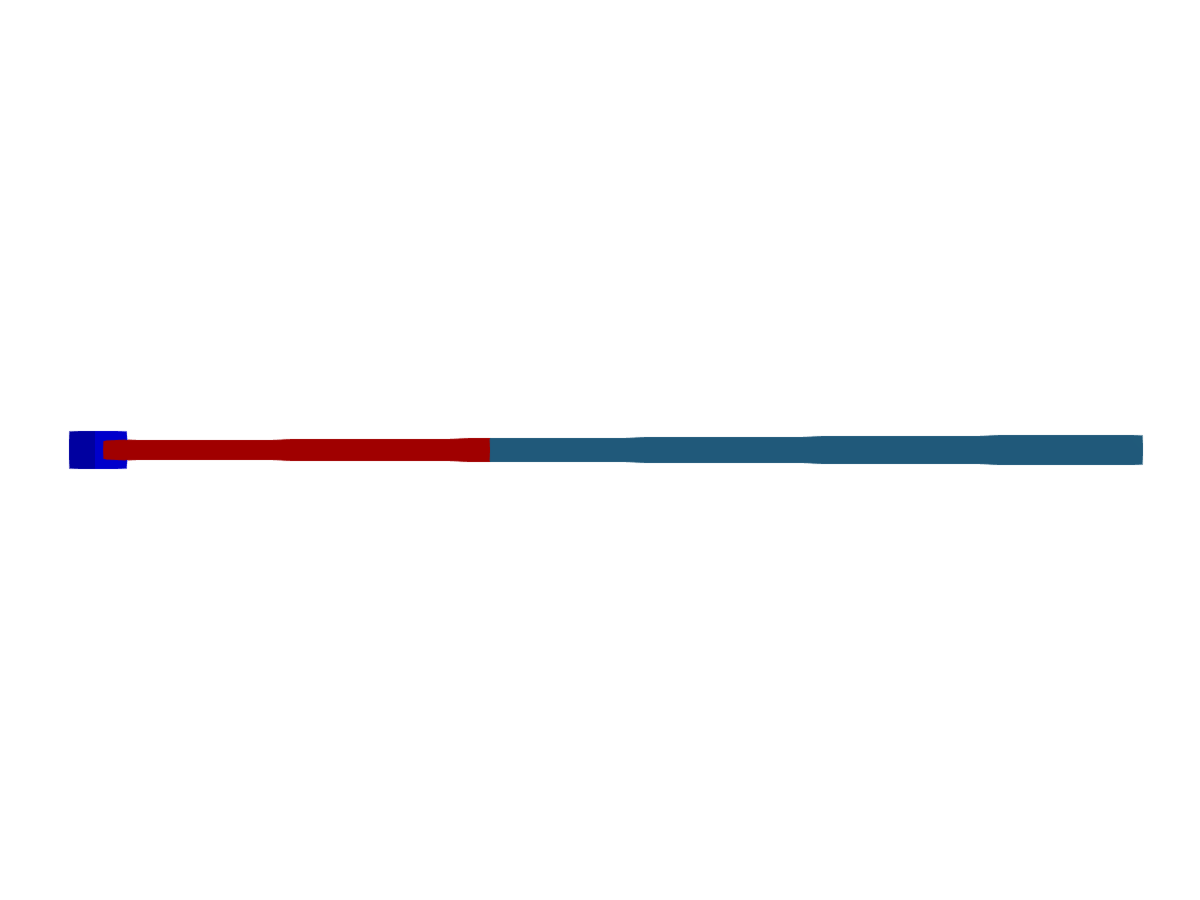

The scene graph can be used to create rigid transformations, like for a robot arm:

parent = Scene()
cam3d!(parent)

# One can set the camera lookat and eyeposition, by getting the camera controls and using `update_cam!`
camc = cameracontrols(parent)
update_cam!(parent, camc, Vec3f(0, 8, 0), Vec3f(4.0, 0, 0))

s1 = Scene(parent, camera=parent.camera)
mesh!(s1, Rect3f(Vec3f(0, -0.1, -0.1), Vec3f(5, 0.2, 0.2)))
s2 = Scene(s1, camera=parent.camera)
mesh!(s2, Rect3f(Vec3f(0, -0.1, -0.1), Vec3f(5, 0.2, 0.2)), color=:red)
translate!(s2, 5, 0, 0)
s3 = Scene(s2, camera=parent.camera)
mesh!(s3, Rect3f(Vec3f(-0.2), Vec3f(0.4)), color=:blue)
translate!(s3, 5, 0, 0)
parent

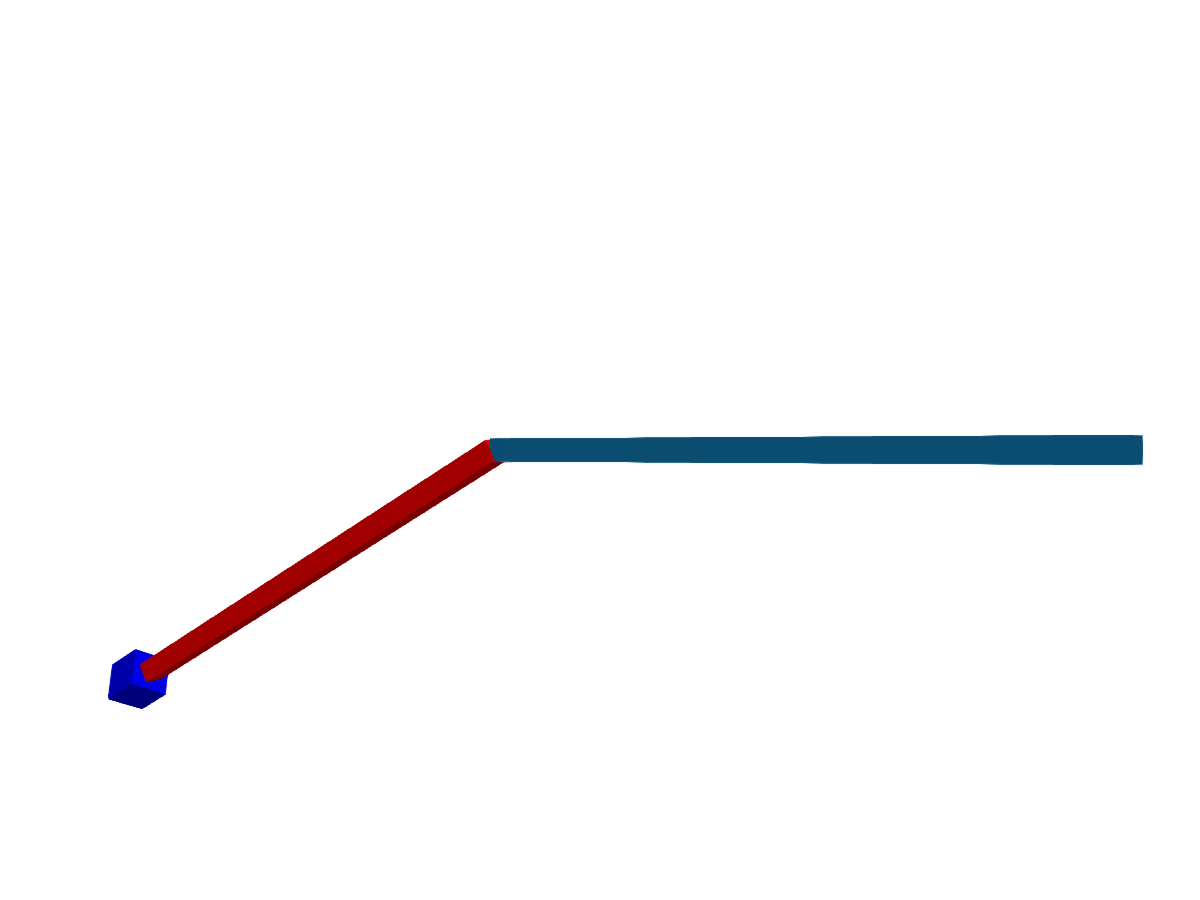

# Now, rotate the "joints"
rotate!(s2, Vec3f(0, 1, 0), 0.5)
rotate!(s3, Vec3f(1, 0, 0), 0.5)
parent

With this basic principle, we can even bring robots to life :) Kevin Moerman was so nice to supply a Lego mesh, which we're going to animate! When the scene graph is really just about a transformation Graph, one can use the Transformation struct directly, which is what we're going to do here. This is more efficient and easier than creating a scene for each model. Let's use WGLMakie with it's offline export feature, to create a plot with sliders to move the parts, that keeps working in the browser:

using WGLMakie, JSServe
WGLMakie.activate!()
Page(offline=true, exportable=true)

using MeshIO, FileIO, GeometryBasics

colors = Dict(
    "eyes" => "#000",
    "belt" => "#000059",
    "arm" => "#009925",
    "leg" => "#3369E8",
    "torso" => "#D50F25",
    "head" => "yellow",
    "hand" => "yellow"
)

origins = Dict(
    "arm_right" => Point3f(0.1427, -6.2127, 5.7342),
    "arm_left" => Point3f(0.1427, 6.2127, 5.7342),
    "leg_right" => Point3f(0, -1, -8.2),
    "leg_left" => Point3f(0, 1, -8.2),
)

rotation_axes = Dict(
    "arm_right" => Vec3f(0.0000, -0.9828, 0.1848),
    "arm_left" => Vec3f(0.0000, 0.9828, 0.1848),
    "leg_right" => Vec3f(0, -1, 0),
    "leg_left" => Vec3f(0, 1, 0),
)

function plot_part!(scene, parent, name::String)
    # load the model file
    m = load(assetpath("lego_figure_" * name * ".stl"))
    # look up color
    color = colors[split(name, "_")[1]]
    # Create a child transformation from the parent
    child = Transformation(parent)
    # get the transformation of the parent
    ptrans = Makie.transformation(parent)
    # get the origin if available
    origin = get(origins, name, nothing)
    # center the mesh to its origin, if we have one
    if !isnothing(origin)
        centered = m.position .- origin
        m = GeometryBasics.Mesh(meta(centered; normals=m.normals), faces(m))
        translate!(child, origin)
    else
        # if we don't have an origin, we need to correct for the parents translation
        translate!(child, -ptrans.translation[])
    end
    # plot the part with transformation & color
    return mesh!(scene, m; color=color, transformation=child)
end

function plot_lego_figure(s, floor=true)
    # Plot hierarchical mesh and put all parts into a dictionary
    figure = Dict()
    figure["torso"] = plot_part!(s, s, "torso")
        figure["head"] = plot_part!(s, figure["torso"], "head")
            figure["eyes_mouth"] = plot_part!(s, figure["head"], "eyes_mouth")
        figure["arm_right"] = plot_part!(s, figure["torso"], "arm_right")
            figure["hand_right"] = plot_part!(s, figure["arm_right"], "hand_right")
        figure["arm_left"] = plot_part!(s, figure["torso"], "arm_left")
            figure["hand_left"] = plot_part!(s, figure["arm_left"], "hand_left")
        figure["belt"] = plot_part!(s, figure["torso"], "belt")
            figure["leg_right"] = plot_part!(s, figure["belt"], "leg_right")
            figure["leg_left"] = plot_part!(s, figure["belt"], "leg_left")

    # lift the little guy up
    translate!(figure["torso"], 0, 0, 20)
    # add some floor
    floor && mesh!(s, Rect3f(Vec3f(-400, -400, -2), Vec3f(800, 800, 2)), color=:white)
    return figure
end
App() do session
    s = Scene(resolution=(500, 500))
    cam3d!(s)
    figure = plot_lego_figure(s, false)
    bodies = [
        "arm_left", "arm_right",
        "leg_left", "leg_right"]
    sliders = map(bodies) do name
        slider = if occursin("arm", name)
            JSServe.Slider(-60:4:60)
        else
            JSServe.Slider(-30:4:30)
        end
        rotvec = rotation_axes[name]
        bodymesh = figure[name]
        on(slider) do val
            rotate!(bodymesh, rotvec, deg2rad(val))
        end
        DOM.div(name, slider)
    end
    center!(s)
    JSServe.record_states(session, DOM.div(sliders..., s))
end
