Lighting

The Lighting capabilities of Makie differ between backends and plot types. They are implemented for mesh related plot types (mesh, meshscatter, surface), their derivatives (e.g. 3D arrows) and to some degree volume plots (and contour3d). With respect to Backends:

• GLMakie implements the baseline lighting model and will act as our default for this page.

• WGLMakie implements a simplified version of GLMakie's lighting.

• CairoMakie implements limited lighting due to its limited 3D capabilities

• RPRMakie implements parts of Makies lighting model but can also use more sophisticated methods from RadeonProRender.

Material Attributes

In 3D rendering a material describes how an object reacts to light. This can include the color of an object, how bright and sharp specular reflections are, how metallic it looks, how rough it is and more. In Makie however the model is still fairly simple and limited. Currently the following material attributes are available:

• diffuse::Vec3f = Vec3f(1.0): controls how strong the diffuse reflections of an object are in the red, green and blue color channel. A diffuse reflection is one where incoming light is scattered in every direction. The strength of this reflection is based on the amount of light hitting the surface, which is proportional to dot(light_direction, -normal). It generally makes up the main color of an object in light.

• specular::Vec3f = Vec3f(0.4): controls the strength of specular reflection in the red, green and blue color channels. A specular reflection is a direct reflection of light, i.e. one where the incoming angle dot(light_direction, -normal) matches the outgoing angle dot(camera_direction, -normal). It responsible for bright spots on objects. Note that this does not take the color of the object into account, as specular reflections typically match the light color.

• shininess::Float32 = 32f0: controls how sharp specular reflections are. Low shininess will allow a larger difference between incoming outgoing angle to take effect, creating a larger and smoother bright spot. High shininess will respectively reduce the size of the bright spot and increase its sharpness. This value must be positive.

• backlight::Real = 0 controls how strongly light interacts with the backside of an object. Setting this to a value > 0 can be helpful when visualizing a surface. (More precisely the light calculation is repeated with inverted normals and the result is mixed in with backlight as a prefactor.)

Lighting alogrithm

Lights are controlled through the lights vector in a scene and by the shading attribute in a plot. Generally you will not need to set shading yourself, as it is derived based on the lights vector. The possible options for shading are:

• shading = NoShading disables light calculations, resulting in the plain color of an object being shown.

• shading = FastShading enables a simplified lighting model which only allows for one AmbientLight and one DirectionalLight.

• shading = MultiLightShading is a GLMakie exclusive option which enables multiple light sources (as set in the ScreenConfig, default up to 64) as well as PointLight and SpotLight.

For reference all the lighting calculations (except ambient) in GLMakie, WGLMakie and to some extend CairoMakie end up using the Blinn-Phong reflection model which boils down to

function blinn_phong(
        diffuse, specular, shininess, normal, object_color,
        light_color, light_direction, camera_direction
    )
    diffuse_coefficient = max(dot(light_direction, -normal), 0.0)
    H = normalize(light_direction + camera_direction)
    specular_coefficient = max(dot(H, -normal), 0.0)^shininess
    return light_color * (
        diffuse * diffuse_coefficient * object_color +
        specular * specular_coefficient
    )
end

The different light sources control the light_direction and may further adjust the result of this function. For example, SpotLight adds a factor which reduces light intensity outside its area.

Types of Light

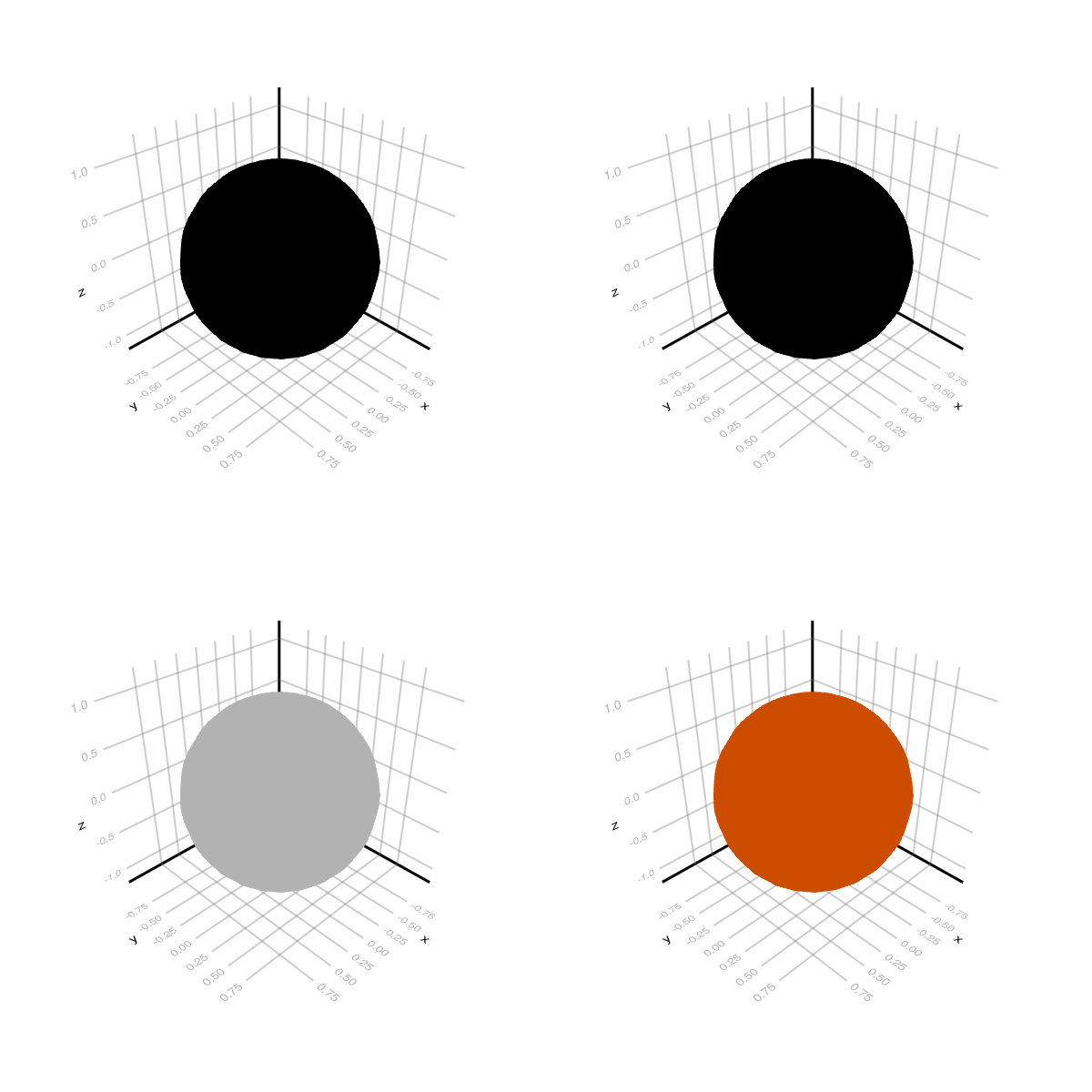

AmbientLight

AmbientLight(color) <: AbstractLight

using CairoMakie

fig = Figure(size = (600, 600))
ax11 = LScene(fig[1, 1], scenekw = (lights = [],))
ax12 = LScene(fig[1, 2], scenekw = (lights = [AmbientLight(RGBf(0, 0, 0))],))
ax21 = LScene(fig[2, 1], scenekw = (lights = [AmbientLight(RGBf(0.7, 0.7, 0.7))],))
ax22 = LScene(fig[2, 2], scenekw = (lights = [AmbientLight(RGBf(0.8, 0.3, 0))],))
for ax in (ax11, ax12, ax21, ax22)
    mesh!(ax, Sphere(Point3f(0), 1f0), color = :white)
end
fig

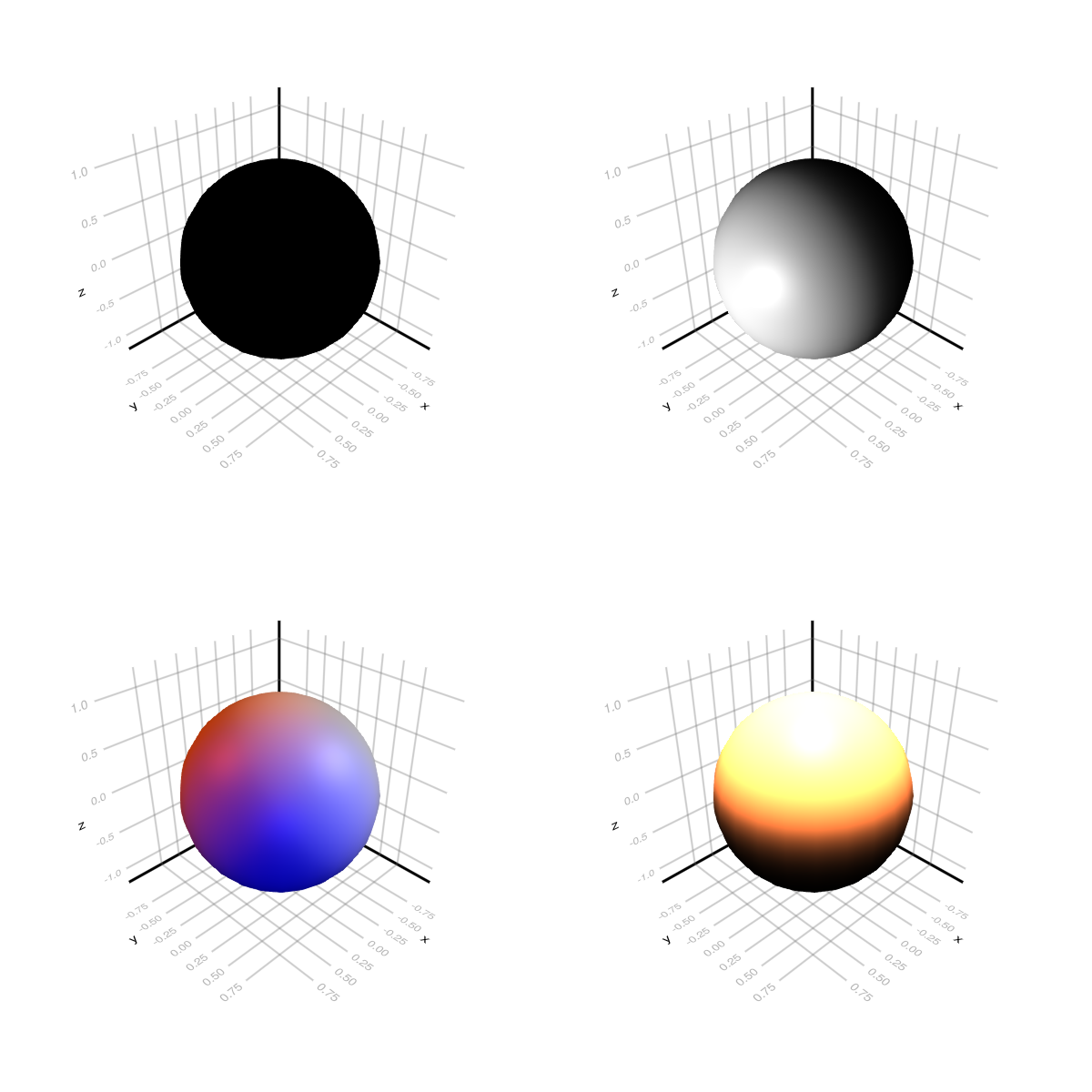

DirectionalLight

DirectionalLight(color, direction[, camera_relative = false])

using GLMakie

fig = Figure(size = (600, 600))
ax11 = LScene(fig[1, 1], scenekw = (lights = [DirectionalLight(RGBf(0, 0, 0), Vec3f(-1, 0, 0))],))
ax12 = LScene(fig[1, 2], scenekw = (lights = [DirectionalLight(RGBf(1, 1, 1), Vec3f(-1, 0, 0))],))
lights = [
    DirectionalLight(RGBf(0, 0, 0.7), Vec3f(-1, -1, 0)),
    DirectionalLight(RGBf(0.7, 0.2, 0), Vec3f(-1, 1, -1)),
    DirectionalLight(RGBf(0.7, 0.7, 0.7), Vec3f(1, -1, -1))
]
ax21 = LScene(fig[2, 1], scenekw = (lights = lights,))
ax22 = LScene(fig[2, 2], scenekw = (lights = [DirectionalLight(RGBf(4, 2, 1), Vec3f(0, 0, -1))],))
for ax in (ax11, ax12, ax21, ax22)
    mesh!(ax, Sphere(Point3f(0), 1f0), color = :white)
end
fig

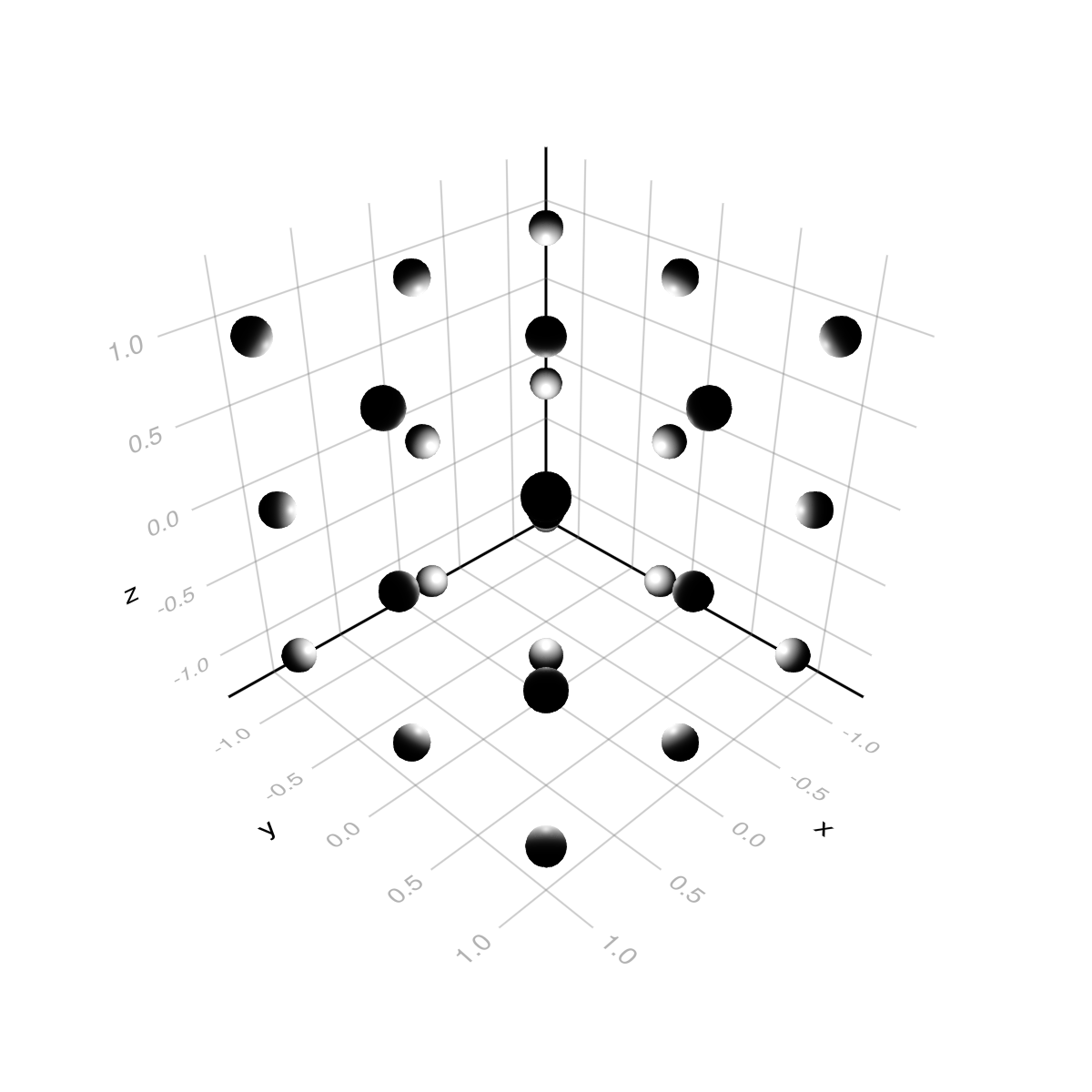

PointLight

PointLight(color, position[, attenuation = Vec2f(0)])
PointLight(color, position, range::Real)

using GLMakie

fig = Figure(size = (600, 600))
ax = LScene(fig[1, 1], scenekw = (lights = [PointLight(RGBf(1, 1, 1), Point3f(0, 0, 0))],))
ps = [Point3f(x, y, z) for x in (-1, 0, 1) for y in (-1, 0, 1) for z in (-1, 0, 1)]
meshscatter!(ax, ps, color = :white)
fig

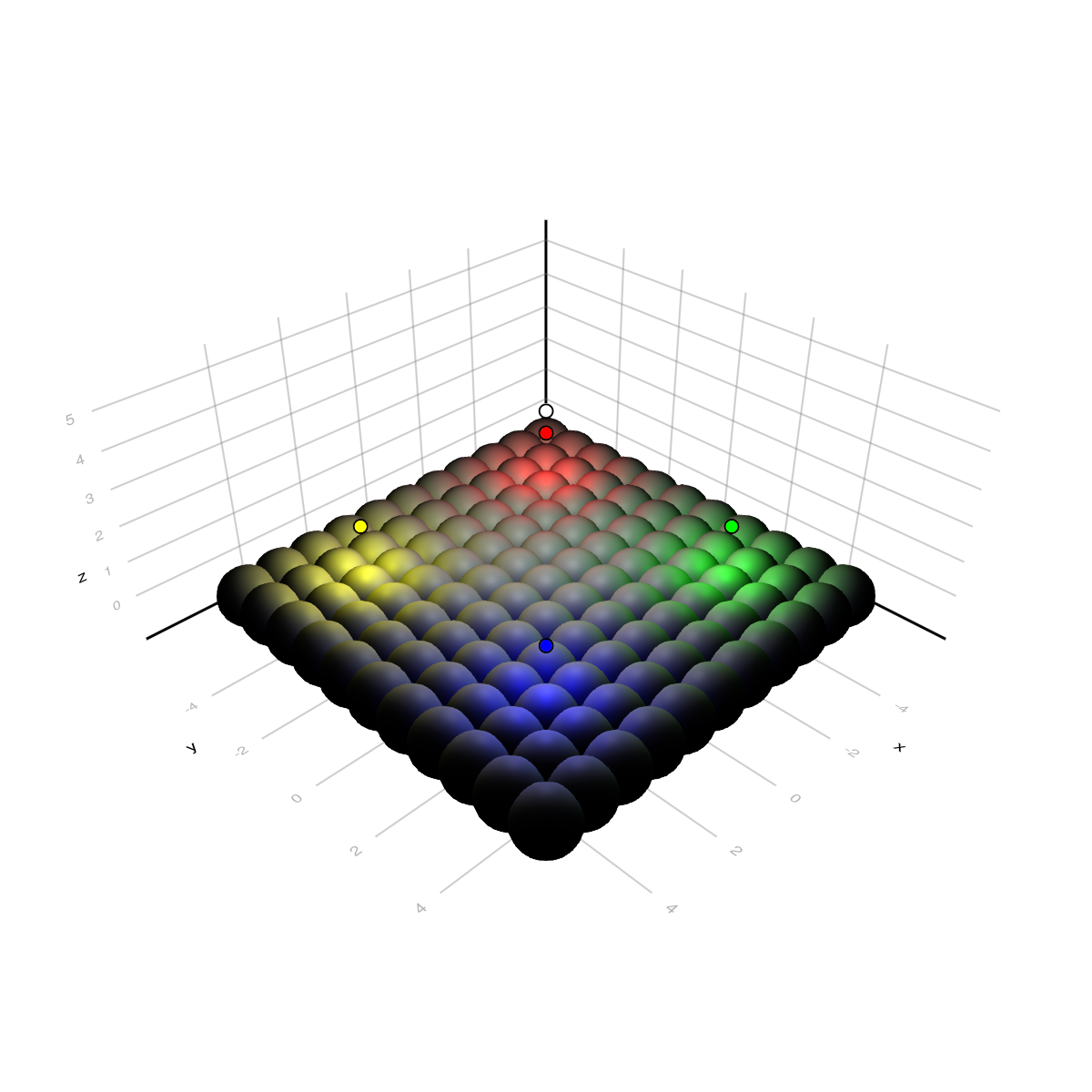

using GLMakie

lights = [
    PointLight(RGBf(1, 1, 1), Point3f(0, 0, 5), 50),
    PointLight(RGBf(2, 0, 0), Point3f(-3, -3, 2), 10),
    PointLight(RGBf(0, 2, 0), Point3f(-3,  3, 2), 10),
    PointLight(RGBf(0, 0, 2), Point3f( 3,  3, 2), 10),
    PointLight(RGBf(2, 2, 0), Point3f( 3, -3, 2), 10),
]

fig = Figure(size = (600, 600))
ax = LScene(fig[1, 1], scenekw = (lights = lights,))
ps = [Point3f(x, y, 0) for x in -5:5 for y in -5:5]
meshscatter!(ax, ps, color = :white, markersize = 0.75)
scatter!(ax, map(l -> l.position[], lights), color = map(l -> l.color[], lights), strokewidth = 1, strokecolor = :black)
fig

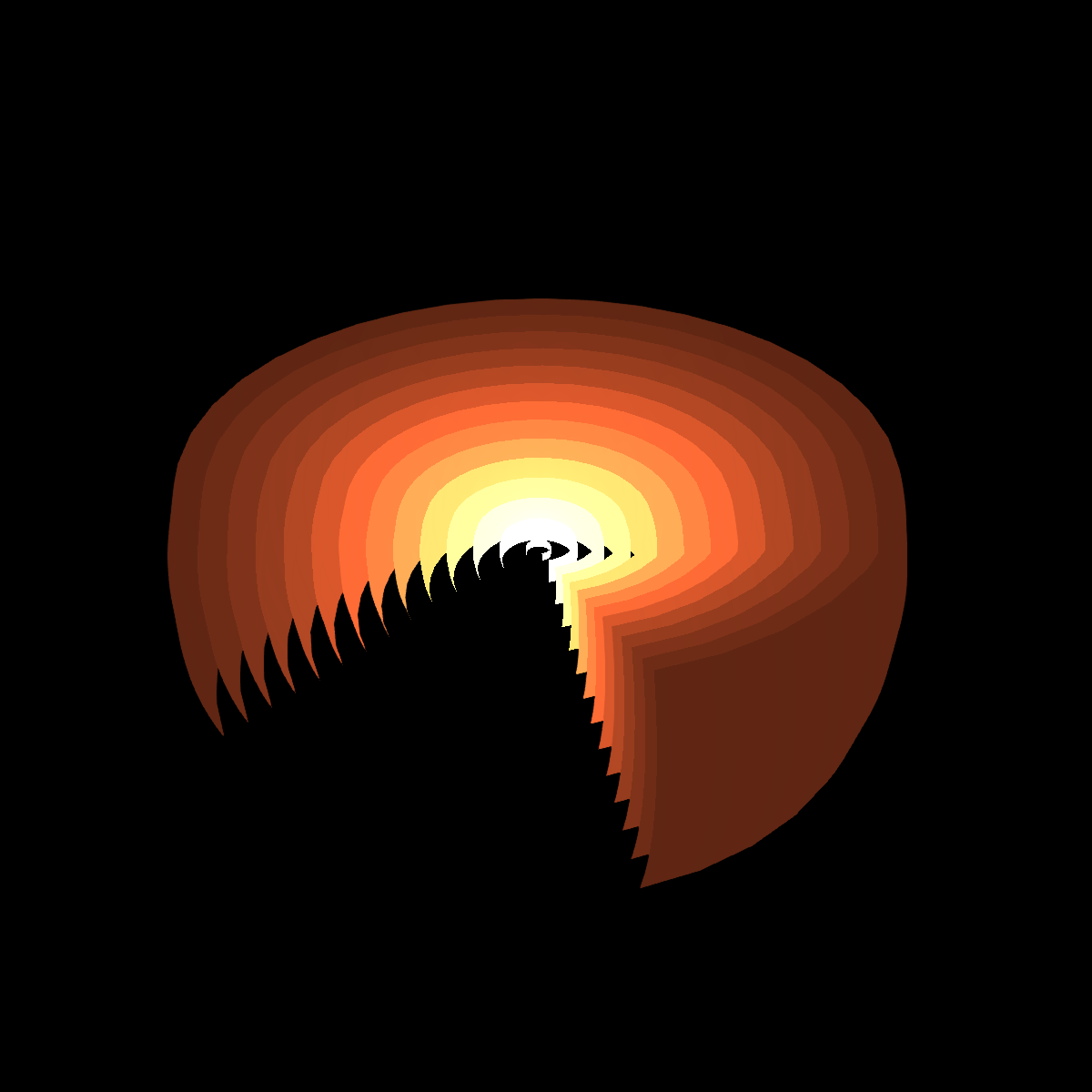

With a strong PointLight and Attenuation you can create different colors at different distances.

using GLMakie, GeometryBasics

ps = [
    Point3f(cosd(phi) * cosd(theta), sind(phi) * cosd(theta), sind(theta))
    for theta in range(-20, 20, length = 21) for phi in range(60, 340, length=30)
]
faces = [QuadFace(30j + i, 30j + mod1(i+1, 30), 30*(j+1) + mod1(i+1, 30), 30*(j+1) + i) for j in 0:19 for i in 1:29]
m = GeometryBasics.Mesh(meta(ps, normals = ps), decompose(GLTriangleFace, faces))

lights = [PointLight(RGBf(10, 4, 2), Point3f(0, 0, 0), 5)]

fig = Figure(size = (600, 600), backgroundcolor = :black)
ax = LScene(fig[1, 1], scenekw = (lights = lights,), show_axis = false)
update_cam!(ax.scene, ax.scene.camera_controls, Rect3f(Point3f(-2), Vec3f(4)))
meshscatter!(
    ax, [Point3f(0) for _ in 1:14], marker = m, markersize = 0.1:0.2:3.0,
    color = :white, backlight = 1, transparency = false)
fig

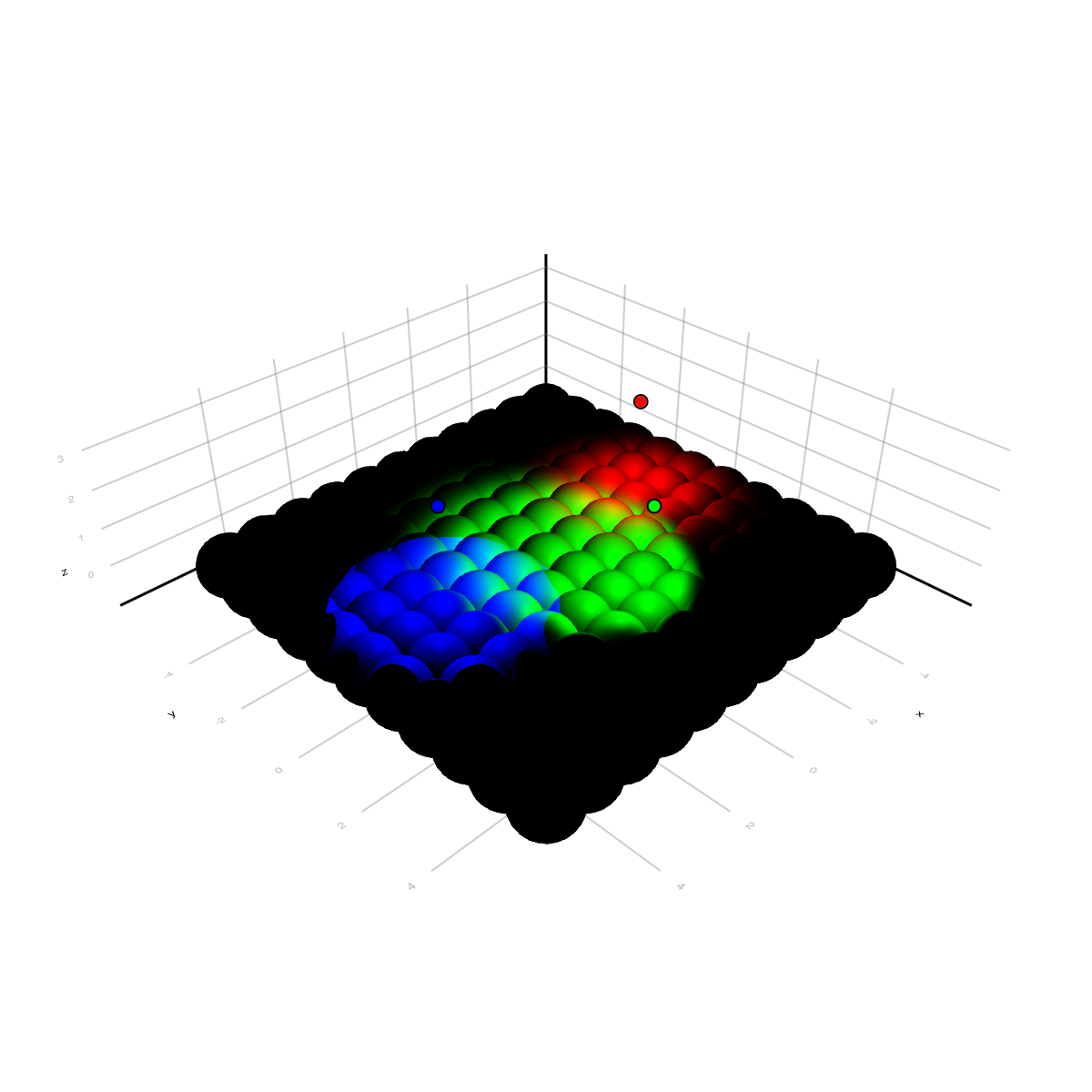

SpotLight

SpotLight(color, position, direction, angles)

using GLMakie

lights = [
    SpotLight(RGBf(1, 0, 0), Point3f(-3, 0, 3), Vec3f(0,  0, -1), Vec2f(0.0, 0.3pi)),
    SpotLight(RGBf(0, 1, 0), Point3f( 0, 3, 3), Vec3f(0, -0.5, -1), Vec2f(0.2pi, 0.25pi)),
    SpotLight(RGBf(0, 0, 1), Point3f( 3, 0, 3), Vec3f(0,  0, -1), Vec2f(0.25pi, 0.25pi)),
]

fig = Figure(size = (600, 600))
ax = LScene(fig[1, 1], scenekw = (lights = lights,))
ps = [Point3f(x, y, 0) for x in -5:5 for y in -5:5]
meshscatter!(ax, ps, color = :white, markersize = 0.75)
scatter!(ax, map(l -> l.position[], lights), color = map(l -> l.color[], lights), strokewidth = 1, strokecolor = :black)
fig

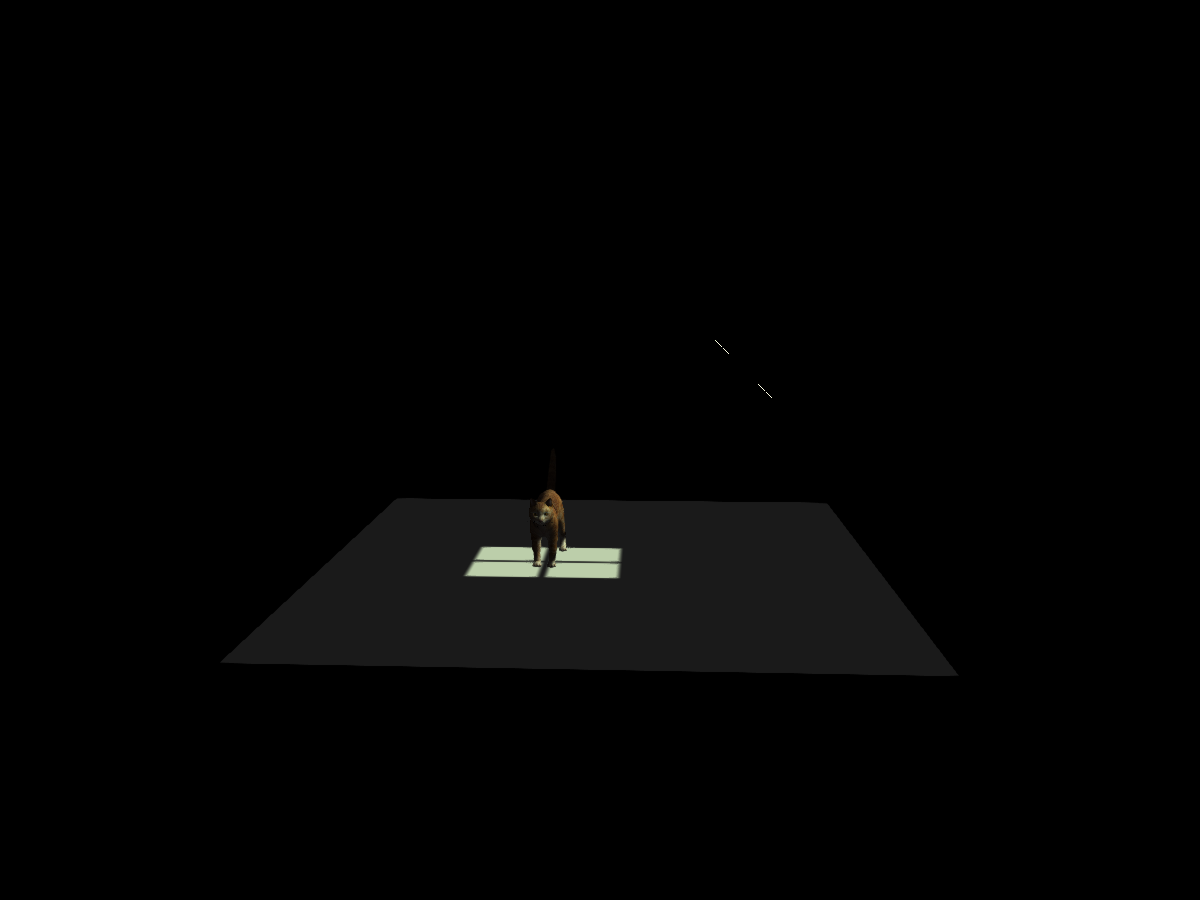

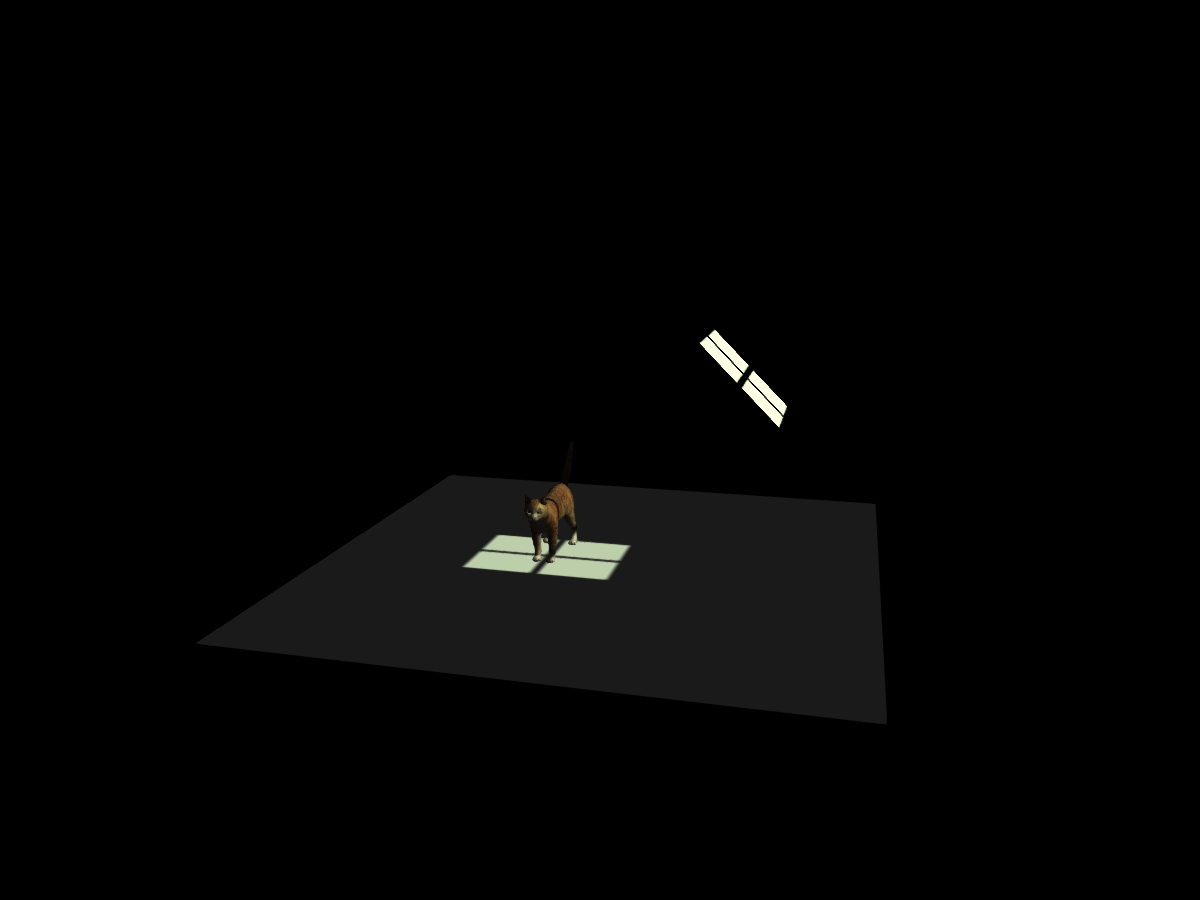

RectLight

RectLight(color, r::Rect2[, direction = -normal])
RectLight(color, center::Point3f, b1::Vec3f, b2::Vec3f[, direction = -normal])

using FileIO, GeometryBasics, LinearAlgebra, GLMakie

# Create mesh from RectLight parameters
function to_mesh(l::RectLight)
    n = -normalize(cross(l.u1[], l.u2[]))
    p = l.position[] - 0.5 * l.u1[] - 0.5 * l.u2[]
    positions = [p, p + l.u1[], p + l.u2[], p + l.u1[] + l.u2[]]
    faces = GLTriangleFace[(1,2,3), (2,3,4)]
    normals = [n,n,n,n]
    return GeometryBasics.Mesh(meta(positions, normals = normals), faces)
end

fig = Figure(backgroundcolor = :black)

# Prepare lights
lights = Makie.AbstractLight[
    AmbientLight(RGBf(0.1, 0.1, 0.1)),
    RectLight(RGBf(0.9, 1, 0.8), Rect2f(-1.9, -1.9, 1.8, 1.8)),
    RectLight(RGBf(0.9, 1, 0.8), Rect2f(-1.9,  0.1, 1.8, 1.8)),
    RectLight(RGBf(0.9, 1, 0.8), Rect2f( 0.1,  0.1, 1.8, 1.8)),
    RectLight(RGBf(0.9, 1, 0.8), Rect2f( 0.1, -1.9, 1.8, 1.8)),
]

for l in lights
    if l isa RectLight
        angle = pi/4
        p = l.position[]
        Makie.rotate!(l, Vec3f(0, 1, 0), angle)

        p = 3 * Vec3f(1+sin(angle), 0, cos(angle)) +
            p[1] * normalize(l.u1[]) +
            p[2] * normalize(l.u2[])
        translate!(l, p)
    end
end

# Set scene
scene = LScene(
    fig[1, 1], show_axis = false,
    scenekw=(lights = lights, backgroundcolor = :black, center = false),
)

# floor
p = mesh!(scene, Rect3f(Point3f(-10, -10, 0.01), Vec3f(20, 20, 0.02)), color = :white)
translate!(p, 0, 0, -5)

# Cat
cat_mesh = FileIO.load(Makie.assetpath("cat.obj"))
cat_texture = FileIO.load(Makie.assetpath("diffusemap.png"))
p2 = mesh!(scene, cat_mesh, color = cat_texture)
Makie.rotate!(p2, Vec3f(1,0,0), pi/2)
translate!(p2, -2, 2, -5)
scale!(p2, Vec3f(4))

# Window/light source markers
for l in lights
    if l isa RectLight
        m = to_mesh(l)
        mesh!(m, color = :white, backlight = 1)
    end
end

# place camera
update_cam!(scene.scene, Vec3f(1.5, -13, 2), Vec3f(1, -2, 0), Vec3f(0, 0, 1))

fig

EnvironmentLight

EnvironmentLight(intensity, image)
