GLMakie also implements screen-space ambient occlusion, which is an algorithm to more accurately simulate the scattering of light. There are a couple of controllable scene attributes nested within the
SSAO toplevel attribute:
radiussets the range of SSAO. You may want to scale this up or down depending on the limits of your coordinate system
biassets the minimum difference in depth required for a pixel to be occluded. Increasing this will typically make the occlusion effect stronger.
blursets the (pixel) range of the blur applied to the occlusion texture. The texture contains a (random) pattern, which is washed out by blurring. Small
blurwill be faster, sharper and more patterned. Large
blurwill be slower and smoother. Typically
blur = 2is a good compromise.
The SSAO postprocessor is turned off by default to save on resources. To turn it on, set
GLMakie.activate!(ssao=true), close any existing GLMakie window and reopen it.

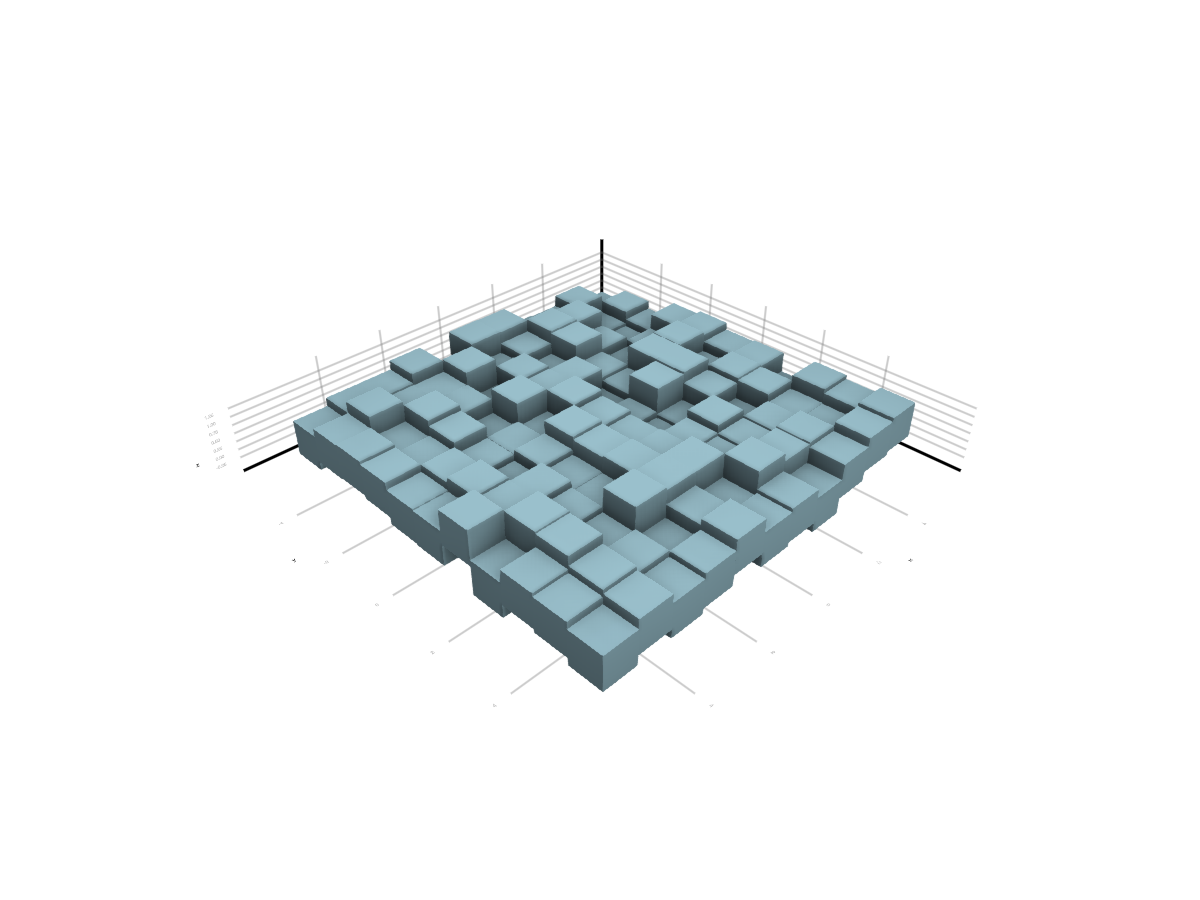

using GLMakie GLMakie.activate!(ssao=true) GLMakie.closeall() # close any open screen fig = Figure() ssao = Makie.SSAO(radius = 5.0, blur = 3) ax = LScene(fig[1, 1], scenekw = (ssao=ssao,)) # SSAO attributes are per scene ax.scene.ssao.bias = 0.025 box = Rect3(Point3f(-0.5), Vec3f(1)) positions = [Point3f(x, y, rand()) for x in -5:5 for y in -5:5] meshscatter!(ax, positions, marker=box, markersize=1, color=:lightblue, ssao=true) fig
