# violin

violin(x, y; kwargs...)

Draw a violin plot.

# Arguments

• x: positions of the categories

• y: variables whose density is computed

# Keywords

• weights: vector of statistical weights (length of data). By default, each observation has weight 1.

• orientation=:vertical: orientation of the violins (:vertical or :horizontal)

• width=1: width of the box before shrinking

• gap=0.2: shrinking factor, width -> width * (1 - gap)

• show_median=false: show median as midline

• side=:both: specify :left or :right to only plot the violin on one side

• datalimits: specify values to trim the violin. Can be a Tuple or a Function (e.g. datalimits=extrema)

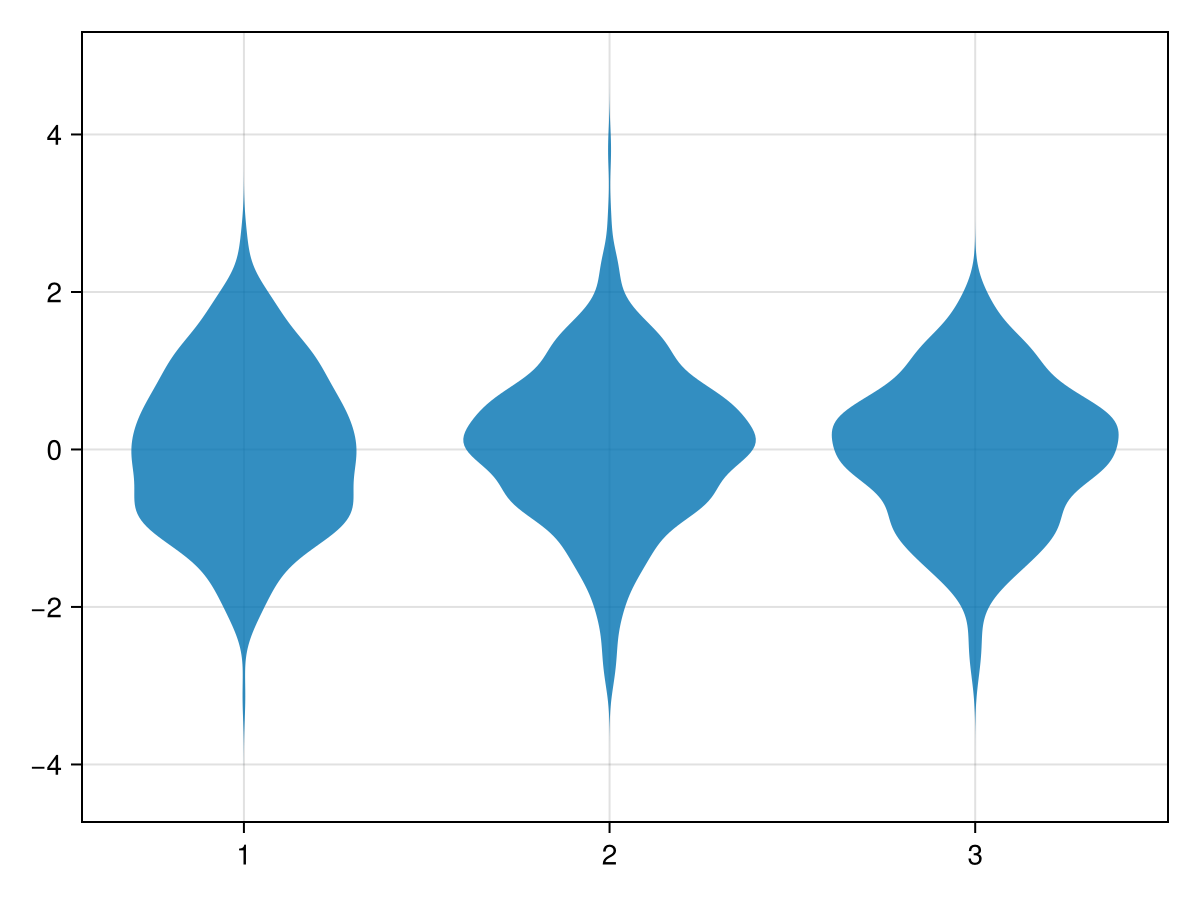

### Examples

using CairoMakie

categories = rand(1:3, 1000)
values = randn(1000)

violin(categories, values)

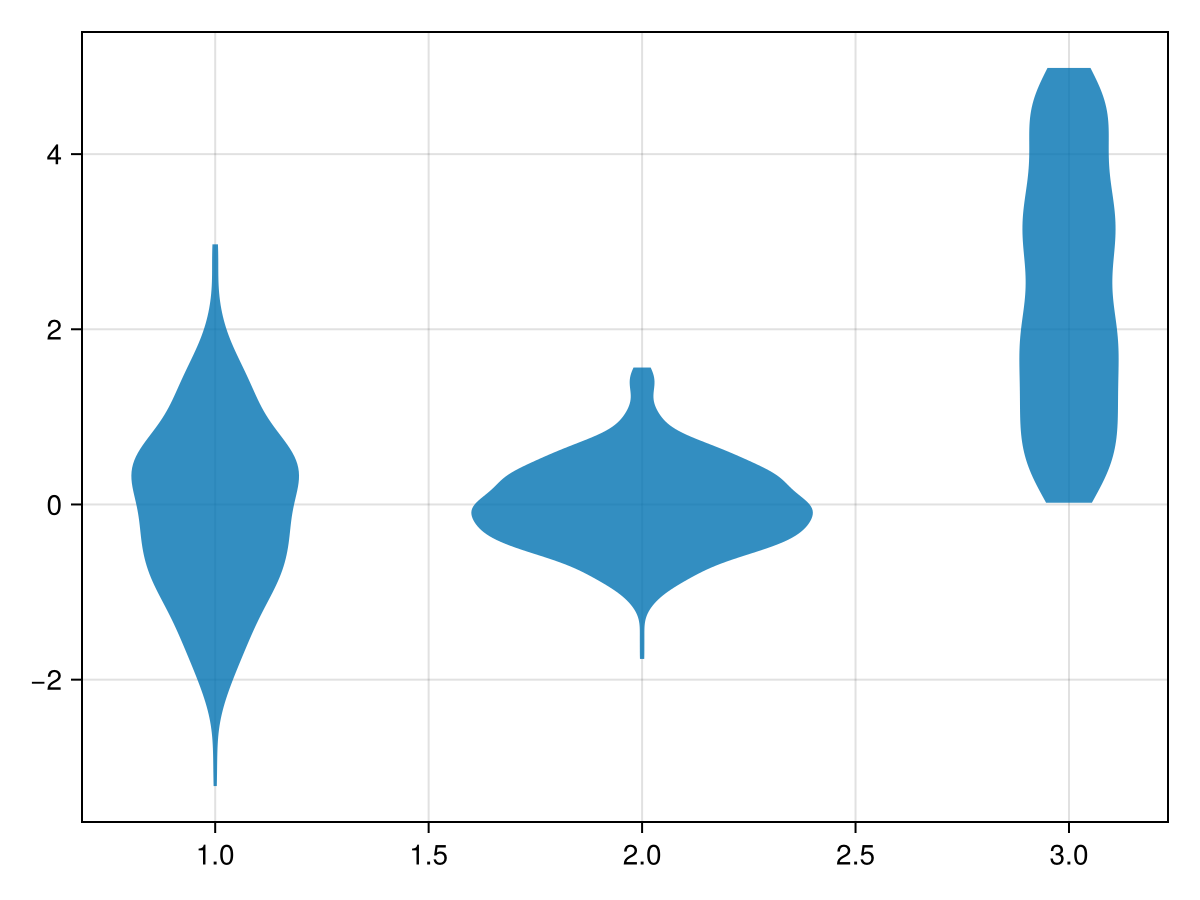

using CairoMakie

categories = rand(1:3, 1000)
values = map(categories) do x
return x == 1 ? randn() : x == 2 ? 0.5 * randn() : 5 * rand()
end

violin(categories, values, datalimits = extrema)

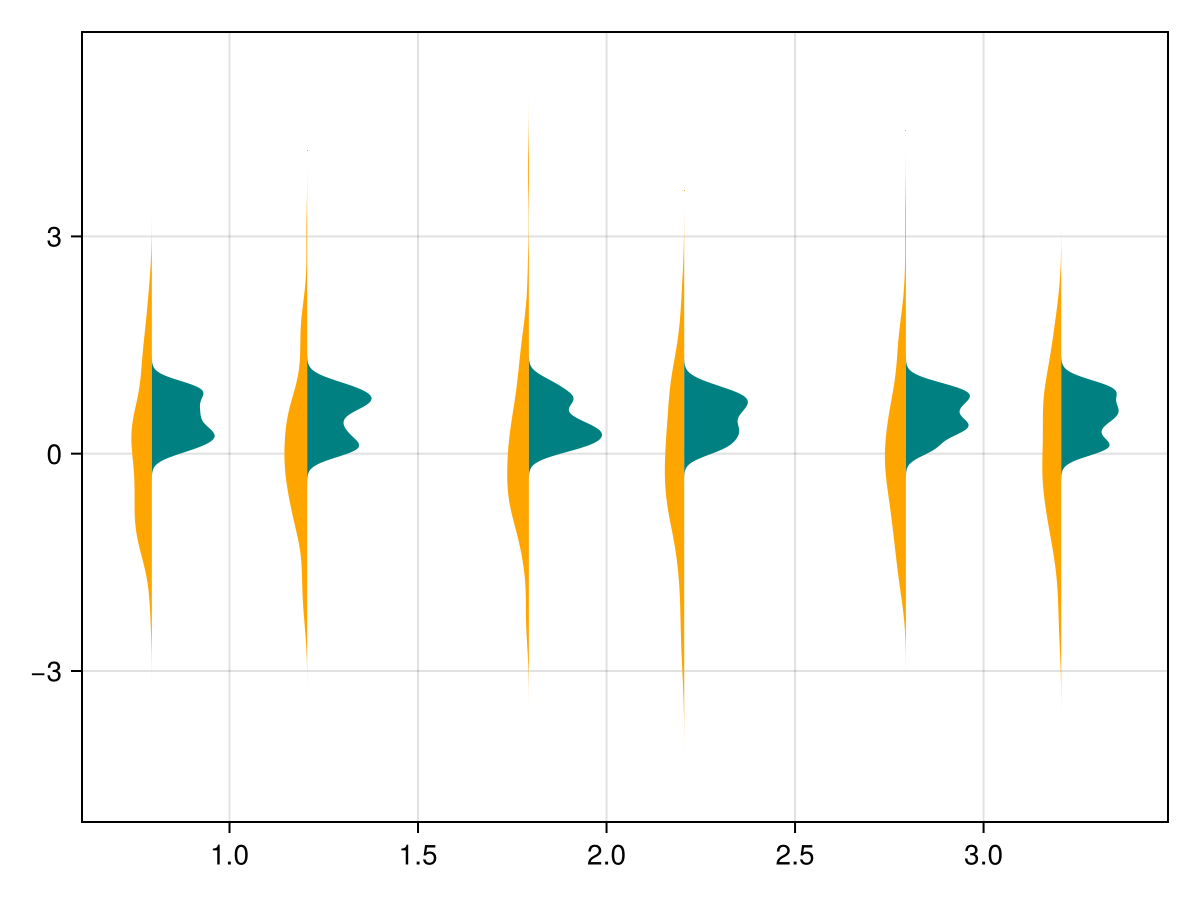

using CairoMakie

N = 1000
categories = rand(1:3, N)
dodge = rand(1:2, N)
side = rand([:left, :right], N)
color = @. ifelse(side === :left, :orange, :teal)
values = map(side) do s
return s === :left ? randn() : rand()
end

violin(categories, values, dodge = dodge, side = side, color = color)

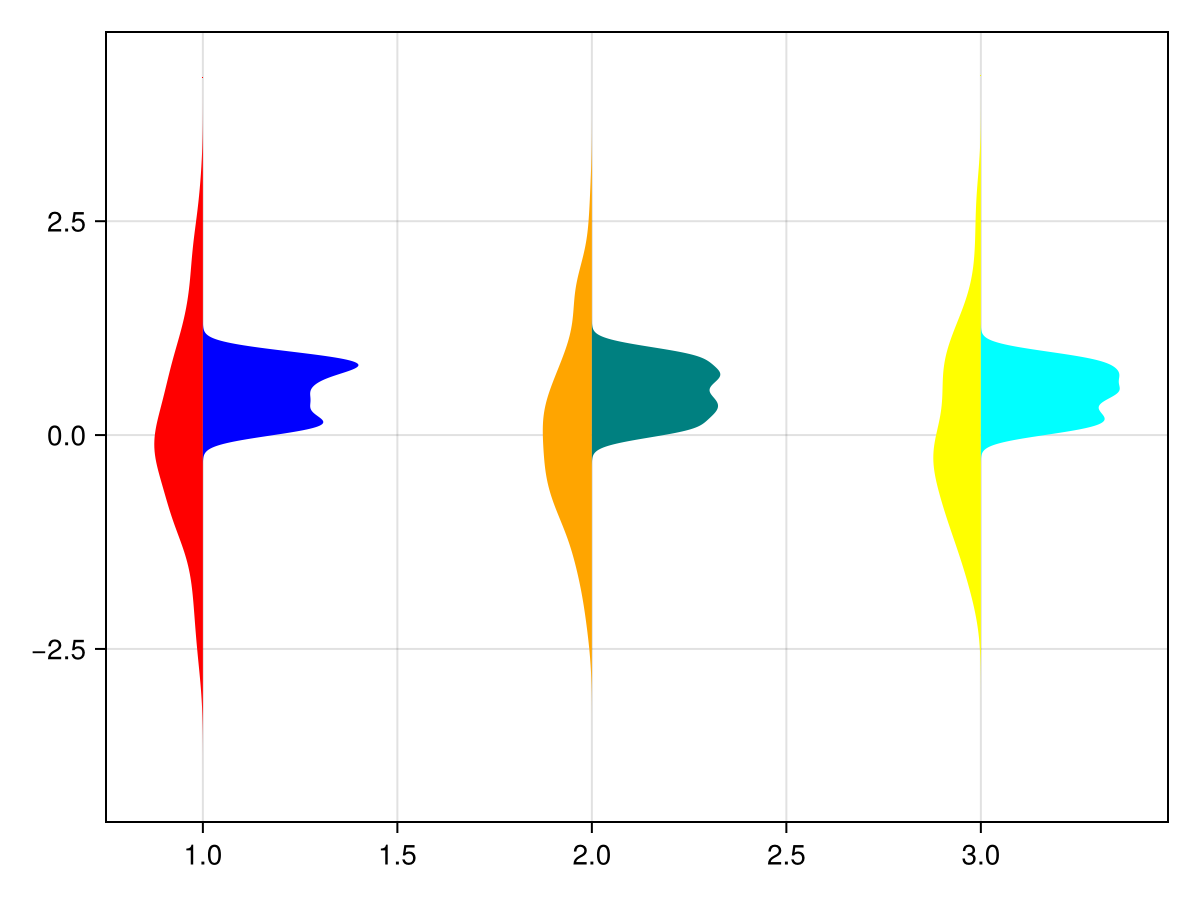

using CairoMakie

N = 1000
categories = rand(1:3, N)
side = rand([:left, :right], N)
color = map(categories, side) do x, s
colors = s === :left ? [:red, :orange, :yellow] : [:blue, :teal, :cyan]
return colors[x]
end
values = map(side) do s
return s === :left ? randn() : rand()
end

violin(categories, values, side = side, color = color)

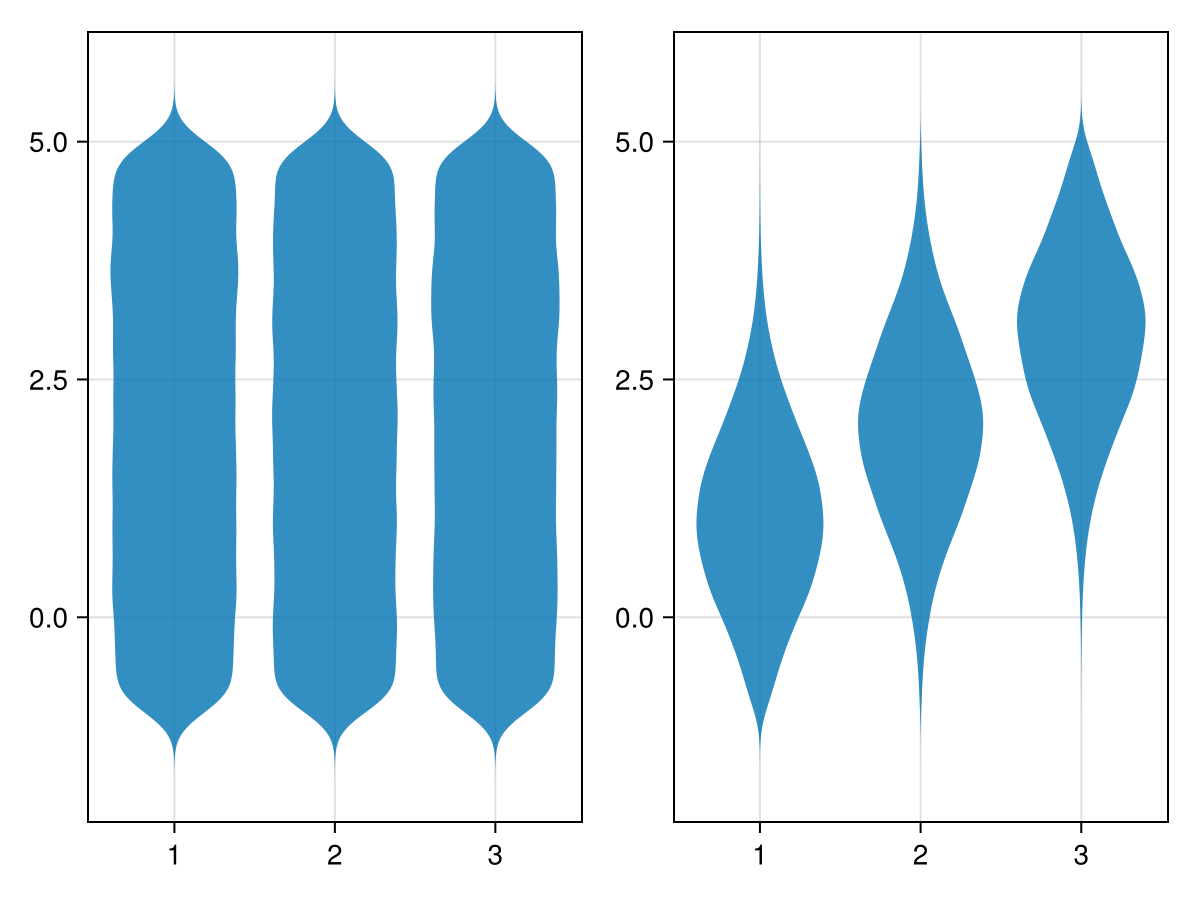

#### Using statistical weights

using CairoMakie, Distributions

N = 100_000
categories = rand(1:3, N)
values = rand(Uniform(-1, 5), N)

w = pdf.(Normal(), categories .- values)

fig = Figure()

violin(fig[1,1], categories, values)
violin(fig[1,2], categories, values, weights = w)

fig

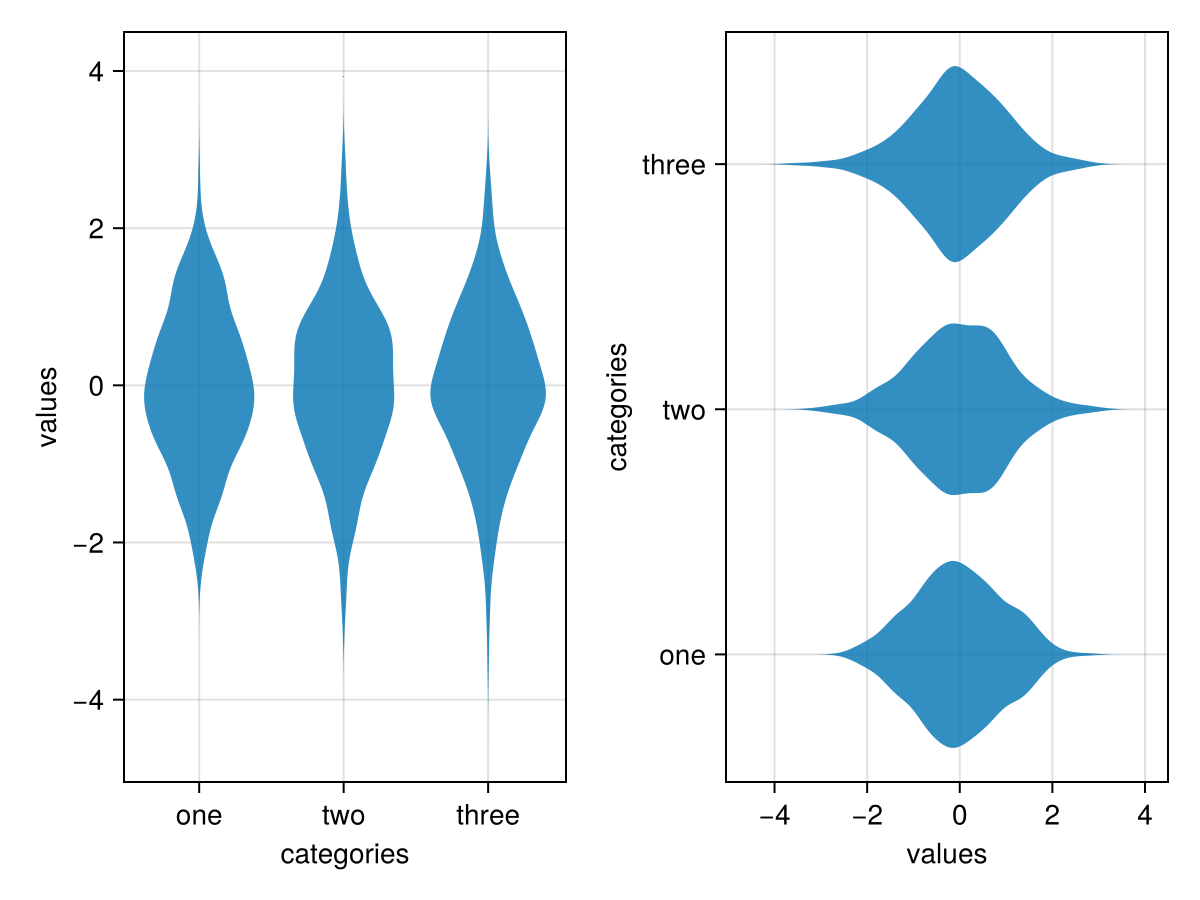

#### Horizontal axis

using CairoMakie

fig = Figure()

categories = rand(1:3, 1000)
values = randn(1000)

ax_vert = Axis(fig[1,1];
xlabel = "categories",
ylabel = "values",
xticks = (1:3, ["one", "two", "three"])
)
ax_horiz = Axis(fig[1,2];
xlabel="values", # note that x/y still correspond to horizontal/vertical axes respectively
ylabel="categories",
yticks=(1:3, ["one", "two", "three"])
)

# Note: same order of category/value, despite different axes
violin!(ax_vert, categories, values) # `orientation=:vertical` is default
violin!(ax_horiz, categories, values; orientation=:horizontal)

fig
