# tricontourf

``````tricontourf(triangles::Triangulation, zs; kwargs...)
tricontourf(xs, ys, zs; kwargs...)``````

Plots a filled tricontour of the height information in `zs` at the horizontal positions `xs` and vertical positions `ys`. A `Triangulation` from DelaunayTriangulation.jl can also be provided instead of `xs` and `ys` for specifying the triangles, otherwise an unconstrained triangulation of `xs` and `ys` is computed.

## Attributes

### Specific to `Tricontourf`

• `levels = 10` can be either an `Int` which results in n bands delimited by n+1 equally spaced levels, or it can be an `AbstractVector{<:Real}` that lists n consecutive edges from low to high, which result in n-1 bands.

• `mode = :normal` sets the way in which a vector of levels is interpreted, if it's set to `:relative`, each number is interpreted as a fraction between the minimum and maximum values of `zs`. For example, `levels = 0.1:0.1:1.0` would exclude the lower 10% of data.

• `extendlow = nothing`. This sets the color of an optional additional band from `minimum(zs)` to the lowest value in `levels`. If it's `:auto`, the lower end of the colormap is picked and the remaining colors are shifted accordingly. If it's any color representation, this color is used. If it's `nothing`, no band is added.

• `extendhigh = nothing`. This sets the color of an optional additional band from the highest value of `levels` to `maximum(zs)`. If it's `:auto`, the high end of the colormap is picked and the remaining colors are shifted accordingly. If it's any color representation, this color is used. If it's `nothing`, no band is added.

• `triangulation = DelaunayTriangulation()`. The mode with which the points in `xs` and `ys` are triangulated. Passing `DelaunayTriangulation()` performs a Delaunay triangulation. You can also pass a preexisting triangulation as an `AbstractMatrix{<:Int}` with size (3, n), where each column specifies the vertex indices of one triangle, or as a `Triangulation` from DelaunayTriangulation.jl.

### Generic

• `visible::Bool = true` sets whether the plot will be rendered or not.

• `overdraw::Bool = false` sets whether the plot will draw over other plots. This specifically means ignoring depth checks in GL backends.

• `transparency::Bool = false` adjusts how the plot deals with transparency. In GLMakie `transparency = true` results in using Order Independent Transparency.

• `fxaa::Bool = false` adjusts whether the plot is rendered with fxaa (anti-aliasing).

• `inspectable::Bool = true` sets whether this plot should be seen by `DataInspector`.

• `depth_shift::Float32 = 0f0` adjusts the depth value of a plot after all other transformations, i.e. in clip space, where `0 <= depth <= 1`. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

• `model::Makie.Mat4f` sets a model matrix for the plot. This replaces adjustments made with `translate!`, `rotate!` and `scale!`.

• `color` sets the color of the plot. It can be given as a named color `Symbol` or a `Colors.Colorant`. Transparency can be included either directly as an alpha value in the `Colorant` or as an additional float in a tuple `(color, alpha)`. The color can also be set for each scattered marker by passing a `Vector` of colors or be used to index the `colormap` by passing a `Real` number or `Vector{<: Real}`.

• `colormap::Union{Symbol, Vector{<:Colorant}} = :viridis` sets the colormap from which the band colors are sampled.

• `colorscale::Function = identity` color transform function.

## Attributes

Available attributes and their defaults for `Plot{Makie.tricontourf}` are:

``````  colormap       :viridis
colorscale     identity
edges          "nothing"
extendhigh     "nothing"
extendlow      "nothing"
inspectable    true
levels         10
mode           :normal
nan_color      :transparent
transparency   false
triangulation  Makie.DelaunayTriangulation()``````

## Examples

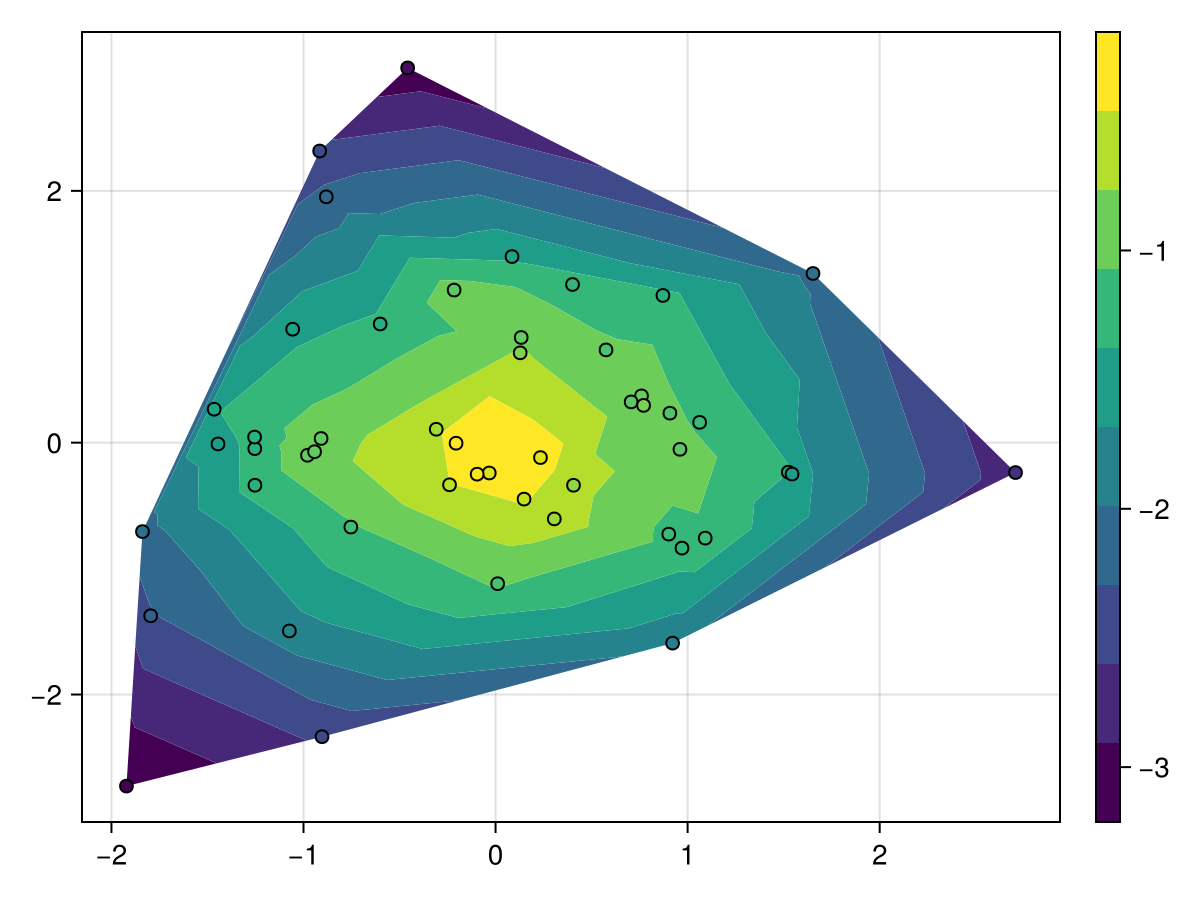

``````using CairoMakie

using Random
Random.seed!(1234)

x = randn(50)
y = randn(50)
z = -sqrt.(x .^ 2 .+ y .^ 2) .+ 0.1 .* randn.()

f, ax, tr = tricontourf(x, y, z)
scatter!(x, y, color = z, strokewidth = 1, strokecolor = :black)
Colorbar(f[1, 2], tr)
f``````

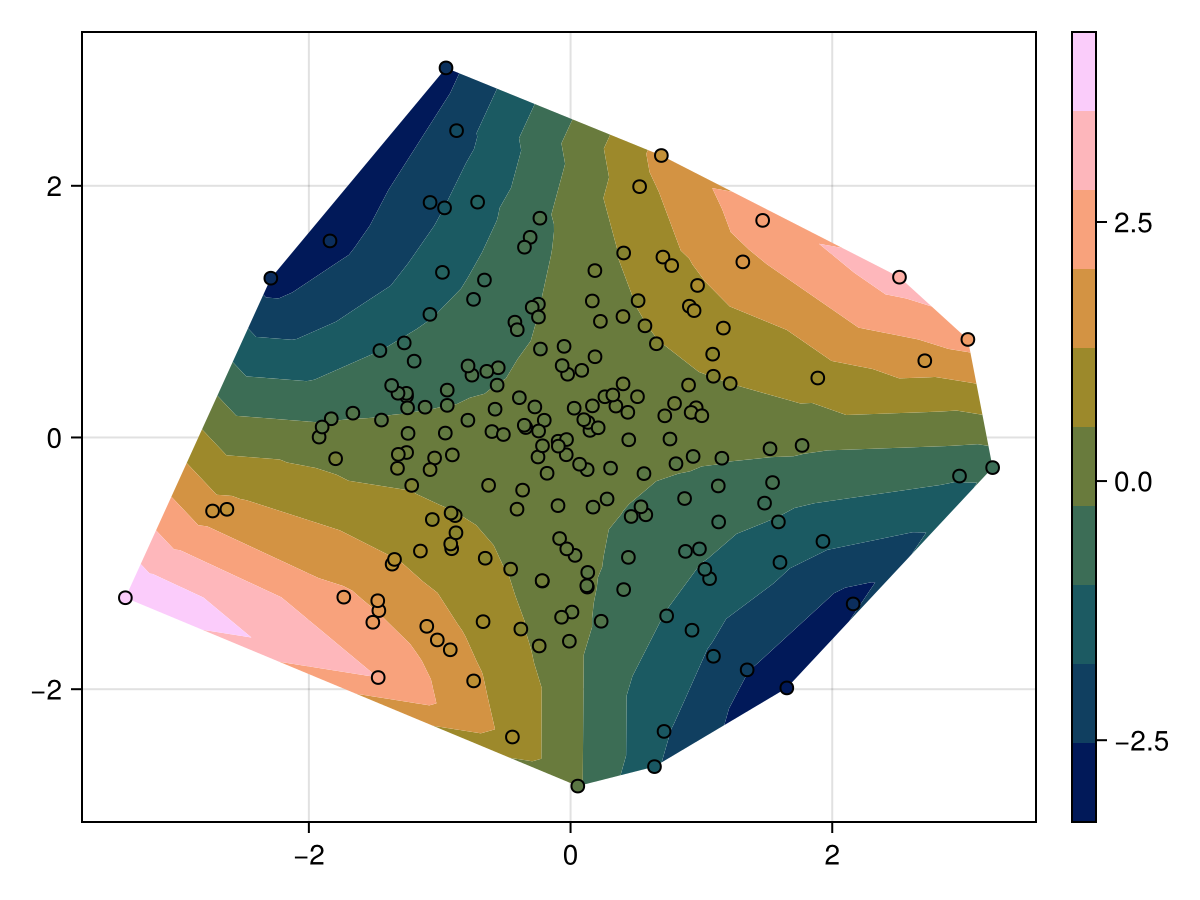

``````using CairoMakie

using Random
Random.seed!(1234)

x = randn(200)
y = randn(200)
z = x .* y

f, ax, tr = tricontourf(x, y, z, colormap = :batlow)
scatter!(x, y, color = z, colormap = :batlow, strokewidth = 1, strokecolor = :black)
Colorbar(f[1, 2], tr)
f``````

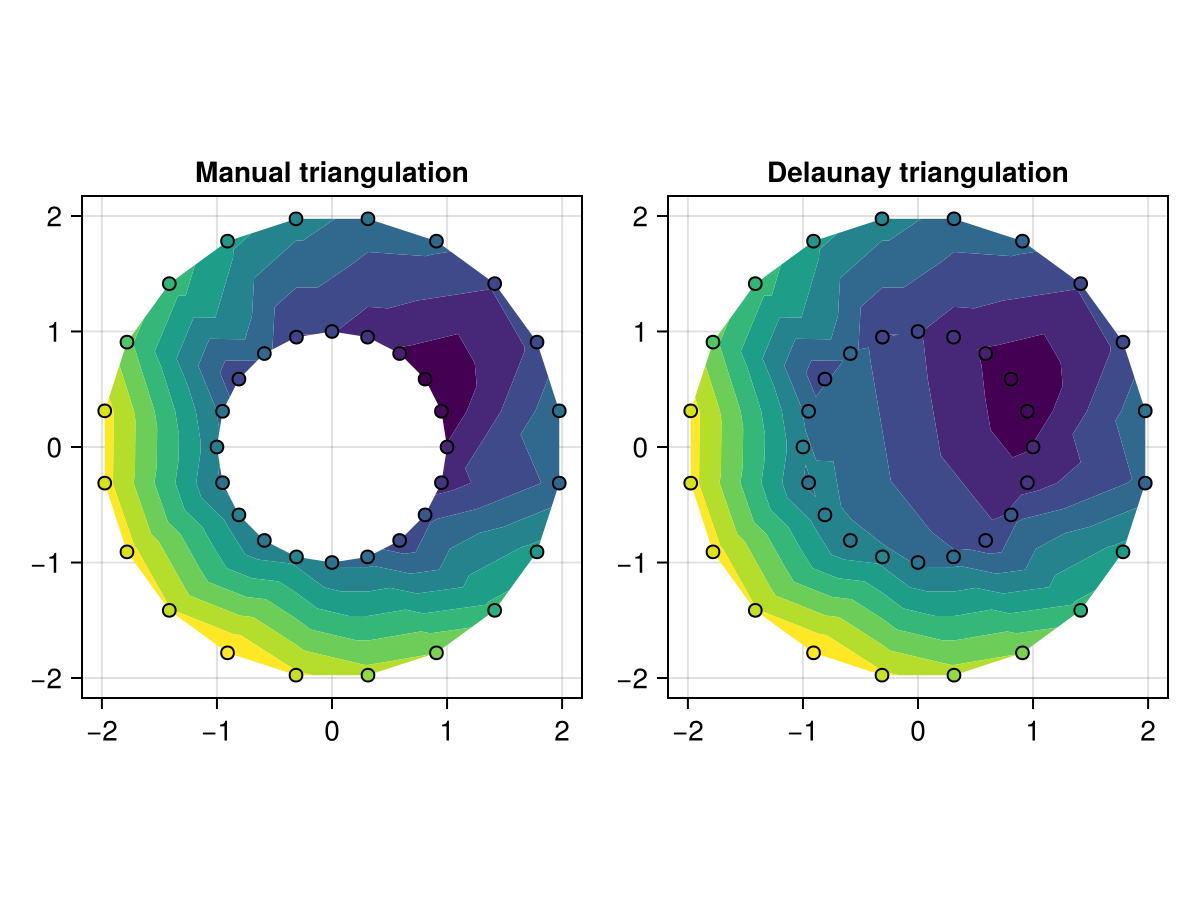

#### Triangulation modes

Manual triangulations can be passed as a 3xN matrix of integers, where each column of three integers specifies the indices of the corners of one triangle in the vector of points.

``````using CairoMakie

using Random
Random.seed!(123)

n = 20
angles = range(0, 2pi, length = n+1)[1:end-1]
x = [cos.(angles); 2 .* cos.(angles .+ pi/n)]
y = [sin.(angles); 2 .* sin.(angles .+ pi/n)]
z = (x .- 0.5).^2 + (y .- 0.5).^2 .+ 0.5.*randn.()

triangulation_inner = reduce(hcat, map(i -> [0, 1, n] .+ i, 1:n))
triangulation_outer = reduce(hcat, map(i -> [n-1, n, 0] .+ i, 1:n))
triangulation = hcat(triangulation_inner, triangulation_outer)

f, ax, _ = tricontourf(x, y, z, triangulation = triangulation,
axis = (; aspect = 1, title = "Manual triangulation"))
scatter!(x, y, color = z, strokewidth = 1, strokecolor = :black)

tricontourf(f[1, 2], x, y, z, triangulation = Makie.DelaunayTriangulation(),
axis = (; aspect = 1, title = "Delaunay triangulation"))
scatter!(x, y, color = z, strokewidth = 1, strokecolor = :black)

f``````

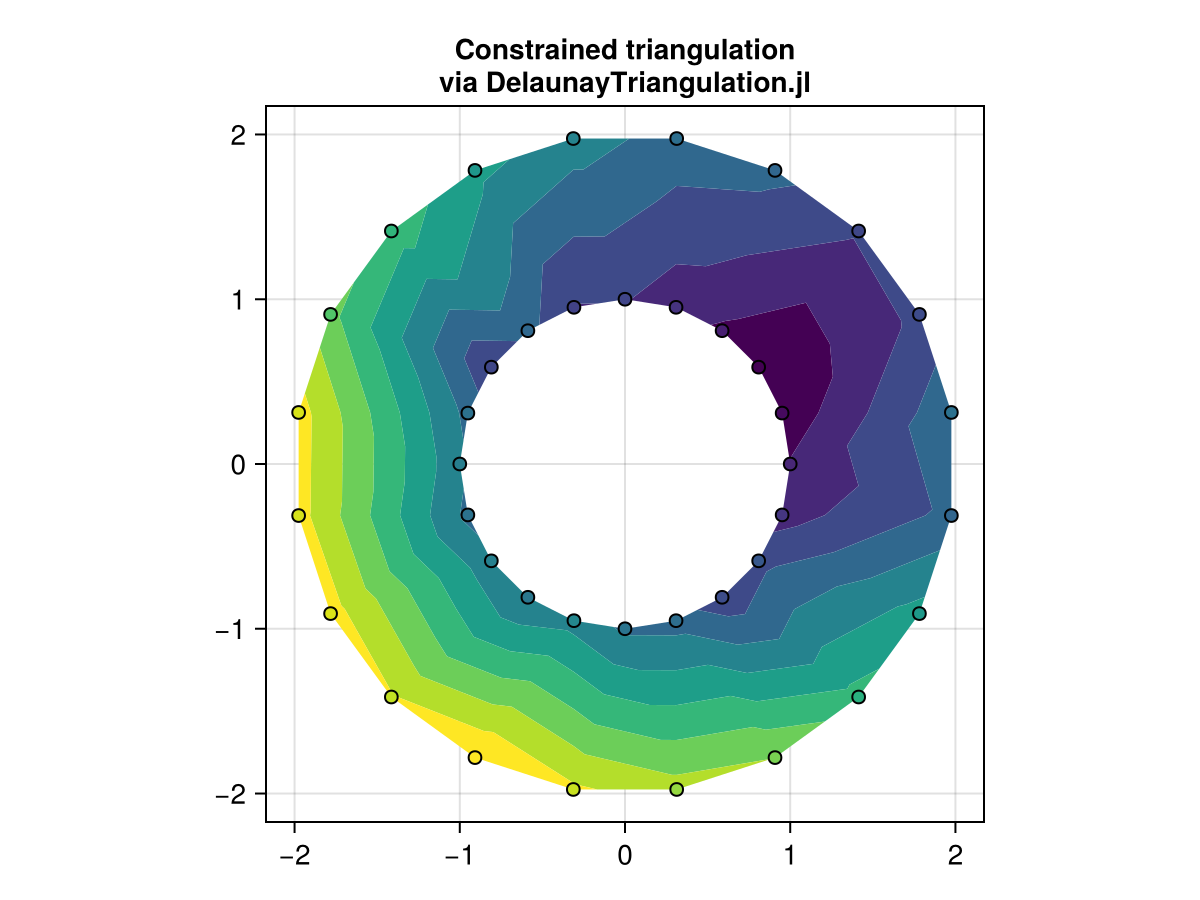

By default, `tricontourf` performs unconstrained triangulations. Greater control over the triangulation, such as allowing for enforced boundaries, can be achieved by using DelaunayTriangulation.jl and passing the resulting triangulation as the first argument of `tricontourf`. For example, the above annulus can also be plotted as follows:

``````using CairoMakie
using DelaunayTriangulation
using Random

Random.seed!(123)

n = 20
angles = range(0, 2pi, length = n+1)[1:end-1]
x = [cos.(angles); 2 .* cos.(angles .+ pi/n)]
y = [sin.(angles); 2 .* sin.(angles .+ pi/n)]
z = (x .- 0.5).^2 + (y .- 0.5).^2 .+ 0.5.*randn.()

inner = [n:-1:1; n] # clockwise inner
outer = [(n+1):(2n); n+1] # counter-clockwise outer
boundary_nodes = [[outer], [inner]]
points = [x'; y']
tri = triangulate(points; boundary_nodes = boundary_nodes)
f, ax, _ = tricontourf(tri, z;
axis = (; aspect = 1, title = "Constrained triangulation\nvia DelaunayTriangulation.jl"))
scatter!(x, y, color = z, strokewidth = 1, strokecolor = :black)
f``````

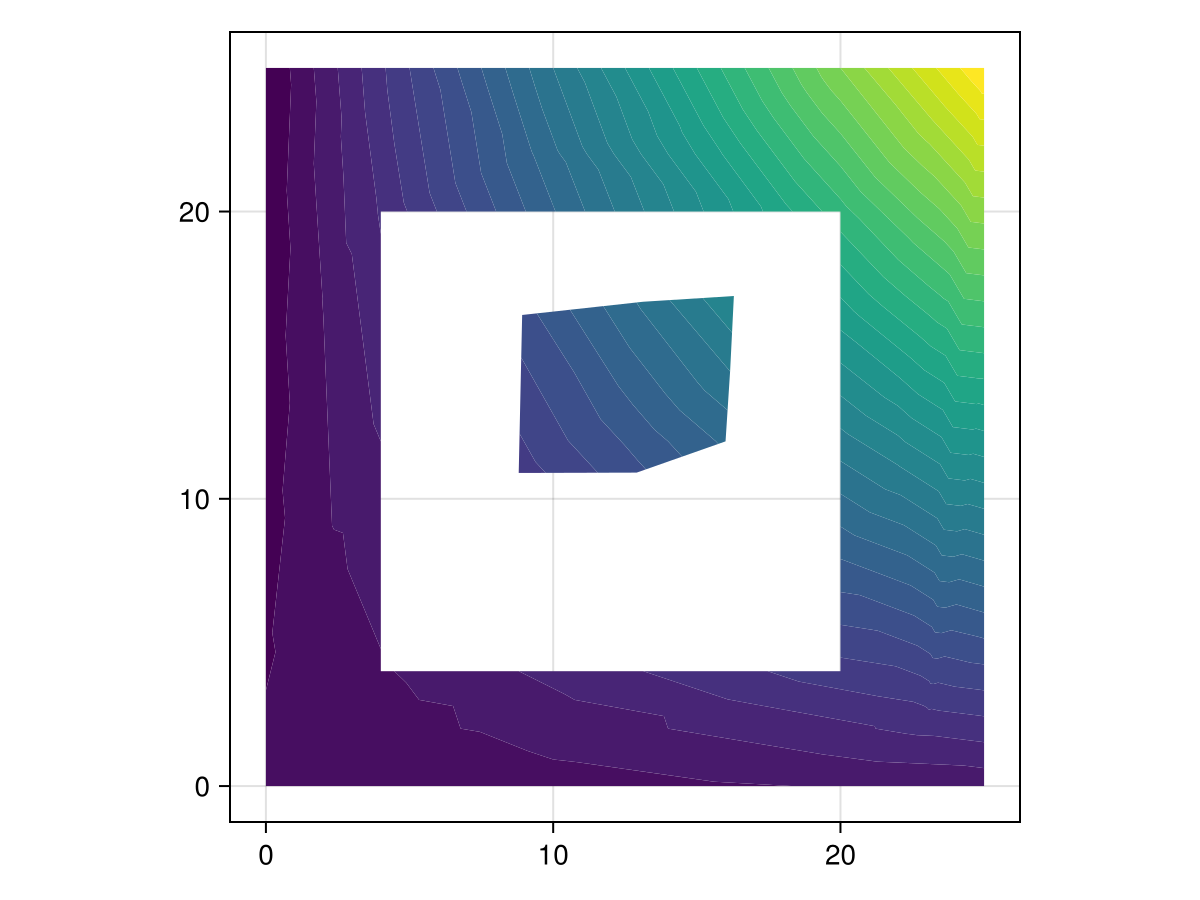

Boundary nodes make it possible to support more complicated regions, possibly with holes, than is possible by only providing points themselves.

``````using CairoMakie
using DelaunayTriangulation

## Start by defining the boundaries, and then convert to the appropriate interface
curve_1 = [
[(0.0, 0.0), (5.0, 0.0), (10.0, 0.0), (15.0, 0.0), (20.0, 0.0), (25.0, 0.0)],
[(25.0, 0.0), (25.0, 5.0), (25.0, 10.0), (25.0, 15.0), (25.0, 20.0), (25.0, 25.0)],
[(25.0, 25.0), (20.0, 25.0), (15.0, 25.0), (10.0, 25.0), (5.0, 25.0), (0.0, 25.0)],
[(0.0, 25.0), (0.0, 20.0), (0.0, 15.0), (0.0, 10.0), (0.0, 5.0), (0.0, 0.0)]
] # outer-most boundary: counter-clockwise
curve_2 = [
[(4.0, 6.0), (4.0, 14.0), (4.0, 20.0), (18.0, 20.0), (20.0, 20.0)],
[(20.0, 20.0), (20.0, 16.0), (20.0, 12.0), (20.0, 8.0), (20.0, 4.0)],
[(20.0, 4.0), (16.0, 4.0), (12.0, 4.0), (8.0, 4.0), (4.0, 4.0), (4.0, 6.0)]
] # inner boundary: clockwise
curve_3 = [
[(12.906, 10.912), (16.0, 12.0), (16.16, 14.46), (16.29, 17.06),
(13.13, 16.86), (8.92, 16.4), (8.8, 10.9), (12.906, 10.912)]
] # this is inside curve_2, so it's counter-clockwise
curves = [curve_1, curve_2, curve_3]
points = [
(3.0, 23.0), (9.0, 24.0), (9.2, 22.0), (14.8, 22.8), (16.0, 22.0),
(23.0, 23.0), (22.6, 19.0), (23.8, 17.8), (22.0, 14.0), (22.0, 11.0),
(24.0, 6.0), (23.0, 2.0), (19.0, 1.0), (16.0, 3.0), (10.0, 1.0), (11.0, 3.0),
(6.0, 2.0), (6.2, 3.0), (2.0, 3.0), (2.6, 6.2), (2.0, 8.0), (2.0, 11.0),
(5.0, 12.0), (2.0, 17.0), (3.0, 19.0), (6.0, 18.0), (6.5, 14.5),
(13.0, 19.0), (13.0, 12.0), (16.0, 8.0), (9.8, 8.0), (7.5, 6.0),
(12.0, 13.0), (19.0, 15.0)
]
boundary_nodes, points = convert_boundary_points_to_indices(curves; existing_points=points)
edges = Set(((1, 19), (19, 12), (46, 4), (45, 12)))

## Extract the x, y
tri = triangulate(points; boundary_nodes = boundary_nodes, edges = edges, check_arguments = false)
z = [(x - 1) * (y + 1) for (x, y) in each_point(tri)] # note that each_point preserves the index order
f, ax, _ = tricontourf(tri, z, levels = 30; axis = (; aspect = 1))
f``````

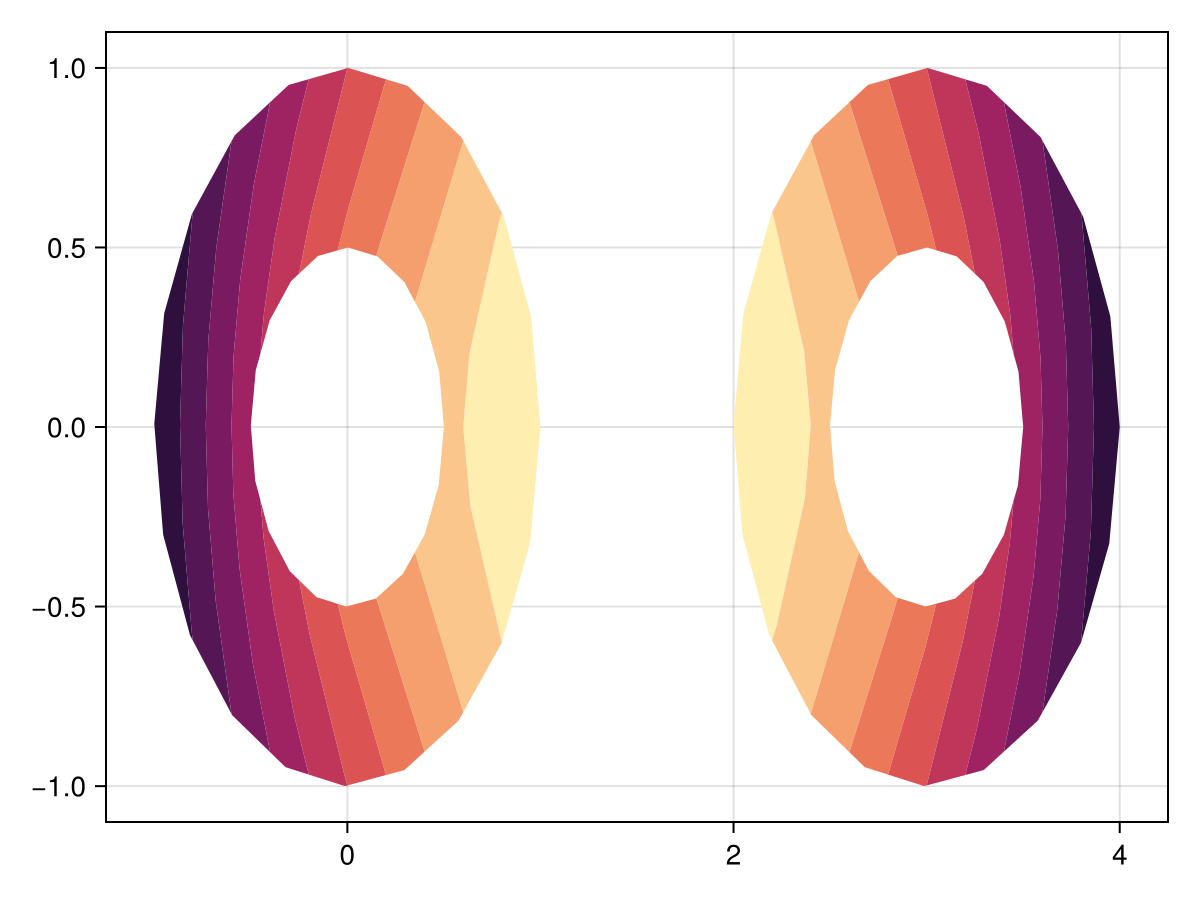

``````using CairoMakie
using DelaunayTriangulation

using Random
Random.seed!(1234)

θ = [LinRange(0, 2π * (1 - 1/19), 20); 0]
xy = Vector{Vector{Vector{NTuple{2,Float64}}}}()
cx = [0.0, 3.0]
for i in 1:2
push!(xy, [[(cx[i] + cos(θ), sin(θ)) for θ in θ]])
push!(xy, [[(cx[i] + 0.5cos(θ), 0.5sin(θ)) for θ in reverse(θ)]])
end
boundary_nodes, points = convert_boundary_points_to_indices(xy)
tri = triangulate(points; boundary_nodes=boundary_nodes, check_arguments=false)
z = [(x - 3/2)^2 + y^2 for (x, y) in each_point(tri)] # note that each_point preserves the index order

f, ax, tr = tricontourf(tri, z, colormap = :matter)
f``````

#### Relative mode

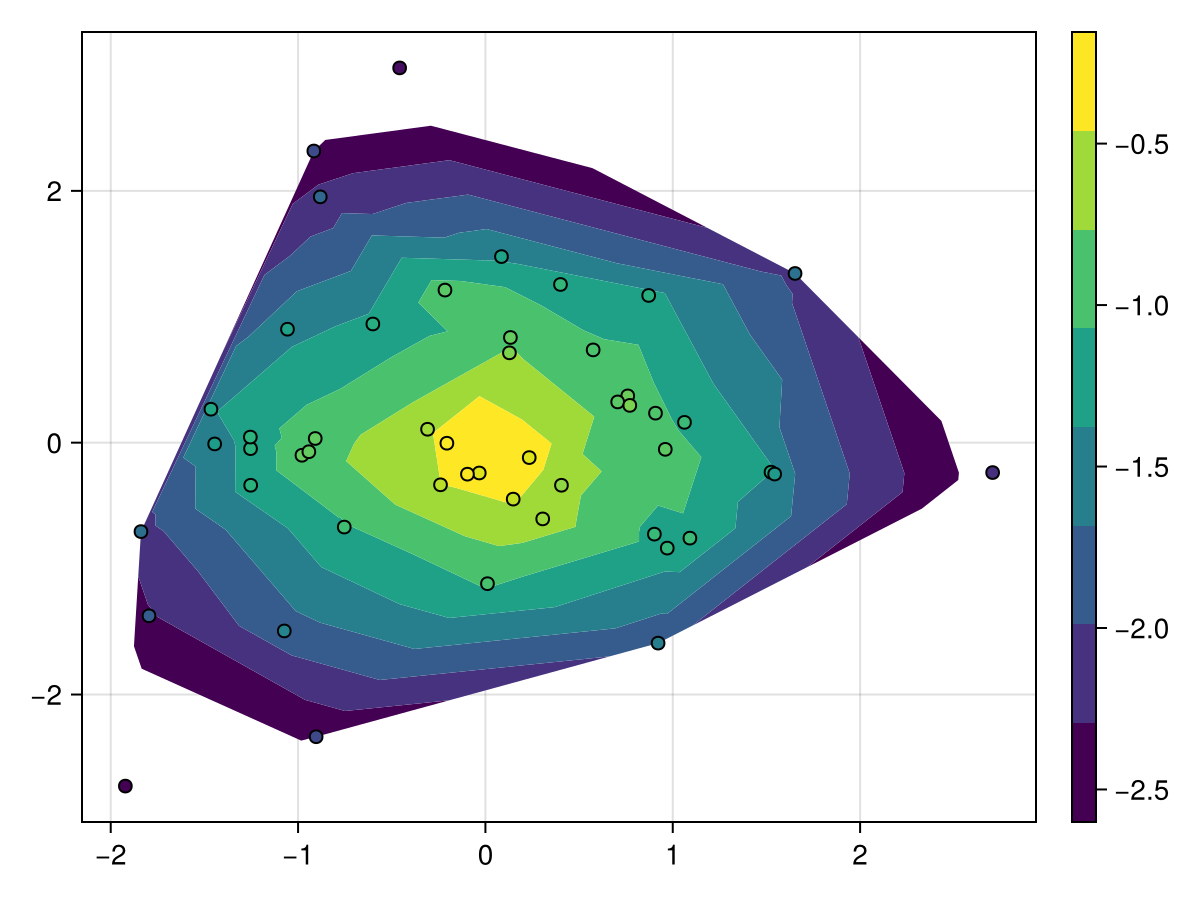

Sometimes it's beneficial to drop one part of the range of values, usually towards the outer boundary. Rather than specifying the levels to include manually, you can set the `mode` attribute to `:relative` and specify the levels from 0 to 1, relative to the current minimum and maximum value.

``````using CairoMakie

using Random
Random.seed!(1234)

x = randn(50)
y = randn(50)
z = -sqrt.(x .^ 2 .+ y .^ 2) .+ 0.1 .* randn.()

f, ax, tr = tricontourf(x, y, z, mode = :relative, levels = 0.2:0.1:1)
scatter!(x, y, color = z, strokewidth = 1, strokecolor = :black)
Colorbar(f[1, 2], tr)
f``````
