tooltip
tooltip(position, string)
tooltip(x, y, string)
Creates a tooltip pointing at position
displaying the given `string
Plot type
The plot type alias for the tooltip
function is Tooltip
.
Attributes
align
= 0.5
— Sets the alignment of the tooltip relative position
. With align = 0.5
the tooltip is centered above/below/left/right the position
.
backgroundcolor
= :white
— Sets the background color of the tooltip.
depth_shift
= 0.0
— adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1
. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
font
= @inherit font
— Sets the font.
fontsize
= 16
— Sets the text size in screen units.
fxaa
= true
— adjusts whether the plot is rendered with fxaa (anti-aliasing, GLMakie only).
inspectable
= false
— sets whether this plot should be seen by DataInspector
.
inspector_clear
= automatic
— Sets a callback function (inspector, plot) -> ...
for cleaning up custom indicators in DataInspector.
inspector_hover
= automatic
— Sets a callback function (inspector, plot, index) -> ...
which replaces the default show_data
methods.
inspector_label
= automatic
— Sets a callback function (plot, index, position) -> string
which replaces the default label generated by DataInspector.
justification
= :left
— Sets whether text is aligned to the :left
, :center
or :right
within its bounding box.
model
= automatic
— Sets a model matrix for the plot. This overrides adjustments made with translate!
, rotate!
and scale!
.
offset
= 10
— Sets the offset between the given position
and the tip of the triangle pointing at that position.
outline_color
= :black
— Sets the color of the tooltip outline.
outline_linestyle
= nothing
— Sets the linestyle of the tooltip outline.
outline_linewidth
= 2.0
— Sets the linewidth of the tooltip outline.
overdraw
= false
— Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
placement
= :above
— Sets where the tooltip should be placed relative to position
. Can be :above
, :below
, :left
, :right
.
space
= :data
— sets the transformation space for box encompassing the plot. See Makie.spaces()
for possible inputs.
ssao
= false
— Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true
.
strokecolor
= :white
— Sets the text outline color.
strokewidth
= 0
— Gives text an outline if set to a positive value.
text
= ""
— No docs available.
textcolor
= @inherit textcolor
— Sets the text color.
textpadding
= (4, 4, 4, 4)
— Sets the padding around text in the tooltip. This is given as (left, right, bottom, top)
offsets.
transformation
= automatic
— No docs available.
transparency
= false
— Adjusts how the plot deals with transparency. In GLMakie transparency = true
results in using Order Independent Transparency.
triangle_size
= 10
— Sets the size of the triangle pointing at position
.
visible
= true
— Controls whether the plot will be rendered or not.
xautolimits
= false
— No docs available.
yautolimits
= false
— No docs available.
zautolimits
= false
— No docs available.
Examples

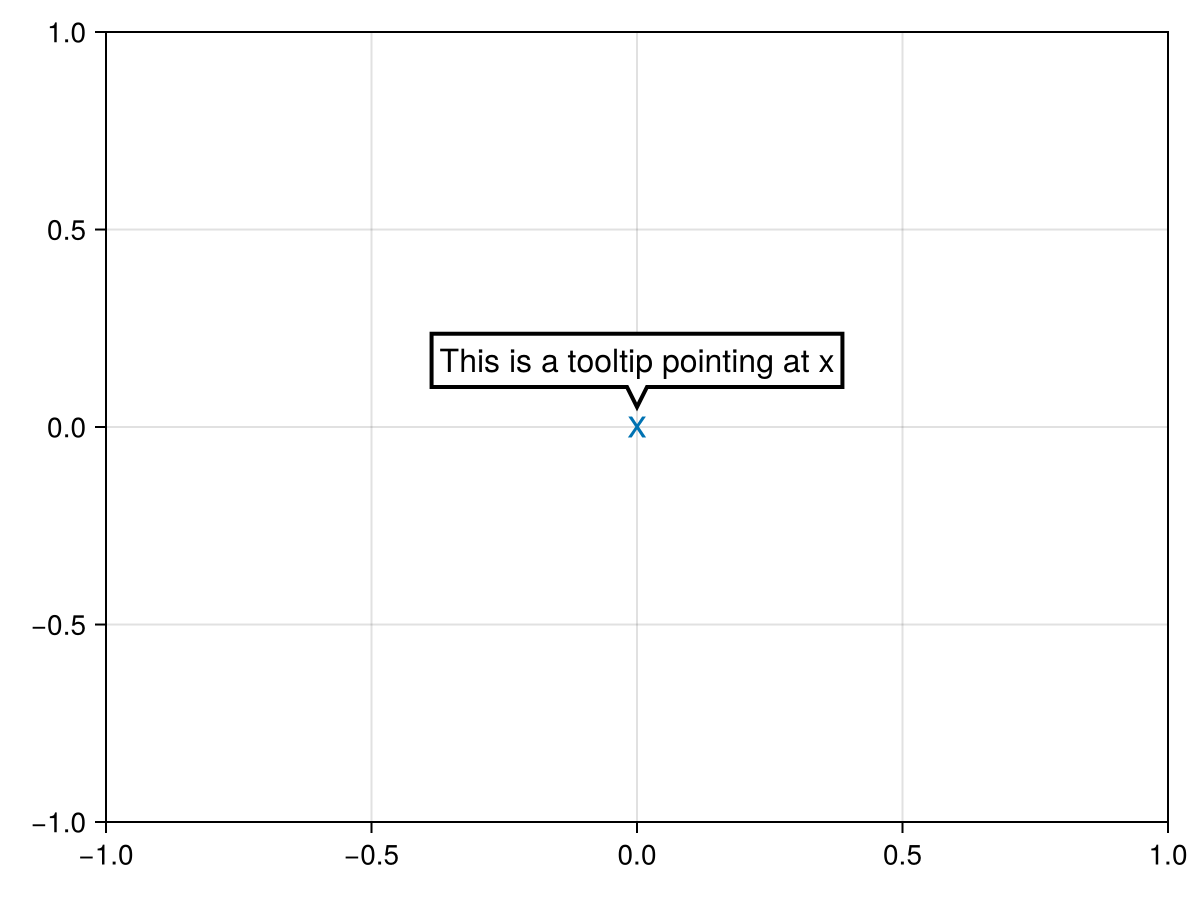

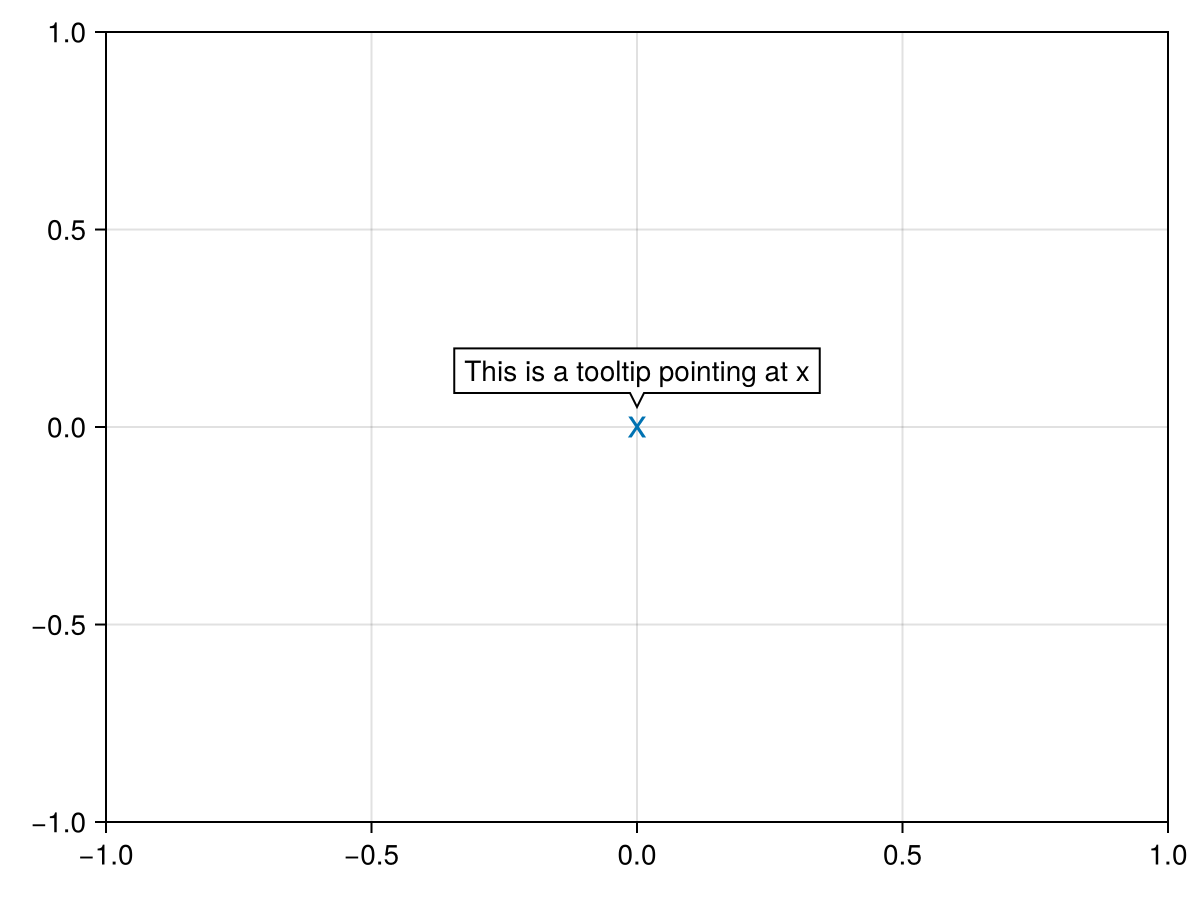

Basic tooltip
using CairoMakie
fig, ax, p = scatter(Point2f(0), marker = 'x', markersize = 20)
tooltip!(Point2f(0), "This is a tooltip pointing at x")
fig
These docs were autogenerated using Makie: v0.21.0, GLMakie: v0.10.0, CairoMakie: v0.12.0, WGLMakie: v0.10.0
